Bently Nevada 330103-05-10-10-12-05 Spare Part for Factory Uptime

Overview

Bently Nevada 330103-05-10-10-12-05 Maintenance-Proven Spare Part for Factory Uptime

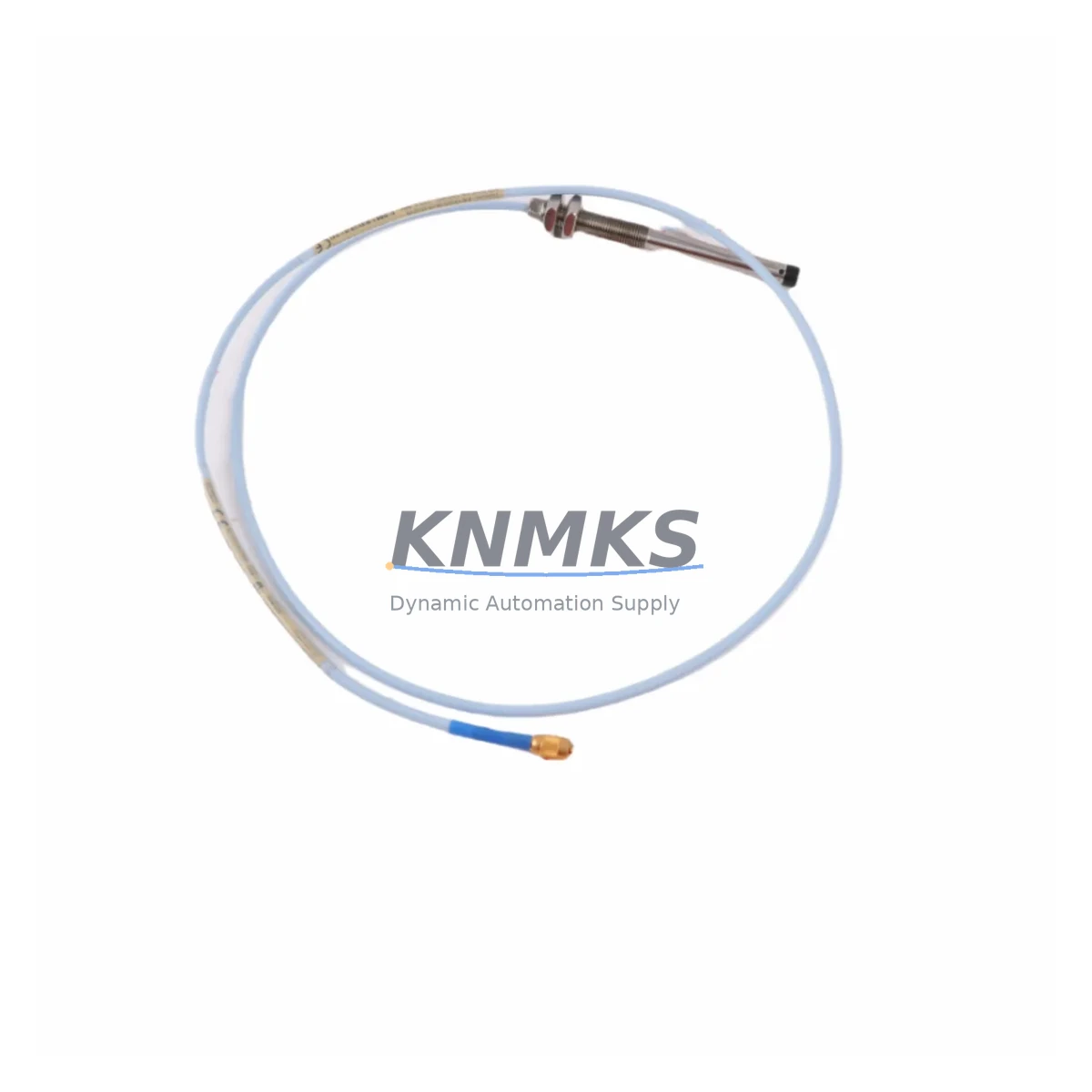

The Bently Nevada 330103-05-10-10-12-05 is an 8mm eddy current proximity probe engineered for continuous vibration and position monitoring in rotating machinery. As a core sensing element within the 3300 XL System, this probe delivers non-contact displacement measurement critical to turbine, compressor, pump, and motor protection across energy, petrochemical, and heavy manufacturing facilities. Maintaining a verified stock of this probe is a fundamental requirement for any maintenance team operating Bently Nevada-based machinery protection systems.

At KNMKS, every 330103-05-10-10-12-05 unit is sourced from authorized supply channels, individually tested prior to dispatch, and backed by a support terms confirmed by quotation. We support long-term supply commitments for MRO procurement teams requiring scheduled replenishment across multiple plant sites.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330103-05-10-10-12-05 probe is flagged during routine vibration trending or fails a gap voltage check, the replacement scope should extend beyond the probe itself. Maintenance engineers should simultaneously inspect the 330180 Series Proximitor Sensor — the signal conditioning unit paired with this probe — as probe degradation often correlates with Proximitor output drift or connector corrosion at the junction box. The extension cable assembly (330130 Series) connecting the probe to the Proximitor must be checked for jacket cracking, shield continuity, and connector integrity; a compromised cable introduces noise that mimics probe failure and can trigger false trips.

Within the 3300 XL monitor rack, verify the 3300/16 or 3300/20 monitor module channel configuration and alert/danger setpoints remain within calibrated limits after probe swap. If the cabinet houses a 3500/42M Proximitor I/O Module, confirm the channel mapping and OK relay output are functioning correctly post-installation. For facilities running parallel protection on critical trains, the 3300/55 Keyphasor Module should be inspected to ensure phase reference signals remain stable — a degraded Keyphasor can mask true vibration amplitude readings even after a probe replacement.

Procurement engineers building annual MRO kits for turbomachinery protection panels should consider stocking the 330103-05-10-10-12-05 alongside matched extension cables, a spare Proximitor, and at least one set of 3300 XL monitor fuses and terminal barrier strips. This approach eliminates secondary delays when a probe replacement uncovers adjacent wiring or connector faults — a common scenario in aging control cabinets operating beyond 10 years. KNMKS supports blanket order arrangements and scheduled quarterly shipments to align with planned outage windows.

Site Replacement Workflow

1. Pre-Shutdown Verification: Record the existing gap voltage (target: –10 to –18 VDC) and vibration baseline from the 3300 XL monitor display or DCS historian. Document the probe serial number and installation date for maintenance records.

2. Isolation & Removal: De-energize the Proximitor supply (typically –24 VDC from the rack power supply). Disconnect the extension cable at the junction box. Unthread the probe from the mounting bracket using the correct spanner — avoid torque on the cable. Inspect the mounting hole for thread damage and target surface for scoring.

3. New Probe Installation: Install the 330103-05-10-10-12-05 with thread sealant per Bently Nevada installation guidelines. Set the initial gap to 1.27 mm (50 mil) using a feeler gauge or gap-setting tool. Reconnect the extension cable and verify connector seating.

4. Commissioning & Gap Calibration: Re-energize the Proximitor and measure output voltage at the monitor terminal. Adjust gap to achieve –12 VDC ±0.5 VDC. Confirm OK LED status on the monitor module. Verify vibration reading returns to baseline within ±5% before releasing the machine to operation.

5. System Compatibility Note: The 330103-05-10-10-12-05 is a direct replacement for earlier 330103 variants within the 3300 XL transducer system. When migrating from legacy 7200 Series probes, consult the Bently Nevada cross-reference guide and verify Proximitor compatibility before installation to avoid scale factor mismatches that could compromise protection setpoints.

Spare Parts Support FAQ

Q1: Is the 330103-05-10-10-12-05 compatible with the Bently Nevada 3500 Series monitoring system?
The 330103-05-10-10-12-05 is natively designed for the 3300 XL Proximity Transducer System. Compatibility with 3500 Series monitors depends on the specific I/O module and driver configuration. In many installations, 3300 XL probes are used with 3500/42M I/O modules when paired with the correct 330180 Proximitor. Always verify channel configuration and scale factor settings in the 3500 rack before installation.

Q2: What pre-shipment testing does KNMKS perform on this probe?
Each 330103-05-10-10-12-05 unit undergoes electrical continuity verification, gap voltage output testing against a calibrated steel target, and visual inspection for cable jacket integrity and connector condition. A test report is available upon request for quality-controlled procurement processes.

Q3: Can KNMKS support long-term or scheduled supply for this part?
Yes. KNMKS offers blanket purchase order arrangements and scheduled quarterly or semi-annual shipments for the 330103-05-10-10-12-05 and associated 3300 XL system components. This is particularly suited for facilities managing multiple turbomachinery trains or operating under long-term maintenance contracts. Contact [email protected] to discuss volume pricing and delivery scheduling.

Q4: What is the support terms coverage and what does it include?
All units carry a support terms confirmed by quotation from the date of shipment. Coverage includes manufacturing defects, electrical performance outside published specifications, and connector or cable assembly failures under normal operating conditions. Support requests are supported with replacement dispatch within 5 business days upon fault confirmation. Physical damage from improper installation or over-torquing is excluded.
