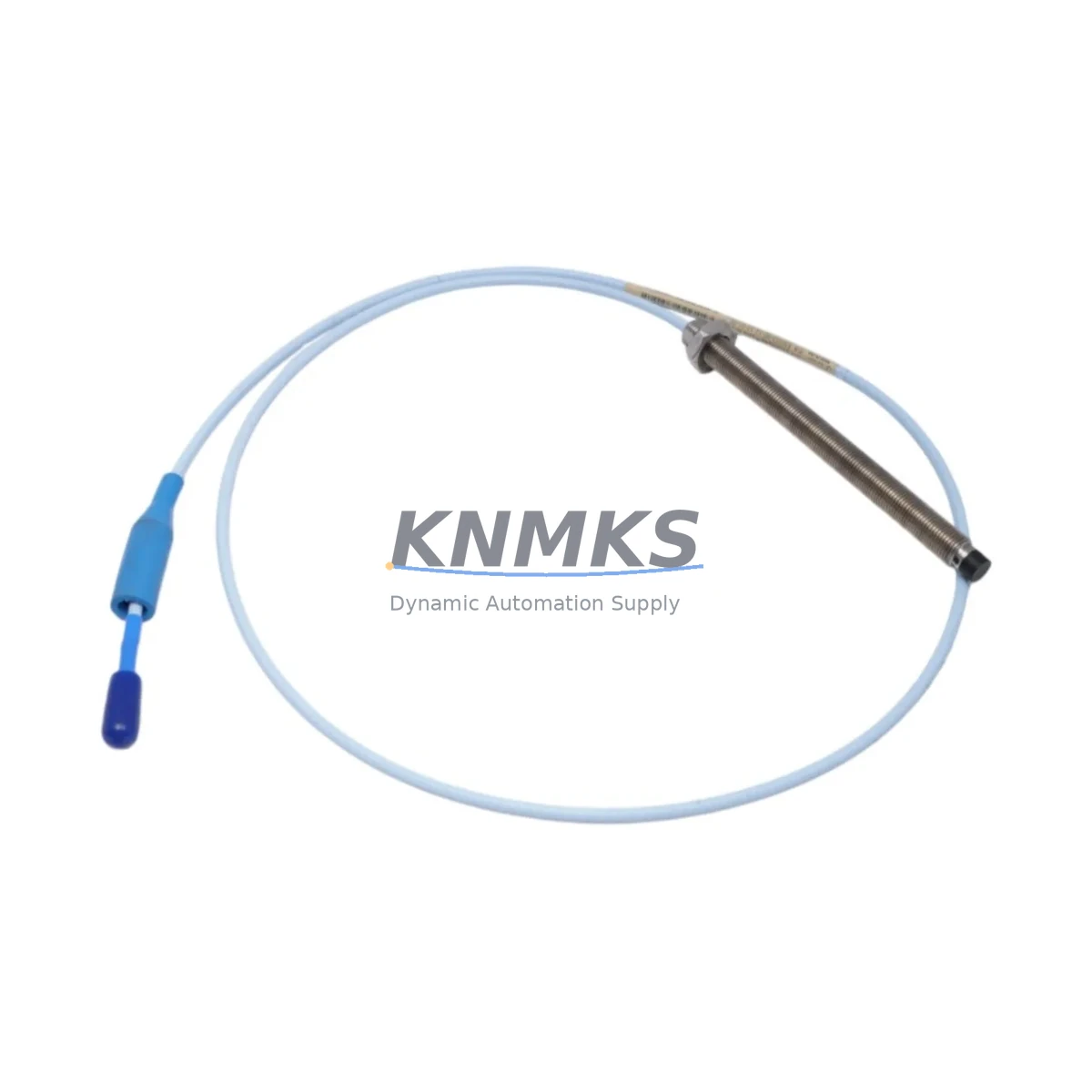

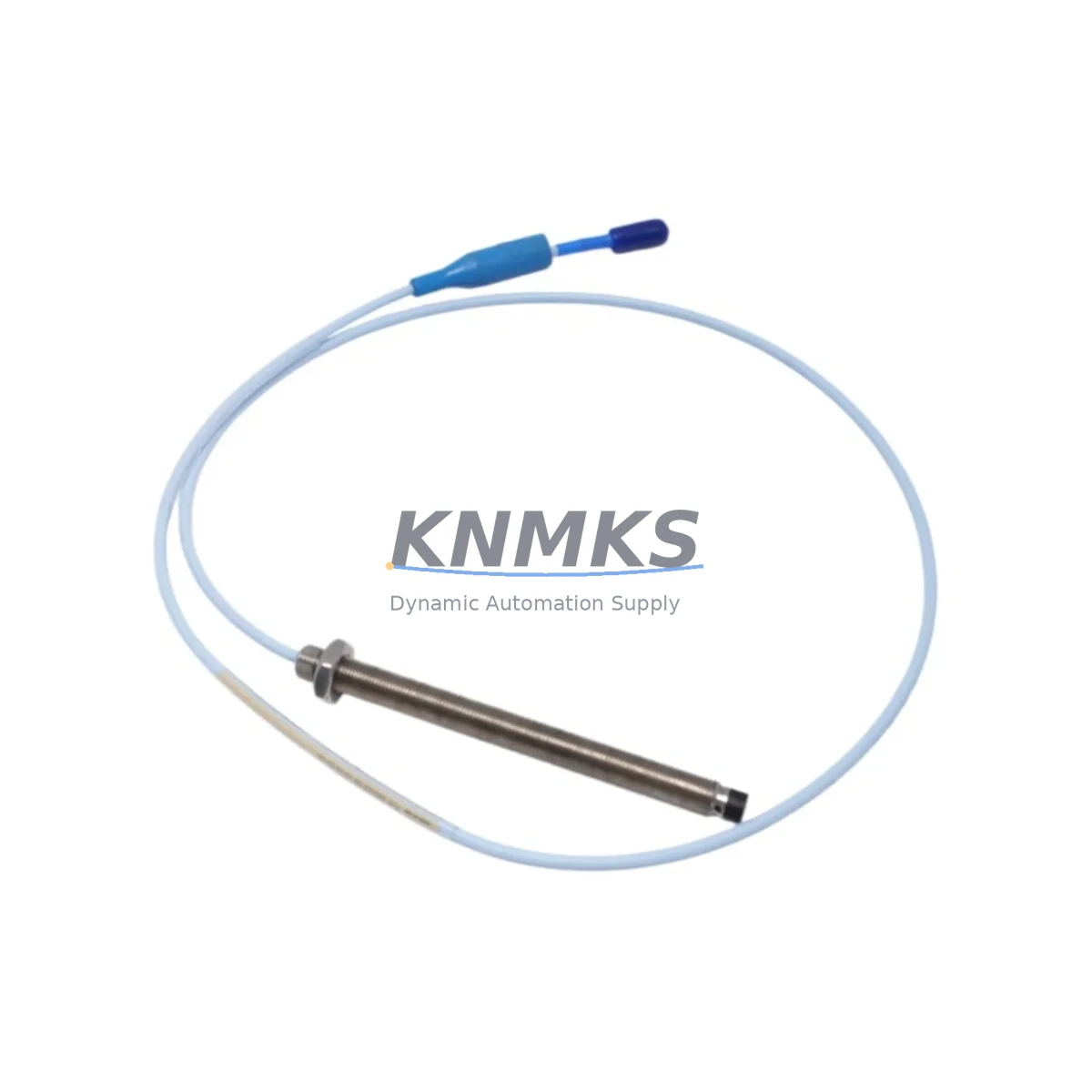

Bently Nevada 330103-00-12-10-11-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330103-00-12-10-11-05 is a high-precision eddy current proximity probe engineered for direct replacement and migration-ready deployment in aging vibration monitoring infrastructures. Designed to integrate seamlessly into Bently Nevada 3300 XL and 3500 Series monitoring systems, this probe supports engineers and maintenance teams undertaking legacy control system modernization, discontinued spare parts replacement, and full-scale control cabinet upgrades without requiring structural modifications to existing rack assemblies or field wiring.

As industrial facilities face increasing pressure to extend the operational life of legacy automation platforms while maintaining compliance with vibration monitoring standards such as API 670, the 330103-00-12-10-11-05 provides a validated, drop-in solution that eliminates the need for costly system-wide overhauls. Its eddy current sensing principle delivers non-contact, continuous shaft displacement measurement, making it ideal for rotating machinery protection on turbines, compressors, pumps, and gearboxes where unplanned downtime carries significant operational risk.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330103-00-12-10-11-05 into a legacy vibration monitoring system requires a structured pre-retrofit assessment. Before removing the existing probe, engineers should document the current gap voltage reading, confirm the scale factor (typically -7.87 V/mm for 8mm probes), and record all alarm and danger setpoints configured in the 3500/42M Proximitor / Velomitor Module. This data serves as the baseline for post-installation verification and ensures that the replacement probe restores the system to its original protection parameters without inadvertent alarm suppression.

In systems where the 330103-00-12-10-11-05 is paired with a Bently Nevada 330130 Series Extension Cable, the total system length must be verified against the Proximitor’s calibrated range. Mismatched cable lengths are a common source of scale factor error during legacy system retrofits and can result in inaccurate vibration readings that compromise machinery protection. If the existing extension cable shows signs of insulation degradation or connector corrosion — common in installations exceeding ten years — replacement with a new 330130-045-00-00 or equivalent extension cable should be planned concurrently.

For facilities operating the Bently Nevada 3500 rack platform, the retrofit process may also involve reviewing the configuration of the 3500/20 Rack Interface Module, which governs communication between the monitoring rack and the plant DCS or SCADA system. Where the existing communication link relies on a legacy serial protocol, migration to the 3500/92 Ethernet Interface Module may be advisable to align with modern plant network architectures and enable remote monitoring via Bently Nevada System 1 software. This communication upgrade can typically be executed in parallel with the probe replacement to minimize total system downtime.

Control cabinet space is another critical consideration. In older installations, the probe cable routing may pass through conduit shared with power wiring, creating potential for electromagnetic interference. During the retrofit, it is recommended to inspect the cable routing path and, where necessary, reroute the probe cable through dedicated instrumentation conduit. Signal isolation using a DIN-rail mounted signal isolator or barrier may be required in hazardous area installations to maintain intrinsic safety compliance.

For facilities that have migrated their HMI platform from an older Wonderware or iFIX-based system to a modern SCADA environment, the probe replacement is also an appropriate time to validate HMI tag mapping. Confirm that the vibration channel associated with the 330103-00-12-10-11-05 is correctly mapped in the new HMI configuration and that historical trend data continuity is maintained through the transition. Where the 3500 rack is connected to a Bently Nevada 3500/61 Transient Data Interface Module, verify that the transient capture configuration reflects the updated probe parameters.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern during any proximity probe replacement on a live rotating machinery protection system. For the 330103-00-12-10-11-05 retrofit, a structured bypass and hot-swap procedure should be developed in coordination with the plant’s safety management system before any field work begins. Where the 3500 rack supports channel bypass functionality, activating the bypass on the affected channel prior to probe removal prevents spurious trip signals from propagating to the machine protection relay logic during the changeover period.

The original program logic stored in the 3500 rack’s non-volatile memory is not affected by a probe-level replacement, provided that no configuration changes are made to the rack during the retrofit. Engineers should confirm this by exporting the current rack configuration using Bently Nevada’s Rack Configuration Software (RCS) before beginning work, creating a verified backup that can be restored immediately if any configuration anomaly is detected during commissioning. This backup also serves as the reference document for the post-retrofit functional test, which should include a full channel verification against the original alarm and danger setpoints.

Gap voltage calibration is the most time-sensitive step in the commissioning process. Using a calibrated gap tool or a precision shim set, the probe tip-to-target gap should be set to achieve the nominal gap voltage specified for the 3300 XL 8mm system — typically -10.0 VDC at the standard 1.0 mm gap. Once the gap is set, the output voltage should be verified at the Proximitor terminal strip before the channel bypass is released. This sequential verification approach ensures that the protection system is fully functional before the machine is returned to service, reducing the risk of a protection gap during the transition.

For facilities with strict change management requirements, the entire retrofit process — from bypass activation through gap calibration and bypass release — should be documented in a formal work order with timestamped sign-offs at each stage. This documentation supports post-retrofit audit requirements and provides a traceable record of the system’s protection status throughout the maintenance window.

Retrofit Support FAQ

Q1: Is the 330103-00-12-10-11-05 a direct replacement for discontinued 330103 series probes?
Yes. The 330103-00-12-10-11-05 is a direct drop-in replacement for discontinued probes within the Bently Nevada 330103 series. The SKU encoding specifies probe length (12 inches), cable length (10 feet), and connector configuration, ensuring dimensional and electrical compatibility with existing Proximitor installations. No modifications to the probe mounting bracket, conduit fitting, or Proximitor wiring are required, provided the existing installation matches the original 330103 series specification.

Q2: What commissioning steps are required after installation?
After mechanical installation, the following commissioning steps are required: (1) Set the probe tip-to-target gap using a calibrated gap tool to achieve the nominal gap voltage for the 3300 XL 8mm Proximitor system. (2) Verify the output voltage at the Proximitor terminal strip. (3) Confirm the scale factor reading matches the system’s calibrated value. (4) Review and validate all alarm and danger setpoints in the 3500 rack configuration. (5) Release the channel bypass and perform a functional test of the protection channel. All steps should be documented in the site’s work order management system.

Q3: Has this unit been tested before shipment, and what support terms is provided?
Yes. Every 330103-00-12-10-11-05 unit supplied by KNMKS undergoes pre-shipment functional testing to verify electrical continuity, output voltage linearity, and connector integrity. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. In-stock units are available for immediate dispatch, supporting urgent replacement requirements and minimizing machinery downtime.

Q4: What should I verify regarding wiring and terminal compatibility before installation?
Before installation, verify the following: (1) The existing field wiring from the probe location to the Proximitor terminal strip is intact and free from insulation damage. (2) The connector type on the existing extension cable matches the 330103-00-12-10-11-05 probe connector. (3) The total system cable length (probe cable + extension cable) falls within the calibrated range of the installed Proximitor. (4) In hazardous area installations, confirm that the probe and cable assembly is certified for the applicable zone classification and that any associated Zener barriers or galvanic isolators are rated for the system parameters. If any of these conditions cannot be confirmed, contact KNMKS technical support before proceeding.
