Bently Nevada 330103-00-07-10-12-05 3300 XL Spare Part: Maintenance-Proven Eddy Current Proximity Transducer for Factory Uptime

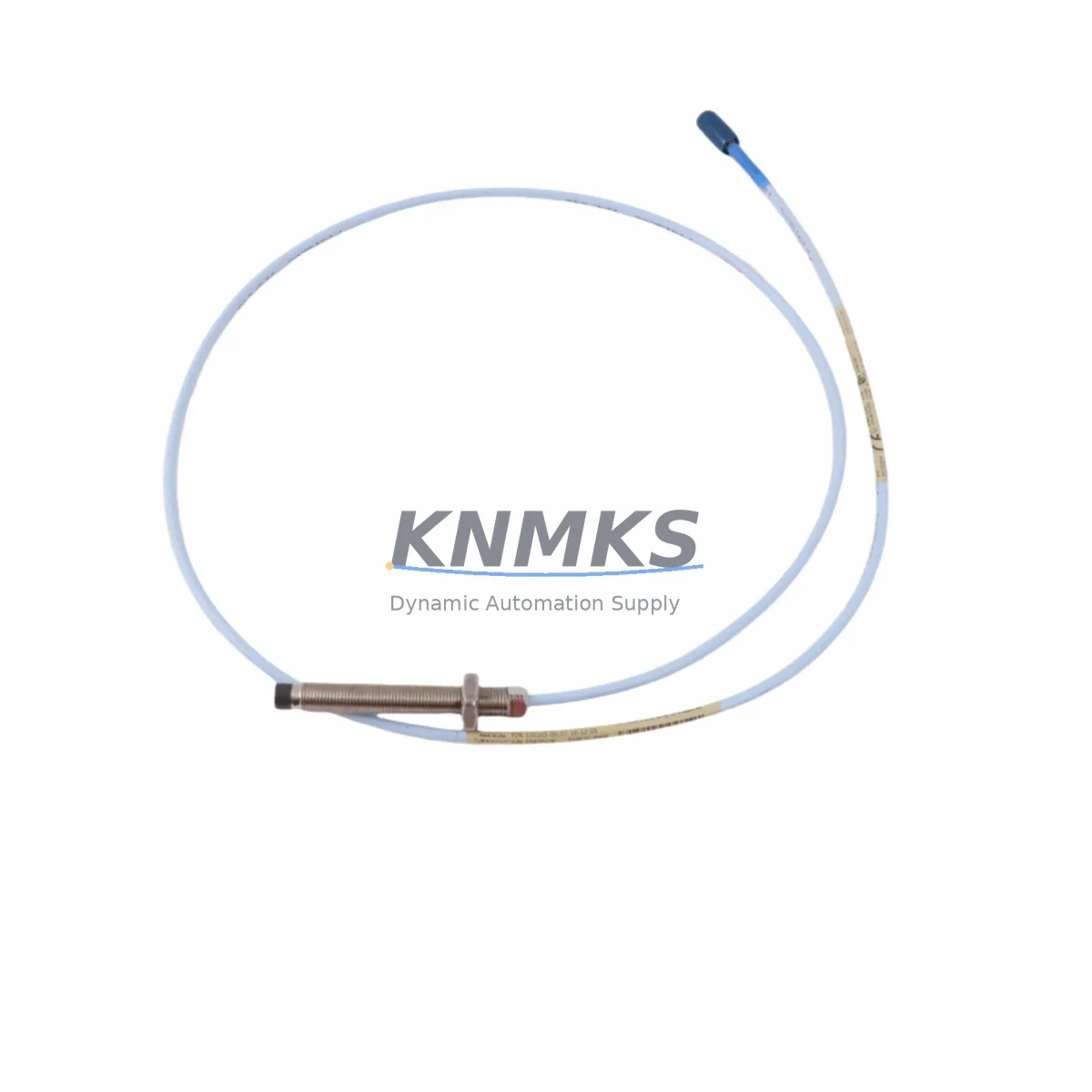

The Bently Nevada 330103-00-07-10-12-05 is an original eddy current proximity transducer engineered for the 3300 XL Series vibration monitoring system. Designed for continuous operation in demanding industrial environments — including rotating machinery, turbines, compressors, pumps, and critical drive trains — this transducer delivers precise non-contact displacement and vibration measurement essential to predictive maintenance programs. Sourced from verified supply channels and shipped with full inspection documentation, this spare part supports rapid field replacement with zero compromise on measurement accuracy or system compatibility.

For maintenance engineers managing rotating equipment health, and procurement engineers building resilient spare parts inventories, the 330103-00-07-10-12-05 represents a direct, drop-in replacement for aging or failed transducers in 3300 XL monitoring loops. Every unit is tested prior to dispatch and backed by a support terms confirmed by quotation, ensuring confidence from the moment it arrives on site.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330103-00-07-10-12-05 proximity transducer in a 3300 XL monitoring loop, a thorough site inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure signal integrity. Maintenance engineers should begin by verifying the condition of the 3300 XL proximitor/driver module (such as the 330180 or 330130 series), which conditions the transducer signal and provides the –24 VDC supply. A faulty driver will cause incorrect gap readings even with a new transducer installed.

Inspect the extension cable (typically a 330130-series matched cable) for insulation damage, connector corrosion, or continuity breaks — extension cable degradation is a leading cause of transducer system failures in high-vibration environments. Confirm that the junction box terminal blocks and cable glands are sealed and torqued correctly, as moisture ingress at connection points introduces noise into the measurement signal.

At the monitor rack level, check the 3300/16 or 3500-series rack power supply module for stable output voltage. Voltage sag or ripple on the –24 VDC rail will directly affect transducer bias and gap measurement accuracy. If the installation includes a signal isolator or barrier between the transducer loop and the DCS/PLC input card, verify that the isolator’s input impedance is compatible with the 3300 XL driver output characteristics.

For facilities running Bently Nevada 3500 Series machinery protection systems alongside legacy 3300 XL installations, confirm that I/O module firmware and channel configuration files are updated to reflect the replacement transducer’s sensitivity factor (typically 7.87 V/mm or 200 mV/mil). Mismatched sensitivity settings will produce incorrect vibration amplitude readings and may trigger false alarms or mask real fault conditions.

Finally, inspect any fuse holders or circuit protection devices on the –24 VDC transducer supply line. Blown or degraded fuses are frequently overlooked during transducer replacement and can cause the new unit to appear faulty immediately after installation. A complete loop resistance check using a calibrated multimeter before powering up the new transducer is strongly recommended as part of the site replacement workflow.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Isolate the monitor channel associated with the failed transducer. Record the current gap voltage and vibration baseline readings from the 3300 XL monitor display or DCS historian before disconnecting.

Step 2 — Physical Removal: Loosen the transducer locknut and carefully unthread the probe from the bracket. Avoid bending the integral cable. Disconnect the extension cable at the junction box. Inspect the probe tip and target surface for wear, scoring, or contamination.

Step 3 — New Transducer Installation: Thread the 330103-00-07-10-12-05 replacement into the bracket by hand until the probe tip is approximately 1.0–1.5 mm from the target surface. Connect the matched extension cable. Do not mix extension cables from different system configurations — cable length and impedance are matched to the driver module.

Step 4 — Gap Setting and Calibration: Power up the driver module and measure the output voltage at the monitor input terminals. Adjust the transducer gap to achieve the nominal –10.0 VDC bias (or per site-specific calibration sheet). Tighten the locknut to the specified torque. Record the final gap voltage.

Step 5 — System Verification: Restore the monitor channel to normal operation. Confirm that vibration readings are within expected baseline range. Check for alarm or danger setpoint trips. Update the maintenance log with the replacement date, new gap setting, and part number.

This workflow minimizes downtime, maintains system compatibility with the 3300 XL architecture, and ensures the replacement transducer performs to original factory specification from first power-up.

Spare Parts Support FAQ

Q1: Is the 330103-00-07-10-12-05 compatible with both 3300 XL monitors and 3500 Series racks?
The 330103-00-07-10-12-05 is designed and calibrated for the Bently Nevada 3300 XL Series proximitor/driver system. While the physical probe may be mechanically interchangeable with some 3500 Series configurations, full electrical compatibility — including sensitivity factor, cable impedance, and driver supply voltage — must be verified against the specific 3500 monitor channel datasheet before installation. Contact our technical team for compatibility confirmation prior to ordering if your installation involves a 3500 Series rack.

Q2: What is included with each unit, and how is it tested before shipment?
Each 330103-00-07-10-12-05 unit is supplied with the integral cable assembly as per the standard configuration. Prior to dispatch, every unit undergoes full electrical verification including output voltage linearity check, insulation resistance test, and connector integrity inspection. A test report is available upon request. All units are shipped in anti-static protective packaging with individual identification labeling.

Q3: How should this transducer be stored as a long-term spare in a maintenance inventory?
Store the 330103-00-07-10-12-05 in its original packaging in a clean, dry environment at temperatures between –10°C and +40°C, away from strong magnetic fields and direct sunlight. Avoid coiling the cable tightly or placing heavy objects on the cable assembly. Inspect the probe tip and connector contacts annually. Shelf life under proper storage conditions is typically 5+ years without performance degradation. For critical machinery applications, we recommend maintaining a minimum of one spare unit per monitored machine train.

Q4: What is the support terms coverage and what does long-term supply support look like?
All units are covered by a support terms confirmed by quotation from the date of shipment against manufacturing defects and premature failure under normal operating conditions. Support requests are processed with priority turnaround. For facilities requiring long-term supply commitments — annual blanket orders, scheduled delivery programs, or multi-year maintenance contracts — our team can provide dedicated stock reservation and fixed pricing agreements to eliminate procurement risk for critical spare parts.
