Bently Nevada 330102-30-65-10-02-CN 3300 XL Maintenance-Proven Spare Part for Factory Uptime

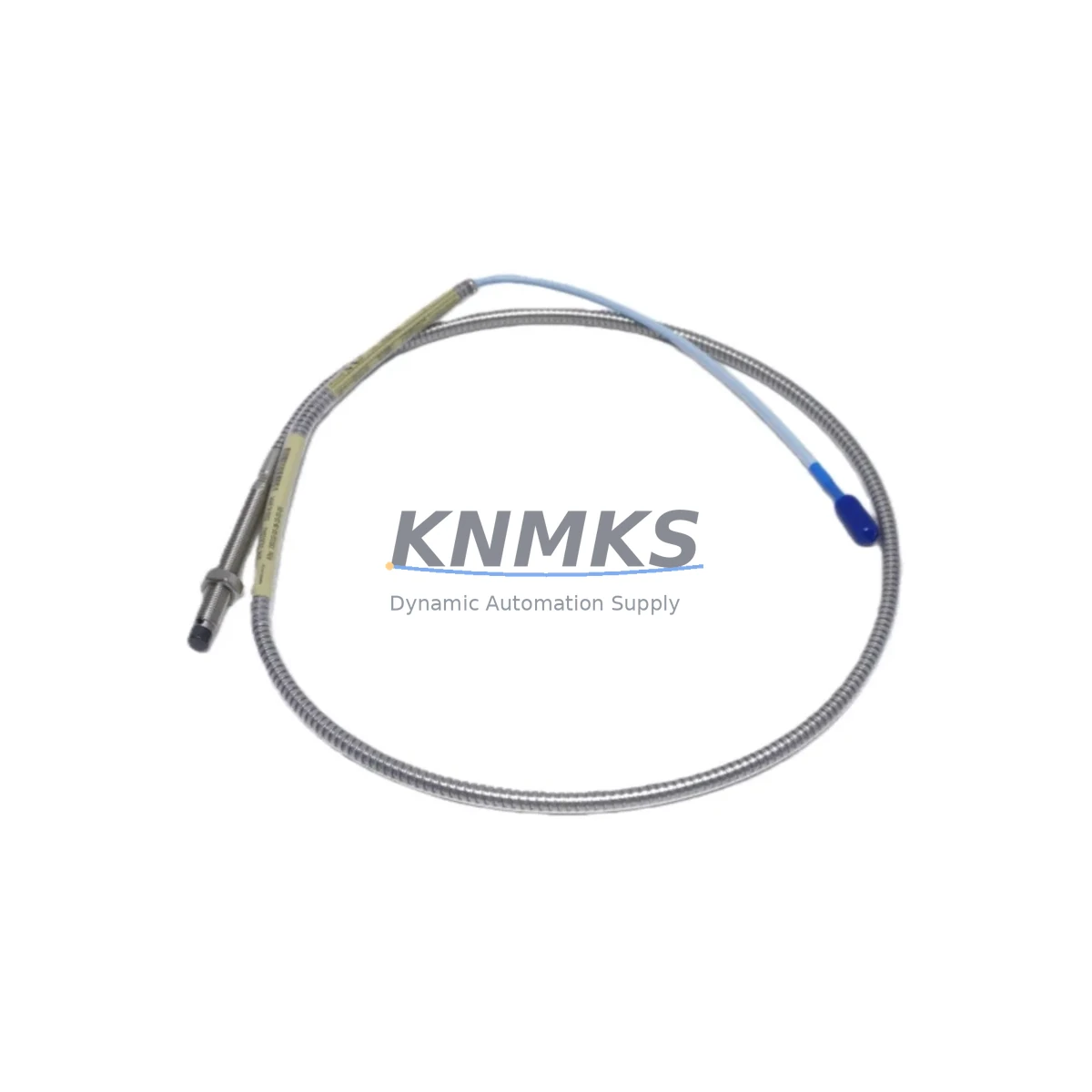

The Bently Nevada 330102-30-65-10-02-CN is an 8mm proximity probe designed for the 3300 XL Series continuous vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications across power generation, petrochemical, oil & gas, and heavy manufacturing. This spare part is stocked and dispatched to support rapid field replacement, minimizing unplanned downtime and keeping critical rotating machinery online.

Whether you are managing a planned annual overhaul, responding to a vibration alarm, or building a strategic spare parts inventory for your control room, the 330102-30-65-10-02-CN is a direct OEM-equivalent replacement that restores full system functionality without reconfiguration. Each unit is inspected and function-tested prior to shipment, backed by a support terms confirmed by quotation covering manufacturing defects and performance conformance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330102-30-65-10-02-CN proximity probe in the field, a thorough inspection of the surrounding measurement chain is essential to ensure signal integrity and avoid repeat failures. Maintenance engineers should treat this replacement as an opportunity to audit the complete vibration monitoring loop.

Begin by verifying the 3300 XL Extension Cable (330130 series) for insulation damage, connector corrosion, or mechanical stress at the conduit entry points. A degraded extension cable is a common root cause of erratic gap voltage readings that are often misattributed to probe failure. Next, inspect the 3300 XL Proximitor Sensor (330180 series) — the signal conditioning module that converts probe gap into a usable voltage output. Check its mounting, power supply rail (-24 VDC), and output signal against the expected calibration curve.

At the rack level, confirm that the 3300/16-channel monitor card or equivalent 3300 XL rack module is receiving clean power from the system DC power supply module. Loose terminal connections on the I/O barrier strip or a failing Zener barrier or galvanic isolator can introduce noise that masks true vibration data. If the installation uses a 3500 Series rack in parallel for redundancy, verify that both channels are reading within tolerance before returning the machine to service.

For plants running DCS or PLC-integrated machinery protection, confirm that the 4-20 mA or voltage output from the monitor card is correctly mapped to the control system I/O module. A misconfigured analog input card or a blown signal fuse on the marshalling cabinet can cause false no-signal alarms post-replacement. Where HMI trend displays are used for vibration monitoring, clear historical alarm buffers and verify that the new probe gap voltage (typically -10 VDC plus or minus 0.5 V at nominal clearance) is correctly reflected on the operator screen before closing the work order.

Stocking a matched set — probe, extension cable, and Proximitor — as a single spare kit is strongly recommended for critical machinery. This eliminates the risk of component mismatch and reduces mean time to repair during emergency callouts.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the vibration monitoring channel at the rack. Do not de-energize the entire monitor rack unless required; most 3300 XL systems support hot-swap of individual channels.

Step 2 — Gap Measurement: Before removing the old probe, record the existing gap voltage. This provides a baseline for verifying correct installation of the replacement unit.

Step 3 — Probe Removal: Unthread the 330102-30-65-10-02-CN from the bracket using the M10 thread. Inspect the bracket for wear, corrosion, or misalignment that may have contributed to premature probe failure.

Step 4 — Cable Inspection: Disconnect the extension cable at the junction box. Inspect the connector pins and cable jacket. Replace the extension cable if any damage is found — do not reinstall a suspect cable with a new probe.

Step 5 — Installation and Gap Setting: Thread the replacement probe into the bracket. Adjust the gap to achieve the target output voltage (typically -10 VDC plus or minus 0.5 V for standard steel targets). Use a calibrated digital multimeter at the Proximitor output terminals.

Step 6 — Signal Verification: Restore the channel at the rack and confirm the gap voltage, vibration baseline, and alarm setpoints are within specification. Document the as-left gap voltage in the maintenance record.

Step 7 — System Handover: Notify the control room operator, clear any latched alarms, and confirm the HMI trend is displaying live data before closing the permit.

This workflow is compatible with both planned outage replacements and emergency in-service swaps, and applies equally to legacy 3300 Series installations being maintained alongside newer 3500 Series racks during system life extension programs.

Spare Parts Support FAQ

Q1: Is the 330102-30-65-10-02-CN compatible with both 3300 and 3500 Series Bently Nevada systems?
The 330102-30-65-10-02-CN is a 3300 XL Series probe and is fully compatible with 3300 XL Proximitor Sensors and monitor racks. It is not directly interchangeable with 3500 Series probes, which use a different connector and calibration standard. If you are migrating from a 3300 to a 3500 system, please confirm the target Proximitor model before ordering.

Q2: How is each unit tested before shipment?
Every 330102-30-65-10-02-CN unit undergoes pre-shipment inspection including visual examination, connector integrity check, and functional gap-voltage verification against OEM calibration specifications. A test report is available upon request. Units are shipped in anti-static protective packaging with individual serial tracking.

Q3: What is your long-term supply commitment for this part?
We maintain dedicated stock of the 330102-30-65-10-02-CN and key 3300 XL Series components to support long-term maintenance contracts and annual overhaul schedules. Blanket purchase orders and consignment stock arrangements are available for facilities with recurring demand. Contact our team to discuss a supply agreement tailored to your maintenance cycle.

Q4: What support terms coverage applies, and what does it include?
All units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, calibration non-conformance, and premature failure under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside specified environmental limits. Support requests are processed with priority turnaround to minimize your downtime exposure.
