Bently Nevada 330102-00-40-50-02-00 Spare Part

Overview

Bently Nevada 330102-00-40-50-02-00 Maintenance-Proven Spare Part for Factory Uptime

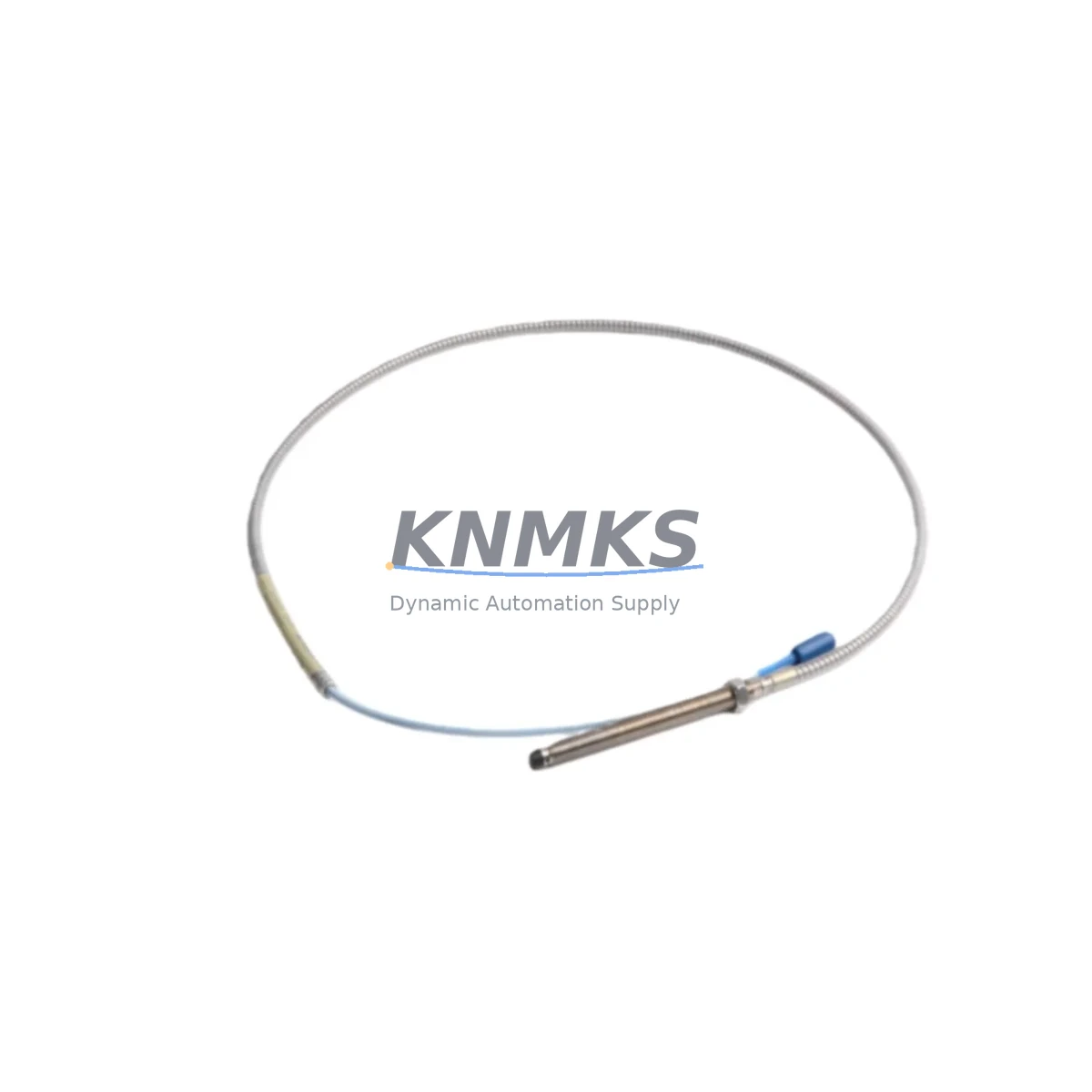

The Bently Nevada 330102-00-40-50-02-00 is an original 8mm eddy current proximity probe engineered for the 3300 XL Series vibration monitoring system. Designed for continuous operation in rotating machinery environments — including turbines, compressors, pumps, and motors — this probe delivers precise non-contact displacement and vibration measurements critical to predictive maintenance programs. For maintenance engineers managing aging DCS or PLC-integrated monitoring systems, stocking a verified replacement of the 330102-00-40-50-02-00 is a fundamental step in reducing unplanned downtime and protecting high-value rotating assets.

Whether you are executing a scheduled annual overhaul, responding to a vibration alarm, or building a strategic spare parts inventory for a petrochemical or power generation facility, the 330102-00-40-50-02-00 provides a direct, drop-in replacement path with no firmware reconfiguration required when used within the 3300 XL ecosystem. Each unit is tested prior to shipment and backed by a support terms confirmed by quotation, giving procurement engineers confidence in long-term supply commitments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330102-00-40-50-02-00 in the field, a thorough inspection of the surrounding measurement loop is essential to ensure system integrity and avoid repeat failures. Maintenance engineers should begin by verifying the condition of the 330180-91-00 Proximitor Sensor (driver/oscillator), as probe and driver are a matched pair in the 3300 XL system — a degraded driver will produce erroneous gap voltage readings even with a new probe installed.

Next, inspect the extension cable assembly (typically 330130 series for 3300 XL) for insulation damage, connector corrosion, or shield continuity loss. In high-vibration or high-temperature environments, extension cable degradation is a common root cause of intermittent vibration alarms that are incorrectly attributed to the probe itself.

The 3300 XL monitor card (such as the 3300/16 dual-channel vibration monitor or the 3300/55 temperature monitor) should be inspected for relay output integrity and I/O channel calibration. If the monitor has been in service for more than five years, consider scheduling a bench calibration alongside the probe replacement to validate alarm setpoints and trip thresholds.

For facilities running Bently Nevada System 1 or 3500 Series rack-based monitoring, confirm that the 3500/42M Proximitor/Seismic Monitor or equivalent rack card is compatible with the 8mm probe standard before substituting components across system generations. Signal isolation between the probe loop and the DCS analog input card should also be verified — a signal isolator or barrier module (such as a Pepperl+Fuchs or MTL galvanic isolator) may be required in intrinsically safe zones.

Finally, review the terminal block and field wiring within the junction box or control cabinet. Loose terminations, oxidized contacts, or incorrect shielding grounding are frequent contributors to noise on the proximity probe signal. Replacing the probe without addressing wiring integrity will not resolve chronic vibration signal quality issues. A complete loop check — from probe tip gap voltage through to the DCS historian — should be performed and documented before returning the machine to service.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. De-energize the 3300 XL monitor channel associated with the probe being replaced. Record the current gap voltage and vibration baseline from the System 1 historian or local display before disconnection.

Step 2 — Probe Removal: Loosen the locknut and carefully unthread the 330102-00-40-50-02-00 probe from the bracket. Avoid bending the probe tip or stressing the cable at the probe body junction. Inspect the probe bracket and target surface for wear, runout, or contamination.

Step 3 — New Probe Installation: Thread the replacement probe to the bracket and set the initial gap per the 3300 XL installation manual (typically 1.0–1.5 mm for 8mm probes, corresponding to approximately -10 VDC gap voltage). Tighten the locknut to the specified torque.

Step 4 — Loop Verification: Reconnect the extension cable and Proximitor. Power up the monitor channel and verify gap voltage is within the linear range (-10 VDC ±1 VDC). Confirm the vibration reading is within expected baseline for the machine at rest.

Step 5 — Return to Service: Clear any latched alarms on the 3300 XL monitor. Document the replacement in the CMMS (SAP PM, Maximo, or equivalent), including the new probe serial number, installation date, and gap voltage setting. Update the spare parts inventory to trigger a replenishment order for the next 330102-00-40-50-02-00 unit.

This workflow minimizes machine downtime to under two hours for a single-probe replacement on accessible machinery, and supports a zero-repeat-failure standard when combined with a full loop inspection.

Spare Parts Support FAQ

Q1: Is the 330102-00-40-50-02-00 a direct replacement for older 3300 series probes?
The 330102-00-40-50-02-00 is designed for the 3300 XL system. While it shares the 8mm eddy current standard with earlier 3300 series probes, compatibility with non-XL monitors (e.g., original 3300/16 non-XL) should be verified against the Bently Nevada system documentation. For cross-generation replacements, confirm the Proximitor driver part number matches the probe generation before installation.

Q2: How do you verify authenticity and test the probe before shipment?
Each 330102-00-40-50-02-00 unit supplied by KNMKS is sourced from authorized channels and undergoes pre-shipment electrical testing, including gap voltage linearity verification and cable continuity check. A test report is available upon request. The support terms confirmed by quotation cover manufacturing defects and performance deviations from published specifications.

Q3: What is the recommended inventory strategy for this probe in a critical rotating machinery application?
For facilities with four or more 3300 XL-monitored machines, maintaining a minimum of two 330102-00-40-50-02-00 probes in the on-site spare parts store is recommended. Pair each probe with a matched 330180-series Proximitor and a 330130-series extension cable to enable a complete loop swap without waiting for individual component sourcing. Annual inventory review aligned with the plant turnaround schedule ensures stock is not expired or damaged.

Q4: Can KNMKS support long-term supply agreements for this part number?
Yes. KNMKS offers long-term supply commitments for the 330102-00-40-50-02-00 and related 3300 XL components, including blanket purchase orders, consignment stock arrangements, and priority allocation for critical plant customers. Contact our technical sales team to discuss annual volume requirements and lead time guarantees.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330102-00-40-50-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 330102-00-40-50-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
