Bently Nevada 330102-00-12-90-02-05 Spare Part for Factory Uptime

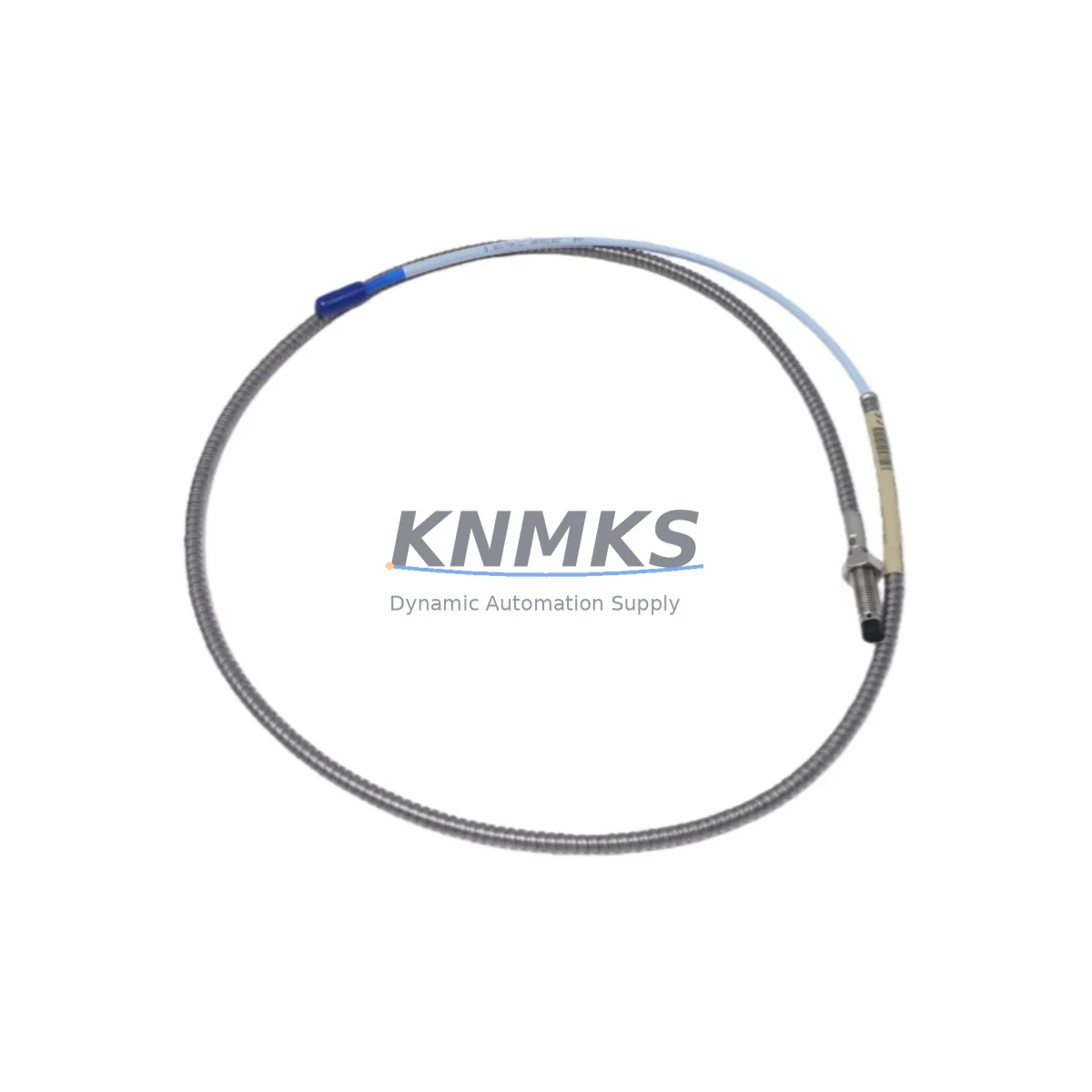

The Bently Nevada 330102-00-12-90-02-05 is an 8mm Eddy Current Proximity Probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed for long-term deployment in rotating machinery protection applications — including turbines, compressors, pumps, and motors — this probe delivers reliable non-contact displacement measurement critical to predictive maintenance programs and unplanned downtime prevention.

For maintenance engineers managing aging DCS or vibration monitoring infrastructure, stocking a verified replacement of the 330102-00-12-90-02-05 is a foundational step in any spare parts strategy. This probe is factory-tested, ships with a support terms confirmed by quotation, and is sourced to meet OEM-equivalent performance specifications. Every unit undergoes pre-shipment functional verification to ensure it performs to specification upon arrival at your facility.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330102-00-12-90-02-05 proximity probe during scheduled maintenance or emergency shutdown recovery, a thorough inspection of the surrounding measurement chain is essential to restore full system integrity and avoid repeat failures.

Begin with the extension cable — the 330130 Series extension cables are the standard interconnect between the probe and the Proximitor sensor. Inspect for jacket damage, connector corrosion, or continuity loss, particularly in high-vibration or high-temperature zones. A degraded extension cable will introduce signal noise even with a new probe installed.

Next, verify the condition of the Proximitor sensor (such as the 330180 8mm Proximitor). This signal conditioning module converts the probe’s raw eddy current signal into a calibrated DC voltage output. If the Proximitor has been exposed to voltage transients or moisture ingress, it may require replacement alongside the probe to restore measurement accuracy.

At the rack level, inspect the 3300 XL monitor cards — including the 3300/16 or 3300/20 series — for alarm relay status, channel configuration, and any fault indicators. Confirm that the channel assigned to the replaced probe is correctly configured for 8mm probe sensitivity and gap voltage range. Relay output modules and terminal input modules (TIMs) should also be checked for secure seating and clean contact surfaces.

For facilities running integrated control architectures, confirm that the vibration monitoring rack communicates correctly with the DCS or PLC system via the appropriate communication gateway or hardwired 4–20mA / relay interface. Signal isolation barriers or signal conditioners in the I/O loop should be tested for drift, especially in older installations where calibration may have shifted over years of operation.

Finally, review the power supply module feeding the 3300 XL rack. Unstable DC supply voltage is a common root cause of intermittent probe faults and false alarms. Confirm supply voltage is within specification and that redundant power paths, where installed, are both functional. Fuse integrity checks on the rack power distribution should be part of every annual inspection cycle.

Procurement engineers should consider maintaining a minimum stock of one probe assembly per critical machine train, along with a matched extension cable set and a spare Proximitor sensor. This three-component spare kit approach ensures that any field replacement can be completed within a single maintenance window without waiting for additional parts.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Confirm the machine is at rest and the monitoring channel is bypassed or acknowledged at the DCS/PLC level to prevent spurious trips during probe removal.

Step 2 — Gap Measurement and Documentation: Before removing the old probe, record the existing gap voltage using a calibrated voltmeter at the Proximitor output. This baseline reading confirms the previous installation gap and provides a reference for the new probe setup.

Step 3 — Probe Removal: Unthread the 330102-00-12-90-02-05 probe carefully from its mounting bracket. Inspect the probe tip for wear, pitting, or contamination. Inspect the target surface (shaft) for scoring or runout anomalies that may have contributed to probe degradation.

Step 4 — New Probe Installation: Install the replacement 330102-00-12-90-02-05 to the correct gap distance per the 3300 XL system calibration specification (typically 1.0mm to 2.0mm gap for 8mm probes, yielding approximately -10 VDC output). Use a calibrated gap-setting tool or feeler gauge. Secure the probe locknut to the specified torque.

Step 5 — Signal Verification: Reconnect the extension cable and Proximitor. Power up the monitoring channel and confirm gap voltage is within the linear range. Verify that the DCS or rack monitor displays a valid, stable reading with no alarm or fault indication.

Step 6 — System Restoration: Remove the bypass, restore normal monitoring, and document the replacement in the maintenance management system (CMMS). Update the spare parts inventory to trigger reorder of the consumed probe assembly.

This workflow is applicable whether replacing a failed probe on an emergency basis or performing a proactive swap during planned outage windows. The 330102-00-12-90-02-05 is a direct replacement for earlier 3300 Series 8mm probe assemblies, supporting legacy system life extension without rack or wiring modifications.

Spare Parts Support FAQ

Q1: Is the 330102-00-12-90-02-05 compatible with older 3300 Series (non-XL) monitoring racks?
The 330102-00-12-90-02-05 is designed and calibrated for the 3300 XL system. While the physical connector and probe geometry are similar to earlier 3300 Series probes, system compatibility should be confirmed against the rack’s channel configuration and Proximitor model. For legacy 3300 (non-XL) installations, consult the system documentation or contact our technical team before ordering.

Q2: What is included in the support terms confirmed by quotation and pre-shipment testing?
Every 330102-00-12-90-02-05 unit shipped from our inventory undergoes functional verification including output signal check and physical inspection. The support terms confirmed by quotation cover manufacturing defects and performance deviations from OEM specification under normal operating conditions. Support requests are supported with replacement or credit, subject to failure analysis.

Q3: How should this probe be stored if purchased as a long-term inventory spare?
Store the probe in its original packaging in a dry, temperature-controlled environment away from strong magnetic fields and mechanical vibration. Recommended storage temperature is 0°C to 60°C with relative humidity below 85% non-condensing. Inspect the probe tip and connector annually if held in long-term storage exceeding 24 months.

Q4: Can you support long-term supply commitments for this part number?
Yes. We support blanket purchase orders and scheduled release agreements for the 330102-00-12-90-02-05 and related 3300 XL system components. Long-term supply arrangements help procurement teams lock in availability and pricing for critical spare parts across multi-year maintenance cycles. Contact our sales team to discuss volume and delivery scheduling.
