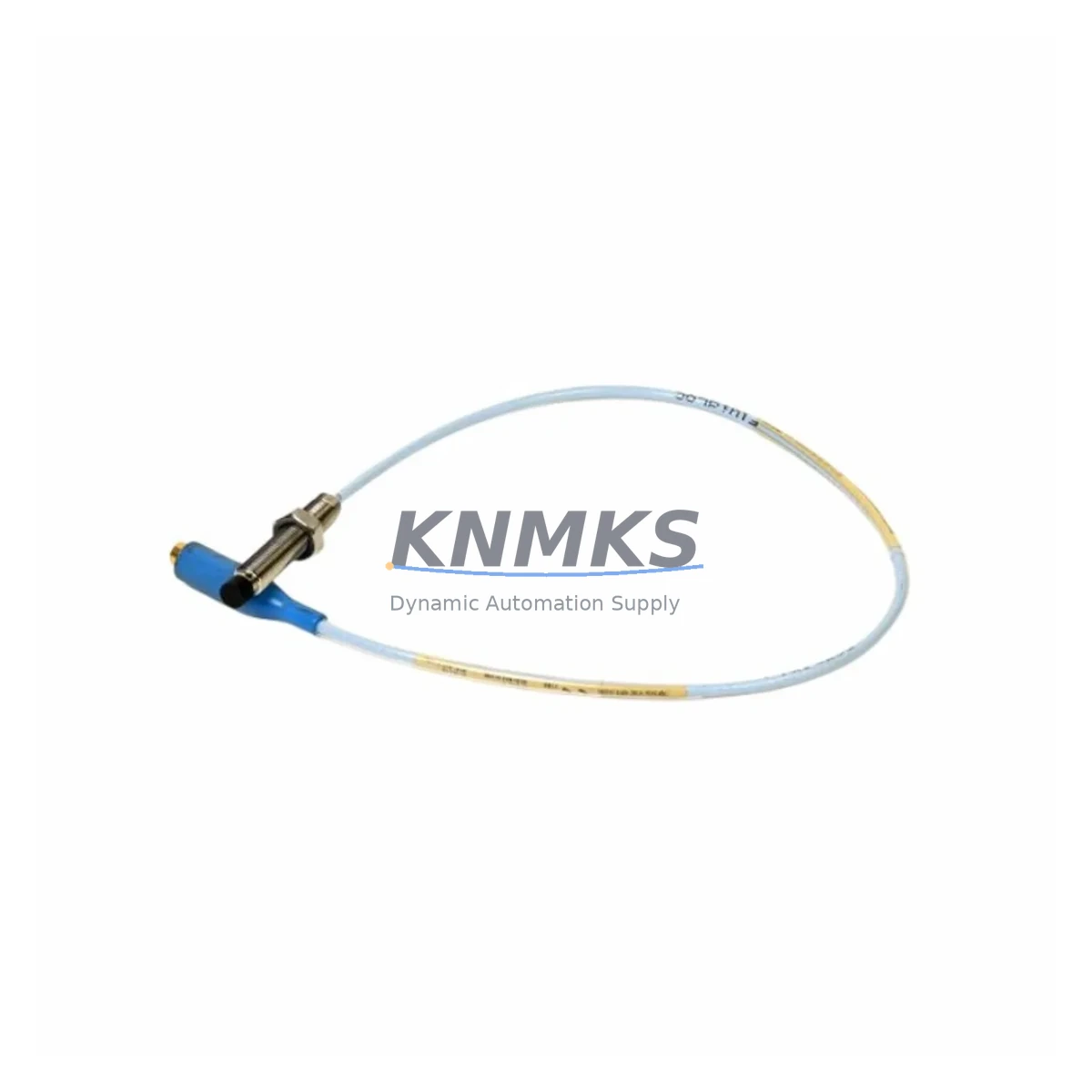

Bently Nevada 330101-XX-XX-20-02-CN 3300XL Spare Probe: Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 330101-XX-XX-20-02-CN is an 8mm eddy-current proximity probe engineered for the 3300 XL continuous vibration monitoring system. Designed for critical rotating machinery — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — this probe delivers precise shaft displacement and radial vibration measurements that form the backbone of any predictive maintenance programme. Sourced as an original spare, the 330101-XX-XX-20-02-CN (MOD 147773-00-12) is fully interchangeable within the 3300 XL probe series, allowing maintenance teams to execute rapid field replacements without recalibrating the monitor rack or modifying existing cable runs.

For procurement engineers managing multi-site MRO inventories, stocking the 330101-XX-XX-20-02-CN as a critical-path spare eliminates the lead-time risk that accompanies unplanned vibration probe failures. A single failed probe can trigger a protective shutdown on a high-value asset, translating directly into lost production hours. Holding one or two units on the shelf — alongside matched extension cables and proximitor modules — converts a potential 48-hour emergency sourcing event into a sub-two-hour planned replacement.

Every unit shipped from KNMKS undergoes bench verification of tip sensitivity, cable continuity, and connector integrity before dispatch. A support terms confirmed by quotation cover manufacturing defects and performance deviations from Bently Nevada factory specifications, giving both maintenance planners and plant managers confidence in long-term supply reliability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe replacement is rarely an isolated task. When a 330101-XX-XX-20-02-CN is pulled from service — whether due to tip damage, cable abrasion, or drift beyond the acceptable gap window — a disciplined maintenance engineer will use the access opportunity to inspect the entire vibration measurement loop. The 3300 XL Extension Cable (330130 series) running from the probe to the proximitor junction box should be checked for jacket integrity, connector corrosion, and shield continuity; a degraded cable introduces noise that mimics real vibration events and can cause nuisance trips.

The 3300 XL Proximitor / Extension Driver (330180 series) mounted in the field enclosure should be verified for correct bias voltage output — typically −10 VDC at the nominal air gap — before the new probe is commissioned. If bias voltage is out of range, the proximitor itself may require replacement rather than the probe. Simultaneously, inspect the 3300 XL Monitor Module seated in the rack: check for alarm setpoint integrity, OK relay status, and any latched fault codes that may have accumulated during the probe fault period.

At the rack level, confirm that the 3300 XL Power Supply Module is delivering stable ±24 VDC to the monitor cards. Voltage sag under load is a common root cause of intermittent probe OK dropouts that are misdiagnosed as probe failures. If the cabinet houses a Bently Nevada 3500 series rack alongside legacy 3300 XL hardware, verify that the backplane communication bus and termination resistors are intact, as cross-rack interference can corrupt vibration channel readings.

For plants running integrated DCS or safety systems, confirm that the 4–20 mA vibration output from the monitor is correctly received at the DCS I/O card or safety relay module after probe replacement. A loop calibration check — injecting a known gap simulation — validates end-to-end signal integrity without requiring the machine to be run up to speed. Where signal isolation between the vibration system and the DCS is required, inspect any installed signal isolator or barrier modules for correct loop resistance and isolation voltage ratings.

Finally, update the CMMS work order with the new probe serial number, installation gap measurement, and post-installation bias voltage reading. This record becomes the baseline for the next scheduled inspection and supports support terms claim processing if a defect emerges within the 12-month coverage period.

Site Replacement Workflow

Step 1 — Isolate and document. Place the affected vibration channel in bypass mode at the monitor rack to prevent a protective trip during probe removal. Record the existing air gap (typically measured with a feeler gauge or the bias voltage reading) and photograph the probe orientation and cable routing before disconnection.

Step 2 — Remove the legacy probe. Loosen the probe locknut and back the probe out of the bracket. Inspect the probe tip for impact damage or contamination. If the tip shows mechanical damage, inspect the shaft journal surface for scoring that could affect the new probe’s gap stability.

Step 3 — Install the 330101-XX-XX-20-02-CN. Thread the new probe into the bracket and set the air gap to the value specified on the machine datasheet — commonly 1.0 mm to 1.5 mm for 8mm probes. Verify bias voltage at the proximitor output: −10 VDC ±0.5 V at the nominal gap confirms correct installation. Torque the locknut to specification and secure the cable with the original clamps to prevent vibration-induced fatigue at the connector.

Step 4 — Commission and validate. Remove the channel bypass, observe the OK relay status, and confirm that the vibration reading is within the expected baseline range for the machine at rest. If the machine can be run at low speed, verify that the dynamic vibration reading tracks correctly before returning the asset to full load.

Step 5 — Update records. Log the replacement in the CMMS, attach the bench test certificate, and set the next inspection interval in accordance with the plant’s predictive maintenance schedule. For aging 3300 XL systems approaching end-of-support, consider scheduling a parallel review of the monitor rack firmware and any obsolete I/O termination boards to extend overall system life.

Spare Parts Support FAQ

Q1: Is the 330101-XX-XX-20-02-CN a direct drop-in replacement for other 330101 variants?
Yes. The 330101 family uses a common mechanical form factor and electrical interface across the 3300 XL 8mm probe series. The XX fields in the part number denote configurable cable length and connector options. Confirm that the cable length and connector type of the replacement unit match your existing installation before ordering to avoid field modification.

Q2: How do I verify the probe is genuine and has been tested before shipment?
Every 330101-XX-XX-20-02-CN unit supplied by KNMKS is bench-tested for tip sensitivity, cable continuity, and connector integrity prior to dispatch. A test record is available on request. The support terms confirmed by quotation cover performance deviations from Bently Nevada factory specifications and applies from the date of shipment.

Q3: What is the recommended inventory strategy for this probe in a critical plant?
For assets classified as critical or safety-critical, maintain a minimum of one spare probe per monitored shaft, plus one spare extension cable and one spare proximitor module per measurement plane. For plants with multiple identical machines, a pooled inventory of two to three probes per machine type is a common industry practice that balances carrying cost against unplanned downtime risk.

Q4: Can KNMKS support long-term supply for legacy 3300 XL systems?
Yes. KNMKS maintains ongoing sourcing channels for Bently Nevada 3300 XL series components, including probes, extension cables, proximitor modules, and monitor cards. For plants committed to extending the life of legacy vibration monitoring systems, we recommend establishing a blanket purchase agreement to lock in pricing and ensure priority allocation during periods of market tightness.
