Bently Nevada 330101-32-57-05-01-05 Spare Part for Factory Uptime

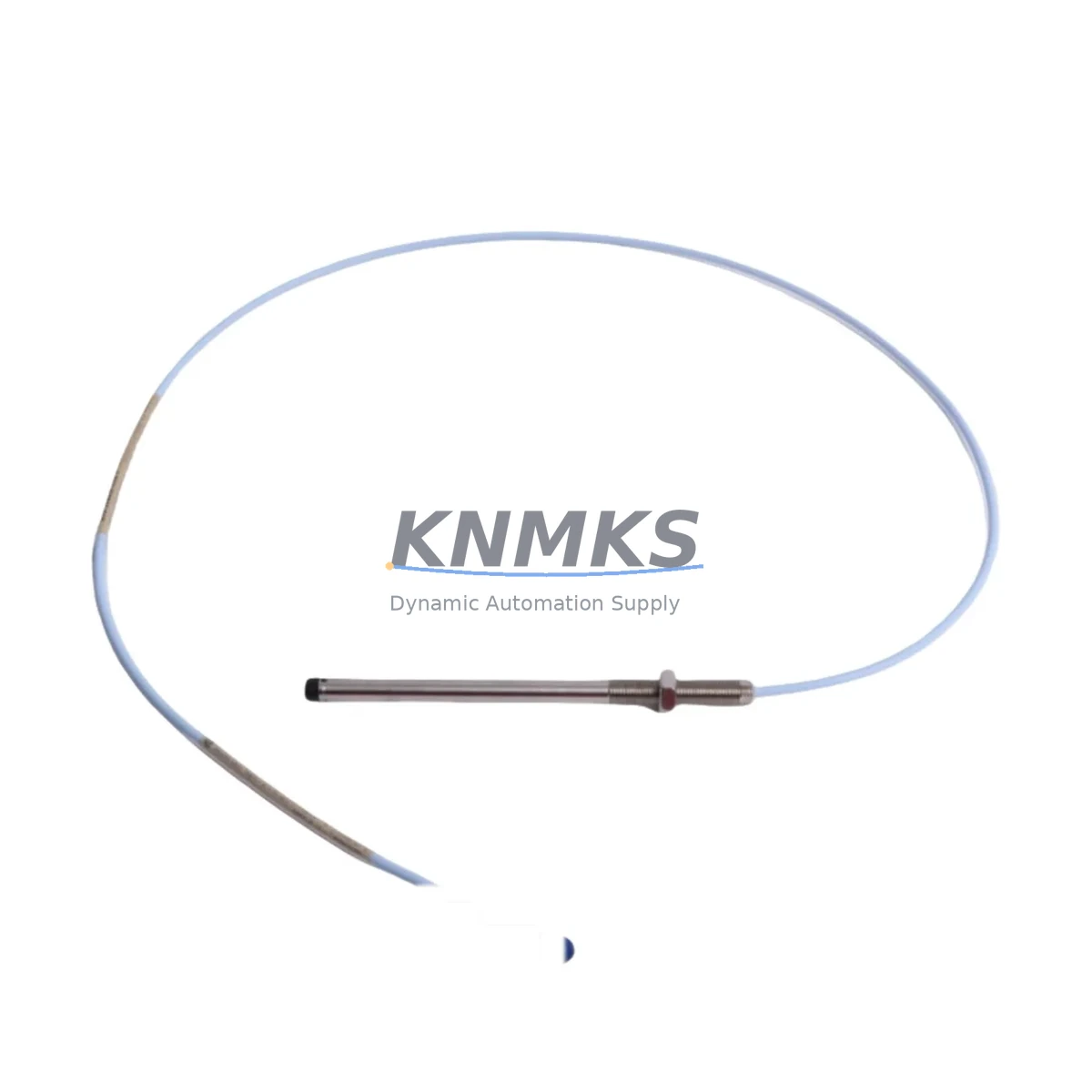

The Bently Nevada 330101-32-57-05-01-05 is an 8mm eddy current proximity probe engineered for the 3300 XL Vibration Monitoring System. Designed for continuous shaft displacement and vibration measurement on rotating machinery — including steam turbines, gas compressors, centrifugal pumps, and gearboxes — this probe is a critical component in any predictive maintenance and condition monitoring program. Sourced as an original spare, the 330101-32-57-05-01-05 is pre-tested, serialized, and shipped with a support terms confirmed by quotation to support your plant’s uptime commitments.

Maintenance engineers and procurement teams operating in petrochemical, power generation, oil & gas, and heavy manufacturing environments rely on this probe for its consistent sensitivity, long cable compatibility, and direct drop-in fit within existing 3300 XL monitor racks. Whether you are responding to an unplanned shutdown, executing a scheduled turnaround, or building a strategic spare parts inventory, the 330101-32-57-05-01-05 delivers the reliability and traceability your site demands.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-32-57-05-01-05 proximity probe during a planned outage or emergency shutdown, a disciplined inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure accurate vibration data after restart.

Begin with the proximitor/seismic module — typically a Bently Nevada 330180 or 330185 series — which conditions the probe signal and provides the DC output to the 3300 XL monitor card. A degraded proximitor can produce erratic gap voltage readings even with a new probe installed. Verify the gap voltage falls within the linear range (typically -10 VDC ± 0.5 VDC at the nominal air gap) before returning the machine to service.

Inspect the 330130 series extension cable connecting the probe to the proximitor. Cable jacket damage, connector corrosion, or impedance mismatch caused by non-OEM cables are among the most common sources of false vibration alarms and probe failures. Replace the extension cable as a matched set whenever probe replacement is performed on high-criticality machines.

At the monitor rack level, check the 3300/16 or 3300/20 XL monitor card for alarm setpoint integrity, OK relay status, and buffered output signal quality. Confirm that the terminal board (typically a 3300/05 or 3300/06 series) shows no signs of terminal oxidation, loose wiring, or moisture ingress — conditions that are frequently overlooked during probe-only replacements.

For machines in continuous service, also verify the power supply module feeding the 3300 XL rack. Voltage ripple or supply degradation can introduce noise into the proximity measurement channel, masking real vibration events or triggering nuisance trips. A redundant power supply configuration is strongly recommended for Tier 1 rotating assets.

Finally, if the machine is part of a DCS or safety instrumented system (SIS) integration, confirm that the 4–20 mA or relay output from the 3300 XL monitor is correctly received at the DCS I/O card after probe replacement. Signal isolation barriers or Zener barriers in hazardous area installations should be tested for continuity and correct breakdown voltage before loop commissioning.

Maintaining a minimum of two 330101-32-57-05-01-05 probes per critical machine train in your site spare parts inventory — alongside matched extension cables and at least one spare proximitor module — is the industry-standard approach to achieving sub-4-hour MTTR on vibration monitoring systems.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the measurement channel at the 3300 XL monitor. Place the monitor in bypass mode to prevent spurious trips during probe removal. Document the existing gap voltage reading before disconnecting the probe.

Step 2 — Probe Removal: Loosen the probe lock nut and carefully back the probe out of the bracket. Inspect the probe tip for impact damage, contamination, or shaft contact marks. Record findings for root cause analysis.

Step 3 — New Probe Installation: Thread the replacement 330101-32-57-05-01-05 into the bracket and adjust the air gap to achieve the nominal gap voltage specified on the machine datasheet (typically -10 VDC ± 0.5 VDC). Tighten the lock nut to the specified torque. Avoid over-tightening, which can crack the probe body.

Step 4 — Signal Verification: With the monitor in active mode, confirm gap voltage, OK status, and buffered output signal. Compare vibration baseline readings against historical trend data in your condition monitoring system. Any deviation greater than 10% from the pre-outage baseline warrants further investigation before machine restart.

Step 5 — Documentation & Inventory Update: Record the replacement in your CMMS, update the spare parts inventory, and initiate a replenishment order for the consumed probe to maintain minimum stock levels. Attach the functional test report supplied with the 330101-32-57-05-01-05 to the work order for traceability.

This workflow is compatible with direct replacement of legacy Bently Nevada 330101 series probes and supports seamless integration with existing 3300 XL racks without firmware changes or recalibration of the monitor card.

Spare Parts Support FAQ

Q1: Is the 330101-32-57-05-01-05 a direct replacement for other 330101 series probes?
Yes. The 330101-32-57-05-01-05 is part of the Bently Nevada 330101 8mm proximity probe family. Variants within this series share the same probe diameter, sensitivity, and connector interface, with differences in cable length and termination style. Always verify the cable length suffix and connector type against your machine’s bracket and proximitor wiring before installation. Our technical team can assist with cross-reference confirmation prior to shipment.

Q2: What testing is performed before shipment?
Each 330101-32-57-05-01-05 unit undergoes functional verification including gap voltage linearity check, sensitivity measurement, and OK output confirmation using a calibrated 3300 XL proximitor. A test report is included with every shipment. Units that do not meet OEM specification are quarantined and not offered for sale.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects, sensitivity drift beyond OEM tolerance, and OK relay failure under normal operating conditions. It does not cover damage resulting from shaft contact, incorrect installation gap, or use with non-compatible proximitor models. Support requests are processed within 5 business days with advance replacement available for critical applications.

Q4: Can you support long-term supply agreements for the 330101-32-57-05-01-05?
Yes. KNMKS supports annual blanket orders and long-term supply agreements for the 330101-32-57-05-01-05 and related 3300 XL components. Frame agreements include reserved inventory allocation, fixed pricing, and priority shipment scheduling — designed to eliminate procurement risk for plants operating aging Bently Nevada systems where OEM availability is constrained. Contact our sales team to discuss your site’s annual consumption and lead time requirements.
