Bently Nevada 330101-00-50-10-02-05 Migration-Ready Eddy Current Transducer

Overview

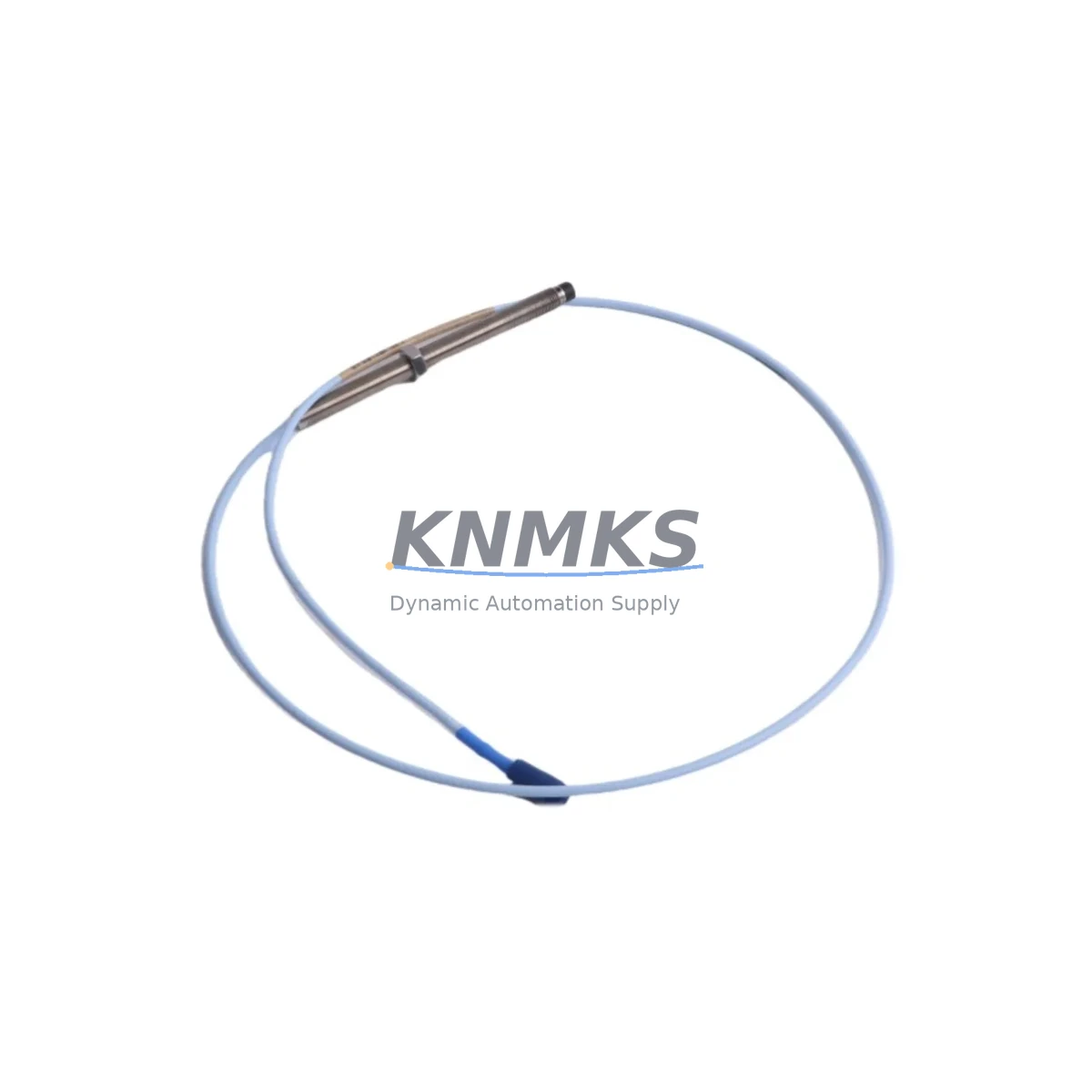

Bently Nevada 330101-00-50-10-02-05 Migration-Ready Eddy Current Transducer for Legacy Control Systems

The Bently Nevada 330101-00-50-10-02-05 is an 8mm eddy current transducer engineered for the 3300 XL continuous monitoring system platform. As aging machinery protection systems approach end-of-life and OEM support windows close, this transducer serves as a verified migration-ready replacement for facilities managing legacy rotating equipment — including steam turbines, compressors, pumps, and gearboxes — where continuous vibration and position monitoring is safety-critical.

This unit is fully compatible with the Bently Nevada 3300 XL proximitor/monitor architecture, maintaining the same 8mm probe tip geometry, 5-metre extension cable standard, and -24 VDC bias voltage output range expected by existing monitor cards. Engineers retrofitting older 3300 Series installations or upgrading from discontinued 7200 Series probes will find this transducer a direct functional substitute, eliminating the need for signal conditioning rewiring or monitor card reconfiguration in most applications.

Each unit ships pre-tested against Bently Nevada factory sensitivity specifications (7.87 V/mm ± 10%) and is accompanied by calibration documentation to support commissioning records and site acceptance testing. In-stock inventory is maintained to support emergency spare requirements and planned outage windows.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-50-10-02-05 into an operating machinery protection system requires a structured pre-outage review. Before scheduling the replacement window, maintenance engineers should pull the existing loop drawing to confirm the extension cable part number — typically a 330130-series cable assembly — and verify that the cable’s total electrical length matches the proximitor’s calibrated range. If the existing cable shows connector wear or jacket damage, replacing it alongside the probe eliminates a common source of post-retrofit signal noise.

The 330180-series 8mm proximitor mounted in the control cabinet should be inspected for firmware revision. Older proximitor units running early firmware may require a field update before accepting the current probe batch, particularly in installations where the original probe was installed more than a decade ago. This step is frequently overlooked and can cause erroneous gap voltage readings during initial commissioning.

On the control system side, the analogue output from the proximitor feeds into the 3300/16 or 3300/20 monitor card housed in the 3500-series rack. Because the 330101-00-50-10-02-05 maintains the same sensitivity and output range as its predecessors, the monitor card’s alert and danger setpoints, as well as the DCS scaling configured in the upstream PLC or safety controller, do not require modification. This is a significant advantage in facilities where the control program has been locked or where re-validation of safety logic would trigger a lengthy management-of-change process.

For installations where the machinery protection system interfaces with a Bently Nevada System 1 condition monitoring platform, the transducer replacement is transparent to the software layer — no channel reconfiguration or database update is needed, provided the proximitor serial number is updated in the asset register. Sites running older data acquisition hardware such as the 3500/42M position monitor or the 3500/45 position monitor should confirm that the monitor’s internal gap check routine is re-executed after probe installation to clear any latent fault flags.

Where the retrofit is part of a broader control cabinet upgrade — for example, migrating from a legacy relay-based trip system to a modern safety PLC — the analogue vibration signal from the proximitor can be routed to a new analogue input module without rewiring the probe or extension cable. Signal isolators may be required at the cabinet boundary to prevent ground loops when the new safety controller operates on a different reference potential than the existing 3300 XL system.

Downtime Control During System Migration

Minimising production downtime during a transducer replacement on a critical rotating machine requires careful sequencing of the work scope. The 330101-00-50-10-02-05 is designed for hot-standby swap in dual-channel redundant configurations: with the monitor card placed in bypass mode, the replacement probe can be installed, gapped, and verified against the proximitor output before the bypass is lifted — keeping the machine running throughout the procedure in many plant configurations.

For single-channel installations where a brief shutdown is unavoidable, the recommended approach is to pre-stage the replacement probe, extension cable, and any required connector tools at the machine before the outage begins. Having the 330180 proximitor output voltage verified on the bench against a reference target reduces the risk of discovering a faulty proximitor only after the machine has been taken offline.

Original program logic in the upstream PLC or DCS is fully preserved during this replacement. Because the transducer-to-monitor interface is analogue and the monitor card configuration is unchanged, there is no risk of inadvertent setpoint modification or logic alteration. HMI faceplates displaying vibration trend data will continue to function without update, and historian tags will remain valid — eliminating the need for control system re-commissioning documentation in most jurisdictions.

Post-installation, the commissioning checklist should include: gap voltage measurement and documentation, slow-roll vibration baseline capture, comparison against the pre-outage trend, and a functional test of the monitor card’s alert relay output. These steps, completed within a single shift, provide the site acceptance record required by most machinery protection standards and insurance auditors.

Retrofit Support FAQ

Q1: Is the 330101-00-50-10-02-05 a direct replacement for the 330101-00-50-10-02-00?
Yes. The -02-05 suffix denotes a connector assembly revision. The probe tip geometry, sensitivity, cable length, and proximitor compatibility are identical. No wiring changes or monitor card reconfiguration are required. Confirm the target shaft material matches the probe’s standard steel calibration curve; if the shaft is a non-standard alloy, request the appropriate calibration factor.

Q2: What commissioning steps are required after installation?
After mechanical installation, set the probe gap to achieve a bias voltage of approximately -10 VDC as read at the proximitor output terminals. Record the gap distance and bias voltage in the site commissioning log. Perform a slow-roll check to confirm the vibration baseline is within expected limits. Verify that the monitor card’s OK relay is energised and that no fault flags are present in the System 1 or DCS display.

Q3: Has this unit been tested before shipment?
Yes. Every 330101-00-50-10-02-05 unit is bench-tested for sensitivity (7.87 V/mm ± 10%), linearity across the measurement range, and connector integrity before dispatch. A test record is included with each shipment. Units are packaged in anti-static, shock-protected packaging to maintain calibration integrity during transit.

Q4: What does the support terms confirmed by quotation cover, and what is the lead time for in-stock units?
The support terms confirmed by quotation cover manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from incorrect installation, over-range mechanical contact, or chemical exposure. In-stock units are dispatched within 1–3 business days. For urgent outage requirements, expedited shipping is available — contact the sales team to confirm current stock levels and dispatch schedule.
