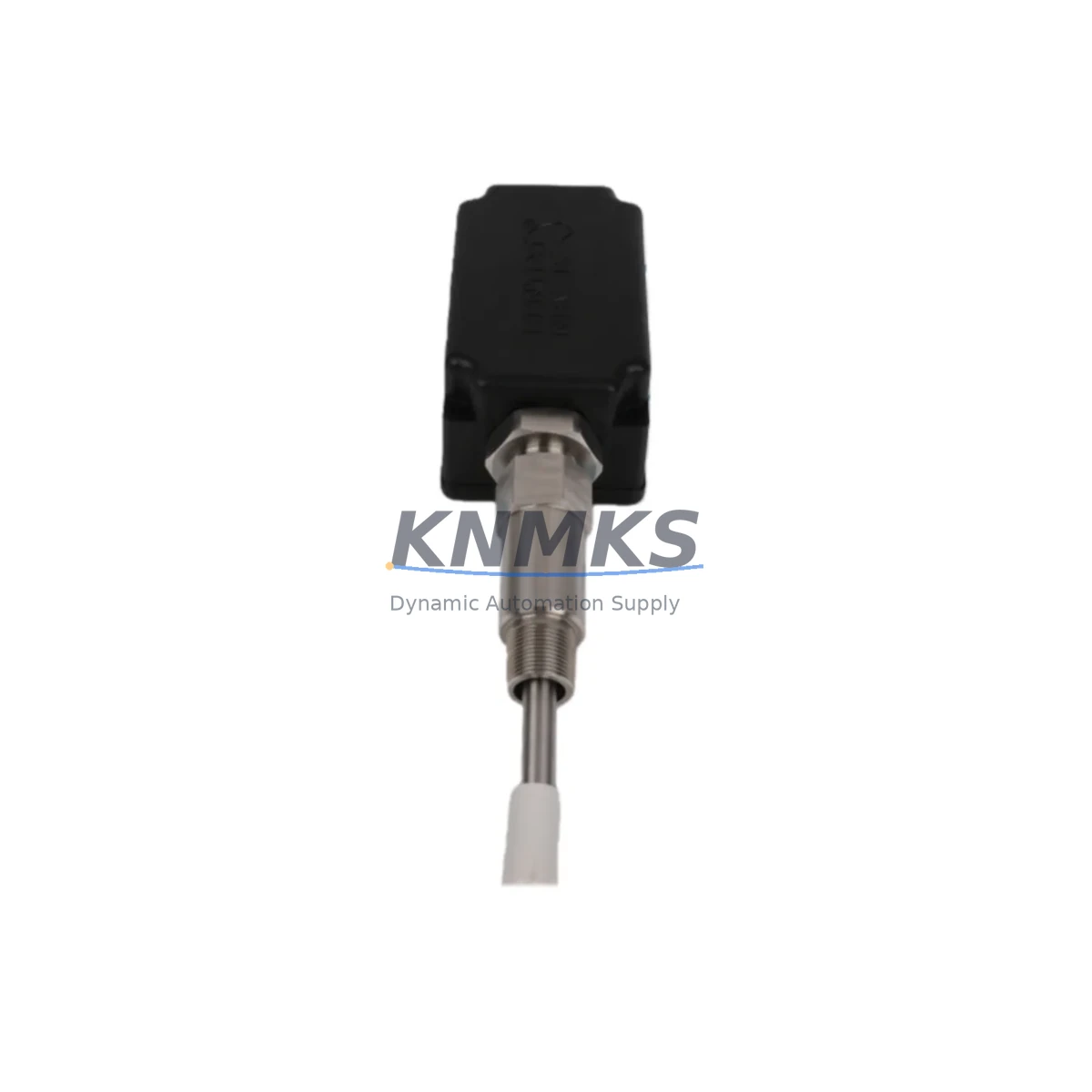

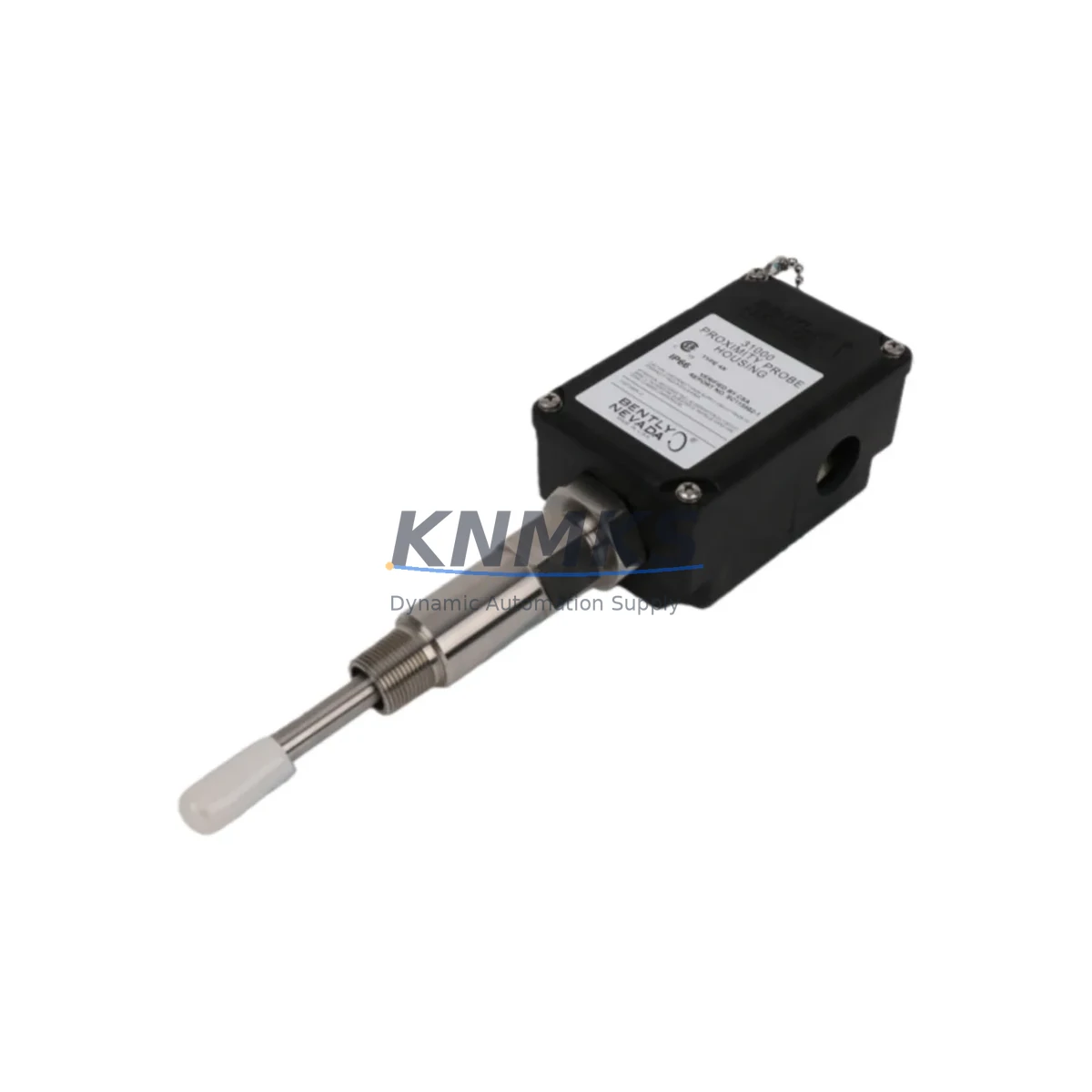

Bently Nevada 32000-29-10-04-055-03-02 Migration-Ready Proximity Probe Housing

Overview

Bently Nevada 32000-29-10-04-055-03-02 Migration-Ready Proximity Probe Housing for Legacy Control Systems

The Bently Nevada 32000-29-10-04-055-03-02 is a migration-ready Proximity Probe Housing engineered for direct replacement in legacy vibration monitoring and machinery protection systems built on the Bently Nevada 32000 Series platform. As original equipment reaches end-of-life and OEM support is discontinued, facilities operating rotating machinery — including turbines, compressors, pumps, and gearboxes — face increasing pressure to source verified replacement components that maintain signal integrity, dimensional compatibility, and system continuity without requiring full platform overhauls.

This housing unit is designed to preserve the existing probe-to-driver signal chain, allowing maintenance teams to execute targeted component replacements rather than wholesale system migrations. Whether your facility is managing a planned upgrade cycle or responding to an unplanned failure, the 32000-29-10-04-055-03-02 provides a validated, inventory-ready solution with documented compatibility across the 32000 Series probe and driver ecosystem.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 32000-29-10-04-055-03-02 into an existing machinery protection architecture requires a structured pre-retrofit assessment. Maintenance engineers should begin by auditing the current probe assembly, including the probe tip, extension cable, and driver module. In many legacy installations, the Bently Nevada 3300 XL 8mm Proximity Probe System or the 3300 XL 11mm variant is paired with the 32000 Series housing. Confirming that the replacement housing accepts the same probe body thread and cable connector type eliminates the most common source of retrofit delay.

Power supply capacity is a critical checkpoint. The 32000 Series proximity system typically operates on a –24 VDC supply routed through the driver module. Before replacement, verify that the existing power supply — often a Bently Nevada 3500/15 Power Supply module in rack-based installations — can sustain the required current draw without voltage sag under full channel load. If the control cabinet houses multiple vibration channels, total current demand across all active probe circuits must be calculated before any component swap.

Terminal wiring should be documented and photographed before disassembly. The probe housing interfaces with the extension cable at a defined connector point; any deviation in cable length or connector type will require a matched Bently Nevada Extension Cable (3300 XL series, armored or standard) to maintain the calibrated system scale factor. Substituting non-matched cables introduces scale factor error that will propagate through the Bently Nevada 3500 Vibration Monitor or equivalent monitoring rack, potentially triggering false alarms or masking real machinery faults.

For facilities running DCS or PLC-integrated monitoring, the output signal from the driver — typically routed to a Bently Nevada 3500/42M Proximitor/Seismic Monitor or a 3500/40M Proximitor Monitor — must be verified for channel address mapping. If the replacement is part of a broader rack upgrade that includes swapping monitor cards, confirm that the new monitor card’s channel addressing matches the existing DCS tag assignments to avoid I/O remapping in the control system. In SCADA-integrated environments, HMI screen tag bindings should be validated post-replacement before returning the machine to service.

Where installation space is constrained — particularly in retrofit scenarios involving older turbine pedestals or compressor bearing housings with limited access — confirm the housing body length and hex flat dimensions of the 32000-29-10-04-055-03-02 against the available clearance envelope. Interference with adjacent piping, insulation, or structural members is a common cause of unplanned downtime extension during probe housing replacements.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe housing replacement requires pre-staging all replacement components before the maintenance window opens. The 32000-29-10-04-055-03-02 should be bench-inspected and gap-checked against the paired probe tip prior to installation. Having a pre-verified spare on the shelf — rather than sourcing during an active outage — is the single most effective downtime reduction measure available to rotating equipment teams.

Before removing the existing housing, capture the current gap voltage reading from the driver output and record it as the baseline reference. This value, typically between –10 VDC and –18 VDC for a properly gapped 8mm or 11mm probe, serves as the commissioning target after the new housing is installed. Retaining the original program logic in the monitoring rack — including alarm setpoints, danger thresholds, and time-delay settings — ensures that the machine protection system remains functionally continuous throughout the swap.

For facilities where continuous operation is required during adjacent machinery maintenance, consider isolating the affected channel in the Bently Nevada 3500 rack using the rack’s bypass function, if available, to prevent nuisance trips during the probe housing swap. Document the bypass activation and restoration in the maintenance log to maintain audit trail integrity. Once the replacement housing is installed and the gap voltage is confirmed within specification, restore the channel to active monitoring before releasing the machine to operations.

Post-installation, a short-duration trend review — typically 15 to 30 minutes of vibration data — should be conducted to confirm that the replacement housing is producing a clean, stable signal consistent with pre-maintenance baseline readings. Any anomalous noise, drift, or offset in the proximity output should be investigated before the maintenance window is formally closed.

Retrofit Support FAQ

Q: Is the 32000-29-10-04-055-03-02 a direct drop-in replacement for other 32000 Series housing variants?
A: The 32000-29-10-04-055-03-02 is designed for compatibility within the 32000 Series probe housing family. However, suffix codes in the Bently Nevada part numbering system encode dimensional and configuration variables. Always verify thread size, body length, and connector type against your existing installation before ordering. Our team can assist with cross-reference validation prior to shipment.

Q: What pre-shipment testing is performed on this unit?
A: Each unit undergoes dimensional inspection and functional verification prior to dispatch. Units are tested for mechanical integrity and connector interface conformance. A support terms confirmed by quotation cover manufacturing defects and verified compatibility failures from the date of shipment.

Q: Can this housing be used with non-Bently Nevada probe tips or extension cables?
A: The housing is mechanically compatible with probes that match the 32000 Series thread and body specifications. However, using non-matched probe and cable assemblies will affect the system scale factor and may invalidate the calibration of the paired driver module. For guaranteed system performance, use matched Bently Nevada probe and cable assemblies.

Q: What is the lead time and inventory availability?
A: This part is maintained availability confirmed by RFQ for immediate dispatch. Standard lead time for in-stock units is 3–7 business days depending on destination. For urgent requirements, expedited shipping options are available. Contact our sales team to confirm current inventory levels and delivery schedule.
