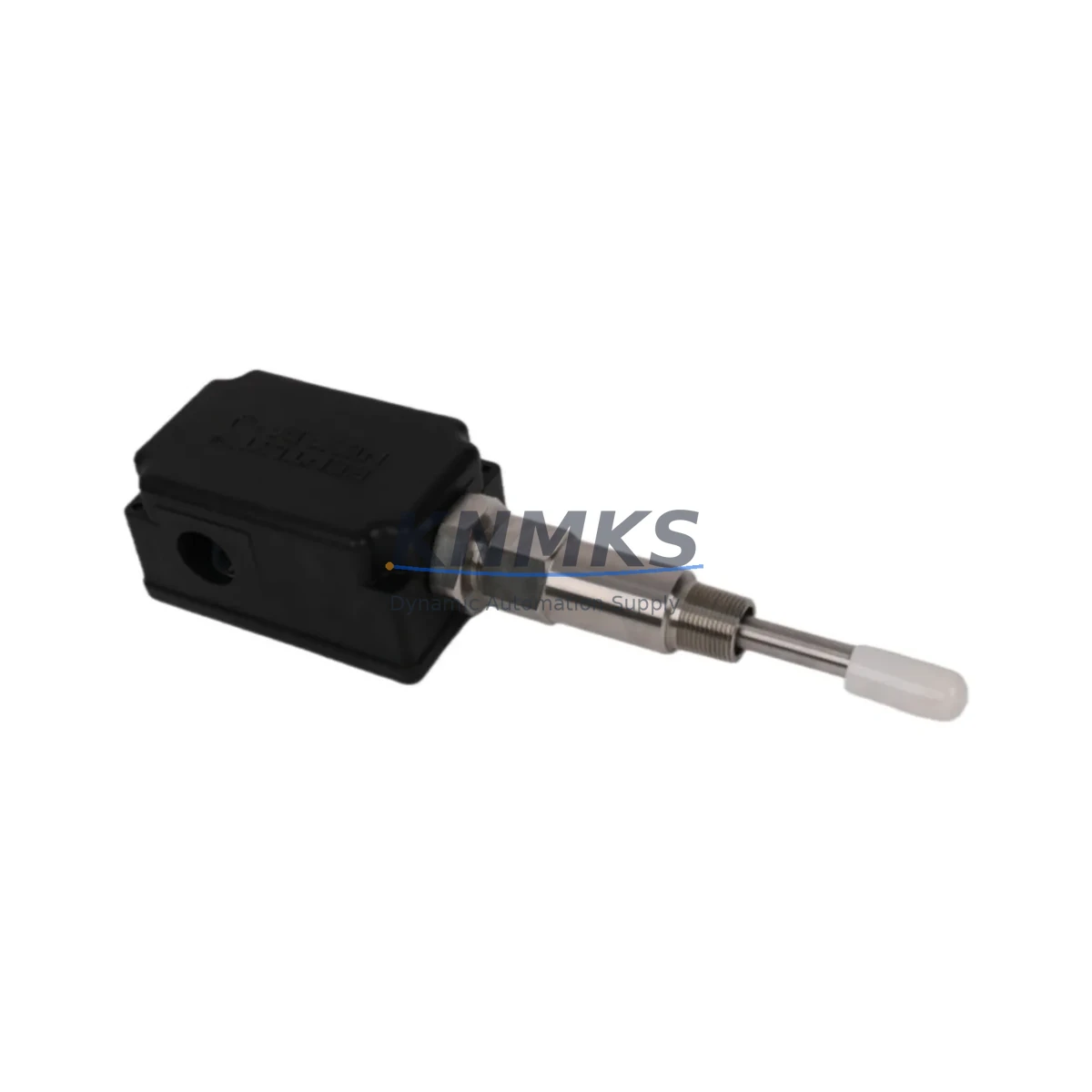

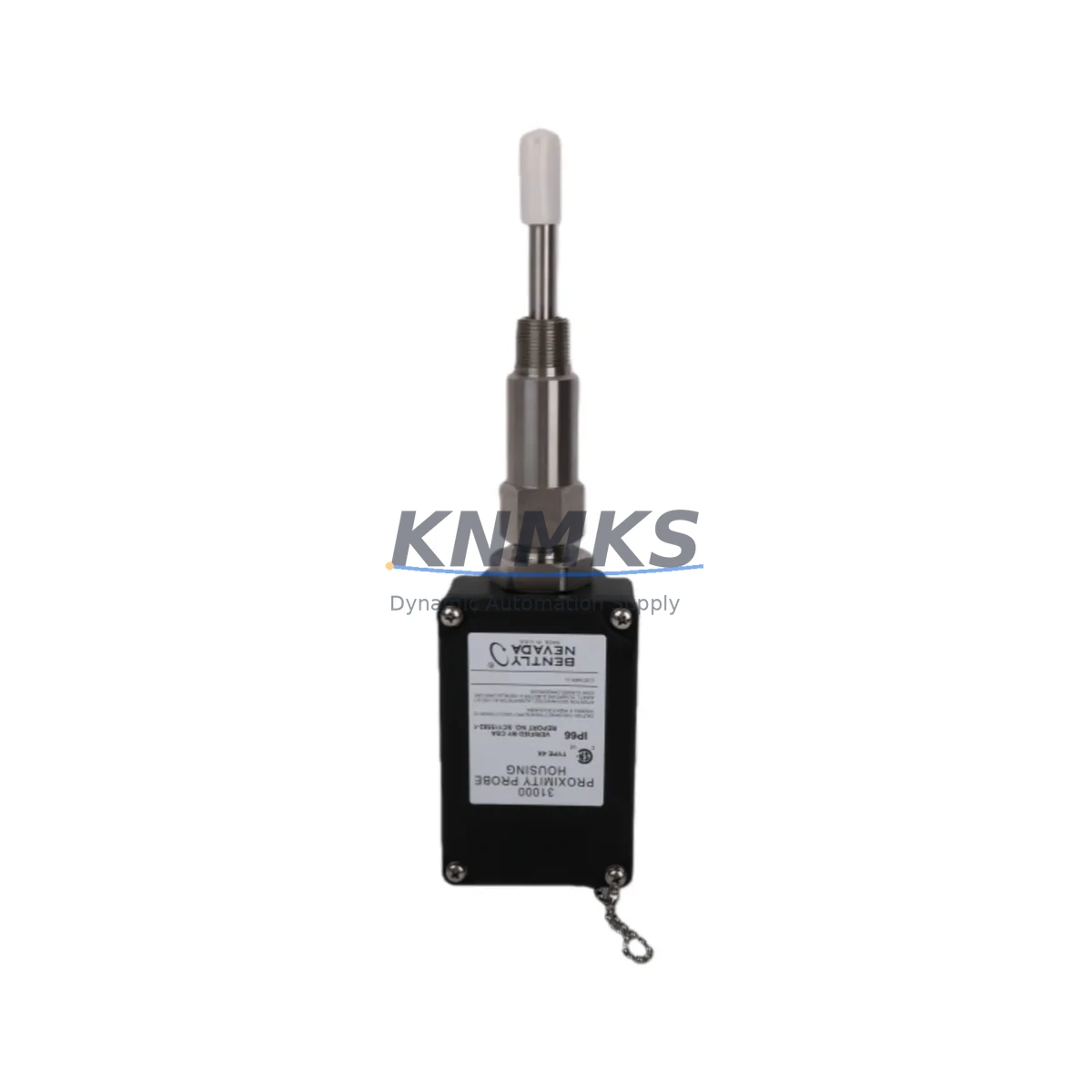

Bently Nevada 32000-29-10-00-234-03-02 Fail-Safe Proximity Probe

Overview

Bently Nevada 32000-29-10-00-234-03-02 Fail-Safe Proximity Probe: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 32000-29-10-00-234-03-02 is a ruggedized, safety-grade proximity probe engineered for continuous operation in the most demanding industrial environments. Designed as a core component of rotating machinery protection systems, this probe delivers precise, non-contact displacement and vibration measurement with fail-safe signal integrity — making it an essential element in any critical control loop where unplanned downtime is not an option.

In continuous production facilities — including petrochemical plants, power generation stations, mining operations, and metallurgical complexes — machinery protection depends on the uninterrupted accuracy of vibration and position sensing. The 32000-29-10-00-234-03-02 is purpose-built to meet these demands, providing stable eddy-current sensing output even under conditions of high electromagnetic interference (EMI), shaft runout, thermal cycling, and mechanical vibration. Its robust housing construction resists ingress from dust, moisture, and process fluids, ensuring reliable signal transmission from the field to the control cabinet without drift or false trips.

Signal integrity is maintained across the full operating temperature range, and the probe’s output is fully compatible with the Bently Nevada 3300 XL Series proximity transducer system, including the 3300 XL 8mm extension cables and the 3300 XL proximitor sensors. When paired with the Bently Nevada 3500/42M Proximitor/Seismic Monitor module, the 32000-29-10-00-234-03-02 forms a complete, certified machinery protection channel capable of driving relay outputs for automatic shutdown or alarm annunciation in safety instrumented systems (SIS).

Within the control cabinet, this probe integrates seamlessly alongside Bently Nevada 330130 series extension cables and 3300 XL proximitor housings, maintaining consistent impedance and signal levels that prevent false alarms caused by cable degradation or connector corrosion. For installations subject to high-voltage transients or lightning-induced surges, pairing the probe circuit with dedicated surge protection devices — such as those in the Bently Nevada 3500 I/O module family — further reduces the risk of measurement channel failure during electrical disturbances.

In high-EMI environments such as variable frequency drive (VFD) motor rooms, arc furnace bays, or high-power switchgear areas, the probe’s shielded coaxial cable assembly and precision-wound sensing coil minimize susceptibility to induced noise, ensuring that vibration alarm setpoints are not compromised by electrical interference. This is critical in applications where a spurious trip can cause cascading production losses or where a missed alarm can result in catastrophic bearing or seal failure.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable machinery protection architecture requires more than a single sensing element. The Bently Nevada 32000-29-10-00-234-03-02 proximity probe is most effective when deployed as part of a coordinated protection strategy within the control cabinet and field junction box. In a typical rotating machinery protection panel, the probe signal is routed through Bently Nevada 330130-080-00-00 extension cables, which maintain the precise coaxial impedance required for accurate gap measurement over long cable runs between the machine and the monitor rack.

The Bently Nevada 3500/42M Proximitor/Seismic Monitor receives the probe signal and performs real-time vibration and position analysis, triggering configurable alarm and danger relay outputs that can be wired directly into the plant’s safety instrumented system (SIS) or emergency shutdown (ESD) logic. For power supply redundancy within the 3500 rack, the Bently Nevada 3500/15 Power Supply module provides dual-input, fail-safe DC power distribution, ensuring that a single power source failure does not compromise the entire protection system.

In cabinets where multiple machine trains are monitored simultaneously, the Bently Nevada 3500/20 Rack Interface Module (RIM) enables centralized communication with the plant DCS or SCADA system via Modbus or other industrial protocols, allowing operators to monitor vibration trends, acknowledge alarms, and initiate controlled shutdowns from the control room without interrupting field wiring. For installations requiring additional I/O isolation and surge protection, the Bently Nevada 3500 I/O module family provides terminal board-level protection against transient overvoltages that could otherwise damage the sensitive proximitor circuitry.

Together, these components form a layered, fail-safe protection architecture that minimizes the risk of undetected bearing wear, rotor rub, shaft misalignment, and seal degradation — all of which are leading causes of unplanned shutdowns in rotating machinery-intensive industries.

Critical Industrial Safety Applications

The Bently Nevada 32000-29-10-00-234-03-02 proximity probe is deployed across a wide range of critical industrial applications where continuous, fail-safe vibration and position monitoring is essential to operational safety and regulatory compliance.

In petrochemical and refinery environments, the probe monitors compressor and pump shaft vibration and axial position in API 670-compliant machinery protection systems, providing early warning of bearing degradation before catastrophic failure can occur. In power generation facilities — including gas turbine, steam turbine, and hydro generator installations — the probe’s high-temperature capability and EMI resistance make it suitable for direct mounting on turbine bearing housings, where it feeds real-time data to the plant’s protection and control system.

In mining and mineral processing operations, where heavy-duty crushers, mills, and conveyors operate in high-dust, high-vibration environments, the IP67-rated probe housing ensures reliable long-term operation without signal degradation caused by particulate ingress. Water and wastewater treatment plants rely on the probe for continuous monitoring of large pump and blower trains, where a bearing failure can disrupt critical public infrastructure services.

In metallurgical and steel production facilities, the probe withstands the extreme thermal gradients and electromagnetic interference generated by induction furnaces and rolling mill drives, maintaining accurate shaft position measurement throughout the production cycle. Port and marine applications — including ship propulsion systems, crane drives, and offshore platform compressors — benefit from the probe’s corrosion-resistant construction and stable output under variable load and speed conditions.

Across all these applications, the 32000-29-10-00-234-03-02 supports the fundamental safety objective: detect abnormal machinery behavior early, protect personnel and assets, and prevent unplanned production interruptions.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the Bently Nevada 32000-29-10-00-234-03-02?
All units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions. Support requests are supported with replacement or repair, with priority processing for critical production applications.

Q2: What pre-shipment testing is performed on each unit?
Every 32000-29-10-00-234-03-02 undergoes full functional verification before dispatch, including signal output linearity check, insulation resistance test, and connector integrity inspection. A test record is available upon request for quality documentation purposes.

Q3: Is this probe compatible with existing Bently Nevada 3500 and 3300 XL system installations?
Yes. The 32000-29-10-00-234-03-02 is fully compatible with the Bently Nevada 3300 XL Proximitor/Seismic system and the 3500 Series monitor rack. It is a direct replacement for equivalent 8mm proximity probes used in these systems, requiring no modification to existing extension cables or monitor configuration.

Q4: Can long-term supply and spare parts support be arranged for ongoing maintenance programs?
Yes. KNMKS maintains stock of the 32000-29-10-00-234-03-02 and related Bently Nevada proximity transducer components to support planned maintenance, turnaround, and emergency replacement requirements. Long-term supply agreements and consignment stock arrangements are available for customers with recurring demand. Contact our team to discuss your maintenance schedule and volume requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

32000-29-10-00-234-03-02

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 32000-29-10-00-234-03-02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
