Bently Nevada 31000-31-05-20-080-00-02 Maintenance-Proven Spare

Overview

Bently Nevada 31000-31-05-20-080-00-02 Maintenance-Proven Spare Part for Factory Uptime

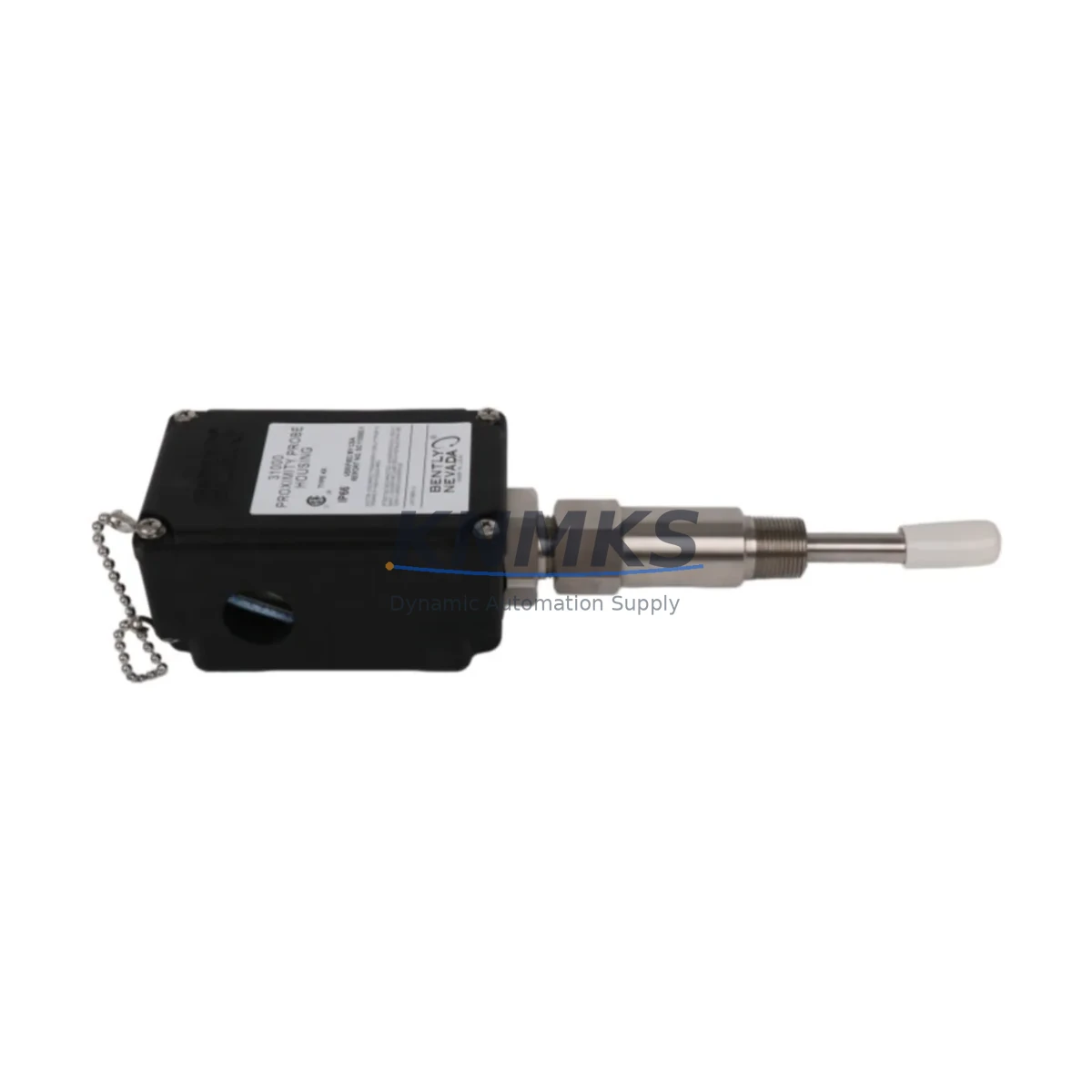

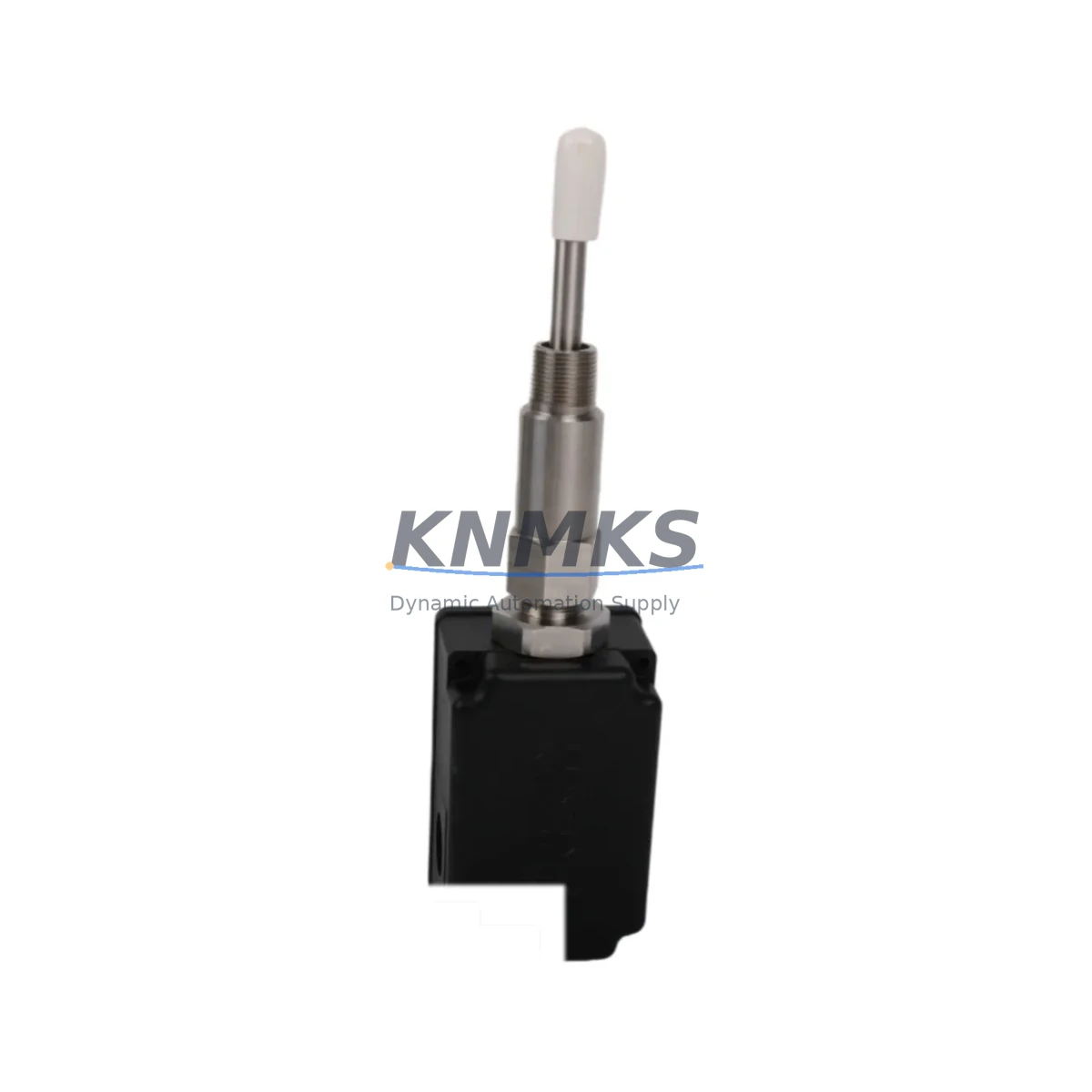

The Bently Nevada 31000-31-05-20-080-00-02 is a precision proximity probe housing assembly designed for continuous vibration monitoring in rotating machinery applications. As a core component of the Bently Nevada 31000 Series proximity probe system, this housing assembly provides the mechanical and electrical interface between the probe tip and the field wiring, ensuring reliable signal transmission to the 3500 Series monitoring rack or compatible vibration monitoring systems. For maintenance engineers managing turbines, compressors, pumps, and gearboxes in oil & gas, power generation, and petrochemical facilities, keeping a verified spare of the 31000-31-05-20-080-00-02 on the shelf is a fundamental strategy for minimizing unplanned downtime and protecting critical rotating assets.

This part is sourced as an original Bently Nevada component, fully tested prior to shipment, and backed by a support terms confirmed by quotation. Each unit undergoes functional verification to confirm dimensional integrity, connector condition, and cable sheath continuity before dispatch. global delivery details confirmed by RFQ ensures your maintenance team can restore monitoring coverage within the shortest possible window after a probe failure or scheduled replacement.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 31000-31-05-20-080-00-02 proximity probe housing assembly during a scheduled outage or emergency callout, a thorough inspection of the surrounding measurement loop is essential to prevent repeat failures and ensure the monitoring system returns to full accuracy. Maintenance engineers should begin by verifying the condition of the Bently Nevada 3500/42M or 3500/40M proximitor/monitor module in the rack, as a degraded monitor card can produce erroneous gap voltage readings even after a new probe is installed. Check the 3500/15 Power Supply module output voltage and confirm it is within specification, since low supply voltage is a common root cause of probe sensitivity drift.

Inspect the 3500/20 Rack Interface Module (RIM) and its communication connections to the plant DCS or historian to confirm that vibration data will be correctly transmitted after the probe swap. The extension cable connecting the probe housing to the proximitor should be examined for jacket damage, connector corrosion, and continuity — a compromised extension cable will introduce signal noise that mimics mechanical vibration anomalies. Where the installation uses a junction box or field terminal assembly, verify that terminal screws are torqued correctly and that no moisture ingress has occurred.

For facilities running older 3300 Series or 7200 Series monitoring infrastructure alongside newer 3500 racks, confirm that the replacement 31000-31-05-20-080-00-02 probe assembly is compatible with the installed proximitor model and that the gap voltage calibration curve matches the target material. It is also advisable to inspect nearby temperature monitoring modules and Keyphasor® probes during the same maintenance window, as these components share the same control cabinet environment and are subject to the same thermal and vibration stresses. Keeping a small buffer stock of proximity probe assemblies, extension cables, and proximitor modules aligned to your installed base significantly reduces mean time to repair (MTTR) during unplanned shutdowns.

Site Replacement Workflow

Replacing the 31000-31-05-20-080-00-02 in the field follows a structured sequence to minimize downtime and avoid introducing new faults. Before removing the existing probe, record the current gap voltage reading from the 3500 monitor display or the plant historian to establish a baseline for post-installation verification. De-energize the proximitor circuit per your site LOTO procedure, then carefully unthread the probe housing from the mounting bracket, taking care not to damage the cable or the machine casing threads.

Install the replacement 31000-31-05-20-080-00-02 housing assembly, torque to the manufacturer’s specification, and reconnect the extension cable. Re-energize the proximitor and measure the gap voltage with a calibrated digital multimeter at the proximitor output terminals. Adjust the probe gap as required to bring the gap voltage within the specified operating window — typically between –10 VDC and –18 VDC depending on the target material and proximitor model. Confirm that the 3500 monitor channel clears any latched alerts and that the vibration reading is stable and consistent with historical baseline values before returning the machine to service.

This systematic approach eliminates the risk of returning a machine to operation with an incorrectly gapped probe, which can trigger nuisance trips or, worse, mask genuine mechanical deterioration. For legacy installations where the original mounting hardware has corroded or the machine casing threads are worn, KNMKS can advise on compatible mounting adapters and alternative probe configurations to maintain system integrity without major mechanical rework.

Spare Parts Support FAQ

Q1: Is the 31000-31-05-20-080-00-02 compatible with both 3500 Series and 3300 Series Bently Nevada monitors?
The 31000 Series proximity probe system is primarily designed for use with Bently Nevada 3500 Series monitoring racks and compatible proximitor modules. Compatibility with 3300 Series or 7200 Series systems depends on the specific proximitor model installed. KNMKS recommends confirming the proximitor part number before ordering to ensure the probe sensitivity and gap voltage range are correctly matched to your monitoring hardware.

Q2: How does KNMKS verify the condition of spare proximity probe assemblies before shipment?
Every 31000-31-05-20-080-00-02 unit shipped by KNMKS undergoes pre-shipment functional testing, including dimensional inspection of the probe tip and housing, continuity and insulation resistance checks on the cable assembly, and connector condition verification. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q3: What is the recommended inventory strategy for proximity probe assemblies in a critical rotating machinery facility?
For facilities with four or more monitored machines, maintaining a minimum of two spare proximity probe assemblies per probe model in your on-site critical spares inventory is a widely accepted best practice. This buffer supports both emergency replacement and planned annual maintenance without relying on expedited procurement. KNMKS offers long-term supply agreements and consignment stock arrangements to help maintenance teams maintain adequate coverage without excessive capital tied up in inventory.

Q4: Can KNMKS source the 31000-31-05-20-080-00-02 on an ongoing basis for multi-year maintenance contracts?
Yes. KNMKS maintains long-term supply relationships for Bently Nevada 31000 Series components and can support multi-year procurement programs, blanket purchase orders, and scheduled delivery arrangements. Contact our team to discuss volume pricing, lead time commitments, and documentation packages including certificates of conformance and test reports.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

31000-31-05-20-080-00-02

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 31000-31-05-20-080-00-02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
