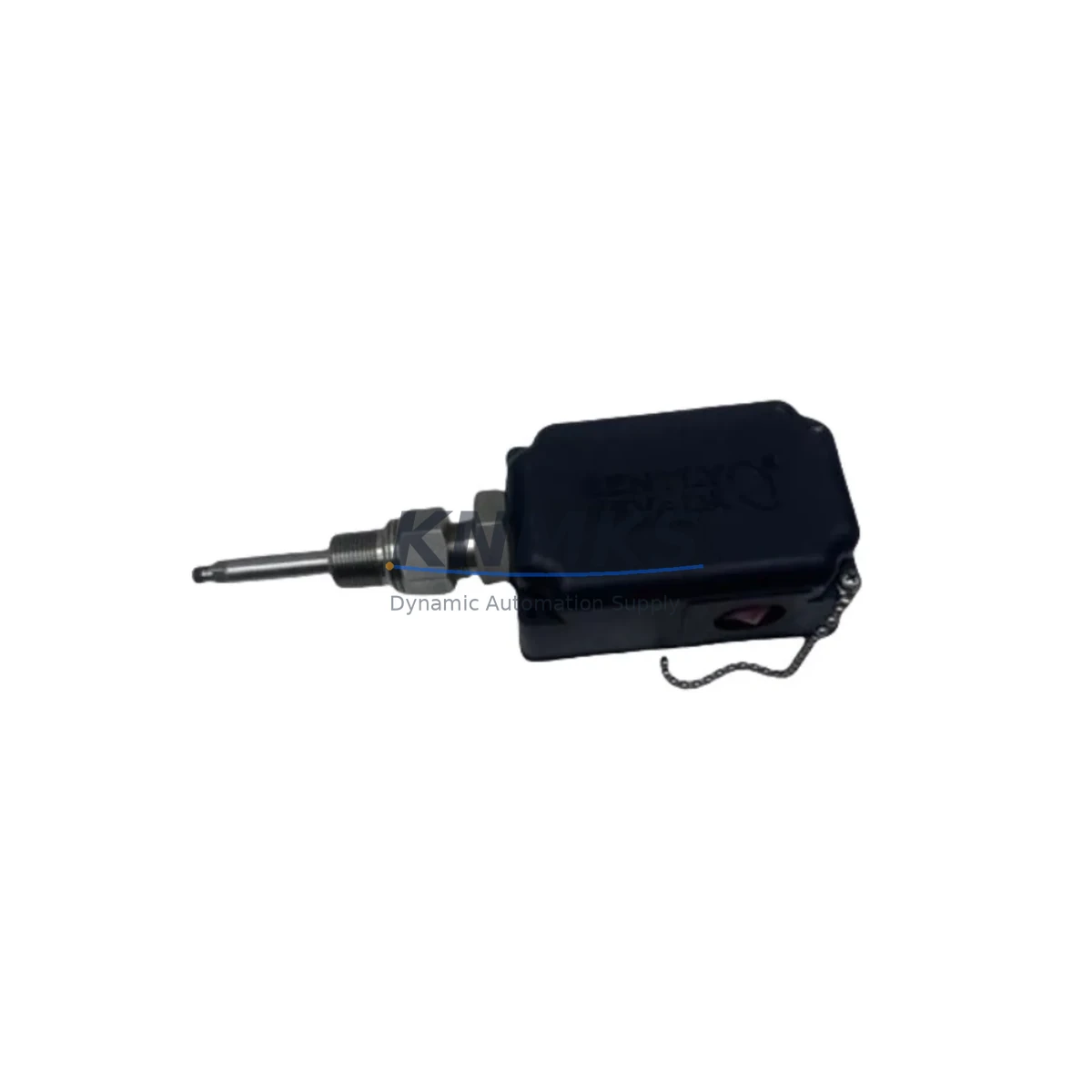

Bently Nevada 31000-30-05-15-31-03-02 Migration-Ready Proximity Probe

Overview

Bently Nevada 31000-30-05-15-31-03-02 Migration-Ready Proximity Probe: Legacy System Retrofit & Compatibility Upgrade

The Bently Nevada 31000-30-05-15-31-03-02 is a migration-ready eddy-current proximity probe engineered to serve as a direct replacement for discontinued and end-of-life units within the Bently Nevada 31000 Series and 32000 Series product families. Designed for industrial rotating machinery monitoring applications — including turbines, compressors, pumps, and gearboxes — this probe delivers the same signal conditioning performance, gap voltage characteristics, and mechanical form factor as the original, enabling seamless integration into existing 3500 Series monitoring racks without requiring panel redesign or cable rerouting.

For maintenance engineers and reliability teams managing aging distributed control systems (DCS) or vibration monitoring platforms, the 31000-30-05-15-31-03-02 represents a validated, inventory-available solution that eliminates the extended lead times and compatibility risks associated with sourcing obsolete OEM parts. Each unit is pre-tested against Bently Nevada factory specifications and ships with a support terms confirmed by quotation covering manufacturing defects and signal performance.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 31000-30-05-15-31-03-02 into a legacy vibration monitoring or machinery protection system requires a structured retrofit approach. Before removing the failed or end-of-life probe, engineers should document the existing gap voltage reading at the 3500 Series monitor input card — typically a 3500/42M Proximitor/Seismic Monitor or a 3500/40M Proximitor Monitor — to establish a baseline for post-installation verification. The probe’s coaxial cable routes through the field junction box to the Proximitor extension cable, and any damage to the intermediate cable assembly should be addressed simultaneously to avoid repeat failures.

In control cabinets where space is constrained, confirm that the probe body diameter and tip geometry match the existing mounting bracket bore. The 31000 Series uses a standardized thread and locknut configuration, but older installations may have custom-machined brackets that require adapter sleeves. When replacing probes on high-speed shafts, verify that the target material (typically 4140 steel or equivalent) is within the probe’s calibrated range, as non-standard shaft materials can shift the sensitivity curve and require recalibration of the 3500 rack monitor card.

For systems that also incorporate a 3300 XL 8mm Proximity Transducer System or a 330180 Series extension cable, confirm that the total cable length — probe cable plus extension — does not exceed the Proximitor driver’s specified range. Mismatched cable lengths are a common source of signal drift after retrofit. If the existing installation uses a 3500/20 Rack Interface Module for Modbus or FOUNDATION Fieldbus communication to the plant DCS, no protocol changes are required, as the 31000-30-05-15-31-03-02 outputs a standard analog signal that the monitor card converts upstream. Similarly, if the rack includes a 3500/92 Communication Gateway Module for integration with a Rockwell or Siemens PLC platform, the probe swap is transparent to the communication layer.

Where the retrofit is part of a broader control panel upgrade — for example, migrating from a legacy 3300 Series rack to a 3500 Series rack — plan for I/O mapping changes in the associated safety instrumented system (SIS) or DCS historian. HMI screens referencing the old probe tag names will need to be updated in the SCADA or DCS configuration, and alarm setpoints should be re-entered based on the new probe’s calibrated sensitivity. If the plant uses a Bently Nevada System 1 software platform for online machinery diagnostics, the probe channel configuration should be reviewed to ensure the correct transducer type and scale factor are selected before returning the machine to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement is achievable with proper pre-staging and a disciplined hot-swap protocol. Begin by staging the 31000-30-05-15-31-03-02 alongside the existing installation at least 24 hours before the planned outage window, allowing time to verify the probe’s gap voltage in a bench test fixture using a standard -24 VDC Proximitor driver. This confirms the unit is functional before the machine is taken offline, eliminating the risk of discovering a defective replacement during a critical maintenance window.

During the swap, maintain the original wiring labels and document the terminal block assignments at the field junction box. The coaxial cable shield grounding point — typically at the monitor rack end only — must be preserved to prevent ground loop interference that can mask real vibration signals or trigger false alarms. After reinstallation, perform a static gap check with the shaft stationary before restarting the machine, targeting the nominal -10 VDC to -18 VDC operating range specified for the 3500 monitor card input.

For facilities operating under ISA-18.2 alarm management standards or IEC 61511 functional safety requirements, the probe replacement should be documented as a management of change (MOC) event, with a post-maintenance functional test recorded before the safety loop is returned to automatic mode. Keeping a pre-tested spare 31000-30-05-15-31-03-02 in the site storeroom — supported by our in-stock inventory and support terms confirmed by quotation — ensures that future unplanned failures can be resolved within a single shift rather than waiting weeks for OEM procurement.

Retrofit Support FAQ

Q1: Is the 31000-30-05-15-31-03-02 a direct replacement for my existing 31000 Series probe?
A: Yes, provided the SKU suffix digits match your installed probe’s cable length, tip diameter, and connector configuration. The suffix breakdown (30-05-15-31-03-02) encodes cable length, probe body size, and connector type. Cross-reference your existing probe label against the full SKU before ordering to confirm a direct drop-in fit.

Q2: What commissioning steps are required after installation?
A: After mechanical installation, perform a static gap voltage check with the shaft at rest. Adjust the probe-to-shaft gap to achieve the nominal -10 VDC to -12 VDC reading at the 3500 monitor card input. Verify that the OK/Not OK relay on the monitor card is in the OK state before restarting the machine. No firmware updates or software changes are required for the probe itself.

Q3: How do I verify wiring compatibility with my existing terminal block layout?
A: The 31000-30-05-15-31-03-02 uses a standard coaxial cable with a center conductor (signal) and shield (return/ground). At the field junction box, confirm that the existing terminal assignments match: center conductor to the signal terminal, shield to the ground terminal (rack end only). If the existing installation uses a 330130 or 330180 Series extension cable, the probe cable connects to the extension cable’s field end connector — no re-termination of the extension cable is required.

Q4: What does the support terms confirmed by quotation cover, and is pre-shipment testing included?
A: Every 31000-30-05-15-31-03-02 unit undergoes pre-shipment functional testing, including gap voltage linearity verification and cable continuity check, before dispatch. The support terms confirmed by quotation cover manufacturing defects, signal performance deviations from specification, and connector integrity. Units that fail in service within the confirmed support period are replaced or refunded. In-stock inventory ensures same-week dispatch for most orders.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

31000-30-05-15-31-03-02

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 31000-30-05-15-31-03-02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
