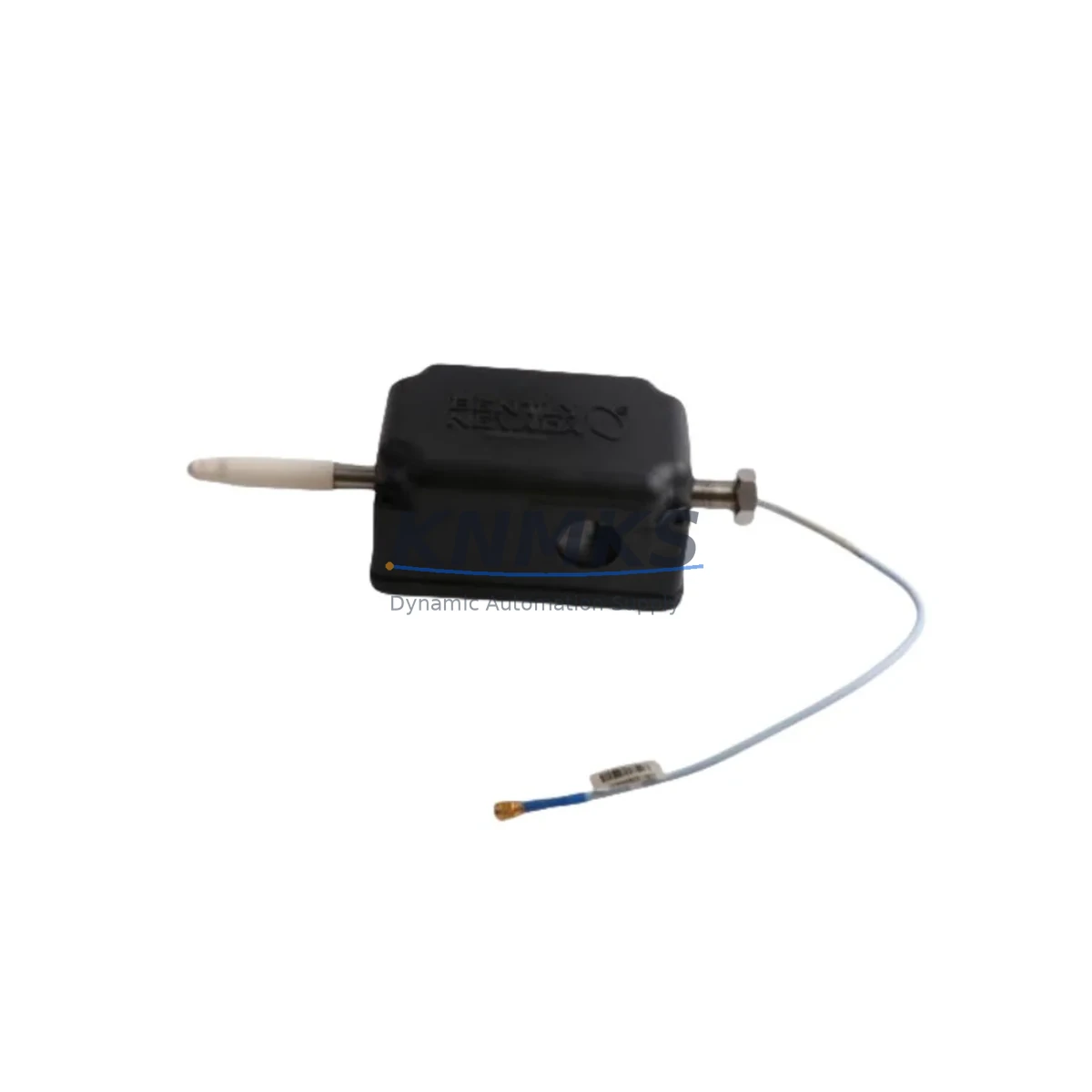

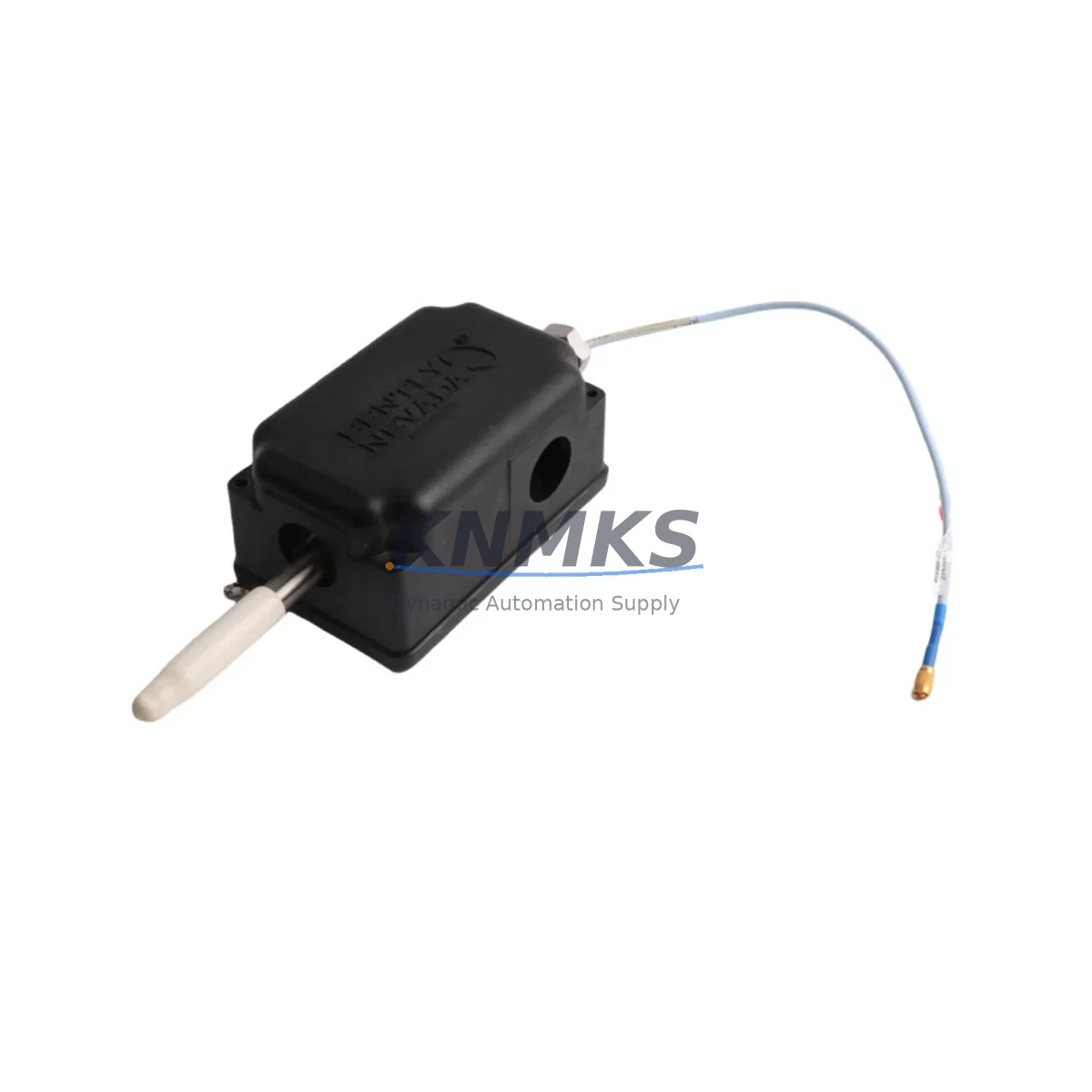

Bently Nevada 31000-28-10-00-235-00-02 Migration-Ready Proximity Probe

Overview

Bently Nevada 31000-28-10-00-235-00-02 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 31000-28-10-00-235-00-02 is a migration-ready proximity probe engineered for direct replacement and retrofit integration within legacy Bently Nevada 31000 Series vibration monitoring systems. As aging machinery protection platforms approach end-of-life and OEM support windows close, plant engineers and reliability teams face mounting pressure to source verified drop-in replacements that preserve existing wiring, signal conditioning chains, and monitoring logic without triggering full system overhauls. This probe is stocked, tested, and ready to ship — purpose-built to address exactly that challenge.

Whether you are managing a turbine protection panel, a compressor train monitoring rack, or a rotating equipment health system built around the Bently Nevada 3500 Series or the earlier 7200 Series platform, the 31000-28-10-00-235-00-02 fits directly into established probe-driver-monitor signal chains. Its 235 mil (5.97 mm) sensing range and standard 8 mm tip geometry are compatible with the Bently Nevada 3300 XL 8mm proximity transducer system specifications, allowing cross-platform migration paths where the original 31000 Series hardware is no longer available from the OEM.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 31000-28-10-00-235-00-02 begins well before the maintenance window opens. The first step is a full signal chain audit: trace the probe cable from the machine casing through the conduit to the junction box, then to the Bently Nevada 3300 RAM driver or 3300 XL driver module seated in the 3500 rack. Confirm that the driver module’s scale factor is set for an 8 mm probe — mismatched scale factors are the most common source of erroneous vibration readings after a probe swap. If the existing driver is a legacy 3300 Series unit that has also reached end-of-life, plan to replace it simultaneously with a current 3300 XL 8mm driver to avoid a second shutdown.

Next, inspect the extension cable. The 31000-28-10-00-235-00-02 ships with a 28-inch integral cable. Depending on the distance from the probe boss to the driver module, you will likely need a Bently Nevada 330130 extension cable to complete the signal path. Measure the total cable run and order the correct extension length before the maintenance window — this is a detail that frequently causes last-minute delays. At the driver end, verify that the terminal block wiring matches the probe polarity convention: the center conductor carries the –24 VDC bias, and the shield is grounded at the driver chassis only, never at both ends.

Inside the 3500 rack, confirm that the monitor module — typically a 3500/42M Proximitor Monitor or a 3500/40M Proximitor/Seismic Monitor — is configured for the correct transducer type and gap range. Use the 3500 Rack Configuration Software to review the channel setup before the outage. If the plant runs System 1 Evolution software for online machinery health monitoring, verify that the tag mapping and alarm setpoints are preserved after the hardware swap. HMI screens built on the System 1 platform will continue to display correctly as long as the channel configuration in the 3500 rack matches the original setup.

For plants that have already migrated portions of their monitoring infrastructure to the Bently Nevada 3701 Series or the 2300 Series portable instruments, the 31000-28-10-00-235-00-02 remains compatible as a field sensor, since the analog output signal is standard across all Bently Nevada proximity transducer platforms. This makes it a practical choice for hybrid environments where legacy racks coexist with newer monitoring hardware during a phased upgrade program.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage checklist and a clear rollback plan. Before the machine is taken offline, record the current gap voltage at the driver module using a calibrated digital voltmeter — this baseline reading confirms the original probe-to-target gap and gives you a reference point for setting the new probe. The target gap voltage for the 31000-28-10-00-235-00-02 at a 50 mil (1.27 mm) gap is approximately –10 VDC, consistent with the standard Bently Nevada 8 mm proximity transducer calibration curve.

During the swap, keep the 3500 rack powered if plant safety procedures permit. Many facilities allow hot-swap of individual monitor channels by placing the affected channel in bypass mode through the rack configuration software, which suppresses alarms on that channel while the probe is disconnected and reinstalled. This approach eliminates the need to shut down the entire monitoring rack and preserves protection on all other channels throughout the maintenance activity.

After the new probe is installed and the gap is set, restore the channel from bypass and verify the gap voltage reading at the driver. Compare it to the pre-outage baseline. If the reading is within ±0.5 VDC of the original, the installation is correct. Document the final gap voltage, the probe serial number, and the installation date in the plant maintenance management system. This record supports support requests and provides traceability for future reliability audits.

For facilities managing multiple probe replacements across a compressor train or turbine string, stagger the replacements across planned maintenance intervals rather than replacing all probes simultaneously. This strategy limits exposure and allows each replacement to be fully verified before the next one begins, reducing the risk of a systematic configuration error affecting the entire machine protection system.

Retrofit Support FAQ

Q: Is the 31000-28-10-00-235-00-02 a direct drop-in replacement for the original Bently Nevada 31000 Series probe?
A: Yes. The 31000-28-10-00-235-00-02 is dimensionally and electrically compatible with the original 31000 Series probe specification. It uses the same 3/8–24 UNF thread, 8 mm tip geometry, and 235 mil sensing range. No mechanical adapters or signal conditioning changes are required for a standard replacement in an existing 31000 Series installation.

Q: What pre-shipment testing is performed on each unit?
A: Every 31000-28-10-00-235-00-02 unit undergoes a functional output test prior to shipment. The probe is energized with a –24 VDC bias supply and the output voltage is verified across the full sensing range against the Bently Nevada 8 mm calibration curve. A test report is available upon request. All units are covered by a support terms confirmed by quotation against manufacturing defects from the date of shipment.

Q: Can this probe be used with a Bently Nevada 3500/42M monitor configured for a different probe model?
A: The 3500/42M monitor must be configured for an 8 mm proximity transducer with the correct scale factor (200 mV/mil) to work correctly with the 31000-28-10-00-235-00-02. If the monitor was previously configured for a 5 mm probe or a different scale factor, the channel configuration must be updated using the 3500 Rack Configuration Software before the new probe is placed in service. Failure to update the configuration will result in incorrect vibration readings and potentially incorrect alarm setpoints.

Q: What is the typical lead time and do you maintain stock?
A: The 31000-28-10-00-235-00-02 is maintained availability confirmed by RFQ for immediate shipment. Standard lead time is 1–3 business days for in-stock units. For urgent plant outage situations, expedited shipping is available. Contact admin@knmks.com or call +86 18359268345 to confirm current inventory levels and arrange priority dispatch.

—
© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

31000-28-10-00-235-00-02

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 31000-28-10-00-235-00-02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
