Bently Nevada 31000-28-05-00-061-01-02 Migration-Ready Proximity Probe

Overview

Bently Nevada 31000-28-05-00-061-01-02 Migration-Ready Proximity Probe: Legacy System Retrofit & Compatibility Upgrade

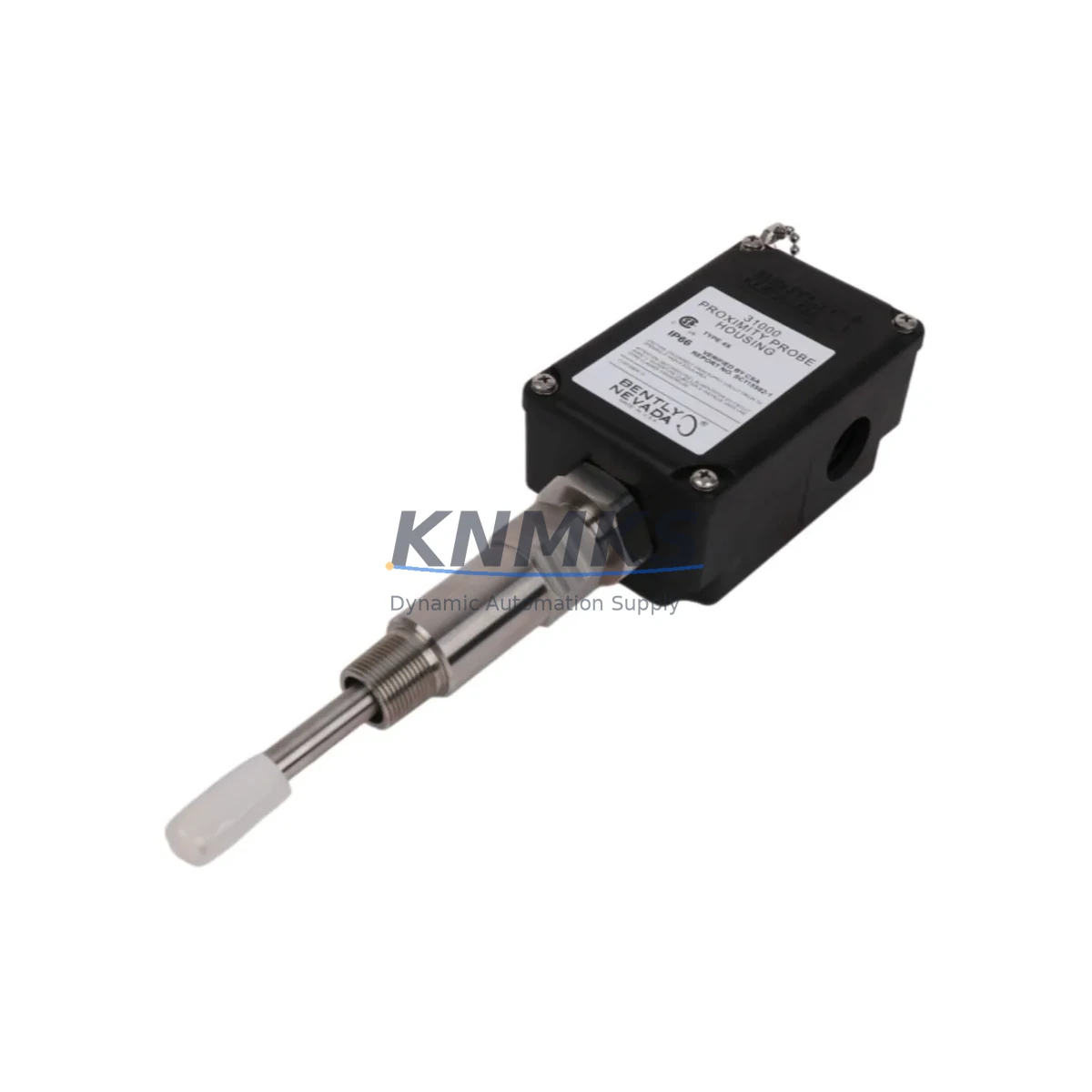

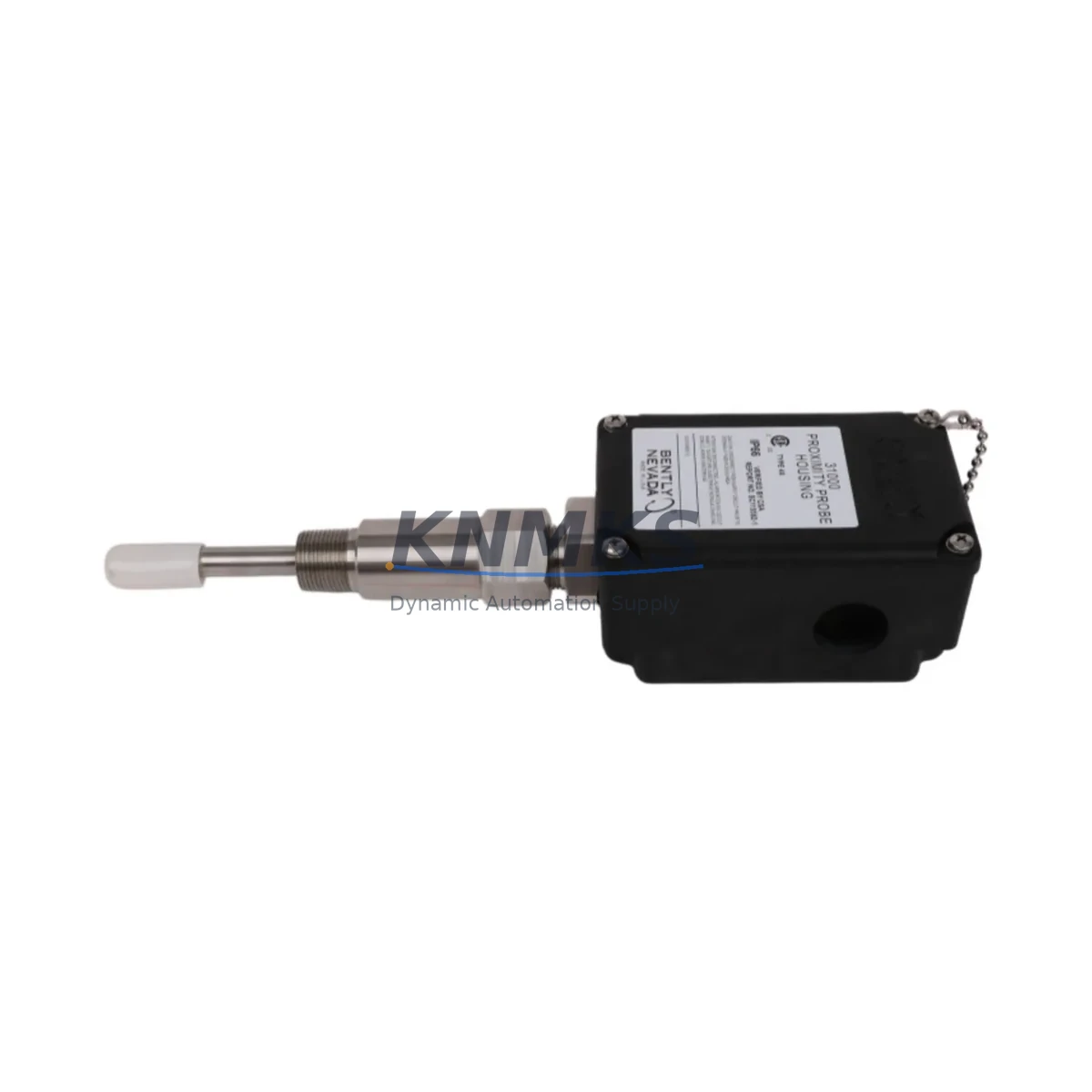

The Bently Nevada 31000-28-05-00-061-01-02 is a migration-ready proximity probe housing assembly engineered for direct replacement in legacy 31000 Series vibration monitoring systems. As industrial facilities face the challenge of maintaining aging machinery protection infrastructure, this unit provides a verified drop-in solution that preserves existing wiring, terminal layouts, and signal chain integrity — minimizing engineering rework and unplanned downtime during system modernization projects.

Whether your facility is retiring obsolete proximity systems, upgrading a control cabinet, or extending the service life of a Bently Nevada 3300 or 3500 Series rack-based monitoring platform, the 31000-28-05-00-061-01-02 delivers the dimensional accuracy, electrical compatibility, and field-proven reliability required for critical rotating machinery applications including turbines, compressors, pumps, and gearboxes.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 31000-28-05-00-061-01-02 into a legacy or modernized control environment requires a structured pre-installation review. Engineers should begin by auditing the existing proximity driver module — typically a Bently Nevada 330180 or 330104 proximitor/driver — to confirm that the new probe’s sensitivity factor and scale factor align with the driver’s calibration range. Mismatched sensitivity values are among the most common causes of false vibration alarms or missed trip events during post-retrofit commissioning.

Terminal wiring should be mapped against the original as-built drawings. The probe cable shield grounding point, the extension cable connector type (standard TNC or equivalent), and the overall cable run length all affect signal quality. If the existing 330130-series extension cables are being reused, inspect the connectors for corrosion and verify that the combined probe-plus-extension length does not exceed the driver’s specified range.

For facilities integrating this probe into a Bently Nevada 3500 Series rack, confirm that the 3500/42M or 3500/40M proximity monitor card is configured for the correct transducer type and that the OK relay logic reflects the new probe’s gap voltage range. If the rack also houses a 3500/22M transient data interface or a 3500/92 communication gateway, verify that the channel mapping in System 1 or equivalent condition monitoring software is updated to reflect the new probe assignment.

In control cabinet upgrade projects where the proximity monitoring rack is being relocated or a new 19-inch rack enclosure is being installed, confirm available panel depth, cable entry routing, and power supply capacity. The 3500 rack’s internal power supply (e.g., 3500/15 power supply module) should be assessed for total load, particularly if additional I/O modules or a 3500/20 rack interface module are being added to the same chassis during the same outage window.

For older facilities still operating Bently Nevada 7200 Series or 9000 Series proximity systems, the 31000-28-05-00-061-01-02 may serve as a transitional component while a full platform migration to the 3500 Series is planned. In such cases, document the existing probe gap settings, alarm setpoints, and trip multipliers before any hardware change, and retain the original configuration files for reference during the new system’s FAT (factory acceptance test) and SAT (site acceptance test).

Downtime Control During System Migration

Minimizing production interruption is the primary concern in any proximity probe replacement or vibration monitoring system upgrade. For the 31000-28-05-00-061-01-02, the recommended approach is to complete all pre-installation verification steps — gap voltage measurement, cable continuity check, driver module output test — during a planned maintenance window rather than during an emergency replacement scenario.

Where process conditions allow, a temporary bypass of the vibration trip channel (with appropriate management-of-change authorization) enables the new probe to be installed and gapped while the machine remains online, with the trip function restored only after the OK status is confirmed on the monitor card. This approach is commonly used in turbine and compressor applications where continuous operation is critical and a cold shutdown would require extended restart procedures.

Original PLC or DCS program logic referencing the vibration channel should not be modified during the probe swap. The analog input scaling, engineering unit conversion, and alarm threshold values configured in the control system should remain unchanged unless the new probe’s sensitivity factor differs from the original — in which case, a coordinated update to both the monitor card configuration and the DCS input scaling is required, with a full loop check performed before the bypass is lifted.

HMI faceplate displays showing vibration trend data should be verified post-installation to confirm that the new probe’s signal is being received correctly and that historical trend data continuity is maintained. If the condition monitoring system uses a Bently Nevada System 1 platform or equivalent, the probe channel should be re-baselined after a suitable run-in period to establish a new vibration reference for alarm management.

All retrofit activities should be documented in the facility’s maintenance management system (CMMS), including the as-found gap voltage, the as-left gap voltage, the probe serial number, and the date of installation. This documentation supports future spare parts planning and provides traceability for reliability-centered maintenance (RCM) programs.

Retrofit Support FAQ

Q: Is the 31000-28-05-00-061-01-02 a direct replacement for my existing 31000 Series proximity probe assembly?
A: Yes. The 31000-28-05-00-061-01-02 is designed as a form-fit-function replacement for 31000 Series proximity probe housing assemblies. Confirm thread size, probe tip diameter, and cable connector type against your existing installation drawings before ordering.

Q: What commissioning steps are required after installation?
A: After mechanical installation, set the probe gap to the manufacturer’s specified voltage (typically –10 to –18 VDC depending on target material and driver type), verify the OK status on the associated monitor card, perform a full loop check from probe to DCS/PLC input, and confirm alarm and trip setpoints are active. A short-duration run-in observation period is recommended before returning the machine to full load.

Q: Can this probe be used with non-Bently Nevada driver modules or monitor cards?
A: The 31000-28-05-00-061-01-02 uses standard eddy-current proximity technology. Compatibility with third-party drivers depends on the driver’s input impedance, supply voltage, and sensitivity range. Consult the driver manufacturer’s specifications and perform a bench calibration check before field installation if using a non-OEM driver.

Q: What are the stock availability and support terms terms?
A: The 31000-28-05-00-061-01-02 is available from stock. All units are subject to pre-shipment functional testing. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects under normal operating conditions. Contact our sales team for lead time confirmation and volume pricing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

31000-28-05-00-061-01-02

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 31000-28-05-00-061-01-02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
