Bently Nevada 31000-00-00-00-120-00-02 Maintenance Spare Part

Overview

Bently Nevada 31000-00-00-00-120-00-02 Maintenance Spare Part: Factory-Proven Proximity Probe Housing for Continuous Uptime

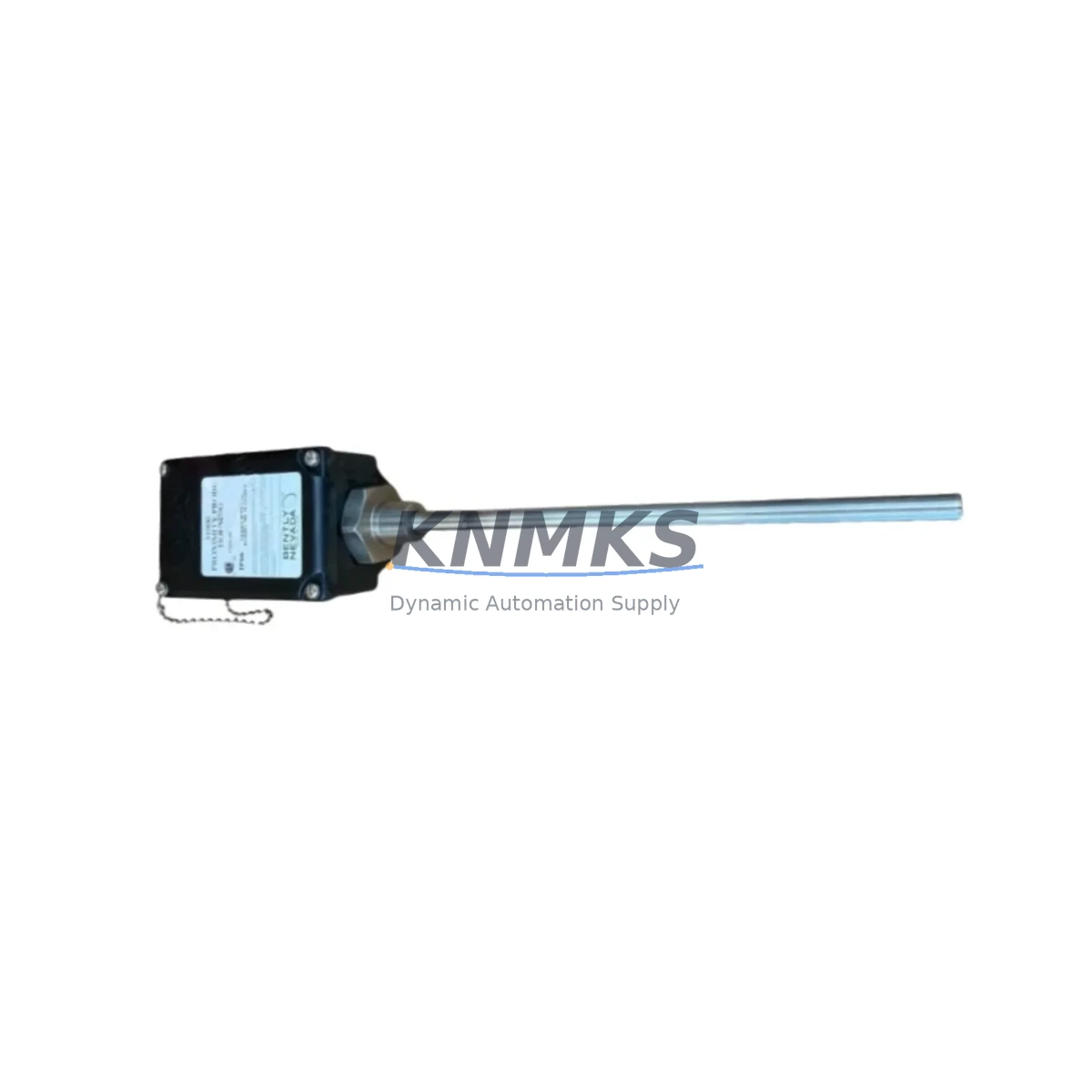

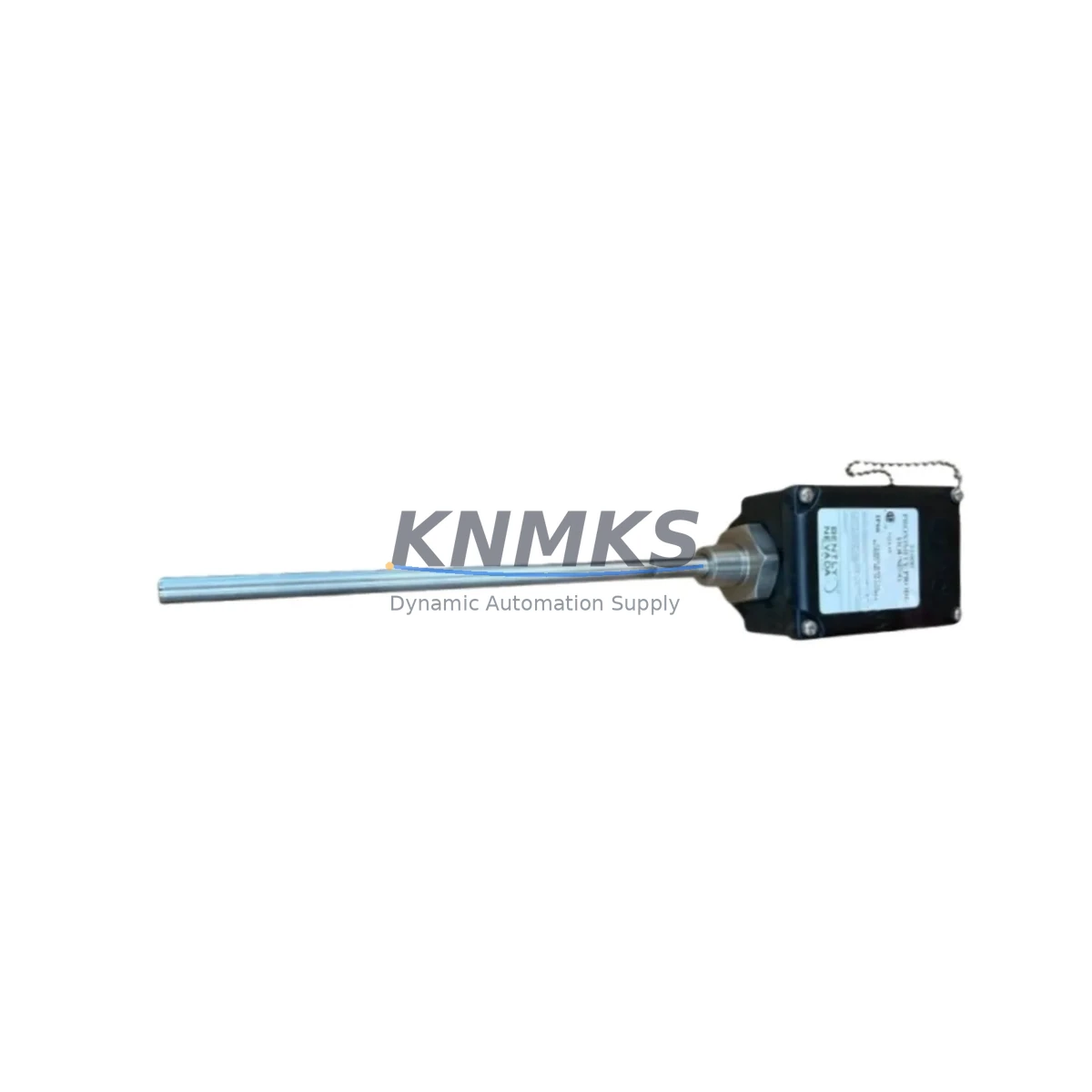

The Bently Nevada 31000-00-00-00-120-00-02 is an original proximity probe housing assembly engineered for the demanding requirements of rotating machinery protection systems. As a core component of the Bently Nevada 31000 Series proximity transducer system, this housing assembly ensures the mechanical integrity and signal accuracy of the eddy-current sensing chain — a critical factor in turbine, compressor, and pump protection across energy, petrochemical, and heavy manufacturing facilities. Maintaining a verified stock of this spare part is a fundamental element of any proactive maintenance strategy for plants running Bently Nevada vibration monitoring infrastructure.

Maintenance engineers and reliability teams operating Bently Nevada 3300, 3500, or legacy 7200 Series monitoring systems understand that the proximity probe housing is not a passive component. It provides the mechanical reference point for gap calibration, shields the probe tip from process contamination, and maintains the precise radial positioning required for accurate shaft vibration and eccentricity measurement. A degraded or damaged housing directly compromises measurement fidelity, triggering nuisance trips or — more critically — masking genuine machinery faults. Stocking the 31000-00-00-00-120-00-02 as a certified replacement eliminates improvised field repairs and restores system integrity within a single maintenance window.

For procurement engineers managing spare parts budgets across multi-unit facilities, the 31000-00-00-00-120-00-02 represents a low-cost, high-impact line item. Its compatibility with the full 31000 Series transducer family — including standard 5-metre and 9-metre cable assemblies — means a single SKU can serve multiple machine trains, reducing inventory complexity while maintaining coverage for emergency callouts.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance team schedules replacement of the 31000-00-00-00-120-00-02 housing assembly, the work scope should extend beyond the housing itself. A thorough site inspection at the same time significantly reduces the probability of repeat callouts and unplanned downtime.

Begin with the proximitor / oscillator-demodulator (such as the Bently Nevada 3300 XL 8mm or 11mm proximitor). Verify that the proximitor output voltage is within the calibrated gap range — typically -10 VDC at the recommended installation gap — before and after housing replacement. If the proximitor shows drift or erratic output, it should be replaced concurrently rather than deferred.

Inspect the extension cable assembly (31000 Series, 5 m or 9 m) for jacket abrasion, connector corrosion, and continuity. Extension cables routed through conduit near heat sources or vibrating structures are common failure points that are easily overlooked during a housing-focused replacement. A damaged cable will introduce signal noise that mimics shaft instability.

Check the Bently Nevada 3500/22M transient data interface or the relevant I/O module in the 3500 rack for channel health. Confirm that the OK relay output is energised and that the channel is not latched in a fault state from a previous over-gap or under-gap event. While the rack is accessible, inspect the 3500/20 rack power supply module — verify both primary and redundant supply outputs are within tolerance, as a marginal power supply can cause intermittent channel faults that are misdiagnosed as probe or housing failures.

Review the terminal strip and field wiring at the junction box. Loose terminations on the coaxial signal path introduce impedance discontinuities that degrade measurement accuracy. Torque all terminals to specification and inspect for moisture ingress, particularly in outdoor or wash-down environments.

For facilities running Bently Nevada System 1 condition monitoring software, confirm that the new housing installation is logged in the asset history and that the gap voltage is re-entered as a baseline reference. This ensures that trend analysis and alarm setpoints remain valid after the replacement.

Finally, if the machine train includes a Keyphasor transducer (such as the 3300 XL Keyphasor or a dedicated 7200 Series Keyphasor probe), verify its gap and signal integrity at the same time. The Keyphasor reference signal underpins all phase-referenced vibration analysis; a degraded Keyphasor will corrupt vector data across the entire machine train even if all other probes are functioning correctly.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a valid work permit and confirm the machine is in a safe, isolated state. For online replacement on redundant monitoring systems, confirm the bypass procedure with the control room before disconnecting any probe.

Step 2 — Document existing gap voltage: Record the proximitor output voltage and the physical gap measurement before removal. This baseline is essential for validating the new installation and for updating the System 1 asset record.

Step 3 — Remove the existing housing: Use the correct spanner size for the 31000 Series thread. Avoid applying torque to the probe body or cable. Inspect the mounting boss for thread damage or corrosion that may require remediation before installing the replacement.

Step 4 — Install 31000-00-00-00-120-00-02: Thread the new housing assembly to the specified torque. Reconnect the extension cable and verify connector seating. Set the installation gap per the Bently Nevada calibration chart for the target shaft material and diameter.

Step 5 — Verify output and restore monitoring: Confirm the proximitor output is within the calibrated range. Remove any monitoring bypass, confirm the OK relay is energised, and verify that the channel is displaying correctly in the DCS or System 1 interface. Document the completed replacement in the CMMS.

This workflow is compatible with legacy installations previously using older 31000 Series housing variants, ensuring a direct drop-in replacement without modification to the mounting arrangement or cable routing.

Spare Parts Support FAQ

Q1: Is the 31000-00-00-00-120-00-02 a direct replacement for earlier 31000 Series housing assemblies?
Yes. The 31000-00-00-00-120-00-02 is designed as a form-fit-function replacement within the 31000 Series proximity transducer family. It is compatible with standard 31000 Series extension cables and proximitors used in Bently Nevada 3300, 3500, and 7200 Series monitoring systems. Always verify the thread specification and gap range against your installation drawing before fitting.

Q2: How is the part tested before shipment?
Each unit undergoes functional and dimensional inspection prior to dispatch. Testing covers mechanical integrity of the housing body, thread condition, and connector interface. A test report is available upon request. All units are shipped with a support terms confirmed by quotation covering defects in materials and workmanship under normal operating conditions.

Q3: What is the recommended inventory strategy for this part?
For facilities operating three or more machine trains with Bently Nevada proximity monitoring, we recommend maintaining a minimum of two units of the 31000-00-00-00-120-00-02 on-site. This supports immediate response to a single-point failure while a replenishment order is in transit. For critical turbine or compressor applications with no redundant monitoring, consider a standing replenishment agreement to ensure continuous availability.

Q4: Can long-term supply be arranged for multi-year maintenance contracts?
Yes. We support long-term supply agreements for the 31000-00-00-00-120-00-02 and related 31000 Series components. Framework pricing, scheduled delivery, and reserved stock arrangements are available for EPC contractors, OEM service teams, and plant maintenance departments. Contact our team to discuss your annual consumption requirements and lead-time commitments.
