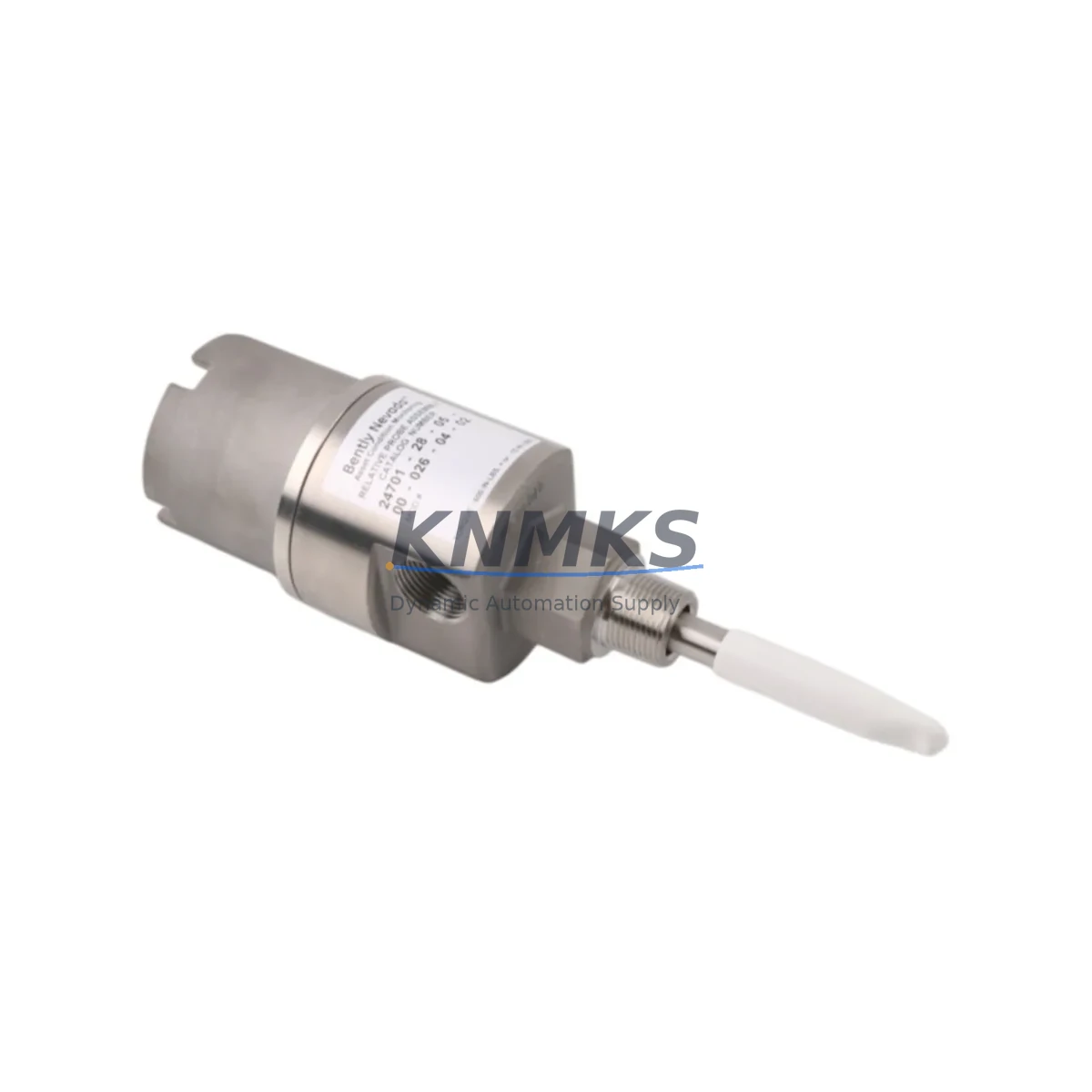

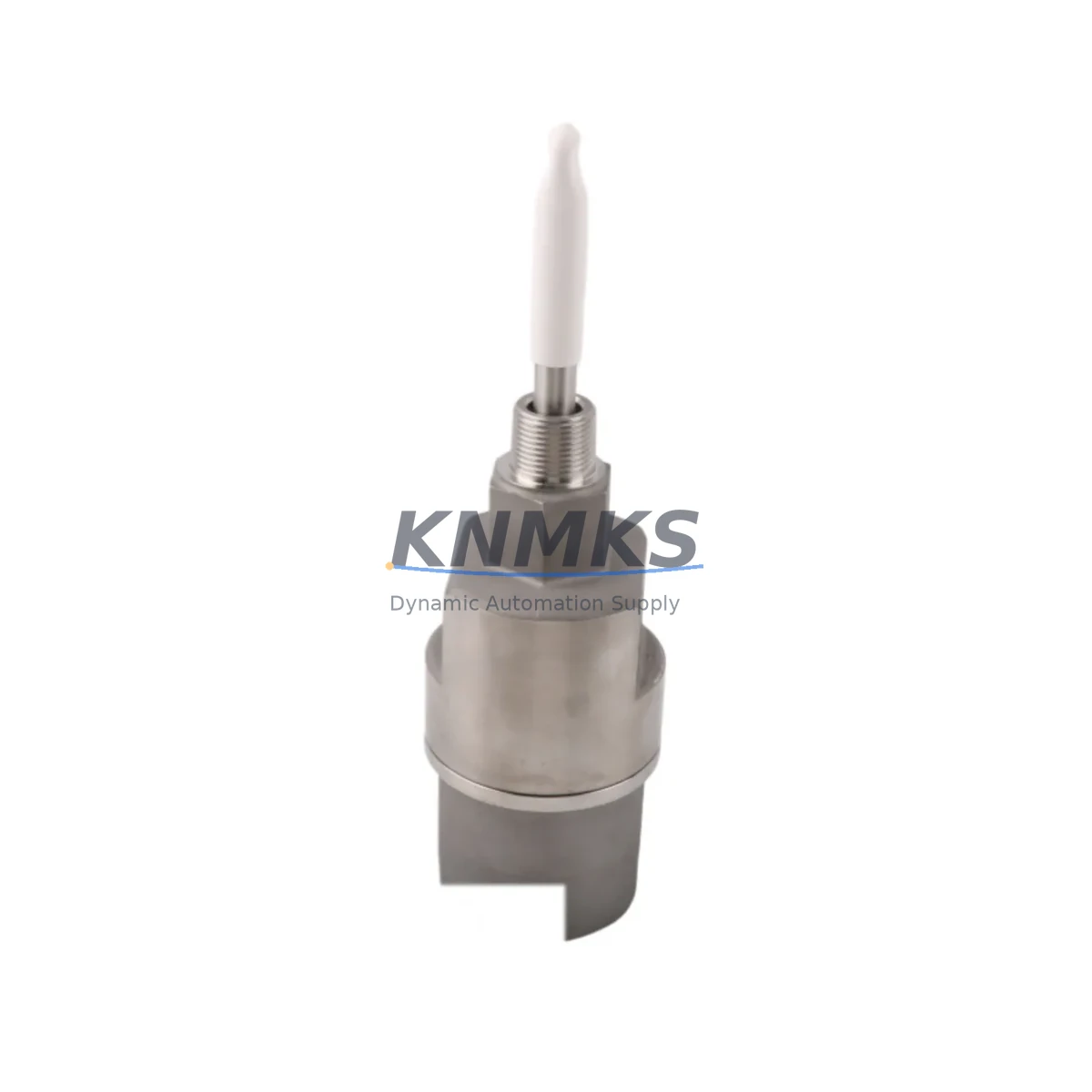

Bently Nevada 24701-28-05-65-105-03-02 Fail-Safe Proximity Probe Housing

Overview

Bently Nevada 24701-28-05-65-105-03-02 Fail-Safe Proximity Probe Housing: Fault-Protected Reliability for Critical Industrial Control

In continuous production environments where unplanned downtime is never an option, the Bently Nevada 24701-28-05-65-105-03-02 proximity probe housing delivers the structural integrity and fail-safe performance that rotating machinery protection systems demand. Engineered as a core component of Bently Nevada’s 3300 Series vibration monitoring architecture, this housing ensures that eddy-current proximity probes remain precisely positioned, mechanically protected, and electrically isolated under the most demanding field conditions — including high electromagnetic interference, heavy vibration, thermal cycling, and exposure to process fluids, dust, and moisture.

The 24701-28-05-65-105-03-02 is not a passive enclosure. It is a precision-machined, safety-critical interface between the rotating shaft and the monitoring system. Its dimensional accuracy directly determines the gap voltage linearity that the Bently Nevada 3300 XL 8mm Proximity Transducer System relies upon to generate reliable vibration and position signals. Any mechanical deviation — caused by housing wear, improper installation, or thermal distortion — can introduce signal drift that propagates false alarms or, worse, masks genuine fault conditions in turbines, compressors, pumps, and gearboxes.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring begins at the probe housing, but system-level protection requires a coordinated approach across the entire signal chain. In a typical critical machinery protection cabinet, the 24701-28-05-65-105-03-02 housing anchors the field-side measurement point, while the Bently Nevada 3300/16-13-01-01-00-00-00 Monitor processes the raw proximity signals and triggers protective shutdowns when vibration or position thresholds are exceeded. Between the field and the monitor, the Bently Nevada 3300/05-01-00-00-00-00-00 I/O Module provides the buffered output interface that feeds both the control system and the historian.

Power quality is equally critical. Surge events and voltage transients on the 24 VDC instrument bus — common in heavy industrial environments near large motor drives, arc furnaces, or switchgear — can corrupt proximity signal baselines and cause nuisance trips. Pairing the monitoring system with a Phoenix Contact QUINT-PS/1AC/24DC/10 power supply with integrated surge buffer ensures that the 3300 Series monitors receive clean, regulated power even during grid disturbances. For additional surge protection at the field terminal, a Bently Nevada 3500/04-01 Power Supply Module or equivalent DIN-rail surge arrester should be installed upstream of the monitor rack.

In high-EMI environments — such as those found near variable frequency drives (VFDs), large transformers, or induction heating equipment — the non-magnetic stainless steel construction of the 24701-28-05-65-105-03-02 housing is essential for preventing eddy-current field distortion that would otherwise introduce measurement error. Complementing this, shielded extension cables such as the Bently Nevada 330130-045-00-00 Extension Cable maintain signal integrity from the probe tip to the proximitor, ensuring that the gap voltage reading at the monitor accurately reflects true shaft position and vibration amplitude.

For safety instrumented system (SIS) integration, the proximity output from the 3300 monitor can be wired into a Pilz PNOZ X3 Safety Relay or equivalent IEC 61508-compliant safety relay module, creating a certified interlock loop that initiates emergency shutdown (ESD) when vibration levels exceed the API 670 danger setpoint. This architecture ensures that a single probe housing failure or signal loss is detected and acted upon before mechanical damage propagates to bearings, seals, or the rotor itself.

Critical Industrial Safety Applications

The Bently Nevada 24701-28-05-65-105-03-02 proximity probe housing is deployed across the most demanding sectors of industrial production, where rotating machinery failure carries consequences measured in lost production, environmental incidents, and personnel safety risk.

In petrochemical and refinery environments, this housing protects proximity probes installed on centrifugal compressors, steam turbines, and boiler feed pumps — equipment that operates continuously for 3–5 year run cycles between planned turnarounds. Any probe housing failure that causes a gap measurement error can trigger a spurious shutdown of a critical process unit, or worse, allow a genuine high-vibration condition to go undetected until catastrophic bearing failure occurs.

In power generation facilities — including coal, gas, nuclear, and hydroelectric plants — the 24701 series housing is used on turbine-generator sets where API 670 compliance is mandatory. The housing’s dimensional stability under thermal cycling ensures that the probe gap remains within the linear measurement range of the eddy-current system throughout the full load range of the machine.

In mining and mineral processing operations, where dust, moisture, and mechanical shock are constant challenges, the IP65-equivalent sealing of the probe housing prevents contamination ingress that would otherwise cause probe tip corrosion, gap contamination, and signal drift. Ball mills, SAG mills, and large slurry pumps in these environments rely on continuous vibration monitoring to avoid unplanned outages that can halt an entire processing circuit.

In water and wastewater treatment plants, the housing is used on large vertical turbine pumps and blower units where bearing condition monitoring is critical for maintaining treatment capacity. In metallurgical and port and marine applications — including blast furnace blowers, rolling mill drives, and ship propulsion systems — the combination of high vibration, thermal stress, and corrosive atmospheres makes the robust construction of the 24701-28-05-65-105-03-02 an essential reliability investment.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 24701-28-05-65-105-03-02?
All units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, dimensional non-conformance, and functional failure under normal operating conditions. Support requests are supported with direct technical assistance and priority replacement dispatch to minimize plant downtime.

Q2: What outgoing inspection and testing is performed before shipment?
Every 24701-28-05-65-105-03-02 unit undergoes a 100% dimensional inspection to verify thread pitch, probe seating depth, and housing geometry against OEM specifications. Functional compatibility with Bently Nevada 3300 XL 8mm proximity probes is verified prior to packaging. Units are shipped with inspection records available upon request.

Q3: Is this housing compatible with third-party proximity probes and monitors?
The 24701-28-05-65-105-03-02 uses the industry-standard M10 x 1.0 thread and is dimensionally compatible with most 8mm eddy-current proximity probes from Bently Nevada, Emerson, and equivalent OEM-replacement manufacturers. Compatibility with specific third-party monitors should be verified against the probe gap calibration curve and proximitor input range. Our technical team can assist with compatibility assessment prior to order.

Q4: Can long-term supply and replacement support be guaranteed for critical plant spares programs?
Yes. KNMKS maintains dedicated stock of the 24701-28-05-65-105-03-02 and related Bently Nevada 24701 series components to support planned maintenance, emergency replacement, and long-term spares programs. We support multi-unit blanket orders and can provide lead-time commitments for scheduled turnaround projects. Contact our team to discuss your plant’s spare parts strategy.
