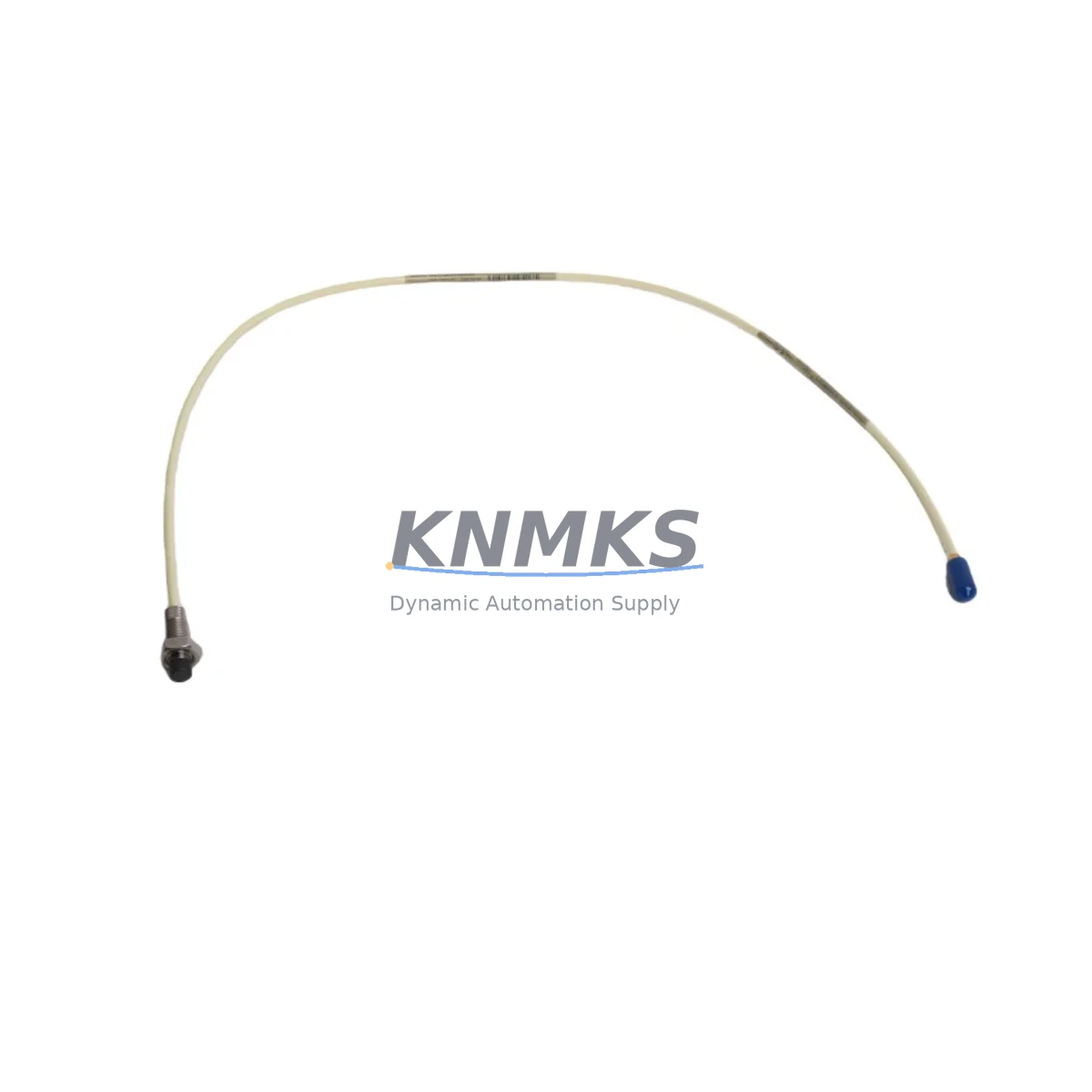

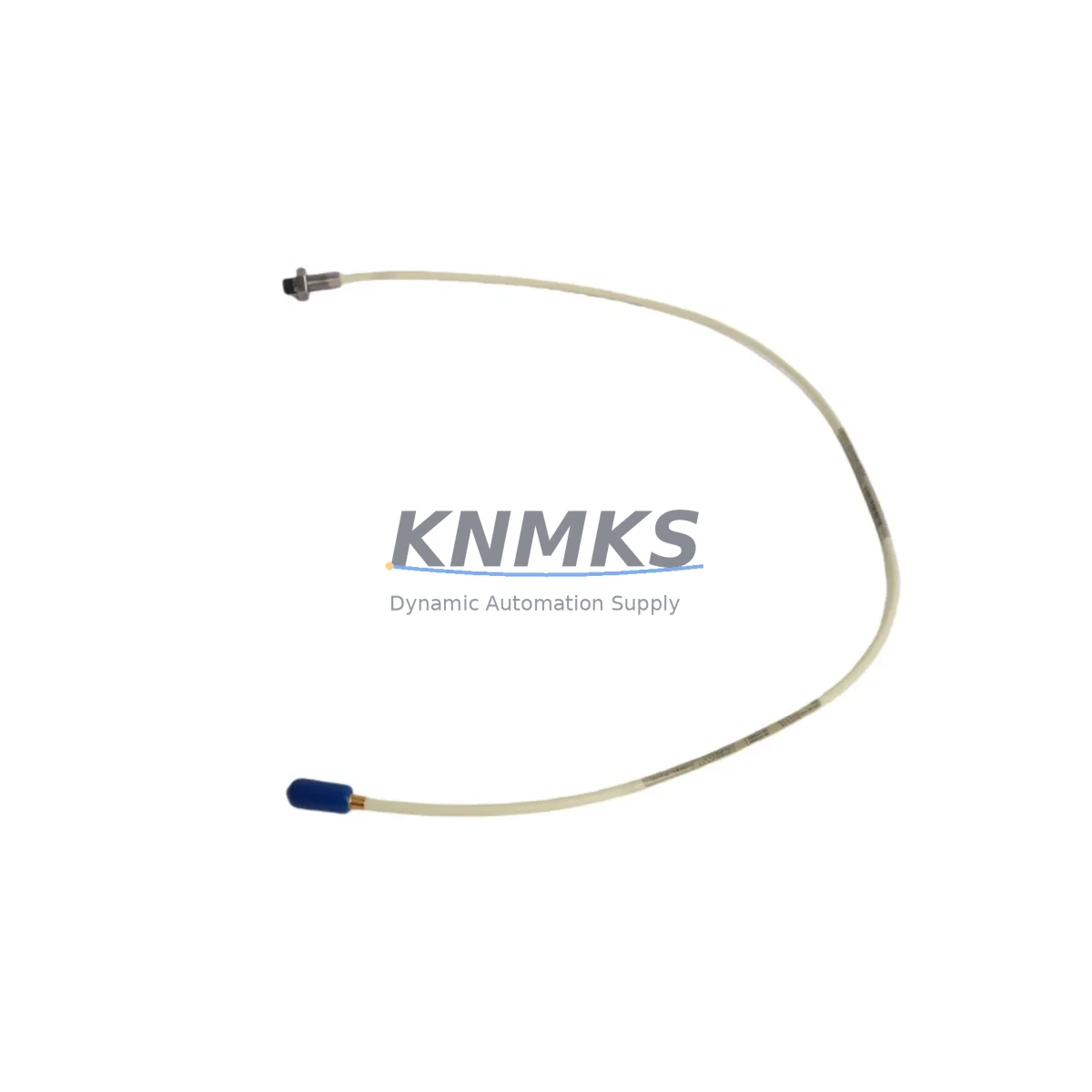

Bently Nevada 21504-00-32-10-02 Fail-Safe Proximity Transducer

Overview

Bently Nevada 21504-00-32-10-02 Fail-Safe Proximity Transducer: Critical Industrial Field Reliability

The Bently Nevada 21504-00-32-10-02 is a high-precision, eddy-current proximity transducer from the NSv (Non-contacting Vibration) Series, engineered for continuous, fail-safe operation in the most demanding industrial control environments. Designed to detect shaft displacement, radial vibration, and axial position without physical contact, this transducer delivers stable, drift-free signal output even under severe electromagnetic interference, mechanical shock, high ambient temperature, and moisture-laden atmospheres. For rotating machinery protection systems in petrochemical plants, power generation facilities, mining operations, and continuous process manufacturing, the 21504-00-32-10-02 is a proven cornerstone of machinery health monitoring and safety interlock architecture.

In critical control cabinets where unplanned downtime carries six-figure consequences per hour, signal integrity is non-negotiable. The 21504-00-32-10-02 operates on the eddy-current principle, generating a high-frequency oscillating magnetic field that responds linearly to target proximity. This non-contact measurement method eliminates mechanical wear, reduces maintenance intervention cycles, and ensures that vibration alarm and trip setpoints remain accurate over years of continuous service. The transducer is fully compatible with the Bently Nevada 3500 Series Machinery Protection System, integrating directly with rack-mounted monitor modules such as the 3500/42M Proximitor/Seismic Monitor and the 3500/22M Transient Data Interface, enabling seamless alarm management and safety shutdown coordination across the entire protection loop.

In high-EMI environments — common in variable-frequency drive (VFD) panels, large motor control centers, and arc furnace control rooms — the NSv transducer’s shielded coaxial cable assembly and robust housing construction suppress induced noise that would otherwise cause false trips or missed alarms. When paired with the Bently Nevada 3300 XL 8mm Proximity Transducer System or the 330130 Proximitor Sensor in redundant configurations, the 21504-00-32-10-02 supports 1oo2 and 2oo3 voting logic architectures required by IEC 61511 functional safety standards for SIL-rated safety instrumented systems.

For control cabinets operating in dusty, humid, or chemically aggressive atmospheres — such as those found in offshore platforms, water treatment facilities, and cement or mineral processing plants — the transducer’s sealed construction and corrosion-resistant materials maintain measurement accuracy without signal drift. The companion Bently Nevada 330180 Extension Cable provides flexible routing within congested cable trays, while the 3500/20 Rack Interface Module ensures clean power distribution and ground isolation across the monitoring rack, eliminating common-mode noise that degrades transducer output fidelity.

Surge and transient protection is a critical consideration in substations and heavy industrial switchgear environments. The 21504-00-32-10-02, when integrated within a properly grounded 3500 Series rack, benefits from the system’s built-in transient suppression architecture, protecting sensitive signal conditioning circuitry from voltage spikes that could corrupt vibration readings or damage monitor inputs. This is particularly important in facilities where lightning strike risk is elevated or where large inductive loads switch frequently on shared power buses.

Thermal stability is another key reliability factor. The NSv Series transducer maintains calibrated output across a wide operating temperature range, making it suitable for turbine bearing housings, compressor seal areas, and pump bearing pedestals where ambient temperatures can fluctuate significantly between startup and full-load operation. Unlike contact-based sensors that degrade with thermal cycling, the eddy-current transducer retains its gap-versus-voltage calibration curve throughout its service life, reducing the frequency of field recalibration and associated production interruptions.

Every 21504-00-32-10-02 unit supplied by KNMKS undergoes pre-shipment functional verification, including output voltage linearity checks, insulation resistance testing, and cable continuity confirmation. Units are shipped with full traceability documentation and are backed by a support terms confirmed by quotation covering manufacturing defects and performance deviations from published specifications. Stock is maintained across regional warehouses to support emergency replacement requirements with minimal lead time, ensuring that critical machinery protection loops are restored to full operational status without extended downtime exposure.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the 21504-00-32-10-02 proximity transducer requires careful integration of complementary components to achieve fail-safe, continuous operation. The Bently Nevada 3500/42M Proximitor/Seismic Monitor serves as the primary signal processing module, accepting the transducer’s -18 VDC output and converting it into calibrated vibration amplitude and phase readings with configurable alarm and trip relay outputs. For power supply redundancy — a mandatory requirement in SIL-2 and SIL-3 safety loops — the 3500/15 Power Supply Module provides dual-input, hot-swap capability that eliminates single-point power failure risk within the monitoring rack.

In facilities where shaft phase reference is required for balancing and diagnostic analysis, the Bently Nevada 330180-91-05 Extension Cable routes the Keyphasor signal from a dedicated proximity transducer mounted at the shaft key or notch, feeding the 3500/25 Keyphasor Module for synchronous vibration analysis. For axial position monitoring on thrust bearings — a critical protection function in centrifugal compressors and steam turbines — a paired Bently Nevada 21504-00-32-10-02 in a dual-redundant configuration, combined with the 3500/60 Dual Voting Trip Module, ensures that axial displacement beyond safe limits triggers an immediate, latched shutdown without relying on a single sensor path. Communication to the plant DCS or safety PLC is handled through the 3500/22M Transient Data Interface, which supports Modbus RTU and OPC-DA protocols for real-time vibration data integration into the plant historian and alarm management system, closing the loop between field measurement and control room response.

Critical Industrial Safety Applications

The Bently Nevada 21504-00-32-10-02 proximity transducer is deployed across a wide spectrum of critical industrial applications where rotating machinery failure carries severe safety and financial consequences. In petrochemical and refinery operations, it monitors centrifugal compressor shaft vibration and axial position in ethylene crackers, hydrogen compressors, and LNG liquefaction trains, where a bearing failure or rotor rub event can escalate to a process safety incident within seconds. The transducer’s fast response time and linear output ensure that the protection system can initiate an emergency shutdown before mechanical damage propagates to adjacent components.

In power generation facilities — including gas turbine combined-cycle plants, steam turbine generators, and large hydro units — the 21504-00-32-10-02 provides continuous shaft displacement monitoring on journal bearings, feeding vibration data to the turbine control system for load shedding and trip decisions. Mining and mineral processing operations rely on this transducer for crusher drive shaft monitoring, ball mill pinion bearing surveillance, and slurry pump protection, where high dust concentrations and vibration levels from adjacent heavy equipment demand a sensor with proven immunity to environmental contamination and mechanical shock.

In water and wastewater treatment plants, the transducer monitors large vertical turbine pumps and blower shaft assemblies in humid, chemically aggressive environments. Metallurgical and steel mill applications include rolling mill drive shaft monitoring and blast furnace blower protection, where high ambient temperatures and intense electromagnetic fields from induction furnaces challenge conventional sensor technologies. Port and marine installations use the 21504-00-32-10-02 on ship propulsion shaft lines and crane hoist motor bearings, where saltwater corrosion resistance and vibration immunity are essential for uninterrupted cargo handling operations.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 21504-00-32-10-02?
The support terms confirmed by quotation cover manufacturing defects, component failures, and any deviation from published performance specifications including output sensitivity, linearity, and operating temperature range. Support requests are supported with replacement unit dispatch from regional stock, minimizing the time the protection loop operates in a degraded state.

Q2: What pre-shipment tests are performed before dispatch?
Each unit undergoes output voltage linearity verification across the full linear range, insulation resistance testing on the coaxial cable assembly, and cable continuity confirmation. Test results are documented and available upon request to support site acceptance testing and maintenance records.

Q3: Is the 21504-00-32-10-02 a direct drop-in replacement for existing NSv Series installations?
Yes. The 21504-00-32-10-02 maintains full dimensional, electrical, and calibration compatibility with the Bently Nevada NSv Series standard, including the 7.87 V/mm sensitivity and -18 VDC bias voltage, ensuring direct replacement without recalibration of the 3500 Series monitor module or adjustment of alarm and trip setpoints.

Q4: How does KNMKS support long-term supply continuity for critical spare parts programs?
KNMKS maintains regional warehouse inventory of the 21504-00-32-10-02 and related NSv Series components to support blanket purchase orders and emergency replacement programs. Customers operating continuous production facilities can establish standing stock agreements to guarantee availability during planned turnarounds and unplanned outage events, eliminating lead-time risk from OEM allocation constraints.
