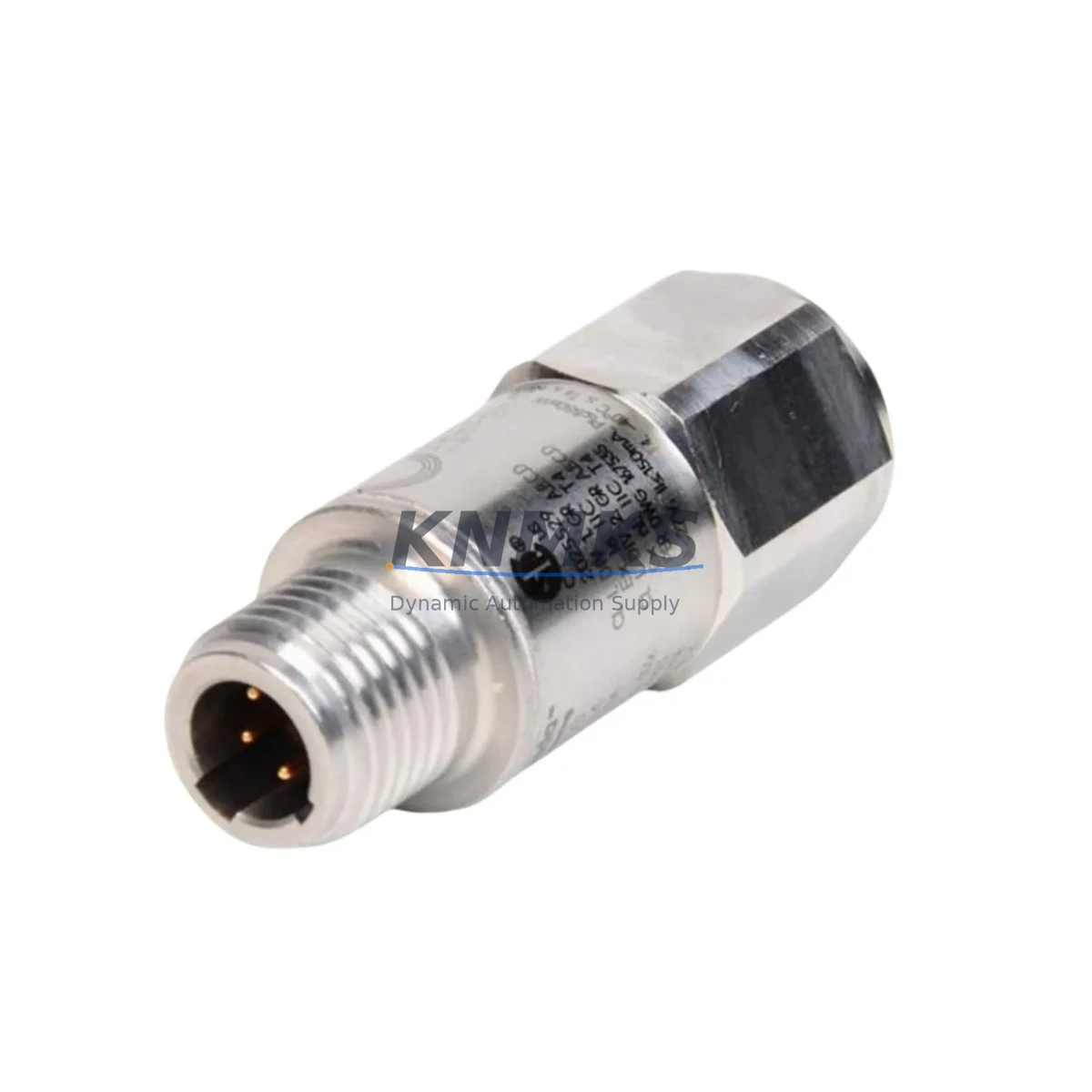

Bently Nevada 200157-15-05 Migration-Ready Accelerometer

Overview

Bently Nevada 200157-15-05 Migration-Ready Accelerometer for Legacy Control Systems

The Bently Nevada 200157-15-05 is a high-reliability enveloping accelerometer engineered for direct integration into TrendMaster Pro continuous machinery monitoring systems. As legacy vibration monitoring infrastructure reaches end-of-life across rotating equipment platforms — including steam turbines, compressors, pumps, and gearboxes — the 200157-15-05 provides a verified, migration-ready replacement path that eliminates the need for signal chain redesign or rack reconfiguration.

This accelerometer is designed to maintain backward compatibility with existing TrendMaster Pro I/O modules, preserving original wiring terminations, channel addressing, and signal conditioning parameters. For facilities managing multi-train monitoring systems, the 200157-15-05 supports phased replacement strategies that allow individual sensor swaps without disrupting adjacent monitoring channels or triggering system-wide recalibration events.

Each unit is pre-tested against Bently Nevada factory specifications prior to shipment, covering sensitivity tolerance, frequency response linearity, and connector integrity. In-stock inventory supports urgent replacement requirements with short lead times — a critical advantage when sourcing discontinued or allocation-constrained components for active production environments.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 200157-15-05 retrofit begins with a thorough audit of the existing TrendMaster Pro rack configuration. Before removing the legacy accelerometer, engineers should document the current channel assignment within the 3500/42M Proximitor/Seismic Monitor module, confirm the IEPE bias voltage is within specification, and verify that the System 1 software database reflects the correct sensor sensitivity and engineering unit scaling for the affected measurement point.

In multi-train installations, the 3500/20 Rack Interface Module governs communication between the monitoring rack and the plant DCS or historian. Replacing a sensor on an active channel requires coordination with the control room to suppress false alerts during the swap window. Where the plant uses a 3500/22M Transient Data Interface for startup and coast-down capture, the replacement sensor’s frequency response should be confirmed against the existing transient recording configuration to avoid data gaps in the post-installation baseline.

For facilities that have migrated condition monitoring data to Bently Nevada System 1 software, the sensor replacement event should be logged as a configuration change, and a new baseline vibration spectrum should be captured within the first 24 hours of operation. If the plant also monitors shaft displacement using 3300 XL 8mm proximity probes on the same shaft, cross-referencing the accelerometer data with proximity probe trends during the post-installation period provides an additional validation layer for the retrofit.

In cases where the original field cable has been in service for more than ten years, it is advisable to inspect the cable shield continuity and connector pin condition before reusing it with the new 200157-15-05. A degraded cable can introduce noise artifacts that mimic early-stage bearing defects, complicating post-retrofit baseline interpretation. Where cable replacement is warranted, standard Bently Nevada armored extension cable compatible with IEPE sensors can be installed without modifying the I/O module termination block.

For plants operating Emerson AMS Device Manager or a third-party CMMS alongside TrendMaster Pro, the sensor replacement should trigger an asset record update to maintain traceability between the physical component and its digital maintenance history. This is particularly important for facilities subject to API 670 compliance audits, where sensor calibration records and replacement documentation form part of the machinery protection system validation package.

Downtime Control During System Migration

Minimizing unplanned downtime during a sensor replacement on a live rotating machine requires a structured pre-outage preparation protocol. For the 200157-15-05 swap, the recommended approach is to pre-stage the replacement unit, verify its sensitivity certificate, and prepare the mounting surface during a scheduled inspection window rather than during an emergency shutdown.

Where the machine cannot be taken offline, a temporary bypass of the affected monitoring channel — using the 3500/42M module’s channel inhibit function — allows the replacement to proceed without triggering a spurious trip. The inhibit window should be logged in the plant’s safety management system and limited to the minimum duration required to complete the physical swap, cable reconnection, and initial signal verification.

After reinstallation, the channel should be re-enabled only after confirming that the DC bias voltage at the I/O module input is within the expected range (typically 8–12 VDC for IEPE sensors), indicating a healthy sensor and cable circuit. A brief run-up observation period — monitoring overall vibration level and spectral content against the pre-swap baseline — confirms that the replacement sensor is performing correctly before the channel inhibit is lifted and normal alarm logic is restored.

For facilities managing multiple simultaneous sensor replacements across a turbine train or compressor string, a phased replacement schedule — addressing one measurement point per maintenance window — reduces the risk of masking a developing fault during the transition period. This approach also allows the maintenance team to build confidence in the replacement sensor’s baseline before proceeding to the next channel, maintaining continuous protection coverage throughout the retrofit campaign.

Retrofit Support FAQ

Q1: Is the 200157-15-05 a direct drop-in replacement for the original Bently Nevada accelerometer in TrendMaster Pro systems?
Yes. The 200157-15-05 is designed as a form-fit-function replacement for the original TrendMaster Pro accelerometer. The connector interface, mounting thread, sensitivity, and signal output type are compatible with standard TrendMaster Pro I/O modules. No wiring modifications or adapter cables are required for typical installations. Confirm the sensitivity variant matches your existing System 1 software configuration before installation.

Q2: What commissioning steps are required after installing the 200157-15-05?
After physical installation, verify the DC bias voltage at the 3500/42M module input to confirm sensor and cable circuit integrity. Re-enable the monitoring channel and capture a new vibration baseline spectrum in System 1 software. Compare the post-installation spectrum against the pre-swap historical trend to confirm normal operation. Update the asset record in your CMMS with the replacement date, serial number, and sensitivity certificate reference.

Q3: Can the 200157-15-05 be used in high-temperature applications such as steam turbine bearing housings?
Yes. The 200157-15-05 is rated for operating temperatures up to +121°C, making it suitable for bearing housing installations on steam turbines, gas turbines, and high-temperature compressors. For applications approaching the upper temperature limit, confirm that the field cable and connector are also rated for the ambient temperature at the mounting location.

Q4: What does the support terms confirmed by quotation cover, and is a pre-shipment test report available?
The support terms confirmed by quotation cover manufacturing defects in materials and workmanship from the date of shipment. Each unit undergoes functional testing prior to dispatch, covering sensitivity, frequency response, and connector integrity. A pre-shipment test report is available on request. For support requests or technical support, contact admin@knmks.com or call +86 18359268345.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

200157-15-05

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 200157-15-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
