Bently Nevada 200157-09-CN Maintenance-Proven Spare Part for Factory Uptime

Overview

Bently Nevada 200157-09-CN Maintenance-Proven Spare Part for Factory Uptime

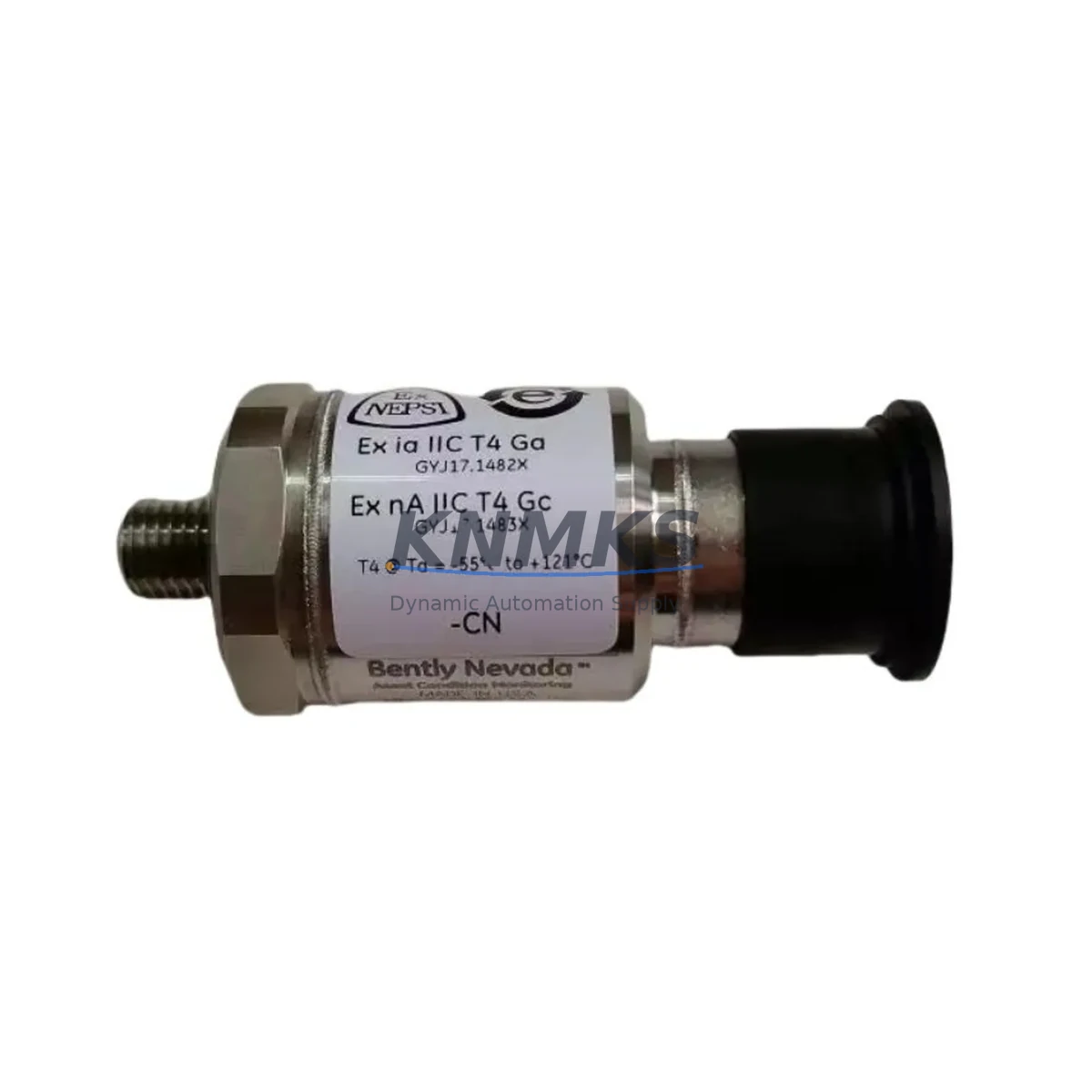

The Bently Nevada 200157-09-CN is an enveloping accelerometer designed for continuous machinery health monitoring within the TrendMaster Pro distributed condition monitoring system. As rotating equipment reliability programs mature across petrochemical, power generation, and heavy manufacturing facilities, the 200157-09-CN remains a critical field-replaceable unit for bearing fault detection, high-frequency vibration capture, and early-warning diagnostics on pumps, compressors, fans, and gearboxes. Maintaining verified stock of this sensor is a foundational element of any proactive maintenance strategy where unplanned downtime carries significant production and safety consequences.

This listing supplies original, tested 200157-09-CN units sourced through authorized industrial channels. Each unit undergoes pre-shipment functional verification and ships with a support terms confirmed by quotation covering manufacturing defects and performance conformance. Lead times are confirmed at order placement, and long-term supply agreements are available for facilities managing multi-site TrendMaster Pro deployments or annual blanket-stock programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 200157-09-CN enveloping accelerometer is flagged for replacement during a scheduled outage or corrective maintenance event, the scope of inspection should extend beyond the sensor itself. A disciplined maintenance engineer will treat the sensor swap as an opportunity to audit the full signal chain and associated field hardware.

Begin at the TrendMaster Pro I/O module serving the affected channel. Dynamic input modules — such as the Bently Nevada 3500/42M-series equivalent dynamic I/O cards used in TrendMaster Pro racks — should be inspected for channel integrity, connector seating, and any indication of moisture ingress or corrosion on the terminal block. A failed or degraded I/O channel can mask a healthy sensor or produce false alarms that trigger unnecessary shutdowns.

Trace the field cable from the sensor to the marshalling cabinet. Bently Nevada armored sensor cables (typically 330130-series or equivalent shielded twisted-pair) are subject to mechanical fatigue at conduit entry points and junction boxes in high-vibration environments. Inspect the cable jacket, shield continuity, and connector terminations. A compromised cable shield introduces noise that corrupts enveloping analysis and produces unreliable bearing fault indicators.

At the marshalling or junction box level, verify the condition of terminal blocks and DIN-rail mounted signal isolators. In facilities where TrendMaster Pro shares a cabinet with other instrumentation, signal isolation barriers protect the 4–20 mA loop from ground loops and common-mode interference. Confirm that isolator output ranges match the I/O module input configuration.

Review the 24 VDC field power supply feeding the sensor loop. Loop-powered accelerometers are sensitive to supply voltage sag under load; a power supply operating near its rated capacity or showing ripple on the DC bus can introduce measurement error. Check the supply output voltage under load and inspect the associated fuse or circuit breaker protecting the sensor circuit — a slow-blow fuse rated for the loop current should be in place and within its service life.

If the TrendMaster Pro system interfaces with a System 1 Evolution software platform or a plant DCS via Modbus or OPC, confirm that the channel configuration in the software matches the replacement sensor’s sensitivity and measurement range. A mismatch between the configured transducer sensitivity and the physical sensor will produce scaled output errors that are difficult to diagnose without reviewing the software channel setup.

Finally, if the machine being monitored is also equipped with proximity probes and Bently Nevada 3300 XL series proximitors for shaft displacement monitoring, use the maintenance window to inspect proximitor gap voltage and verify that the radial and thrust channels are within the linear range. Combining enveloping accelerometer data with proximity probe trends provides a complete picture of bearing and rotor health and reduces the risk of missing a developing fault between scheduled inspections.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement unit part number (200157-09-CN) against the TrendMaster Pro system configuration record and the machine train equipment list. Verify that the I/O module channel type (dynamic input) matches the sensor output type. Do not substitute a standard IEPE accelerometer without confirming loop-power compatibility with the I/O module.

Step 2 — Safe isolation: Inhibit the affected channel in System 1 or the DCS alarm management system before disconnecting the sensor. This prevents nuisance alarms and protects the I/O module from open-circuit transients during disconnection.

Step 3 — Physical removal and inspection: Remove the old sensor and inspect the mounting surface for corrosion, thread damage, or contamination. Clean the mounting surface and apply appropriate thread sealant if stud-mounting. Inspect the cable connector and replace the cable if any damage is found.

Step 4 — Installation and loop check: Install the 200157-09-CN, torque to the manufacturer’s specification, and reconnect the field cable. Restore loop power and verify the channel output in the TrendMaster Pro system. Confirm that the static output is within the expected range for the sensor sensitivity before re-enabling alarms.

Step 5 — Functional validation: With the machine running, compare the enveloping spectrum on the replaced channel against historical baseline data or adjacent bearing channels. Confirm that bearing fault frequencies (BPFI, BPFO, BSF) are within expected amplitude ranges before closing the work order.

Step 6 — Documentation: Record the replacement in the CMMS with the new sensor serial number, installation date, and post-replacement validation readings. Update the spare parts inventory to trigger reorder of a replacement 200157-09-CN unit to maintain minimum stock levels.

Spare Parts Support FAQ

Q1: Is the 200157-09-CN still in active production, and can long-term supply be guaranteed?
The 200157-09-CN is a TrendMaster Pro system component. As with many legacy condition monitoring spare parts, production status may vary. We maintain verified stock and offer blanket-order programs for facilities requiring guaranteed annual supply. Contact our team to discuss a long-term supply agreement that aligns with your maintenance planning cycle.

Q2: How is each unit tested before shipment?
Every 200157-09-CN unit undergoes pre-shipment functional verification including output signal check and physical inspection for connector integrity and housing condition. Units that do not meet performance criteria are quarantined and not shipped. A support terms confirmed by quotation cover manufacturing defects and performance conformance from the date of delivery.

Q3: Can the 200157-09-CN be used as a direct replacement for other TrendMaster Pro enveloping accelerometers?
Compatibility depends on the specific I/O module channel configuration in your TrendMaster Pro rack. The 200157-09-CN is designed for dynamic input channels. Before ordering, confirm your I/O module part number and channel type. Our technical team can assist with compatibility verification based on your system configuration documentation.

Q4: What is the recommended spare parts stocking strategy for TrendMaster Pro accelerometers?
For facilities with more than 10 monitored points using enveloping accelerometers, a minimum of 2–3 spare units per site is recommended to support corrective maintenance without waiting on procurement lead times. For multi-site operations, a centralized regional stock with consignment or blanket-order terms provides the best balance of availability and working capital efficiency. Annual review of consumption rates against installed base size is recommended to right-size the buffer stock.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

200157-09-CN

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 200157-09-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
