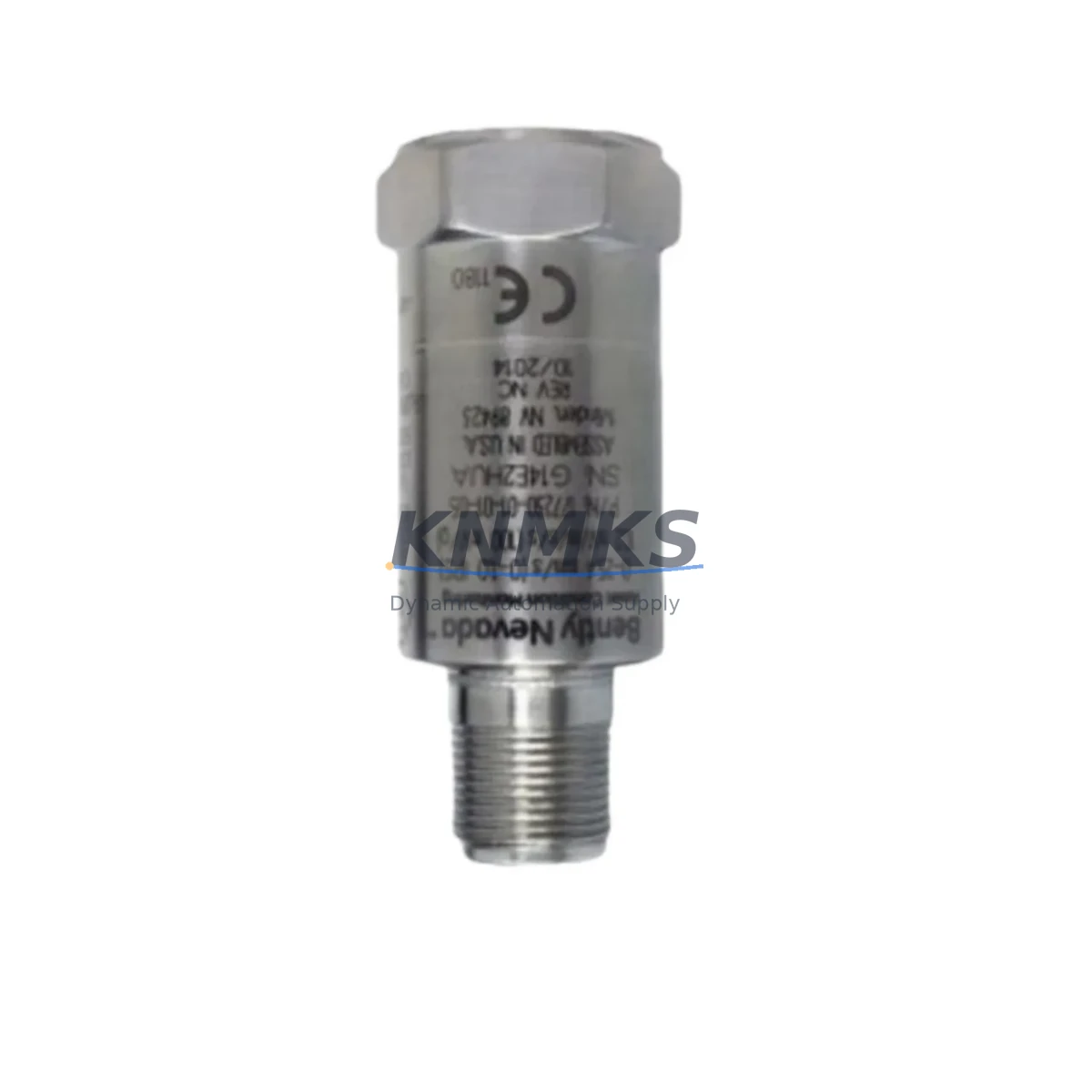

Bently Nevada 190501-23-00-CN Migration-Ready Seismic Velocity Transducer

Overview

Bently Nevada 190501-23-00-CN Migration-Ready Seismic Velocity Transducer for Legacy Control Systems

The Bently Nevada 190501-23-00-CN is a Velomitor CT piezo-velocity transducer engineered for continuous vibration monitoring in rotating machinery protection systems. As a migration-ready replacement for legacy Bently Nevada seismic sensing assemblies, this unit delivers direct drop-in compatibility with the 3500 Series Machinery Protection System rack — one of the most widely deployed vibration monitoring platforms in oil & gas, power generation, petrochemical, and heavy industrial facilities worldwide.

When a legacy seismic velocity transducer reaches end-of-life or becomes unavailable through OEM channels, the 190501-23-00-CN provides a verified retrofit path without requiring changes to the existing 3500/25 Keyphasor Module wiring harness, the 3500/42M Proximitor/Seismic Monitor card configuration, or the established alarm and danger setpoints stored in the rack’s non-volatile memory. This dramatically reduces the engineering effort and downtime risk associated with sensor replacement on critical rotating assets such as steam turbines, gas compressors, pumps, and fans.

Each unit ships fully tested against Bently Nevada factory sensitivity specifications (100 mV/in/s ±5%), with frequency response validated across the 2 Hz to 1,000 Hz operating band. The integral cable assembly and MIL-spec connector are retained to ensure backward compatibility with existing field junction boxes and monitor input channels. Inventory is maintained in regional warehouses to support urgent spare-parts requirements and blanket-stock programs for maintenance teams managing large rotating equipment fleets.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 190501-23-00-CN into an operating machinery protection system begins well before the physical swap. Maintenance engineers should first audit the existing 3500 Series rack configuration using System 1 Evolution software or the rack’s front-panel keypad to document the current channel configuration, including input type selection (Velomitor vs. electrodynamic), full-scale range, and the OK limit thresholds. This baseline record is essential for restoring the exact monitoring state after the sensor is replaced.

Power supply capacity is a critical checkpoint. The 190501-23-00-CN draws loop power from the 3500/42M Proximitor/Seismic Monitor card. If the existing installation was previously using a passive electrodynamic transducer, the monitor card must be reconfigured to supply the 18–30 VDC required by the active Velomitor CT circuit. Verify that the 3500 Power Supply module — typically a 3500/15 or 3500/15E — has sufficient headroom to support the additional current draw, particularly in racks where multiple channels are being upgraded simultaneously.

Terminal wiring at the field junction box should be inspected for insulation integrity and correct polarity before the new sensor is connected. The 190501-23-00-CN uses a two-conductor shielded cable; the shield must be grounded at one end only (typically at the monitor rack) to prevent ground loops that can introduce noise into the vibration signal. If the existing cable run exceeds 300 meters, verify that the cable capacitance does not degrade the high-frequency response of the sensor.

For facilities running Modbus RTU or FOUNDATION Fieldbus communication between the 3500 rack and the plant DCS — such as a Honeywell Experion PKS, Emerson DeltaV, or ABB System 800xA — no changes to the communication link are required at the rack level. The 3500 rack continues to present the same register map to the DCS after the sensor swap, meaning HMI faceplates, historian tags, and alarm management configurations in the control system remain intact. This is a significant advantage over platform migrations that require re-engineering the entire I/O mapping.

Where the retrofit is part of a broader control cabinet upgrade — for example, replacing an aging 3300 Series monitor with a 3500 Series rack — additional components will be involved. A 3500/20 Rack Interface Module is required for Ethernet-based System 1 connectivity. The 3500/32 4-Channel Relay Module may need to be added if the legacy system used discrete relay outputs for machinery trip logic. I/O signal isolators, such as those used to interface the 4–20 mA analog outputs with a third-party safety PLC, should be verified for compatibility with the new signal levels before the system is returned to service.

Programming cable access for firmware verification is another pre-commissioning step that is frequently overlooked. The 3500 rack communicates with a laptop via a standard RS-232 or USB-to-serial adapter using Bently Nevada’s rack configuration software. Confirm that the site laptop has the correct software version installed and that the communication port settings match the rack’s baud rate before the maintenance window begins. This avoids last-minute delays during a planned outage.

Downtime Control During System Migration

Minimizing unplanned downtime during a seismic transducer replacement requires a structured pre-outage preparation protocol. The most effective approach is to complete all configuration verification, spare-parts staging, and tooling preparation during normal operation — so that the physical replacement can be executed within a single planned maintenance window, typically two to four hours for a single-channel sensor swap.

Before the outage begins, the existing vibration trend data from System 1 or the plant historian should be exported and saved. This provides a reference baseline for post-commissioning comparison and supports the acceptance test that confirms the new 190501-23-00-CN is reading within the expected range for the machine’s normal operating condition. If the machine has a known vibration signature — for example, a 1X running-speed component at a predictable amplitude — this signature should be visible in the post-swap data within the first few minutes of operation.

During the swap, the monitor channel should be placed in bypass mode using the 3500/42M front-panel or System 1 software to prevent a spurious machinery trip while the sensor cable is disconnected. The bypass state should be logged in the site’s permit-to-work system and communicated to the control room operator. Once the new sensor is connected and the cable shield grounding is verified, the channel can be taken out of bypass and the OK status confirmed before the bypass is removed.

Original program logic in the DCS or safety PLC is not affected by the sensor replacement, provided the rack-level configuration is restored correctly. The 3500 rack stores its configuration in non-volatile memory, so a power cycle during the replacement does not erase the channel settings. However, it is good practice to export the rack configuration file to a USB drive before the outage as a recovery backup. This protects against accidental configuration loss and supports rapid restoration if a second rack needs to be configured as a hot standby.

Post-commissioning field calibration verification — comparing the sensor output against a calibrated reference accelerometer or a known vibration source — is recommended for critical machinery where the vibration monitoring system is part of the machinery protection trip logic. This step confirms that the 190501-23-00-CN is performing within its specified sensitivity tolerance and that the monitor channel alarm and danger setpoints are correctly scaled for the new sensor’s output characteristics.

Retrofit Support FAQ

Q1: Is the 190501-23-00-CN a direct drop-in replacement for legacy Bently Nevada seismic velocity transducers used with the 3500/42M monitor?
A: Yes, for installations where the 3500/42M monitor card is configured for Velomitor CT input type. If the existing installation used a passive electrodynamic transducer, the monitor channel input type must be reconfigured to Velomitor CT, and the loop power supply must be verified. No mechanical modifications to the mounting pad or cable junction box are required.

Q2: What firmware version is required on the 3500/42M to support the 190501-23-00-CN?
A: Firmware version 5.x or later on the 3500/42M Proximitor/Seismic Monitor is required to support the Velomitor CT input type. Earlier firmware versions may not recognize the active sensor circuit. Firmware can be updated using Bently Nevada’s rack configuration software via the RS-232 or USB communication port on the rack interface module.

Q3: How is the 190501-23-00-CN tested before shipment, and what does the support terms confirmed by quotation cover?
A: Each unit undergoes functional testing against Bently Nevada factory sensitivity specifications, including frequency response verification across the 2 Hz to 1,000 Hz operating band. The support terms confirmed by quotation cover manufacturing defects in materials and workmanship from the date of shipment. Units that fail within the confirmed support period are replaced or repaired at no charge. Support requests require the original shipment documentation and a description of the failure mode.

Q4: Is inventory available for urgent spare-parts requirements, and can blanket stock agreements be arranged?
A: Yes. The 190501-23-00-CN is maintained in regional warehouse stock to support urgent maintenance requirements with short lead times. Blanket stock agreements are available for facilities managing large rotating equipment fleets where multiple units may be required on short notice. Contact our sales team to discuss stock reservation, consignment arrangements, and volume pricing for planned maintenance programs.
