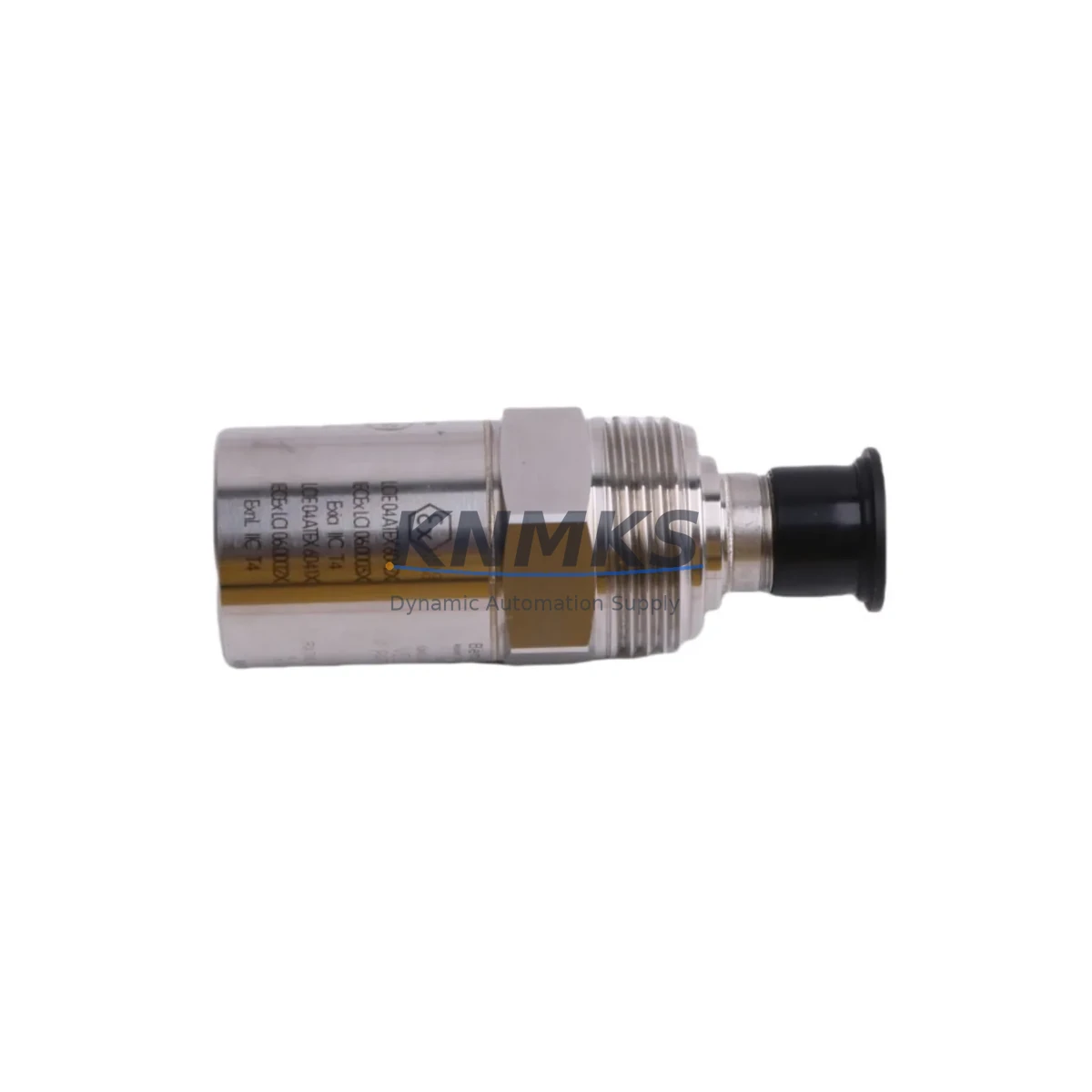

Bently Nevada 190501-22-99-CN Fail-Safe Velocity Transducer

Overview

Bently Nevada 190501-22-99-CN Fail-Safe Velocity Transducer: Fault Protection for Critical Industrial Control Reliability

The Bently Nevada 190501-22-99-CN is a Velomitor CT piezoelectric velocity transducer engineered for continuous, fail-safe operation in the most demanding industrial environments. Designed to deliver accurate, low-noise vibration velocity signals to machinery protection systems, this transducer is a cornerstone component in rotating equipment monitoring loops where unplanned downtime carries severe operational and safety consequences. Whether deployed in petrochemical compressor trains, power generation turbines, or heavy-duty mining conveyors, the 190501-22-99-CN provides the signal integrity and environmental resilience that critical asset protection demands.

Unlike conventional velocity sensors, the Velomitor CT integrates an internal signal conditioning circuit that converts raw piezoelectric output into a low-impedance, DC-coupled velocity signal. This architecture eliminates the phase shift and low-frequency roll-off limitations of passive geophone-type sensors, ensuring that the 3500 Series rack — or any compatible Bently Nevada machinery protection system — receives a clean, reliable signal even under transient load changes, surge events, or electrical interference from adjacent variable frequency drives (VFDs) and high-current motor starters.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In high-stakes control cabinet environments — particularly those housing Bently Nevada 3500/42M proximitor I/O modules or 3500/22M transient data interface cards — signal quality from the velocity transducer directly determines the reliability of the entire machinery protection chain. The 190501-22-99-CN’s low-impedance output is specifically designed to resist the capacitive loading effects of long cable runs (up to 300 meters) between the field sensor and the 3500 rack, preventing signal attenuation that could mask early-stage bearing defects or rotor imbalance.

When integrated alongside Bently Nevada 330180-91-05 proximity probes and their associated 3300 XL 8mm extension cables, the 190501-22-99-CN completes a multi-axis vibration monitoring strategy covering both radial displacement (via eddy-current probes) and absolute casing velocity — a dual-parameter approach mandated by API 670 for critical rotating machinery. In cabinets where power quality is a concern, pairing this transducer loop with a Bently Nevada 3500/15 power supply module ensures that constant-current excitation remains stable even during upstream grid disturbances or UPS switchover events.

For installations in high electromagnetic interference zones — such as those adjacent to large synchronous motors, arc furnaces, or high-frequency induction heating equipment — the transducer’s internal EMI shielding works in concert with properly grounded Bently Nevada 330130-040-00-00 armored extension cables to maintain signal integrity. Additionally, in safety instrumented system (SIS) architectures where the vibration monitoring loop feeds a Triconex 3625 or similar safety PLC, the 190501-22-99-CN’s DC-coupled, low-noise output ensures that the SIS logic solver receives a deterministic, drift-free input — a prerequisite for maintaining SIL 2 loop integrity without spurious trips.

Cabinet thermal management is equally critical: in enclosures where heat dissipation from multiple I/O cards and power supplies elevates ambient temperatures, the 190501-22-99-CN’s rated operating range to +121°C provides a substantial safety margin, reducing the risk of sensor drift or premature failure that could compromise the protection loop during peak summer operation or in tropical plant environments.

Critical Industrial Safety Applications

Petrochemical & Refinery: In ethylene crackers, catalytic reformers, and LNG compressor trains, the 190501-22-99-CN monitors casing velocity on centrifugal and reciprocating compressors operating under continuous duty cycles. Its fail-safe signal path ensures that the Bently Nevada 3500 rack can initiate an emergency shutdown (ESD) sequence before bearing failure propagates to catastrophic seal or impeller damage — protecting both personnel and high-value rotating assets.

Power Generation: Steam turbine and gas turbine generator sets in thermal and combined-cycle power plants rely on absolute velocity measurement for casing expansion monitoring and low-frequency structural resonance detection. The 190501-22-99-CN’s 2 Hz low-frequency response captures slow-roll vibration signatures that eddy-current probes alone cannot resolve, providing operators with early warning of rotor bow or thermal unbalance during startup sequences.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in copper, gold, and iron ore processing plants operate in environments characterized by extreme dust loading, high ambient vibration, and frequent water ingress. The IP67-rated stainless steel housing of the 190501-22-99-CN withstands these conditions without seal degradation, maintaining continuous vibration monitoring on gearboxes and pinion bearings where unplanned downtime can halt an entire processing circuit.

Water & Wastewater Treatment: High-service pumping stations and blower trains in municipal water treatment facilities require reliable vibration monitoring to prevent bearing failures that could interrupt water supply. The 190501-22-99-CN’s corrosion-resistant housing and wide temperature range make it suitable for both indoor pump rooms and outdoor installations subject to seasonal temperature extremes.

Metallurgy & Steel: Rolling mill drives, continuous casting machines, and blast furnace blowers in integrated steel plants generate intense electromagnetic interference from high-current DC drives and induction furnaces. The 190501-22-99-CN’s shielded, low-impedance design maintains signal fidelity in these environments, ensuring that vibration alarms and trips are triggered by actual mechanical events — not electrical noise artifacts.

Port & Marine: Shipboard propulsion systems, bow thrusters, and cargo pump turbines require vibration monitoring equipment rated for salt-air corrosion and high-humidity environments. The 190501-22-99-CN’s 316 stainless steel construction and IP67 sealing meet the ingress protection requirements for marine machinery spaces, supporting classification society compliance for continuous machinery monitoring.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 190501-22-99-CN?
The support terms confirmed by quotation cover all manufacturing defects, functional failures, and out-of-specification performance identified under normal operating conditions. Each unit undergoes pre-shipment functional testing — including sensitivity verification, frequency response check, and insulation resistance measurement — before dispatch. Support requests are processed with priority turnaround to minimize your site downtime.

Q2: How is the 190501-22-99-CN tested before shipment?
Every unit is subjected to a multi-point outgoing quality inspection: sensitivity calibration at reference frequency (100 Hz), bias voltage verification, cable continuity and insulation test, and visual inspection of the connector and housing seal. A test report is available upon request for customers integrating this transducer into SIL-rated safety loops.

Q3: Is the 190501-22-99-CN a direct drop-in replacement for existing Velomitor CT installations?
Yes. The 190501-22-99-CN maintains full dimensional, electrical, and connector compatibility with the standard Velomitor CT product family. It is a direct replacement for units installed in Bently Nevada 3500 and 3300 series systems without requiring reconfiguration of the rack I/O module or alarm setpoints. Always verify the cable connector type (-CN suffix denotes a specific connector configuration) matches your existing field wiring.

Q4: Can long-term supply continuity be guaranteed for this part?
We maintain dedicated buffer stock of the 190501-22-99-CN to support blanket order programs and emergency replacement requirements. For customers managing multi-site maintenance programs or operating under critical spare parts agreements, we offer reserved inventory arrangements with agreed lead times. Contact our team to discuss scheduled delivery programs that align with your planned maintenance windows.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

190501-22-99-CN

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 190501-22-99-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
