Bently Nevada 190501-06-00-00 Migration-Ready Velocity Transducer

Overview

Bently Nevada 190501-06-00-00 Migration-Ready Velocity Transducer: Legacy System Retrofit and Compatibility Upgrade

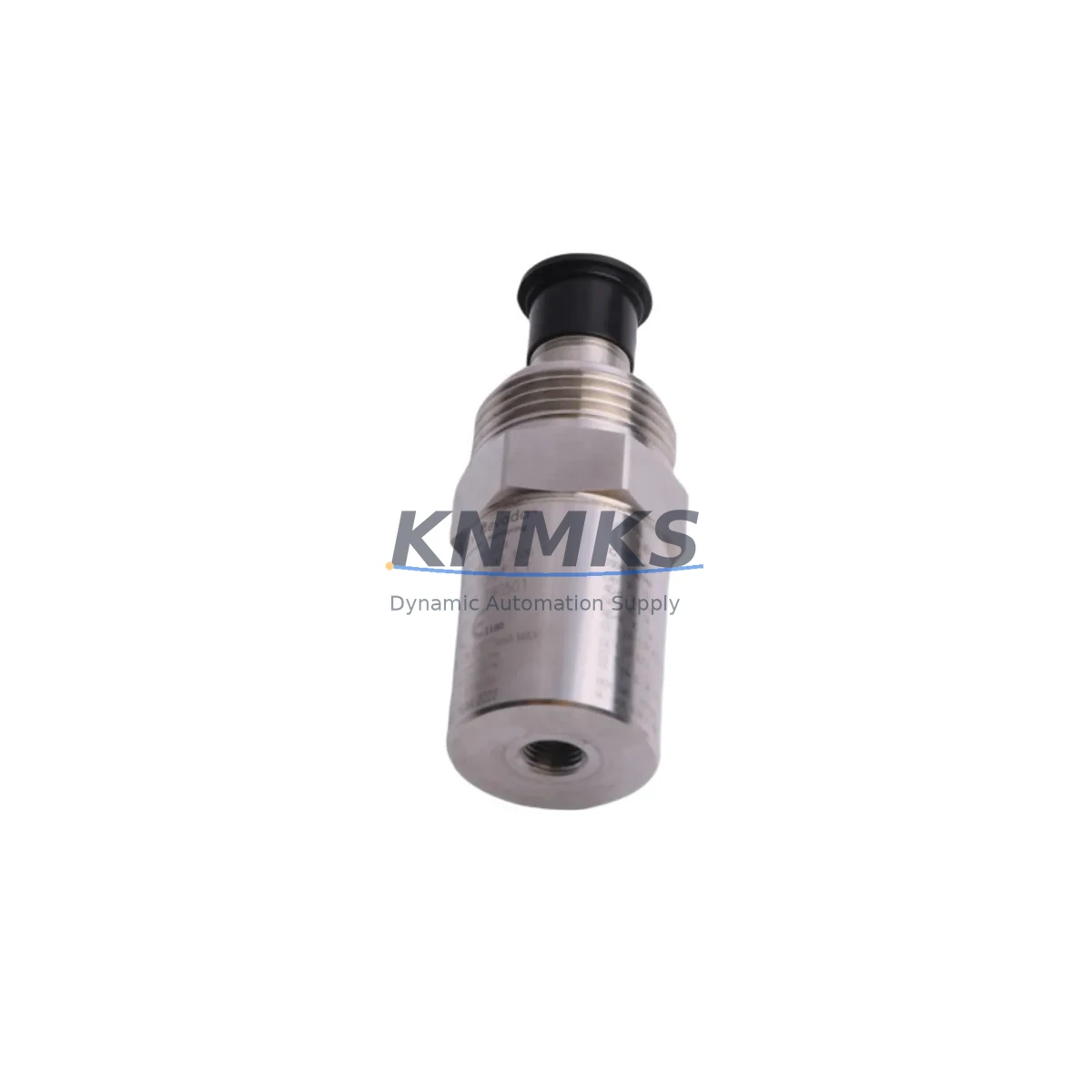

The Bently Nevada 190501-06-00-00 Velomitor CT is a piezoelectric velocity transducer engineered for direct drop-in replacement in aging vibration monitoring systems. As industrial facilities face increasing pressure to extend the operational life of legacy control architectures while maintaining measurement accuracy and system reliability, the 190501-06-00-00 serves as a proven migration solution for plants running Bently Nevada 3500/42M Velocity/Acceleration Monitor modules and 2300 Series machinery protection systems. Whether you are executing a planned control cabinet upgrade, responding to an end-of-life parts notification, or recovering from an unplanned sensor failure, this transducer is stocked and ready for immediate shipment with full compatibility verification completed prior to dispatch.

Facilities that have operated Bently Nevada Velomitor XA or earlier-generation velocity sensors will find the 190501-06-00-00 a functionally equivalent replacement with no firmware changes required at the monitor level. The transducer outputs a standard velocity signal compatible with the 3500 rack’s existing channel configuration, meaning engineers do not need to reconfigure alarm setpoints, full-scale ranges, or OK relay logic when performing a like-for-like swap. This is particularly valuable in environments where control system downtime must be minimized and re-commissioning windows are tightly constrained by production schedules.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 190501-06-00-00 into an existing machinery protection architecture begins well before the sensor arrives on site. Retrofit planning should account for the full signal chain from the transducer through to the 3500 rack and ultimately to the plant DCS or safety system. Engineers replacing a failed or end-of-life Velomitor sensor should first confirm the existing field cable is undamaged and that the cable shield is properly terminated at the 3500/42M I/O module terminal block. A degraded cable can introduce noise that masks the transducer’s OK status, leading to false channel faults even after a new sensor is installed.

For facilities upgrading from a 2300 Series standalone monitor to a full 3500 rack-based system, the 190501-06-00-00 is equally compatible with both platforms, simplifying the transition. When migrating to the 3500 architecture, the 3500/20 Rack Interface Module and 3500/15 Power Supply Module should be verified for adequate power budget before adding velocity channels. The 3500/42M module itself supports up to two velocity or acceleration channels per card, and plants expanding their monitoring scope during a retrofit should confirm available slot positions in the 3500 rack before ordering additional I/O cards.

In control cabinet upgrade projects where the Bently Nevada system interfaces with a Rockwell Automation ControlLogix or CompactLogix PLC via a 3500/92 Communication Gateway, engineers should verify that the gateway’s Modbus or EtherNet/IP tag mapping remains intact after the sensor swap. The 190501-06-00-00 replacement does not alter the monitor’s output data structure, so existing PLC ladder logic and HMI faceplates built around vibration OK, Alert, and Danger status bits will continue to function without modification. This is a significant advantage in plants where HMI screen redevelopment would require additional engineering hours and extended outage windows.

Where signal isolation is required between the 3500 system and a third-party SCADA or historian, a signal isolator or repeater module in the instrument loop should be inspected for compatibility with the transducer’s output impedance. Plants using Pepperl+Fuchs or MTL signal conditioners in the loop should confirm input range settings match the Velomitor CT’s output characteristics. Additionally, if the retrofit involves replacing multiple sensors across a train — such as combining the 190501-06-00-00 velocity transducer with proximity probe replacements on the same shaft — the 3500/25 Keyphasor Module timing reference should be re-verified to ensure phase measurement accuracy is maintained across all channels.

Downtime Control During System Migration

Minimizing unplanned downtime during a sensor replacement is a primary concern for rotating equipment engineers. The 190501-06-00-00 is designed to support rapid field swap procedures that can be completed within a single planned maintenance window. Before initiating the replacement, the original program logic in the 3500/42M monitor — including full-scale range, transducer type selection, and alarm delay settings — should be documented using Bently Nevada System 1 software or the rack’s front-panel configuration interface. This ensures that if any settings are inadvertently altered during the swap, the original configuration can be restored immediately without requiring a controls engineer to rebuild parameters from memory.

During the physical replacement, the field cable should be de-energized at the 3500/42M terminal block before disconnecting the sensor. After installing the 190501-06-00-00, the bias voltage at the monitor input should be measured to confirm it falls within the acceptable window — typically 8–12 VDC for ICP-style transducers — before the channel is returned to service. An out-of-range bias voltage reading after installation indicates either a wiring fault or a transducer that has not been properly seated, and should be resolved before the machine is restarted.

For plants where continuous monitoring cannot be interrupted, a temporary bypass of the affected channel’s OK relay output — with appropriate management of change documentation — allows the machine to remain online while the sensor is replaced. Once the new 190501-06-00-00 is confirmed healthy and the channel OK status is restored, the bypass can be removed and normal protection logic reinstated. This approach preserves control continuity and avoids the risk of a spurious trip during the replacement procedure, which is particularly important in compressor trains and turbine-driven pumps where a false shutdown carries significant production cost.

Retrofit Support FAQ

Q: Is the 190501-06-00-00 a direct replacement for the Bently Nevada Velomitor XA?
A: Yes. The 190501-06-00-00 Velomitor CT is the current production replacement for the Velomitor XA and earlier 190501 series variants. It shares the same mounting thread, connector pinout, and signal output characteristics, making it a drop-in substitute with no wiring modifications required in standard installations.

Q: Will I need to reconfigure the 3500/42M monitor after installing the 190501-06-00-00?
A: In most cases, no. The 190501-06-00-00 is recognized by the 3500/42M as a compatible velocity transducer, and existing channel configuration — including full-scale range, alarm setpoints, and transducer type — remains valid. We recommend verifying bias voltage and OK status after installation as a standard commissioning step, but no firmware update or parameter rebuild is typically required.

Q: What pre-shipment testing is performed on the 190501-06-00-00?
A: Each unit undergoes functional output verification and connector integrity inspection before dispatch. Units are shipped with a test report confirming compliance with Bently Nevada’s published sensitivity and frequency response specifications. This pre-shipment testing reduces the risk of receiving a non-functional unit and supports faster on-site commissioning.

Q: What does the support terms confirmed by quotation cover, and what is the stock availability?
A: The 190501-06-00-00 carries a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Units are maintained availability confirmed by RFQ for immediate dispatch, supporting both planned retrofit projects and emergency replacement scenarios. Contact our team to confirm current inventory levels and lead time for your specific quantity requirement.
