Bently Nevada 190501-02-00-04 Maintenance-Proven Spare Part for Factory Uptime

Overview

Bently Nevada 190501-02-00-04 Maintenance-Proven Spare Part for Factory Uptime

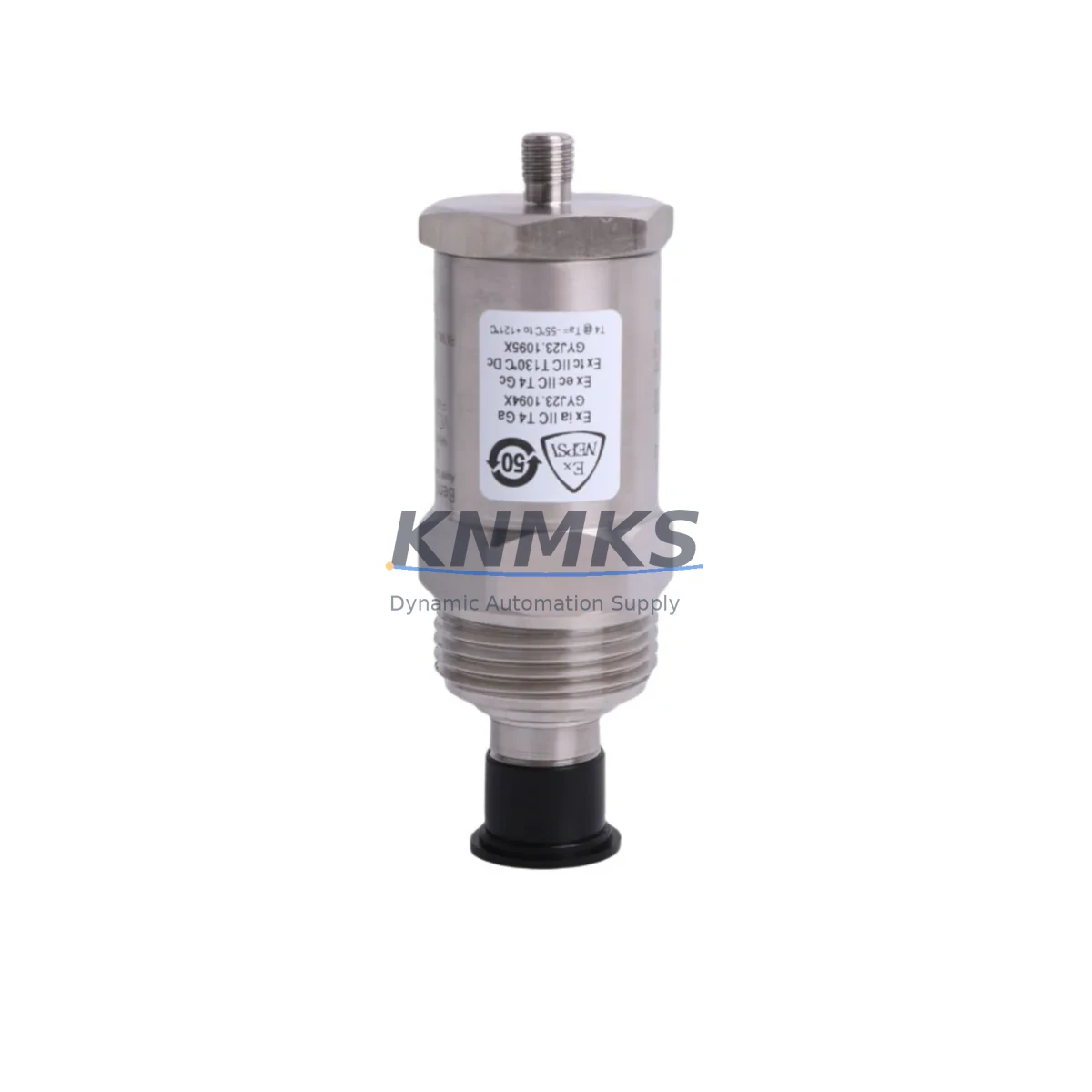

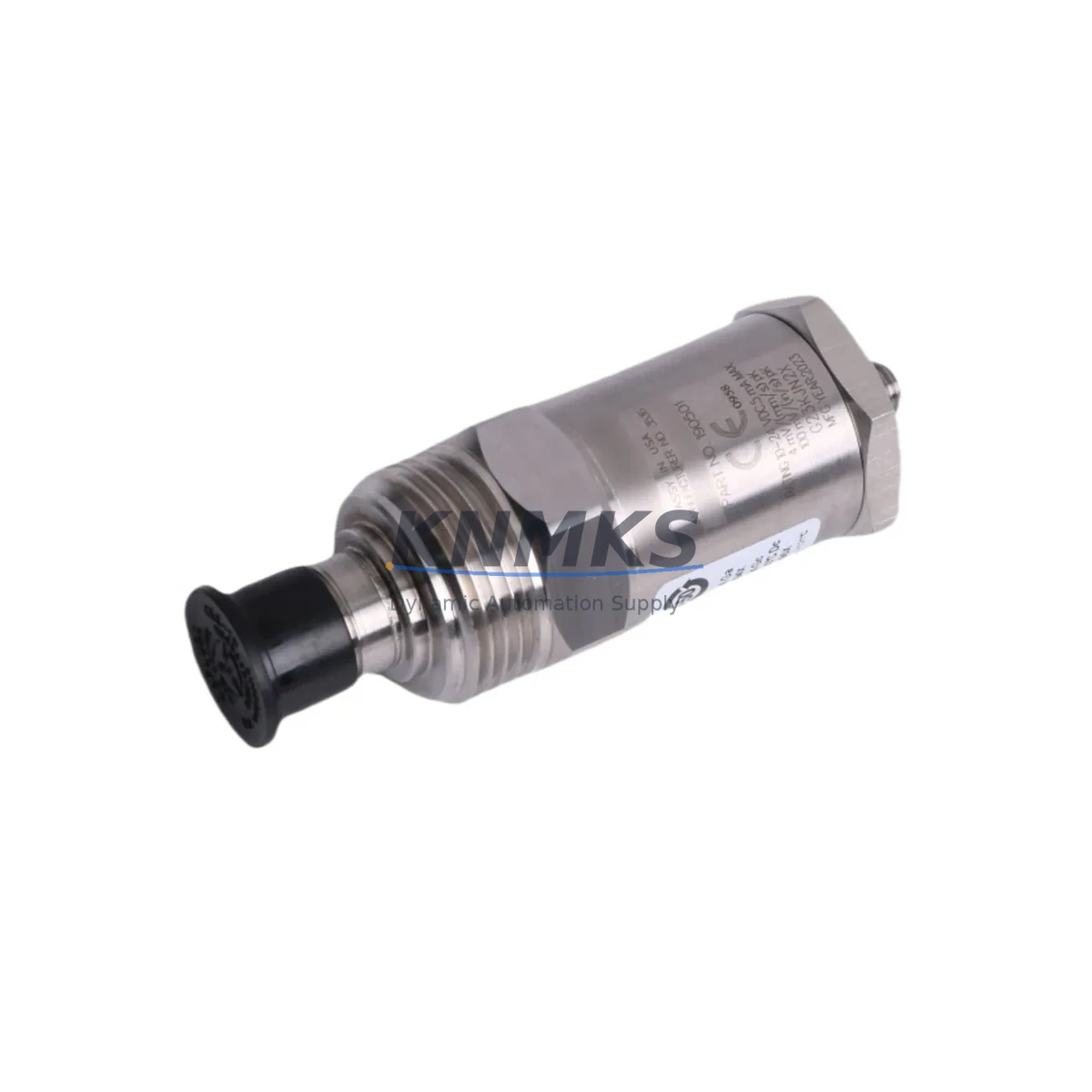

The Bently Nevada 190501-02-00-04 is a Velomitor CT piezo-velocity transducer engineered for continuous vibration monitoring in rotating machinery protection systems. Designed as a core sensing element within the Bently Nevada 3500 Series machinery protection platform, this transducer delivers broadband velocity output that enables maintenance engineers to detect early-stage mechanical faults — including bearing wear, rotor imbalance, misalignment, and structural resonance — before they escalate into unplanned shutdowns.

For maintenance and reliability engineers managing turbines, compressors, pumps, fans, and gearboxes in petrochemical, power generation, and heavy industrial environments, the 190501-02-00-04 represents a critical line-replaceable unit (LRU). Its compact, hermetically sealed housing and integral cable assembly make it suitable for installation in high-temperature, high-vibration, and chemically aggressive environments where sensor reliability directly determines plant availability.

KNMKS maintains verified stock of the 190501-02-00-04 sourced from authorized supply channels. Each unit undergoes pre-shipment functional verification and ships with a support terms confirmed by quotation covering manufacturing defects and performance conformance. Our industrial spare parts program is designed to support both emergency breakdown recovery and planned annual maintenance cycles, with same-week dispatch capability for in-stock units.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the 190501-02-00-04 Velomitor CT, a disciplined maintenance engineer will treat the transducer swap as the trigger for a broader control loop inspection. The 3500 Series rack housing this sensor typically includes a 3500/42M Proximitor / Seismic Monitor or 3500/45 Position Monitor module — both of which should be verified for firmware revision and channel calibration status during the same maintenance window. Signal integrity from the Velomitor CT depends heavily on the condition of the interconnecting armored cable assembly; any kinking, abrasion, or connector corrosion will introduce noise that masks genuine vibration trends.

The 3500 rack’s 3500/15 Power Supply module should be checked for output voltage stability, as supply ripple directly affects the transducer’s signal-to-noise ratio. If the rack is equipped with a 3500/22M Transient Data Interface, confirm that the TDI buffer is capturing clean baseline waveforms post-replacement to validate the new sensor’s performance signature. For installations where the Velomitor CT feeds into a System 1 Evolution condition monitoring platform, verify that the channel tag mapping and engineering unit scaling are updated to reflect the replacement unit’s sensitivity specification.

Maintenance teams operating in hazardous area classifications should also confirm that the Zener barrier or galvanic isolator in the intrinsically safe loop remains within its rated parameters — a degraded barrier can clip the transducer output and generate false low-vibration readings. Finally, inspect the terminal block and field wiring connections within the junction box for oxidation or loose terminations, which are a common source of intermittent faults that are frequently misattributed to transducer failure.

Stocking a minimum of two 190501-02-00-04 units per critical machine train is recommended for facilities with long procurement lead times or remote site locations. Pairing this stock with a spare 3500/42M monitor module and a set of pre-terminated cable assemblies ensures that a complete sensor loop can be restored within a single shift, minimizing mean time to repair (MTTR) and protecting production continuity.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement 190501-02-00-04 part number suffix matches the installed unit (cable length, connector type, and sensitivity range encoded in the suffix digits). Cross-reference the 3500 rack channel configuration in System 1 or the local rack display to ensure the monitor module is set to accept a Velomitor CT input type.

Step 2 — Safe Isolation: Place the affected monitor channel into bypass mode via the 3500 rack front panel or System 1 software to prevent spurious trip signals during the swap. Document the pre-removal vibration trend data as a baseline reference.

Step 3 — Physical Replacement: Disconnect the integral cable at the junction box connector. Remove the transducer from its mounting stud using the correct torque tool — avoid over-torquing the replacement unit, as this can induce mechanical stress on the piezo element. Install the 190501-02-00-04 replacement and torque to the manufacturer’s specification.

Step 4 — Signal Verification: With the channel still in bypass, apply a known vibration reference (calibration shaker or bump test) and confirm the output signal level matches the expected sensitivity. Compare the live vibration reading against adjacent channels and historical baseline to validate sensor health before releasing the bypass.

Step 5 — Documentation and Stock Replenishment: Log the replacement in the CMMS with the new unit’s serial number, installation date, and post-replacement vibration baseline. Immediately initiate a purchase order to replenish the consumed spare, maintaining the minimum stock level for the next unplanned event.

Spare Parts Support FAQ

Q1: Is the 190501-02-00-04 a direct drop-in replacement for older Velomitor CT variants?
The 190501-02-00-04 is designed for direct mechanical and electrical compatibility with standard Bently Nevada 3500 Series velocity monitor channels. However, the suffix digits encode cable length and connector configuration — always verify the full part number matches the installed unit before ordering. If the original suffix is unknown, KNMKS technical support can assist with cross-referencing based on your rack model and installation drawing.

Q2: What pre-shipment testing is performed on each unit?
Each 190501-02-00-04 shipped by KNMKS undergoes functional output verification and visual inspection for connector integrity, cable armor condition, and housing seal quality. Units are packed in anti-static, shock-protected packaging to preserve calibration integrity during transit. A test report is available upon request for critical applications.

Q3: Can KNMKS support long-term or blanket stock agreements for this part?
Yes. KNMKS offers scheduled release and blanket purchase order arrangements for the 190501-02-00-04 and associated 3500 Series components. This is particularly valuable for facilities managing multiple machine trains or operating in regions with extended customs clearance lead times. Contact our sales team to discuss minimum order quantities and release schedules.

Q4: What is covered under the support terms confirmed by quotation?
The support terms confirmed by quotation cover manufacturing defects, premature component failure under normal operating conditions, and non-conformance to published sensitivity and frequency response specifications. It does not cover damage resulting from improper installation, over-torquing, cable abuse, or operation outside the rated temperature and vibration envelope. Support requests are processed with a replacement-first policy to minimize site downtime.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

190501-02-00-04
3500 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 190501-02-00-04
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
