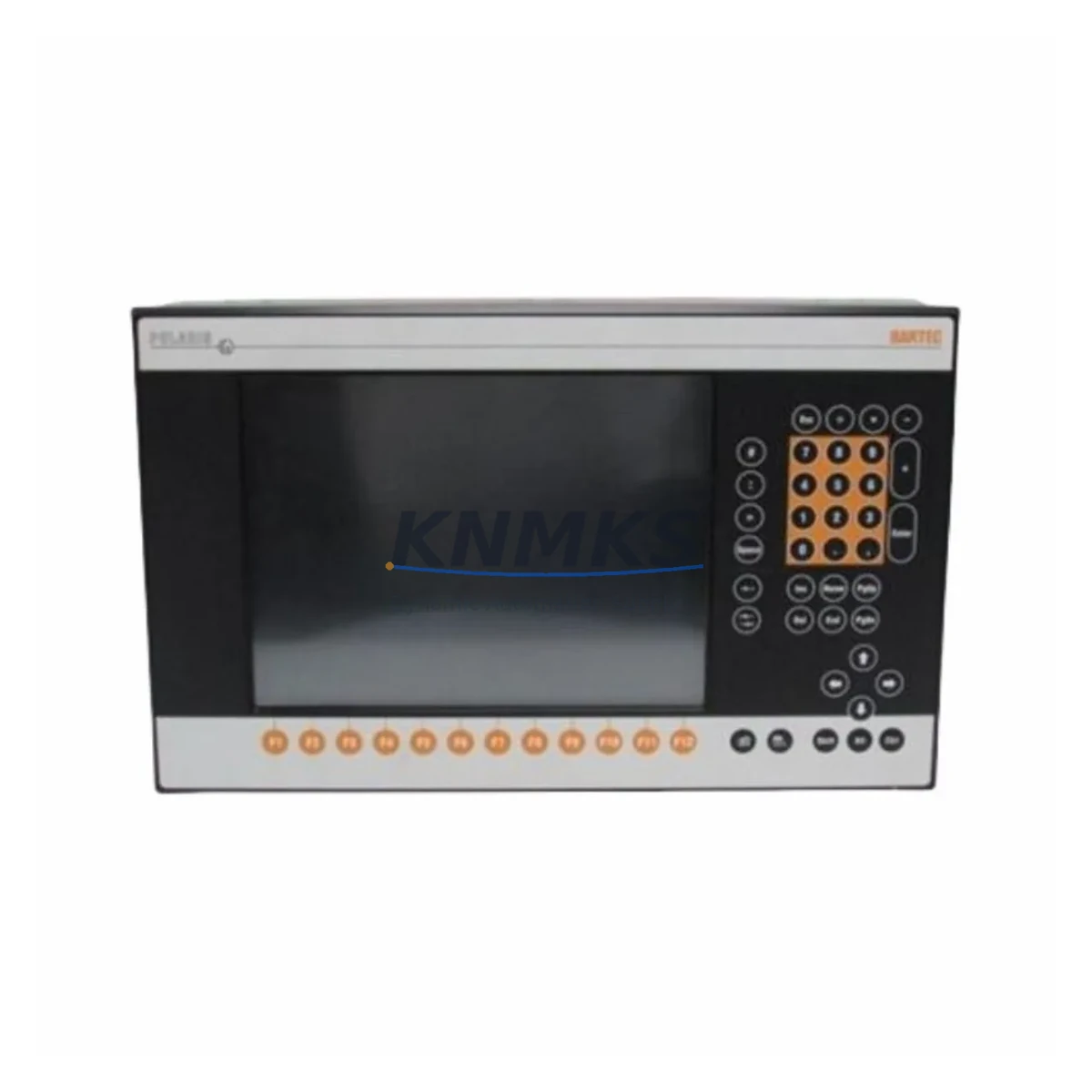

BARTEC 17-71V1-8000U000-P1354D Fail-Safe HMI Panel

Overview

BARTEC 17-71V1-8000U000-P1354D Fail-Safe HMI Panel: Fault Protection and Critical Industrial Field Reliability

The BARTEC 17-71V1-8000U000-P1354D is a POLARIS series 7-inch industrial HMI touch panel engineered for fail-safe operation in the most demanding industrial environments. Designed and manufactured in Germany to IEC and ATEX-aligned standards, this panel delivers uncompromising control reliability where process interruption is not an option. Whether deployed in continuous production lines, critical interlock circuits, or high-EMI control cabinets, the 17-71V1-8000U000-P1354D provides operators with a stable, responsive, and fault-tolerant human-machine interface that keeps operations running safely and efficiently.

Rated IP65 for complete dust ingress protection and water jet resistance, this HMI panel is built to withstand the harshest field conditions — including high humidity, condensation, chemical splash, and mechanical vibration. Its 24VDC power input ensures compatibility with standard industrial power distribution architectures, while its robust enclosure minimizes the risk of control interruption caused by environmental contamination. In facilities where unplanned downtime translates directly to production loss or safety incidents, the 17-71V1-8000U000-P1354D serves as a dependable front-end interface for SCADA systems, PLC networks, and distributed control architectures.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In modern industrial control cabinets, the HMI panel is the critical interface between the operator and the underlying control logic. The BARTEC 17-71V1-8000U000-P1354D integrates seamlessly into control architectures built around BARTEC POLARIS series components, providing a unified and fault-tolerant operator interface. When paired with BARTEC Ex e terminal boxes and Ex d junction boxes for field wiring segregation, the risk of signal contamination and ground loop interference is significantly reduced.

For power supply protection within the same cabinet, BARTEC 24VDC regulated power supply units provide stable, low-ripple voltage that prevents display flickering, communication timeouts, and touch input errors caused by power rail instability. Surge protection modules — such as BARTEC-compatible SPD (Surge Protective Device) assemblies — should be installed upstream of the HMI power input to guard against transient overvoltage events from nearby motor starters, variable frequency drives, or switching contactors.

Communication reliability is equally critical. When the 17-71V1-8000U000-P1354D is connected to a PLC or DCS via Modbus RTU over RS-485, the use of shielded twisted-pair cables and BARTEC-compatible RS-485 repeaters or isolators prevents signal degradation over long cable runs in high-EMI environments. For Ethernet-based SCADA connectivity, industrial-grade managed switches with port isolation and storm control features ensure that network anomalies do not propagate to the HMI layer and cause operator screen freezes or communication loss. Additionally, BARTEC Ex i safety barriers or galvanic isolators in the signal conditioning layer protect the HMI’s analog and digital I/O channels from field-side voltage spikes and ground potential differences — a common failure mode in large petrochemical or power generation facilities.

Critical Industrial Safety Applications

The BARTEC 17-71V1-8000U000-P1354D is deployed across a wide range of safety-critical industrial sectors where control panel reliability directly impacts personnel safety and process continuity.

In petrochemical and refinery environments, this HMI panel serves as the local operator interface for emergency shutdown (ESD) system monitoring, valve position visualization, and interlock status display. Its IP65 sealing prevents hydrocarbon vapor and fine particulate ingress that could otherwise cause touchscreen malfunction or internal corrosion. In power generation and substation applications, the panel provides real-time visualization of protection relay status, breaker positions, and alarm annunciation, where any display failure could delay operator response to a fault condition.

In mining and mineral processing plants, the 17-71V1-8000U000-P1354D withstands the high vibration, dust loading, and humidity typical of underground or open-pit operations. Its robust front panel and sealed construction ensure that conveyor control, crusher monitoring, and ventilation interlock displays remain fully operational even in the presence of coal dust or silica particulate. For water and wastewater treatment facilities, the panel’s corrosion-resistant enclosure and wide operating temperature range make it suitable for both indoor pump station control rooms and outdoor field control panels exposed to rain and temperature cycling.

In metallurgical and steel mill environments, where radiated heat, electromagnetic interference from large induction furnaces, and mechanical shock are constant challenges, the BARTEC POLARIS HMI’s industrial-grade EMC immunity and thermal design ensure continuous display operation without screen artifacts, communication dropouts, or touch calibration drift. Port and maritime applications benefit from the panel’s resistance to salt-laden air and humidity, making it suitable for crane control cabinets, mooring winch operator stations, and vessel engine room monitoring panels.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the BARTEC 17-71V1-8000U000-P1354D?
This unit is supplied with a support terms confirmed by quotation covering manufacturing defects and component failures under normal operating conditions. Support terms support includes technical diagnosis, repair assessment, and replacement coordination. Extended support terms arrangements are available upon request for long-term maintenance contracts.

Q2: What pre-shipment testing is performed on this HMI panel?
Every unit undergoes a full functional inspection prior to dispatch, including power-on verification, touchscreen calibration check, communication port testing, and visual inspection of the enclosure seal and connector integrity. Units that do not pass inspection are quarantined and not shipped. A test record is available upon request.

Q3: Is the 17-71V1-8000U000-P1354D compatible with third-party PLCs and SCADA systems?
Yes. The POLARIS series supports standard industrial communication protocols including Modbus RTU, Modbus TCP/IP, and Ethernet/IP, enabling integration with Siemens, Allen-Bradley, Schneider Electric, Mitsubishi, and other major PLC platforms. Protocol driver configuration is performed via the panel’s engineering software. Compatibility verification for specific PLC firmware versions is recommended prior to commissioning.

Q4: Can long-term spare parts supply be guaranteed for this model?
Yes. KNMKS maintains stock of BARTEC POLARIS series HMI panels and key spare components to support long-term maintenance and replacement requirements. For facilities with planned maintenance cycles or critical spare parts programs, we recommend confirming stock availability and lead times at the time of initial procurement. Our team can advise on recommended spare quantities based on your site’s criticality classification and MTBF requirements.
