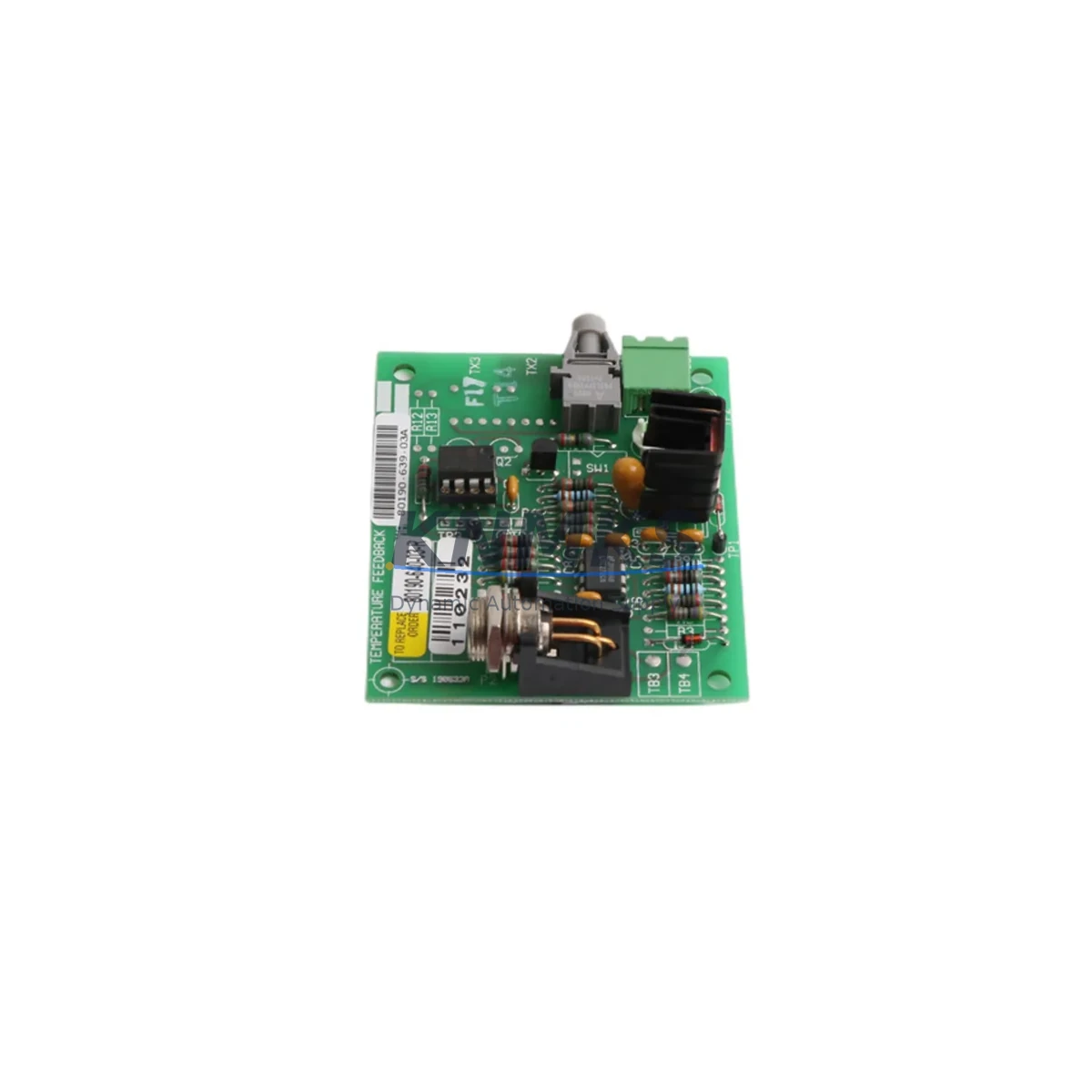

Allen-Bradley 803624-093A Signal Conditioning for DCS

Overview

Allen-Bradley 803624-093A Signal Conditioning for DCS: Legacy System Migration & Compatible Upgrade

The Allen-Bradley 803624-093A/0-63000-100 is a signal conditioning module engineered for DCS environments where legacy analog signal integrity is critical. As original equipment manufacturers phase out support for older control platforms, this module continues to serve as a reliable, migration-ready replacement for facilities operating aging Rockwell Automation distributed control architectures. Whether you are managing a brownfield retrofit, replacing a discontinued spare, or upgrading a control cabinet to extend its operational life, the 803624-093A/0-63000-100 provides the electrical and mechanical compatibility required to minimize engineering risk and reduce unplanned downtime.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 803624-093A/0-63000-100 into an existing control system requires a structured pre-installation review. Begin by auditing the power budget of the existing 1746 or 1771 series rack to confirm that the available 5 VDC and 24 VDC rails can support the additional module load without tripping the rack power supply. In many legacy installations, the 1746-P4 or equivalent power supply is already operating near capacity, and adding a signal conditioning module without a load audit can cause intermittent faults or rack resets.

Terminal wiring compatibility is the next critical checkpoint. The 803624-093A/0-63000-100 uses a standard screw-terminal interface, but field wiring from older installations may use conductor gauges or ferrule types that require adapter terminals. Cross-reference the existing wiring schedule against the module’s terminal block specifications before disconnecting any field cables. Where signal isolation is required between field devices and the control system, a signal isolator or loop-powered transmitter barrier may need to be inserted in the signal path to maintain loop integrity.

For facilities migrating from a legacy DCS platform to a ControlLogix or CompactLogix architecture, the 803624-093A/0-63000-100 can serve as an interim signal conditioning layer while the host controller migration is completed in phases. This approach allows the field wiring and transmitter infrastructure to remain unchanged while the control logic is rebuilt in Studio 5000 Logix Designer. During this transition, the 1756-IF16 or 1769-IF4 analog input modules in the new rack will need to be configured to match the signal range and engineering units previously handled by the legacy module.

Communication link continuity is equally important. If the legacy system used a Remote I/O (RIO) or DH+ network to connect field racks to the host controller, the migration plan must account for protocol conversion. A 1761-NET-AIC or equivalent communication interface module may be required to bridge the legacy network to the new EtherNet/IP backbone. Confirm that the HMI screens — whether running on PanelView terminals or a SCADA workstation — have been updated to reflect the new tag addresses before the system is returned to automatic control.

Finally, confirm the physical installation space. The 803624-093A/0-63000-100 must be seated in a compatible rack slot with adequate clearance for wiring and airflow. In congested control cabinets, it may be necessary to reorganize adjacent modules or relocate the 1746-A13 chassis to a larger enclosure to accommodate the retrofit without compromising thermal management.

Downtime Control During System Migration

Minimizing production downtime during a signal conditioning module replacement requires advance preparation and a disciplined cutover sequence. Before removing the legacy module, export a full backup of the controller program from RSLogix 5000 or RSLogix 500, including all force tables, I/O configuration, and communication settings. Store the backup on an isolated engineering workstation and verify the file integrity before proceeding.

Where process conditions allow, perform the module swap during a scheduled maintenance window rather than during an emergency repair. Pre-stage the 803624-093A/0-63000-100 on the bench, verify its physical condition, and confirm the revision suffix matches the procurement specification. If the system supports online editing, prepare the I/O configuration changes in advance so they can be downloaded to the controller immediately after the module is seated and the rack is powered.

During the cutover, place the affected control loops in manual mode at the DCS or SCADA level to prevent automatic control actions from responding to the momentary signal loss. Document the pre-cutover process values for all affected tags so that operators can verify signal restoration after the module is commissioned. Once the new module is installed and the terminal wiring is confirmed, restore power to the rack, verify the module status indicators, and perform a signal loop check from the field transmitter to the HMI display before returning the loops to automatic control.

For multi-rack systems, sequence the module replacements one rack at a time to limit the scope of each cutover event. This approach preserves control continuity in adjacent process areas and reduces the risk of a single wiring error cascading into a broader system fault. All commissioning activities should be documented in the site maintenance management system, including the module serial number, installation date, terminal torque values, and loop calibration results.

Retrofit Support FAQ

Q1: Is the Allen-Bradley 803624-093A/0-63000-100 a direct replacement for the original module in my DCS rack?
A: The 803624-093A/0-63000-100 is designed as a compatible replacement for the original 803624-093A series. Before installation, verify the revision suffix, terminal wiring configuration, and rack slot assignment against your system documentation to confirm compatibility. If you are unsure, contact our technical team with your existing module’s nameplate data and we will confirm the replacement path.

Q2: What pre-shipment testing is performed on this module?
A: Each unit undergoes functional verification prior to shipment, including power-on testing and signal path continuity checks. Modules are inspected for physical condition and packaged to prevent transit damage. A support terms confirmed by quotation cover manufacturing defects from the date of shipment.

Q3: Can this module be used in a system that is being migrated from a legacy DCS to a ControlLogix platform?
A: Yes. The 803624-093A/0-63000-100 can serve as an interim signal conditioning component during a phased migration. It allows field wiring and transmitter infrastructure to remain in service while the host controller and I/O architecture are upgraded. Coordinate the module’s signal range and engineering unit configuration with the new analog input module — such as the 1756-IF16 — to ensure seamless tag mapping in the updated control program.

Q4: What is the lead time and inventory availability?
A: We maintain stock of the 803624-093A/0-63000-100 to support urgent replacement and planned maintenance requirements. Standard orders ship within 1–3 business days. For large-quantity or project-based procurement, contact admin@knmks.com to confirm availability and lead time. All units are covered by a support terms confirmed by quotation from the date of shipment.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

803624-093A/0-63000-100

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 803624-093A/0-63000-100
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
