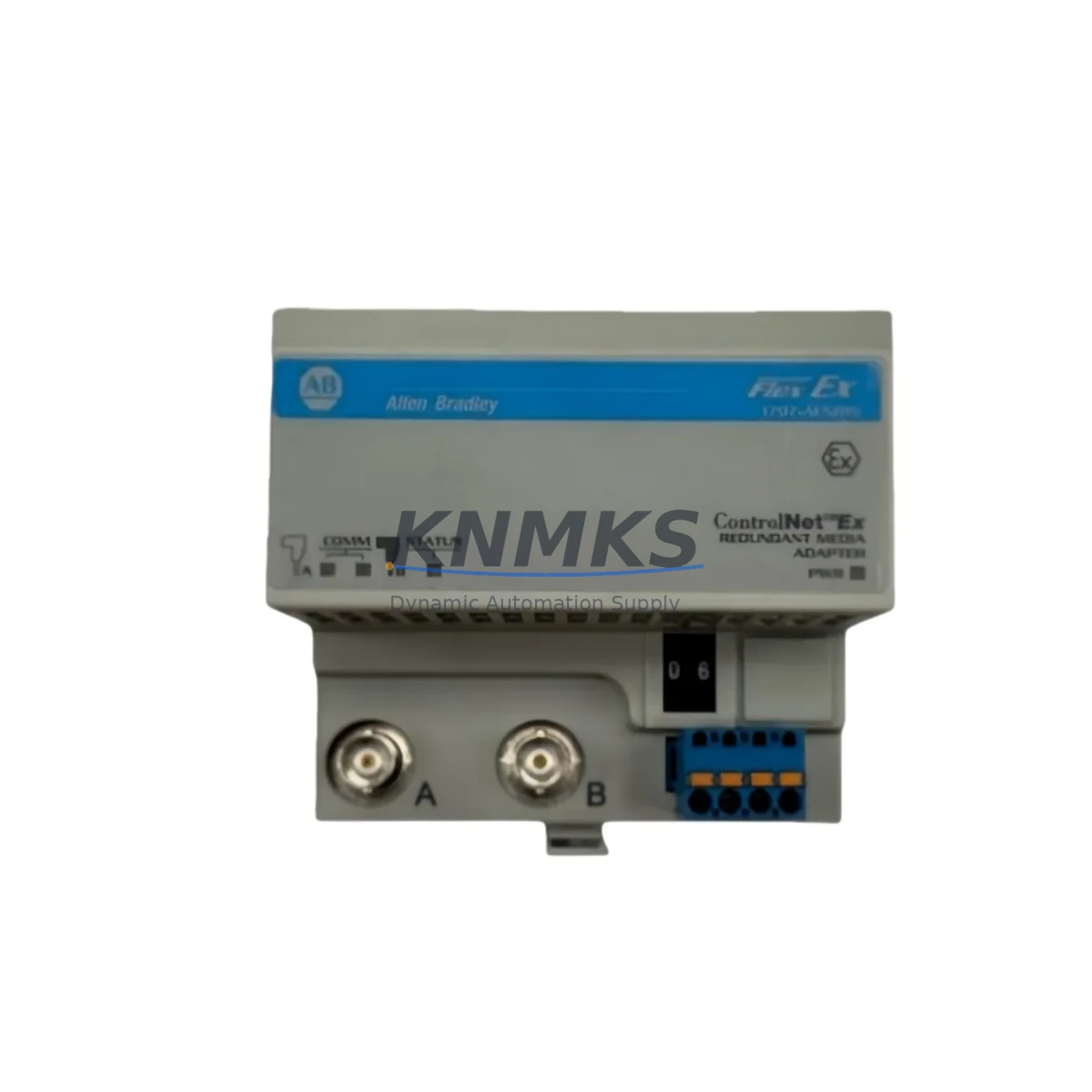

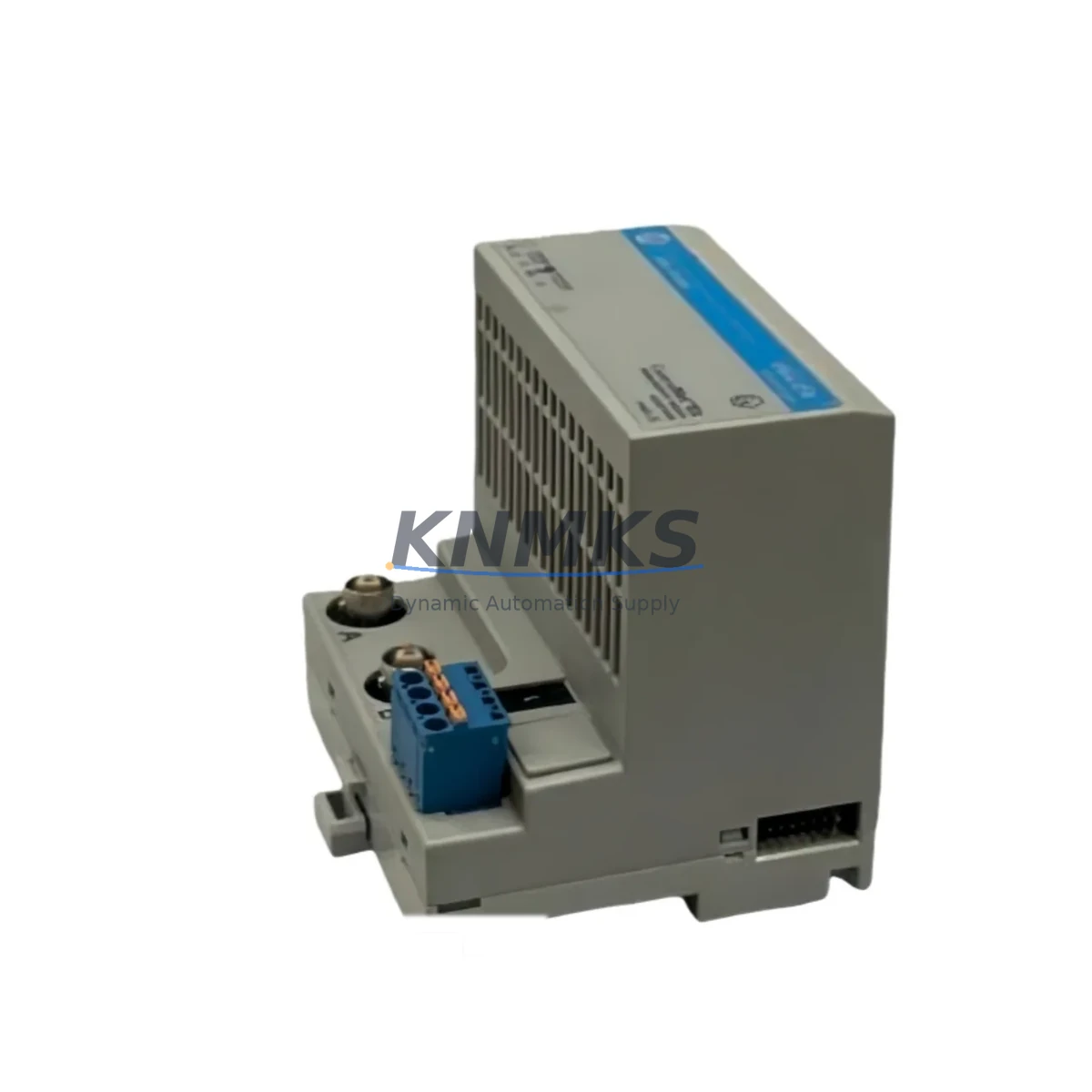

Allen-Bradley 1797-ACNR15 Fail-Safe ControlNet Adapter

Overview

Allen-Bradley 1797-ACNR15 Fail-Safe ControlNet Adapter: Critical Industrial Field Reliability

The Allen-Bradley 1797-ACNR15 is a FLEX Ex ControlNet Adapter engineered for fail-safe, continuous operation in the most demanding industrial environments. Designed to serve as the communication backbone between ControlNet field buses and FLEX Ex I/O modules in hazardous-area installations, this adapter delivers deterministic, high-integrity data exchange that is essential for safety-critical control loops, emergency shutdown systems, and continuous process automation. Whether deployed in petrochemical refineries, offshore platforms, power generation facilities, or heavy manufacturing cells, the 1797-ACNR15 is built to eliminate unplanned downtime and protect both personnel and assets.

In modern industrial control architectures, communication reliability is not optional — it is a safety requirement. Signal drift, electromagnetic interference, power transients, and environmental stress are constant threats to control loop integrity. The 1797-ACNR15 addresses each of these risks through its intrinsically safe design, robust surge protection circuitry, and full compliance with IEC 60079 hazardous-area standards. Its redundant ControlNet port configuration (dual BNC connectors) ensures that a single cable fault does not interrupt field communication, maintaining process continuity even under adverse conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 1797-ACNR15 within a certified Ex control cabinet demands a coordinated protection strategy across power, communication, and I/O layers. The adapter is typically paired with the Allen-Bradley 1797-PS1E FLEX Ex Power Supply, which provides stable, intrinsically safe 24 VDC to the I/O bus rail — ensuring that voltage fluctuations from the plant power grid do not propagate into the hazardous-area field devices. For applications requiring SIL-rated safety loops, the 1797-ACNR15 integrates seamlessly with Allen-Bradley 1791ES GuardLink Safety I/O modules, enabling hardwired safety interlock verification alongside ControlNet process data.

On the network side, ControlNet coaxial cable integrity is protected by proper termination using Allen-Bradley 1786-TPYR ControlNet Tap assemblies, which minimize signal reflections and maintain network timing accuracy across long cable runs in large industrial facilities. In cabinets where multiple communication protocols coexist, the Allen-Bradley 1756-CN2 ControlLogix ControlNet Bridge is commonly used upstream to aggregate FLEX Ex adapter data into the main ControlLogix chassis, providing a clean, deterministic data path from field to controller.

For environments with severe electromagnetic interference — such as variable frequency drive (VFD) rooms, arc furnace control panels, or high-voltage switchgear enclosures — supplementary EMI filtering using Rockwell Automation 1492-RIFM Series Line Filters on the 24 VDC supply rail is strongly recommended. This layered approach — combining the intrinsic safety of the 1797-ACNR15, a regulated Ex power supply, certified network taps, and upstream EMI filtering — creates a comprehensive cabinet protection strategy that minimizes the risk of nuisance trips, communication timeouts, and unplanned process shutdowns.

Critical Industrial Safety Applications

The Allen-Bradley 1797-ACNR15 is deployed across a wide spectrum of safety-critical industrial sectors where communication failure is not an acceptable outcome:

Petrochemical & Refining: In crude distillation units, hydrocracker reactors, and LNG storage facilities, the 1797-ACNR15 connects FLEX Ex pressure, temperature, and flow transmitters to the ControlNet backbone. Its Zone 1 intrinsic safety rating allows direct installation in gas-hazardous areas without the need for additional Zener barriers on the adapter itself, simplifying cabinet design and reducing potential failure points in the safety loop.

Power Generation & Utilities: Turbine control systems, boiler management units, and substation automation panels rely on deterministic ControlNet communication to execute fast-response interlock logic. The 1797-ACNR15’s redundant network ports ensure that a single coaxial cable fault — caused by rodent damage, mechanical stress, or connector corrosion — does not interrupt turbine protection sequences or cause a forced outage.

Mining & Mineral Processing: Underground mining environments subject control equipment to extreme vibration, coal dust ingress, and high humidity. The 1797-ACNR15’s compliance with IEC 60068-2-6 vibration standards and its sealed terminal block design make it suitable for longwall shearer control panels, conveyor drive cabinets, and ventilation fan interlock systems where continuous operation is mandatory.

Water & Wastewater Treatment: Pump station control panels, chemical dosing systems, and SCADA-integrated treatment plants use the 1797-ACNR15 to maintain reliable I/O communication in high-humidity, chemically aggressive environments. Its non-condensing humidity tolerance and corrosion-resistant housing ensure long service life without requiring frequent preventive maintenance interventions.

Metallurgy & Steel Production: Electric arc furnace (EAF) control systems, rolling mill automation, and continuous casting lines generate intense electromagnetic interference. The 1797-ACNR15’s built-in transient voltage suppression and IEC 61000-4 EMC immunity ratings allow it to maintain stable ControlNet communication even in close proximity to high-current switching equipment and induction heating systems.

Port & Marine Automation: Ship-to-shore crane control systems, bulk material handling conveyors, and vessel automation panels operating in salt-air, high-vibration marine environments benefit from the 1797-ACNR15’s robust mechanical design and wide operating temperature range, ensuring reliable field communication throughout extended operational cycles without unscheduled maintenance.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 1797-ACNR15?
The support terms confirmed by quotation cover all manufacturing defects, functional failures, and ControlNet communication faults arising under normal operating conditions as specified in the product datasheet. It includes free replacement or repair of the unit. The confirmed support period begins from the date of shipment. Damage caused by incorrect installation, overvoltage beyond rated limits, or unauthorized modification is excluded.

Q2: What pre-shipment testing is performed on each 1797-ACNR15 unit?
Every unit undergoes a full functional test prior to dispatch, including ControlNet communication handshake verification with a live network, I/O bus rail power-up test, surge protection circuit continuity check, and visual inspection of all connectors and terminal blocks. A test report is available upon request for quality-critical procurement processes.

Q3: Is the 1797-ACNR15 compatible with existing 1797 FLEX Ex I/O modules and ControlLogix controllers?
Yes. The 1797-ACNR15 is fully compatible with all 1797 Series FLEX Ex I/O modules (analog, digital, and specialty types) and communicates natively with ControlLogix, CompactLogix, and SoftLogix controllers via ControlNet. No firmware modifications or special configuration files are required beyond standard RSNetWorx for ControlNet scheduling.

Q4: Can long-term supply and replacement support be guaranteed for critical plant maintenance programs?
Yes. We maintain dedicated safety-stock inventory of the 1797-ACNR15 to support planned maintenance shutdowns, emergency replacements, and long-term spare parts programs. Bulk procurement agreements with extended lead-time commitments are available for customers operating continuous-process facilities where unplanned downtime carries significant financial and safety consequences. Contact our team to discuss your specific supply requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1797-ACNR15

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 1797-ACNR15
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
