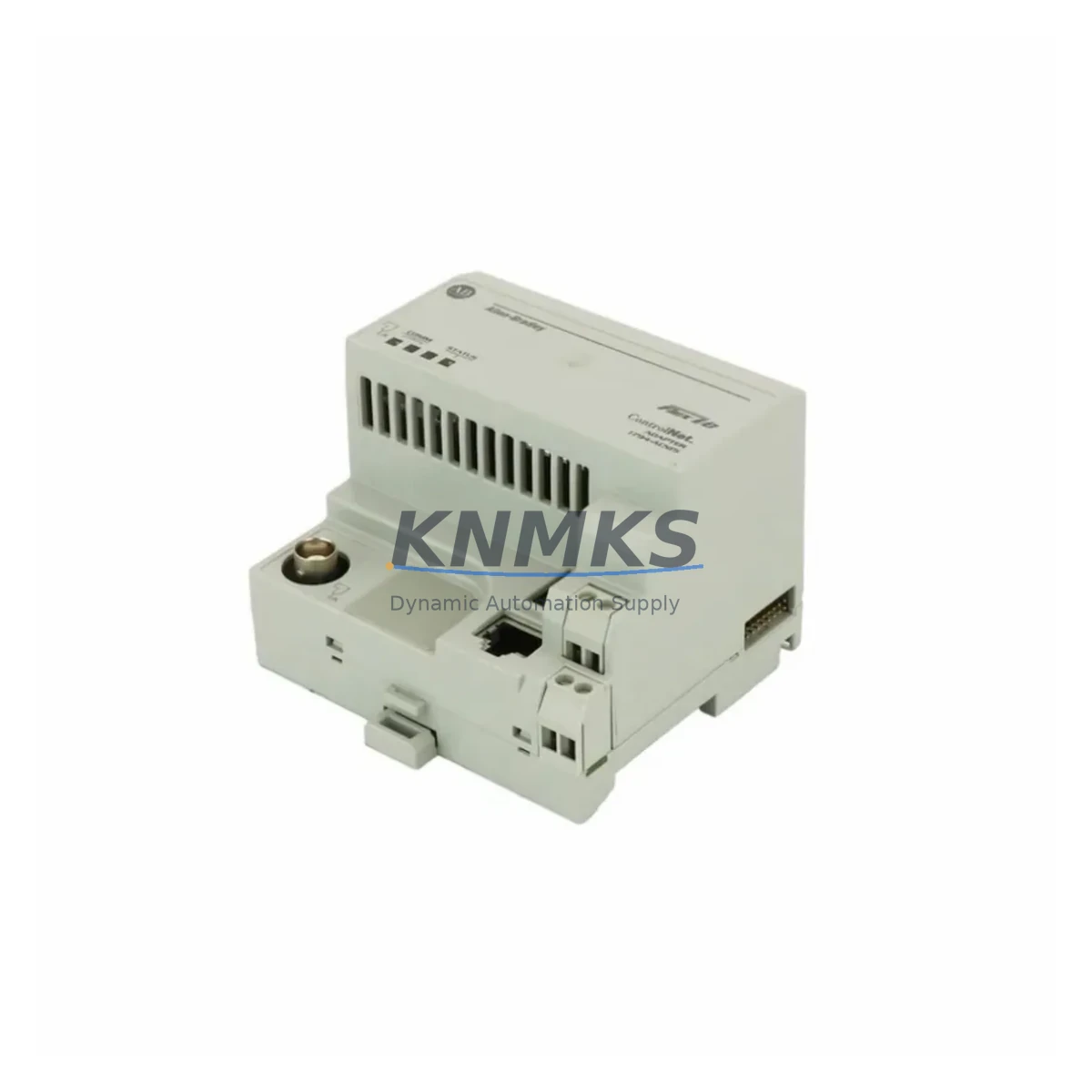

Allen-Bradley 1794-ACN15 Fail-Safe ControlNet Adapter

Overview

Allen-Bradley 1794-ACN15 Fail-Safe ControlNet Adapter: Fault-Protected Industrial Control Reliability

The Allen-Bradley 1794-ACN15 is a high-integrity ControlNet communication adapter engineered for the FLEX I/O platform, purpose-built to sustain uninterrupted control in the most demanding industrial environments. In continuous production facilities — petrochemical plants, power generation stations, mining operations, water treatment systems, metallurgical smelters, port terminals, and marine vessel control rooms — communication integrity between the controller and field I/O is not optional. It is the foundation of operational safety. The 1794-ACN15 delivers exactly that: a deterministic, fault-tolerant ControlNet interface that eliminates signal drift, suppresses electromagnetic interference, and maintains reliable data exchange even under severe electrical noise, vibration, dust ingress, and thermal stress.

Designed to operate within Allen-Bradley FLEX I/O control cabinets, the 1794-ACN15 connects directly to the 1794 terminal base and communicates over ControlNet at up to 5 Mbps, supporting both scheduled and unscheduled messaging. Its architecture is optimized to prevent control loop interruption caused by communication timeouts, bus collisions, or power transients — failure modes that routinely trigger unplanned shutdowns in legacy or improperly specified systems. By maintaining deterministic scan cycles and supporting redundant media configurations, the 1794-ACN15 significantly reduces the risk of spurious trips, missed interlocks, and cascading process faults in safety-critical applications.

In high-electromagnetic-interference environments — such as those adjacent to variable frequency drives, large motor starters, arc furnaces, or high-voltage switchgear — the 1794-ACN15 maintains signal integrity through its shielded ControlNet coaxial interface and robust onboard filtering. This makes it a preferred adapter for control cabinets where the 1794-AENT or standard EtherNet/IP adapters may exhibit packet loss or latency spikes under heavy EMI loading. When paired with a 1794-TB3 or 1794-TB3S terminal base, the adapter forms a compact, field-replaceable I/O node that can be serviced without disrupting adjacent modules — a critical advantage during live maintenance windows in continuous process plants.

For control cabinet protection strategies involving the 1794-ACN15, integrators routinely deploy it alongside the 1794-OB16 digital output module for discrete actuator control, the 1794-IE8 analog input module for process variable monitoring, and the 1794-IB16 digital input module for field device status acquisition. Power conditioning for the FLEX I/O rack is typically provided by a 1794-PS13 power supply, which ensures stable 24 VDC bus voltage even during upstream supply fluctuations. In ControlNet network architectures, the 1786-RPA/B ControlNet repeater is commonly used to extend segment length and isolate electrical faults between cabinet zones, protecting the 1794-ACN15 node from surge propagation. For applications requiring integrated safety I/O on the same network, the 1794-ACN15 can coexist with GuardLogix safety controllers and 1791DS safety I/O modules within a unified ControlNet topology, enabling both standard and safety-rated data exchange over a single physical medium.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust FLEX I/O control cabinet built around the 1794-ACN15 requires a layered protection approach. At the power layer, the 1794-PS13 FLEX I/O power supply provides regulated 24 VDC to the I/O bus, protecting all downstream modules — including the 1794-ACN15 — from voltage sag, surge, and ripple that can corrupt ControlNet frame timing. At the I/O layer, the 1794-OB16 digital output module drives solenoid valves, motor contactors, and safety relays with isolated outputs that prevent backfeed into the communication bus during actuator switching transients. The 1794-IE8 analog input module handles 4–20 mA process signals from pressure transmitters, flow meters, and temperature sensors, feeding real-time process data to the controller via the 1794-ACN15 ControlNet link.

At the network layer, the 1786-RPA/B ControlNet repeater isolates electrical disturbances between ControlNet segments, ensuring that a ground fault or surge event on one cable run does not propagate to the 1794-ACN15 node or corrupt scheduled I/O data. For safety-integrated architectures, the 1791DS-IB8XOBV4 GuardI/O safety module can be deployed on the same ControlNet network, enabling the 1794-ACN15 to coexist with safety-rated I/O in a unified topology managed by a GuardLogix controller. Finally, the 1794-IB16 digital input module captures field device status — limit switches, proximity sensors, emergency stop circuits — ensuring that the controller receives accurate, low-latency discrete input data through the 1794-ACN15 communication path, even in high-vibration or high-dust environments where connector integrity is a persistent concern.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the 1794-ACN15 is deployed in emergency shutdown (ESD) and process safety interlock panels where ControlNet’s deterministic scan cycle ensures that critical field signals — high-pressure trips, flame detector inputs, valve position feedback — reach the safety controller within guaranteed time windows. Communication latency or packet loss in these applications can delay protective action, making the 1794-ACN15’s reliable ControlNet interface a direct contributor to process safety integrity.

In power generation and substation control, the adapter supports FLEX I/O nodes distributed across generator control panels, excitation systems, and auxiliary equipment cabinets. Its EMI resistance is particularly valuable in environments with high-voltage bus bars, transformer switching, and capacitor bank operations that generate intense electromagnetic transients. In mining and mineral processing, the 1794-ACN15 is used in conveyor control systems, crusher automation, and flotation cell management, where dust ingress, vibration, and wide temperature swings demand a communication adapter with proven environmental robustness. In water and wastewater treatment, it manages pump station I/O, chemical dosing controls, and SCADA-connected field panels, where continuous operation without communication dropout is essential for regulatory compliance and public safety. In port and marine applications, the adapter supports crane control systems, mooring winch automation, and vessel engine room I/O panels, where salt air corrosion, vibration, and power quality variations make component selection critical to long-term reliability.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 1794-ACN15?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional malfunctions arising under normal operating conditions as specified in the Allen-Bradley 1794-ACN15 installation and user manual. It includes repair or replacement at no additional cost. Support requests are supported with documented pre-shipment test records for traceability.

Q2: What pre-shipment testing is performed on the 1794-ACN15 before dispatch?
Every 1794-ACN15 unit undergoes full functional verification prior to shipment, including ControlNet communication link establishment, I/O module enumeration, LED diagnostic verification, and power-on self-test confirmation. Units that do not pass all test criteria are quarantined and not dispatched. Test records are available upon request for quality audit purposes.

Q3: Is the 1794-ACN15 compatible with both ControlLogix and legacy PLC-5/C controllers?
Yes. The 1794-ACN15 is compatible with any ControlNet-capable Allen-Bradley controller, including ControlLogix (1756-CNB/D), CompactLogix (1769-CNB), PLC-5/C, and SLC 500/C platforms. It operates as a standard ControlNet adapter node and is configured using RSNetWorx for ControlNet software. No hardware modification is required for cross-platform deployment.

Q4: Can long-term supply of the 1794-ACN15 be guaranteed for multi-year maintenance contracts?
Yes. We maintain dedicated stock of the 1794-ACN15 to support ongoing maintenance, planned replacement, and emergency spare requirements. For customers with multi-year maintenance contracts or large installed base commitments, volume reservation and scheduled delivery arrangements are available. Contact our sales team to discuss supply continuity planning for your facility.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1794-ACN15
Assorted Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 1794-ACN15
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
