Allen-Bradley 1791ES-IB16 Maintenance-Proven Spare Part

Overview

Allen-Bradley 1791ES-IB16 Maintenance-Proven Spare Part for Factory Uptime

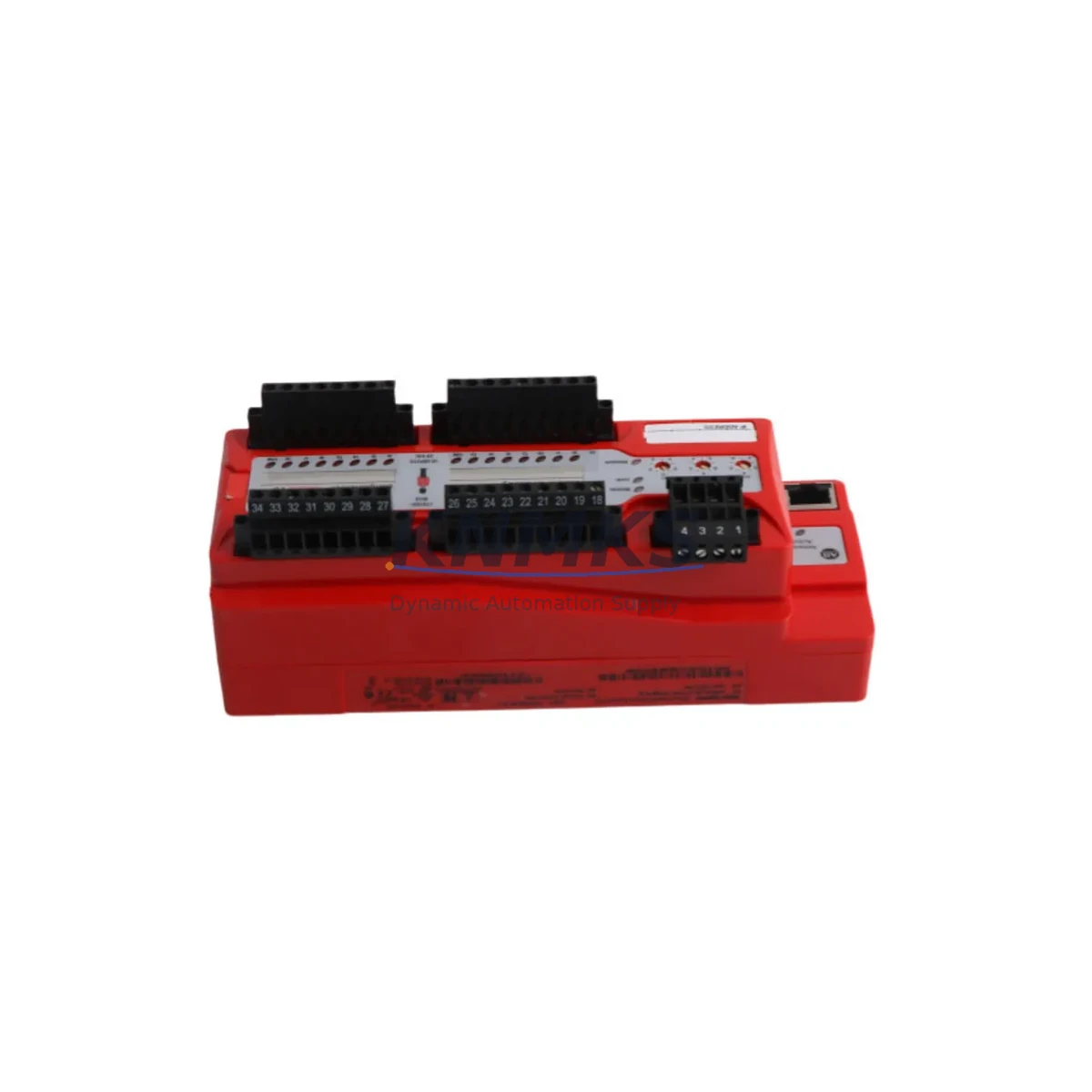

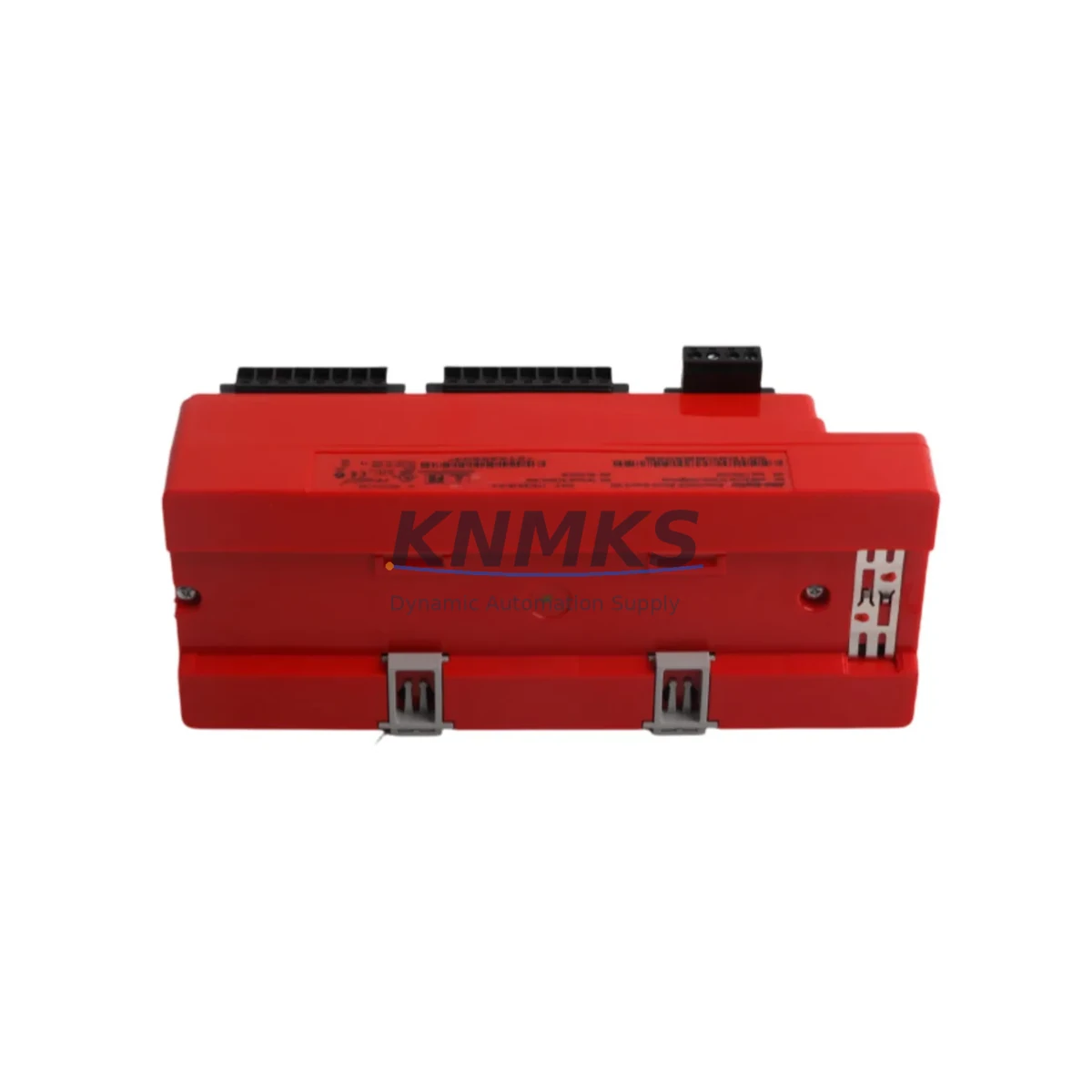

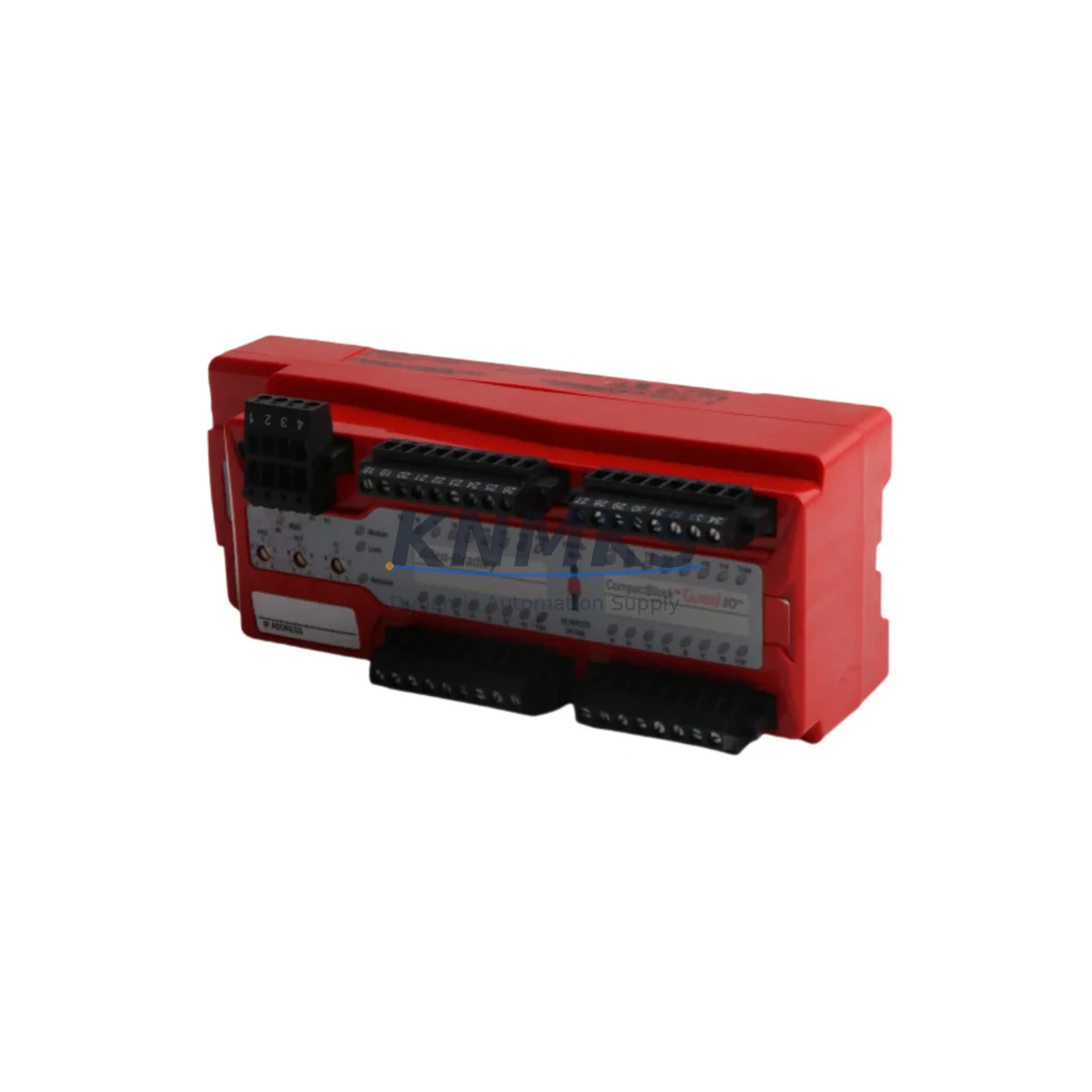

The Allen-Bradley 1791ES-IB16 is a 16-point safety input module from the ArmorBlock Guard I/O series, designed for distributed safety I/O applications in demanding industrial environments. As a maintenance-proven spare part, the 1791ES-IB16 supports rapid fault recovery, minimizes unplanned downtime, and ensures your safety-rated control architecture remains fully operational. Whether you are managing a scheduled annual overhaul, responding to an emergency safety circuit fault, or building a strategic spare parts inventory for a multi-line facility, having a verified original 1791ES-IB16 on the shelf is a critical element of any robust maintenance program.

The 1791ES-IB16 communicates over EtherNet/IP and integrates directly with Allen-Bradley GuardLogix and CompactGuardLogix safety PLCs. Its IP67-rated enclosure makes it suitable for wash-down zones, outdoor panels, and harsh production environments where panel-mounted I/O is impractical. The module supports CIP Safety protocol, enabling seamless integration into existing safety networks without gateway hardware or protocol conversion.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or commissioning a 1791ES-IB16 in the field, a thorough inspection of the surrounding safety circuit is essential to prevent repeat failures and ensure SIL-rated performance is maintained. Maintenance engineers should verify the 24V DC power supply feeding the ArmorBlock node — a dedicated 1606-XLP or equivalent safety-rated power supply is recommended to prevent voltage sag under load. Check the M12 cordset connections for corrosion, mechanical damage, or improper torque, as connector integrity is a leading cause of intermittent safety input faults in wet or vibration-prone environments.

The EtherNet/IP network infrastructure supporting the 1791ES-IB16 should also be inspected: confirm managed switch port configuration, verify CIP Safety connection parameters in Studio 5000, and check for duplicate IP address conflicts that can cause module faults after replacement. If the safety network includes a 1791ES-OB16 output module or additional 1791ES-IB8XOBV4 combination modules on the same subnet, validate their firmware versions for compatibility with the replacement unit.

For facilities running GuardLogix L7xS or CompactGuardLogix L3xS controllers, confirm that the safety task configuration and I/O tree mapping in Studio 5000 Logix Designer correctly references the new module’s electronic keying settings. Where safety relay modules such as the MSR127RP or MSR138DP are used downstream of the 1791ES-IB16 inputs, verify relay coil continuity and response time compliance after module swap. Additionally, inspect any safety light curtain or E-stop wiring connected to the input channels — damaged cable shields or incorrect grounding can introduce noise that triggers nuisance trips on the new module.

Procurement engineers sourcing the 1791ES-IB16 for long-term spare parts programs should consider establishing a 12–36 month forward stock agreement to mitigate lead time risk on this safety-critical component. Each unit shipped by KNMKS undergoes pre-shipment functional testing and is covered by a support terms confirmed by quotation, providing documented traceability for maintenance records and audit compliance.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the 24V DC supply to the ArmorBlock node and confirm zero-energy state before disconnecting M12 cordsets.

Step 2 — Module Removal: Disconnect all M12 input connectors and the EtherNet/IP network cable. Remove the module from its mounting bracket, noting the physical orientation and cable routing for reinstallation reference.

Step 3 — Replacement Unit Verification: Confirm the replacement 1791ES-IB16 catalog number, series letter, and firmware revision match the original or are approved as a compatible substitute per Rockwell Automation product compatibility documentation.

Step 4 — Installation & Commissioning: Mount the new module, reconnect M12 cordsets to the correct channel positions, and restore the EtherNet/IP connection. Power up and verify the module status LED indicates normal operation (solid green).

Step 5 — Studio 5000 Verification: Go online with the GuardLogix controller in Studio 5000 Logix Designer. Confirm the 1791ES-IB16 node is communicating (no inhibited or faulted status), verify the safety signature is intact, and perform a functional test of all 16 input channels before returning the machine to production.

Step 6 — Documentation: Record the replacement in the site maintenance log, including the new module serial number, installation date, and test results. Retain the support terms confirmed by quotation certificate from KNMKS for audit purposes.

Spare Parts Support FAQ

Q1: Is the 1791ES-IB16 supplied by KNMKS an original Allen-Bradley component?
Yes. All 1791ES-IB16 units are sourced as original Allen-Bradley (Rockwell Automation) spare parts. Each unit undergoes pre-shipment functional testing and ships with a support terms confirmed by quotation from KNMKS, covering defects in materials and workmanship under normal operating conditions.

Q2: What is the recommended inventory quantity for a multi-line facility?
For facilities with three or more ArmorBlock Guard I/O nodes per production line, a minimum of one 1791ES-IB16 per four installed units is recommended as a strategic on-site spare. For critical safety circuits with no redundant path, consider a 1:1 spare ratio to support same-shift replacement without waiting for expedited freight.

Q3: Can the 1791ES-IB16 replace earlier 1791DS-series ArmorBlock modules?
The 1791ES series uses CIP Safety over EtherNet/IP and is not a direct drop-in replacement for the older 1791DS DeviceNet Safety series. A network infrastructure upgrade and Studio 5000 project modification are required when migrating from 1791DS to 1791ES. KNMKS can advise on migration planning and compatible replacement options upon request.

Q4: Does KNMKS support long-term supply agreements for the 1791ES-IB16?
Yes. KNMKS offers 12–36 month forward supply agreements for safety-critical spare parts including the 1791ES-IB16. Long-term agreements include reserved stock allocation, fixed pricing, and priority shipment to support planned maintenance schedules and annual shutdown programs. Contact admin@knmks.com for details.
