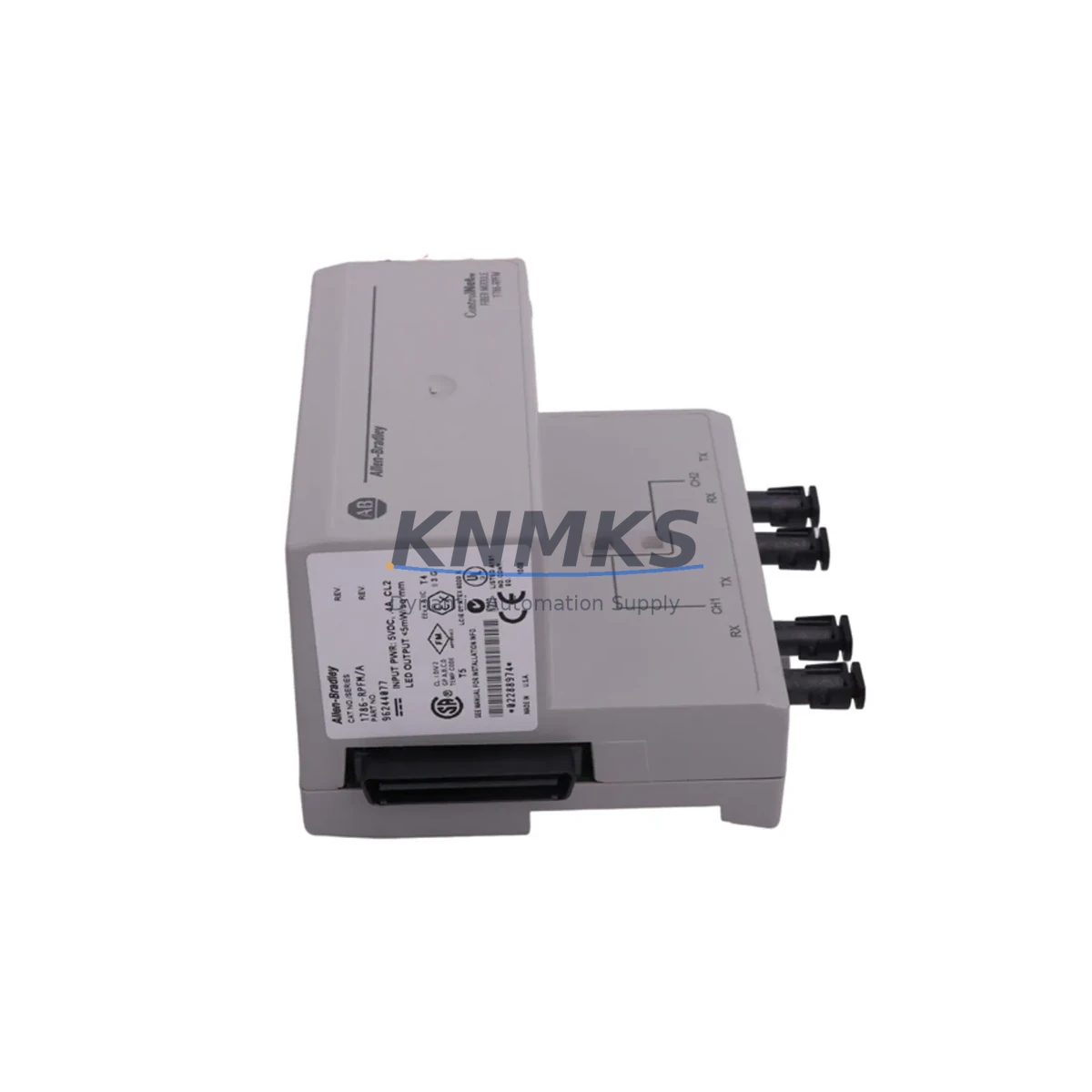

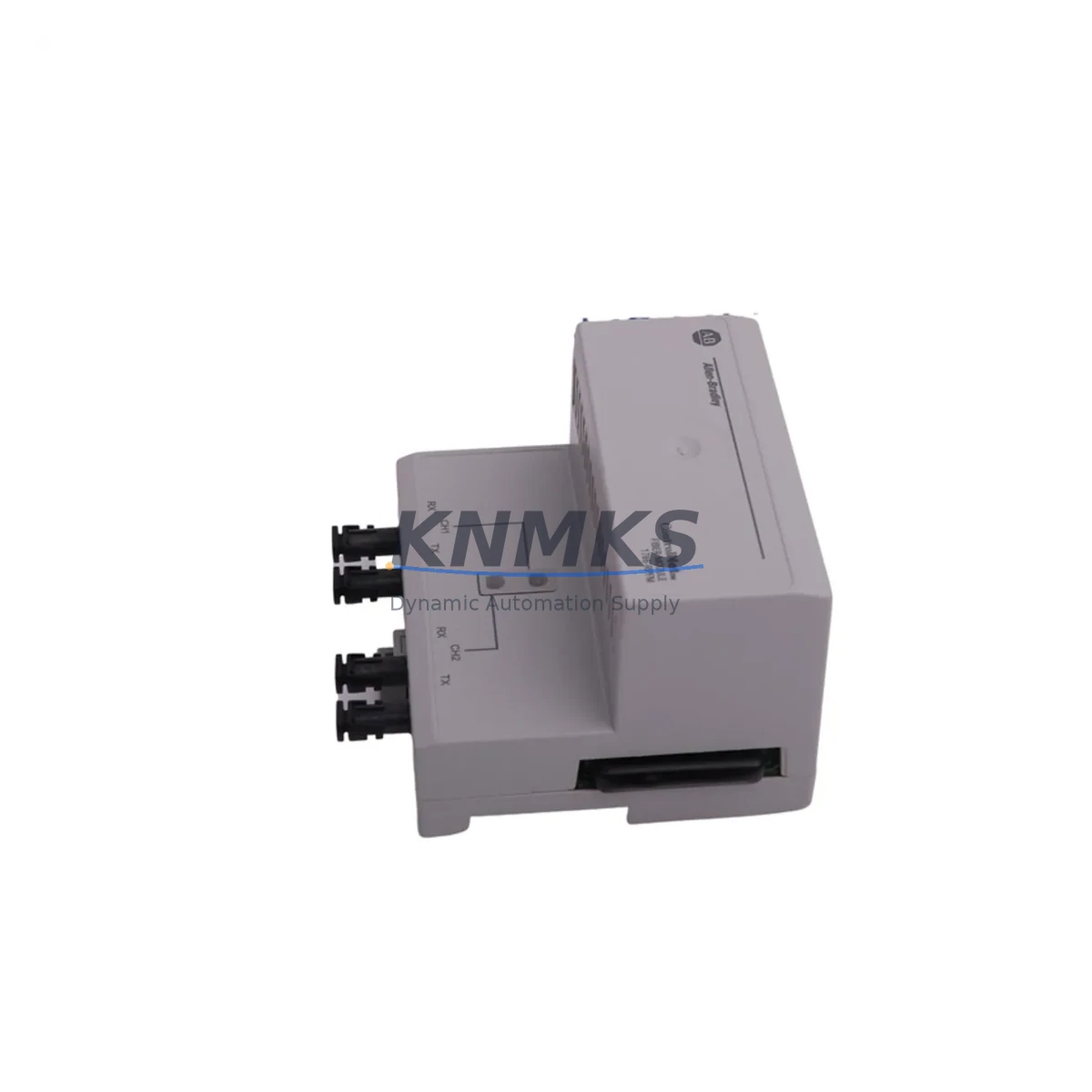

Allen-Bradley 1786-RPFM Fail-Safe ControlNet Fiber Repeater

Overview

Allen-Bradley 1786-RPFM Fail-Safe ControlNet Fiber Repeater: Fault Protection for Critical Industrial Control Reliability

The Allen-Bradley 1786-RPFM is a ruggedized ControlNet fiber ring repeater engineered for fail-safe signal transmission in demanding industrial environments. Designed by Rockwell Automation as part of the 1786 ControlNet media series, this module extends and regenerates ControlNet network signals over fiber optic cable, delivering deterministic, noise-immune communication across large-scale control architectures. In continuous production facilities where network interruption means unplanned downtime, the 1786-RPFM provides the signal integrity backbone that keeps critical control loops running without compromise.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In high-stakes control cabinets serving petrochemical reactors, power distribution switchgear, or heavy-load motor control centers, network reliability is inseparable from operational safety. The 1786-RPFM is typically deployed alongside the 1786-RPA coaxial repeater to create hybrid fiber-coax ControlNet segments, allowing engineers to bridge long distances between remote I/O panels and the main PLC rack without signal degradation. When paired with a 1756-CNB or 1756-CNBR ControlNet Bridge module in a ControlLogix chassis, the 1786-RPFM ensures that the ControlNet trunk remains deterministic even under high-cycle scan rates.

For cabinet power integrity, the 1606-XLP power supply series provides stable 24VDC rail voltage with surge suppression, protecting sensitive network modules including the 1786-RPFM from transient spikes common in heavy industrial environments. In facilities with significant electromagnetic interference — such as variable frequency drive (VFD) banks, arc furnaces, or high-current bus bars — the fiber optic isolation inherent to the 1786-RPFM eliminates ground loop noise that would otherwise corrupt coaxial ControlNet segments.

Where safety interlock circuits are integrated into the ControlNet architecture, the 1786-RPFM supports the communication backbone that links safety PLCs, emergency stop relays, and 1791DS distributed safety I/O modules across the plant floor. Maintaining ring topology with the 1786-RPFM means a single fiber break does not collapse the entire safety communication network — a critical design requirement in SIL-rated interlock systems. For cabinet thermal management, pairing the installation with proper ventilation and monitoring via 1734 POINT I/O temperature modules ensures the repeater operates within its rated thermal envelope even in high-ambient enclosures.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments where emergency shutdown systems (ESD) and process safety management (PSM) are mandatory, the 1786-RPFM maintains ControlNet communication integrity between the DCS/PLC control room and remote field junction boxes. Fiber optic isolation prevents ignition-risk ground faults in classified hazardous areas.

Electric Power Generation & Substation Automation: High-voltage substations generate extreme electromagnetic interference. The 1786-RPFM’s fiber medium provides galvanic isolation between control panels, protecting ControlNet nodes from surge events and ensuring SCADA communication remains uninterrupted during switching operations.

Mining & Mineral Processing: Underground and surface mining operations expose control hardware to dust, moisture, vibration, and mechanical shock. The 1786-RPFM’s ruggedized design and fiber immunity to particulate contamination make it a reliable choice for conveyor control, crusher automation, and ventilation safety systems.

Water & Wastewater Treatment: In pump stations and treatment facilities with high humidity and chemical vapor exposure, fiber-based ControlNet repeaters resist corrosion-induced signal degradation. The 1786-RPFM supports reliable communication for dosing control, level monitoring, and alarm interlock systems.

Metallurgy & Steel Production: Rolling mills and smelting operations subject control networks to intense heat, vibration, and electromagnetic noise from induction furnaces. The 1786-RPFM regenerates ControlNet signals across long fiber runs between furnace control panels and central automation rooms, maintaining scan-cycle determinism for critical process control.

Port & Marine Automation: Crane control systems, ship-to-shore loaders, and vessel automation require reliable network communication across large physical distances with exposure to salt air and humidity. Fiber ring topology with the 1786-RPFM provides fault-tolerant communication that survives single-point cable damage without halting operations.

Safety and Quality FAQ

Q1: What support terms does the 1786-RPFM carry, and what does it cover?
The 1786-RPFM is supplied with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Every unit undergoes functional testing prior to shipment to verify signal regeneration performance and port integrity.

Q2: How is the 1786-RPFM tested before dispatch?
Each unit is bench-tested for ControlNet signal pass-through, fiber port continuity, and power-up diagnostics before packaging. Units that do not meet performance thresholds are quarantined and not shipped. Test records are available upon request for critical infrastructure procurement.

Q3: Is the 1786-RPFM compatible with existing 1786 ControlNet media infrastructure?
Yes. The 1786-RPFM is fully compatible with the 1786 ControlNet media family, including the 1786-RPA coaxial repeater, 1786-RPFRL long-range fiber repeater, and standard ControlNet taps and terminators. It integrates directly into existing ControlLogix and PLC-5 ControlNet architectures without firmware changes.

Q4: Can long-term supply and replacement support be guaranteed for critical plant maintenance?
Yes. We maintain dedicated stock of the 1786-RPFM to support planned maintenance cycles, emergency replacements, and capital project builds. For facilities requiring guaranteed spare parts availability, standing purchase agreements and reserved inventory arrangements are available. Contact our team to discuss long-term supply planning for your site.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1786-RPFM

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 1786-RPFM
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
