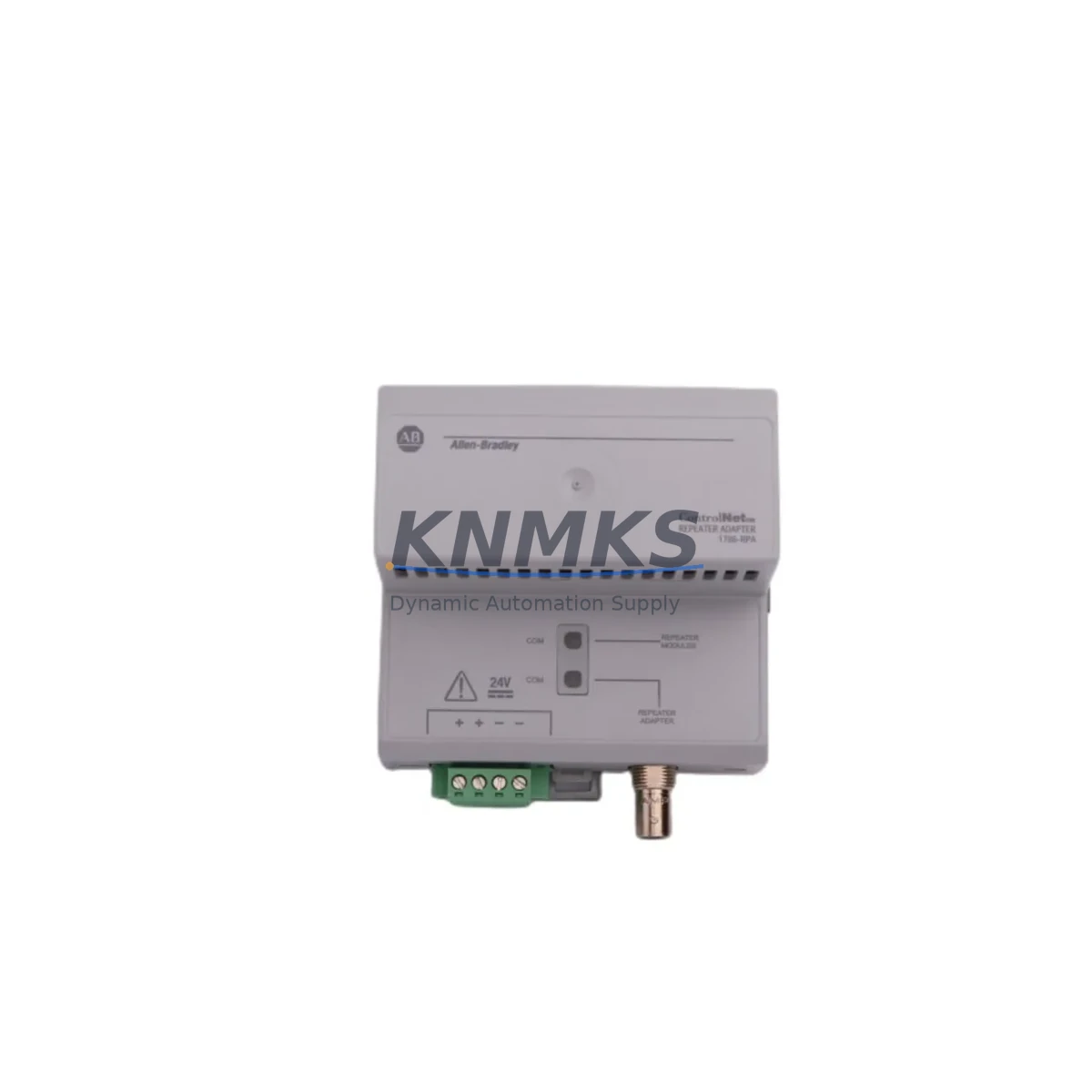

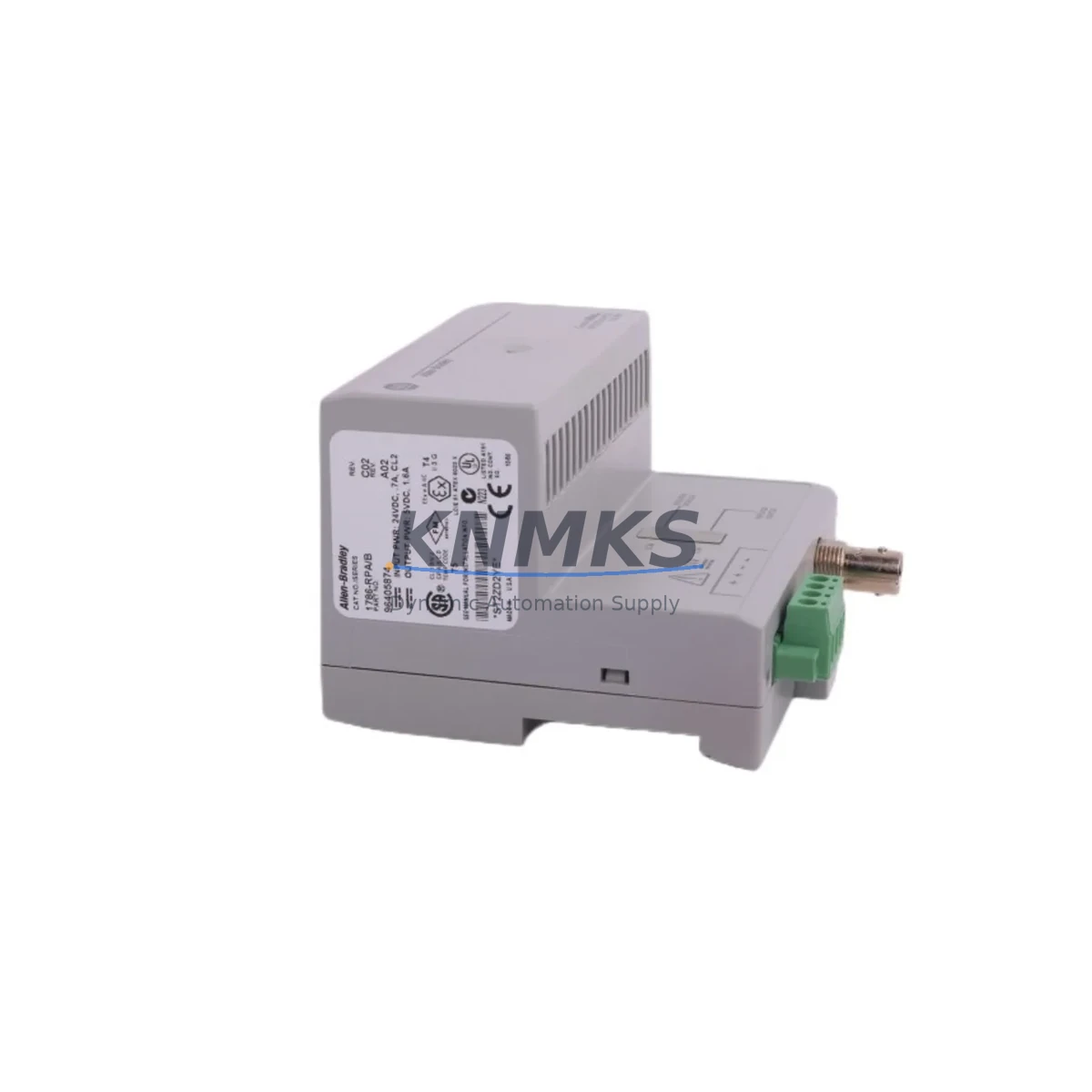

Allen-Bradley 1786-RPA Fail-Safe ControlNet Repeater

Overview

Allen-Bradley 1786-RPA Fail-Safe ControlNet Repeater: Fault Protection and Critical Industrial Reliability

The Allen-Bradley 1786-RPA is a ControlNet Repeater/Adapter module engineered for mission-critical industrial control environments where network signal integrity and uninterrupted communication are non-negotiable. Designed as part of Rockwell Automation’s 1786 ControlNet infrastructure series, the 1786-RPA extends ControlNet segment reach while actively isolating electrical faults, absorbing surge transients, and maintaining deterministic communication even under severe electromagnetic interference (EMI), voltage fluctuations, and harsh physical conditions.

In continuous production facilities — petrochemical plants, power generation stations, mining operations, water treatment systems, metallurgical lines, port logistics, and marine control rooms — a single communication fault on a ControlNet segment can cascade into unplanned shutdowns, safety interlock failures, or uncontrolled process deviations. The 1786-RPA is purpose-built to prevent exactly these scenarios by providing robust signal regeneration, galvanic isolation, and segment fault containment between ControlNet trunk and drop connections.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 1786-RPA within a control cabinet or field junction box is most effective when integrated as part of a layered protection architecture. In high-load control cabinets driving multiple servo axes or large motor starters, ControlNet communication integrity depends on clean signal paths free from ground loops and impedance mismatches. The 1786-RPA addresses this by regenerating the ControlNet signal at each segment boundary, ensuring that noise injected by adjacent PowerFlex 755 variable frequency drives or high-current contactors does not corrupt PLC scan cycles or cause spurious interlock trips.

For power system stability within the same cabinet, pairing the 1786-RPA with a 1606-XLP power supply ensures that the ControlNet infrastructure receives clean, regulated 24VDC even during mains voltage dips or switching transients. On the controller side, a 1756-CN2 ControlNet communication module installed in the ControlLogix chassis works in direct coordination with the 1786-RPA to manage network scheduling and redundant path failover, maintaining deterministic I/O updates to field devices even when one segment experiences a wiring fault.

In safety-critical interlock loops — such as emergency shutdown (ESD) systems or burner management systems — the 1786-RPA’s segment isolation capability prevents a localized cable fault from disabling the entire safety network. This is particularly important when the ControlNet backbone connects to 1734 POINT I/O safety modules distributed across hazardous area junction boxes. Additionally, where long cable runs pass through areas with heavy welding equipment or large transformer banks, installing the 1786-RPA at intermediate points alongside 1786-TPYR ControlNet tap connectors and proper cable shielding grounding ensures signal levels remain within specification across the full segment length. For installations requiring network diagnostics and health monitoring, the 1788-CN2DN linking device can bridge ControlNet to DeviceNet, enabling cross-network fault visibility from a single RSNetWorx session.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments handling flammable or toxic media, the 1786-RPA supports fail-safe ControlNet architectures connecting emergency shutdown valves, flame and gas detectors, and high-integrity pressure protection systems (HIPPS). Its segment fault isolation ensures that a cable strike or connector failure in one zone does not disable safety instrumented functions (SIFs) in adjacent process units, maintaining SIL-rated response times for critical trips.

Power Generation and Substation Control: Turbine control systems and substation automation rely on deterministic ControlNet communication between the DCS/PLC and field I/O. The 1786-RPA’s EMI resistance is essential in switchgear rooms where high-voltage bus bars and large power transformers generate intense electromagnetic fields that can corrupt unprotected network signals, leading to false trips or missed alarms.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The 1786-RPA’s robust construction and segment isolation capability protect ControlNet communication to conveyor drives, crusher controls, and ventilation safety systems, reducing the risk of communication-induced conveyor runaway or ventilation failure in confined spaces.

Water and Wastewater Treatment: In pump stations and treatment facilities with high humidity and chemical vapor exposure, the 1786-RPA maintains reliable ControlNet links between SCADA systems and distributed pump and valve I/O. Uninterrupted communication is critical for maintaining dosing accuracy, preventing overflow events, and ensuring compliance with environmental discharge regulations.

Metallurgical and Steel Mills: Rolling mill and furnace control systems operate in environments with intense heat radiation, heavy vibration, and high-power electrical interference from induction heaters and arc furnaces. The 1786-RPA’s signal regeneration capability ensures that ControlNet I/O updates to cooling water valves, roll gap actuators, and furnace temperature controllers remain accurate and timely, preventing product defects and equipment damage from control signal degradation.

Port Logistics and Marine Vessel Control: Ship-to-shore cranes, automated stacking cranes, and vessel propulsion control systems require reliable ControlNet communication across long cable runs in salt-air, high-humidity environments. The 1786-RPA extends segment reach while protecting against corrosion-related signal degradation, supporting safe load handling and propulsion interlock functions.

Safety and Quality FAQ

Q1: What support terms coverage does the 1786-RPA carry?
Every 1786-RPA unit supplied by KNMKS is backed by a 12-month quality support terms covering manufacturing defects and functional failures under normal operating conditions. Support terms support includes replacement or repair, with rapid response to minimize your site downtime.

Q2: How is each unit tested before shipment?
All 1786-RPA modules undergo pre-shipment functional verification including power-on testing, ControlNet port integrity checks, and visual inspection for connector and housing condition. Units are packaged in anti-static, shock-protected materials to ensure they arrive in field-ready condition.

Q3: Is the 1786-RPA compatible with my existing ControlLogix or CompactLogix system?
Yes. The 1786-RPA is fully compatible with Rockwell Automation ControlNet-enabled platforms including the 1756 ControlLogix, 1769 CompactLogix, and legacy 1785 PLC-5 ControlNet systems. It operates transparently within the ControlNet network without requiring firmware changes or special configuration beyond standard RSNetWorx for ControlNet scheduling.

Q4: Can KNMKS support long-term and emergency spare part supply for the 1786-RPA?
Yes. KNMKS maintains stocked inventory of the 1786-RPA and related 1786-series ControlNet infrastructure components to support both planned maintenance programs and emergency breakdown situations. We provide rapid quotation, same-day shipping on available stock, and can source hard-to-find or discontinued Allen-Bradley ControlNet components through our verified supply network.
