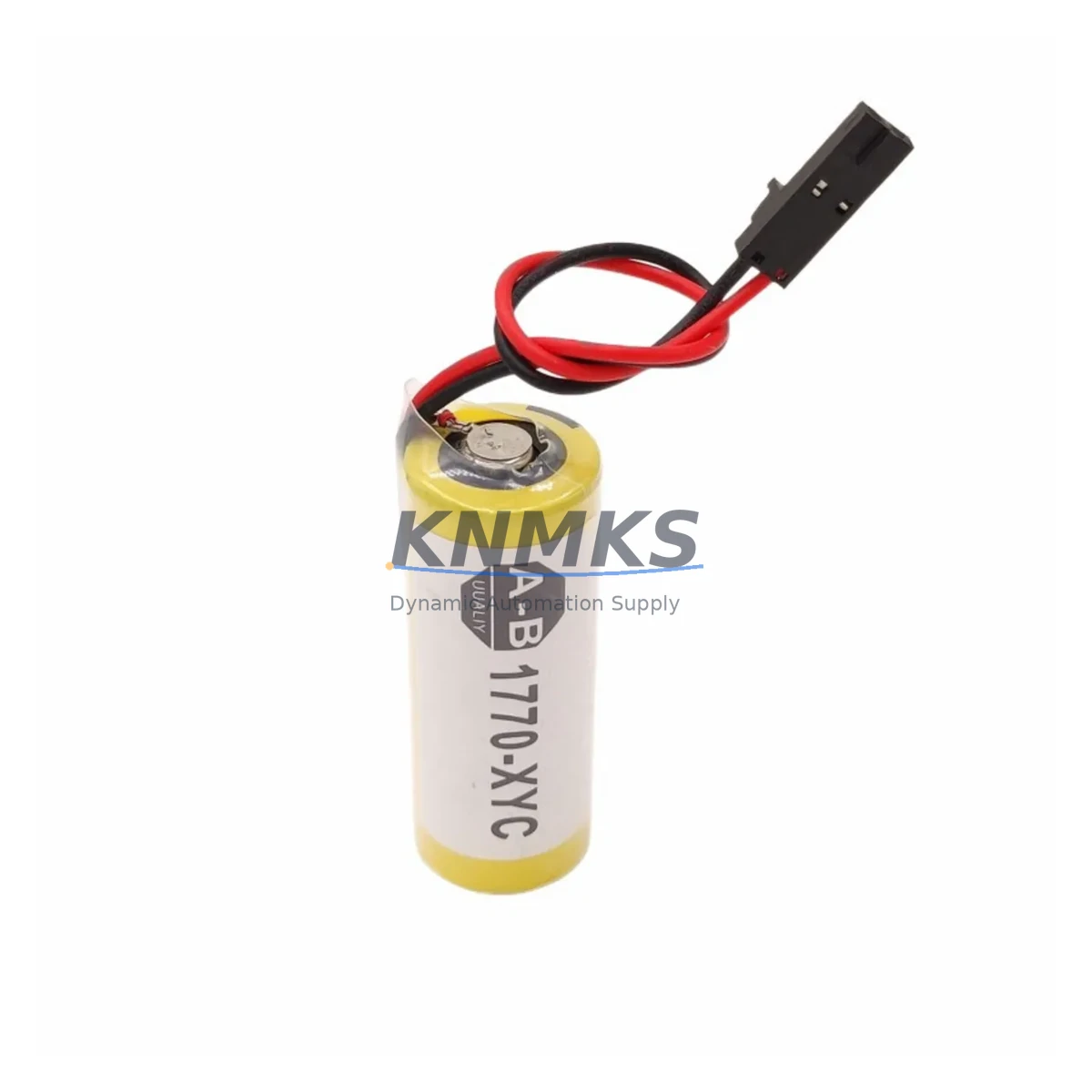

Allen-Bradley 1770-XYC Migration-Ready Battery for Legacy PLC-5

Overview

Allen-Bradley 1770-XYC Migration-Ready Battery for Legacy PLC-5 Control Systems

The Allen-Bradley 1770-XYC is a CMOS RAM retention battery designed specifically for the PLC-5 programmable controller family — one of the most widely deployed legacy control platforms in discrete manufacturing, process automation, and utility infrastructure. As PLC-5 systems approach or exceed their published end-of-life dates, the 1770-XYC remains a critical consumable component for facilities that must maintain operational continuity while planning a structured migration to ControlLogix or CompactLogix platforms.

For engineers managing aging control cabinets, the 1770-XYC provides the RAM retention necessary to preserve ladder logic programs, I/O configuration tables, and data file structures across power cycles and planned shutdowns. Without a functional battery, a PLC-5 processor — such as the 1785-L40B, 1785-L60B, or 1785-L80B — will lose its program memory upon power loss, resulting in unplanned downtime and costly re-commissioning. Stocking verified 1770-XYC units as part of a spare parts lifecycle strategy is therefore a standard practice in facilities with long-horizon migration timelines.

KNMKS supplies the 1770-XYC with full functional testing, original-specification voltage output, and a support terms confirmed by quotation covering defects in materials and performance. Each unit is inspected prior to shipment to confirm polarity, connector integrity, and charge retention capacity.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

When a facility initiates a PLC-5 retrofit or migration project, the 1770-XYC battery replacement is typically one of the first actions taken to stabilize the existing system before any hardware changeover begins. Maintaining RAM integrity during the transition period is essential — particularly when the control program must remain live on the legacy processor while parallel commissioning of a new ControlLogix chassis is underway.

A typical retrofit scenario involves the existing PLC-5 rack — often a 1771-A4B or 1771-A3B chassis — continuing to host analog and digital I/O modules such as the 1771-OAD output module or 1771-IFE analog input module. These modules remain in service until the new ControlLogix system, built around a 1756-L7x or 1756-L8x processor with a 1756-A10 or 1756-A17 chassis, has been fully configured and tested in shadow mode. During this period, the 1770-XYC ensures that the PLC-5 processor retains its program and data files without interruption.

Communication continuity is another key consideration. Many PLC-5 installations use a 1785-KA5 or 1785-KE communication adapter to bridge the DH+ network to Ethernet/IP or ControlNet. When planning the migration, engineers must verify that the new ControlLogix gateway — typically a 1756-ENBT or 1756-EN2T Ethernet module — can replicate the existing DH+ node addressing and message routing before the legacy processor is decommissioned. The 1770-XYC keeps the source program intact and accessible via RSLogix 5 throughout this verification phase.

For facilities using PanelView HMI terminals connected to the PLC-5 via DH+ or DH-485, the HMI tag database must be re-mapped to the new controller’s tag structure before cutover. Maintaining the original PLC-5 program in RAM — protected by the 1770-XYC — allows side-by-side comparison of data file addresses and HMI screen logic during the re-mapping process, significantly reducing the risk of screen errors or alarm misconfiguration after migration.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any legacy PLC-5 migration. The 1770-XYC plays a direct role in this by ensuring that the existing control program is never lost due to battery failure during the transition window — which can span weeks or months in complex multi-rack installations.

Best practice is to replace the 1770-XYC battery at the start of the migration project, after performing a full program backup to a PC running RSLogix 5. This backup should be stored in at least two locations — local engineering workstation and a network share — and verified by performing a compare function against the processor’s online program. With a fresh battery installed, the PLC-5 processor can safely survive any number of planned power-down events during cabinet rewiring, I/O module relocation, or rack replacement without risk of program loss.

For facilities operating continuous processes where even brief control interruptions are unacceptable, the 1770-XYC also supports hot-backup strategies where a secondary PLC-5 processor is kept in standby with an identical program. In these configurations, battery health across both processors must be maintained simultaneously. KNMKS can supply matched pairs of 1770-XYC units for dual-processor redundancy applications.

After battery replacement, the recommended commissioning sequence includes: confirming the processor status indicators return to RUN mode, verifying all I/O module status LEDs, performing a forced I/O test on critical output channels, and confirming communication link status on the DH+ or Remote I/O network. This sequence typically requires less than 30 minutes and can be completed during a scheduled maintenance window.

Retrofit Support FAQ

Q: Is the 1770-XYC a direct drop-in replacement for all PLC-5 processor variants?
A: Yes. The 1770-XYC is compatible with the full range of 1785-Lxx PLC-5 processors, including the L11, L20, L30, L40, L40B, L40L, L60, L60B, L60L, L80, and L80B. The connector and voltage specification are identical across all variants. No wiring modification or adapter is required.

Q: Do I need to take the processor offline to replace the battery?
A: Allen-Bradley recommends performing battery replacement with the processor powered on where possible, as this avoids any risk of program loss during the swap. If a power-down is required, ensure a verified program backup exists in RSLogix 5 before proceeding. KNMKS recommends confirming battery polarity before insertion.

Q: What pre-shipment testing does KNMKS perform on the 1770-XYC?
A: Each 1770-XYC unit undergoes voltage output verification, connector integrity inspection, and charge retention confirmation before shipment. Units that do not meet OEM voltage specifications are rejected. A test report is available upon request for quality-critical applications.

Q: What support terms and supply terms apply?
A: All 1770-XYC units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and performance failures under normal operating conditions. Stock is maintained for immediate dispatch. For volume orders or long-term supply agreements, contact our sales team for lead time and pricing confirmation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1770-XYC
Assorted Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 1770-XYC
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
