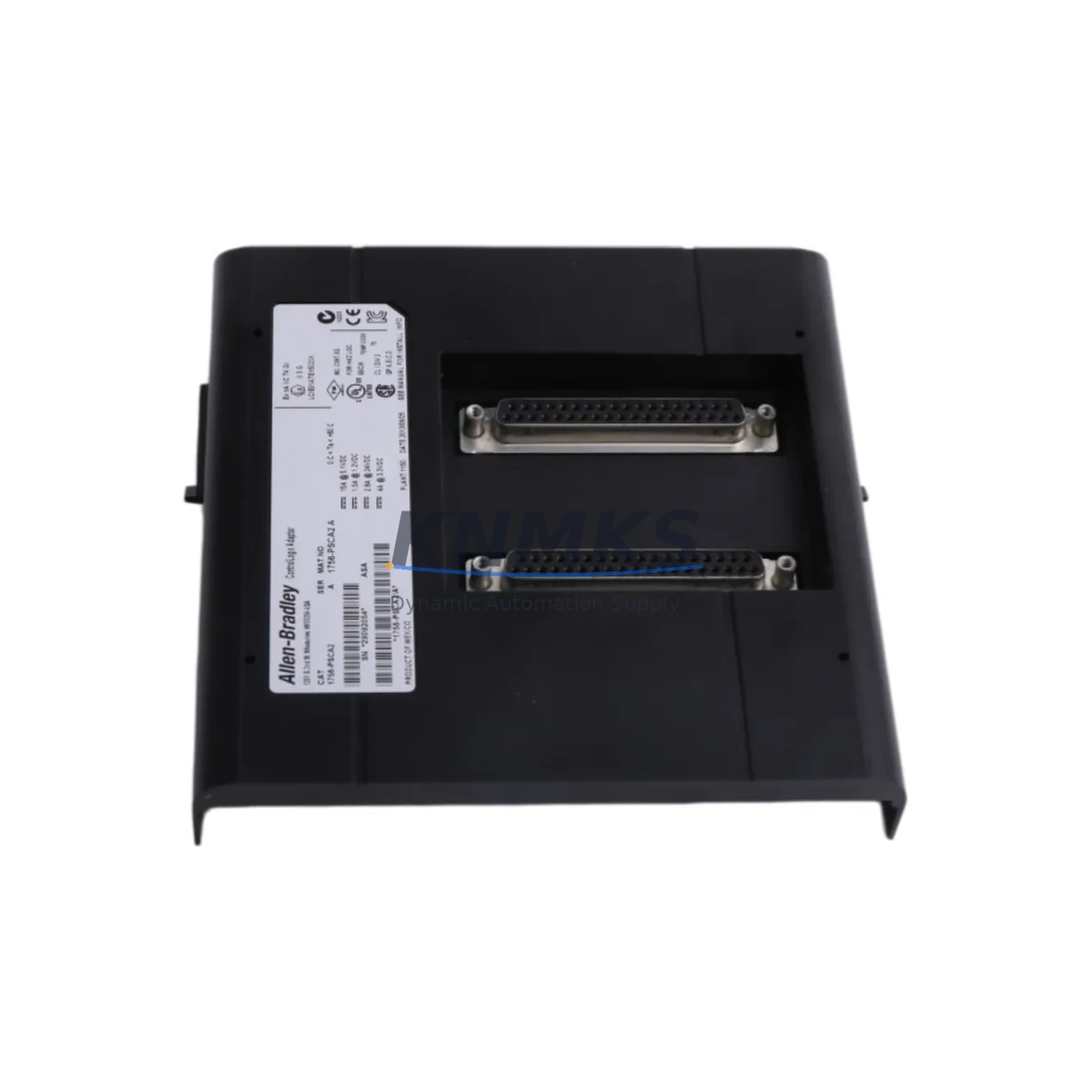

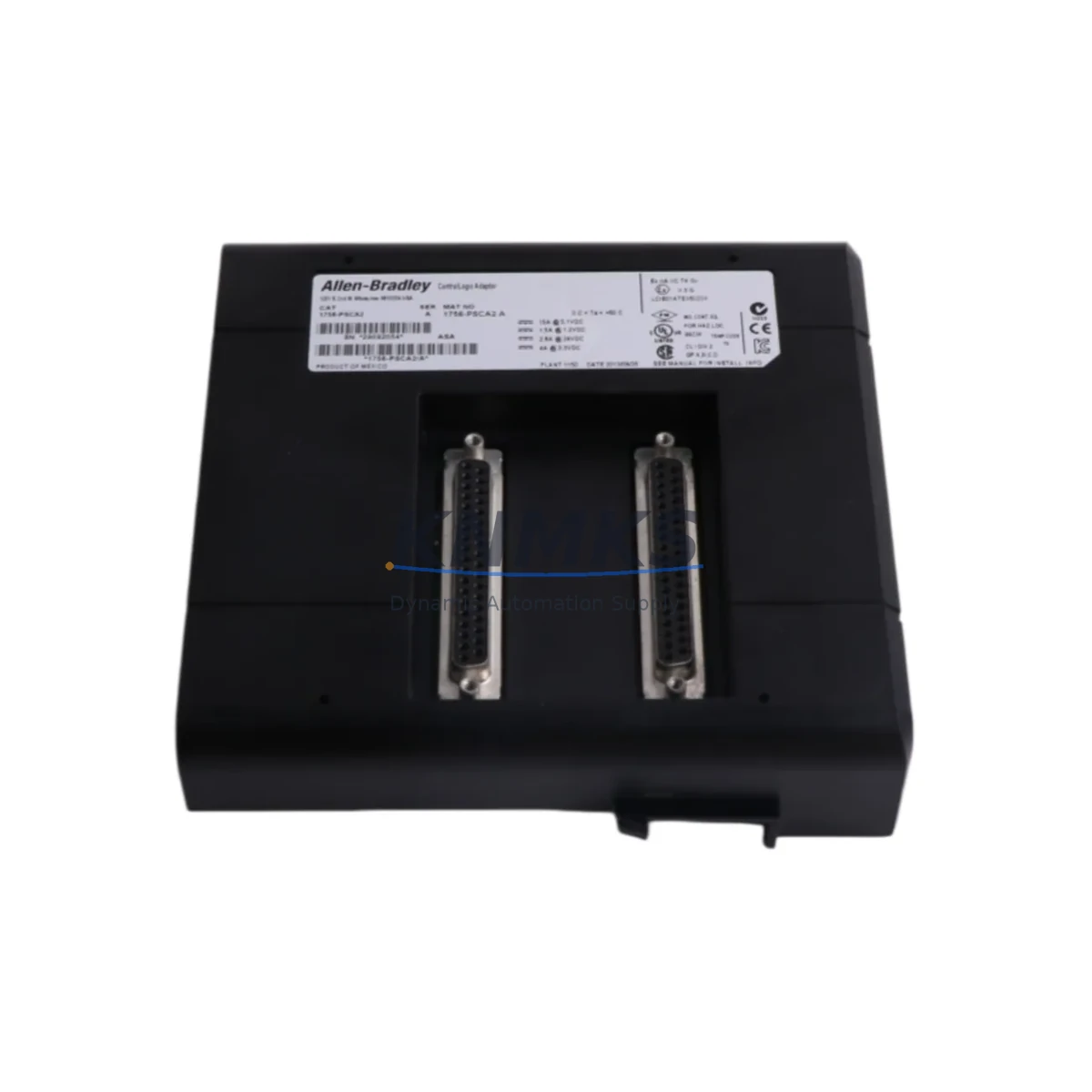

Allen-Bradley 1756-PSCA2 Migration-Ready Power Supply Adapter

Overview

Allen-Bradley 1756-PSCA2 Migration-Ready Power Supply Adapter: Legacy System Retrofit & Compatibility Upgrade

The Allen-Bradley 1756-PSCA2 is a Power Supply Chassis Adapter designed for the ControlLogix 1756 platform, enabling engineers and maintenance teams to extend the operational life of existing control architectures without committing to a full system overhaul. As legacy ControlLogix installations age and original spare parts become increasingly difficult to source, the 1756-PSCA2 serves as a critical bridge component — allowing a standard ControlLogix power supply to be mounted on a chassis that would otherwise require a dedicated, often discontinued, supply module.

For facilities running aging 1756-series control cabinets, the 1756-PSCA2 is frequently the first component evaluated during a retrofit planning session. Its role is straightforward but essential: it adapts the power supply interface between the chassis backplane and the supply unit, ensuring that power delivery remains stable and within specification even when mixing newer supply modules with older chassis generations. Before installation, engineers should verify the chassis slot configuration, confirm that the backplane bus voltage ratings are compatible, and review the power budget across all installed I/O modules — including any 1756-IB16 digital input modules, 1756-OB16E digital output modules, or analog signal modules such as the 1756-IF8 that may be drawing from the same power rail.

When planning a retrofit around the 1756-PSCA2, terminal wiring compatibility is a key checkpoint. The adapter itself does not introduce new field wiring, but the upstream power supply — whether a 1756-PA75 or 1756-PB75 — must be confirmed against the chassis’s rated input voltage range. In multi-chassis configurations where a 1756-SYNCH or inter-chassis communication module is present, power sequencing and load distribution across the backplane must be carefully mapped before the replacement is energized. Failure to account for cumulative module draw is one of the most common causes of nuisance trips during retrofit commissioning.

Communication continuity is another area that demands attention during migration. ControlLogix systems often rely on 1756-EN2T or 1756-ENBT EtherNet/IP communication modules for integration with SCADA platforms and HMI panels. When the power supply adapter is replaced, the system should be brought down in a controlled sequence to avoid unexpected I/O drops that could corrupt active program logic in the 1756-L71 or 1756-L74 controller. It is strongly recommended to export and archive the current RSLogix 5000 or Studio 5000 project file before any hardware swap, and to verify that the controller firmware version is compatible with the replacement hardware configuration post-installation.

HMI screen mapping should also be reviewed as part of the retrofit scope. If the control system feeds a PanelView Plus terminal or a third-party SCADA display, tag addresses tied to power status or fault diagnostics may need to be re-validated after the adapter swap. In some installations, power supply fault bits are mapped directly to alarm displays, and a hardware change can trigger false alarms if the tag structure is not updated accordingly.

Physical installation space is a practical constraint that is often underestimated. The 1756-PSCA2 occupies a defined slot position on the ControlLogix chassis, and in densely populated control cabinets — particularly those running 10-slot or 13-slot 1756-A10 or 1756-A13 chassis — available clearance for the adapter and its associated supply module must be confirmed before ordering. Thermal management within the enclosure should also be assessed, as adding or repositioning a power supply module can alter airflow patterns and affect the operating temperature of adjacent modules.

Every 1756-PSCA2 unit supplied by KNMKS undergoes pre-shipment functional testing to verify electrical integrity and mechanical fit. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial use conditions. Stock is maintained for rapid dispatch, supporting both planned maintenance windows and emergency breakdown scenarios where minimizing downtime is the primary objective.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the 1756-PSCA2 requires a structured approach that accounts for every component in the power distribution chain. Begin by auditing the existing chassis population: document each installed module, its current draw, and its slot address. In a typical ControlLogix retrofit scenario, the chassis may contain a mix of 1756-L71 or 1756-L74 controllers, 1756-EN2T EtherNet/IP communication modules, 1756-IB16 digital input modules, 1756-OB16E digital output modules, and 1756-IF8 analog input modules. Each of these contributes to the total backplane power demand, and the replacement power supply — paired with the 1756-PSCA2 adapter — must be rated to handle the aggregate load with adequate margin.

Terminal block wiring on the incoming AC or DC supply side should be inspected and re-torqued during the retrofit window. Loose connections at the power supply input terminals are a common source of intermittent faults that are difficult to diagnose after the system is returned to service. If the control cabinet includes a 1756-SYNCH time synchronization module or a 1756-RM redundancy module, the power sequencing requirements for these components must be factored into the startup procedure.

For systems where the retrofit is part of a broader migration from an older PLC-5 or SLC 500 platform to ControlLogix, the 1756-PSCA2 may be introduced as part of a new chassis build rather than a direct replacement. In this context, the adapter enables the use of current-generation power supplies in a chassis configuration that mirrors the I/O density of the legacy system, reducing the need for additional chassis and simplifying the cabinet layout.

Downtime Control During System Migration

Minimizing unplanned downtime during a power supply adapter replacement requires preparation that begins well before the maintenance window opens. The first step is to create a full backup of the controller program using Studio 5000 or RSLogix 5000, saving the project file to a secure, off-controller location. If the system supports online editing, verify that no unsaved edits are pending before initiating the shutdown sequence.

During the physical swap, follow a defined de-energization procedure: remove field power before removing backplane power, and allow capacitors in the existing supply to discharge fully before handling the adapter. Label all wiring and document the existing module slot assignments with photographs before removing any hardware. This documentation is invaluable if the system needs to be restored quickly under pressure.

After installing the 1756-PSCA2 and the replacement power supply, perform a controlled power-up sequence: energize the backplane first, confirm that the controller enters the expected fault state (no program loaded), then download the archived program and verify I/O status before returning the system to run mode. Check all communication links — particularly EtherNet/IP connections to SCADA and HMI systems — and confirm that all analog and digital I/O channels are responding correctly before releasing the system to production.

With proper preparation, a 1756-PSCA2 replacement can typically be completed within a two-to-four hour maintenance window, including testing and sign-off. KNMKS provides pre-shipment tested units to eliminate the risk of receiving a defective component, and our technical team is available to support commissioning queries during the installation process.

Retrofit Support FAQ

Q: Is the 1756-PSCA2 a direct replacement for the original unit in my ControlLogix chassis?
A: Yes. The 1756-PSCA2 is designed as a direct drop-in replacement for existing installations on compatible 1756-series chassis. No chassis modification or additional hardware is required. Verify your chassis model and power supply model against the compatibility table above before ordering.

Q: What pre-installation checks should I perform before swapping the power supply adapter?
A: Confirm the total module power draw against the replacement supply’s rated output, verify backplane bus voltage compatibility, inspect and re-torque all input terminal connections, and archive the current controller program. If communication modules such as the 1756-EN2T are installed, note their IP addresses and network configuration before shutdown.

Q: Does KNMKS test units before shipment?
A: Yes. Every 1756-PSCA2 unit undergoes functional pre-shipment testing to verify electrical integrity and mechanical fit. Units are supplied with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial use conditions.

Q: What is the typical lead time and stock availability?
A: KNMKS maintains inventory of the 1756-PSCA2 for immediate dispatch. Standard orders are processed and shipped within 1–3 business days. For urgent breakdown requirements, contact our sales team directly to confirm same-day or next-day dispatch availability.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1756-PSCA2
ControlLogix Series

Product Family

Power Supplies

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Power range

DIN rail and switching power supplies

Common needs

Voltage, current and mounting style

Project support

Control cabinet and panel-builder inquiries

Inquiry Support

• 24VDC and cabinet power selection support
• Stable power support for PLC and HMI systems
• Batch inquiry support for panel builders

What to Send Us

• Brand and exact model number: Allen-Bradley 1756-PSCA2
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
