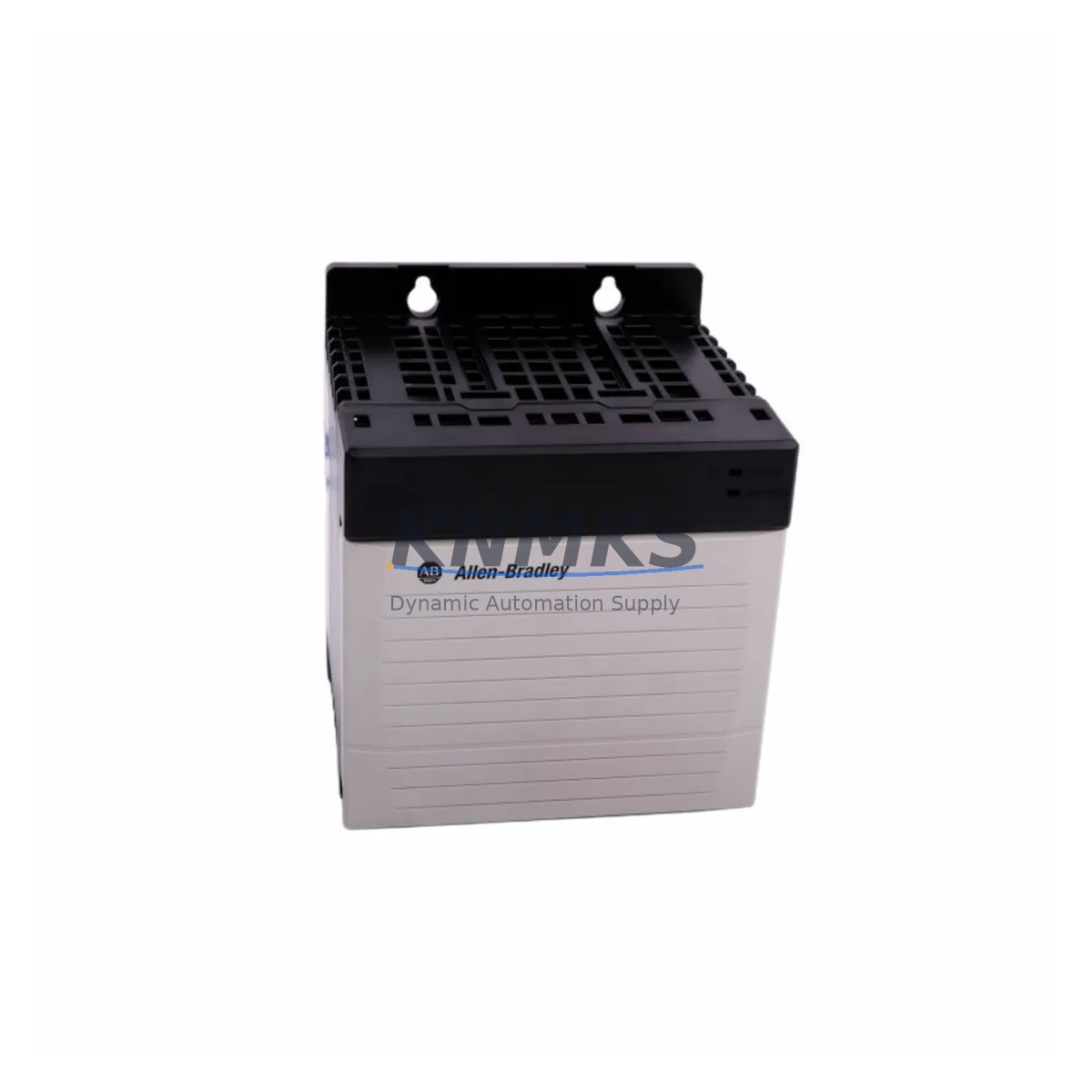

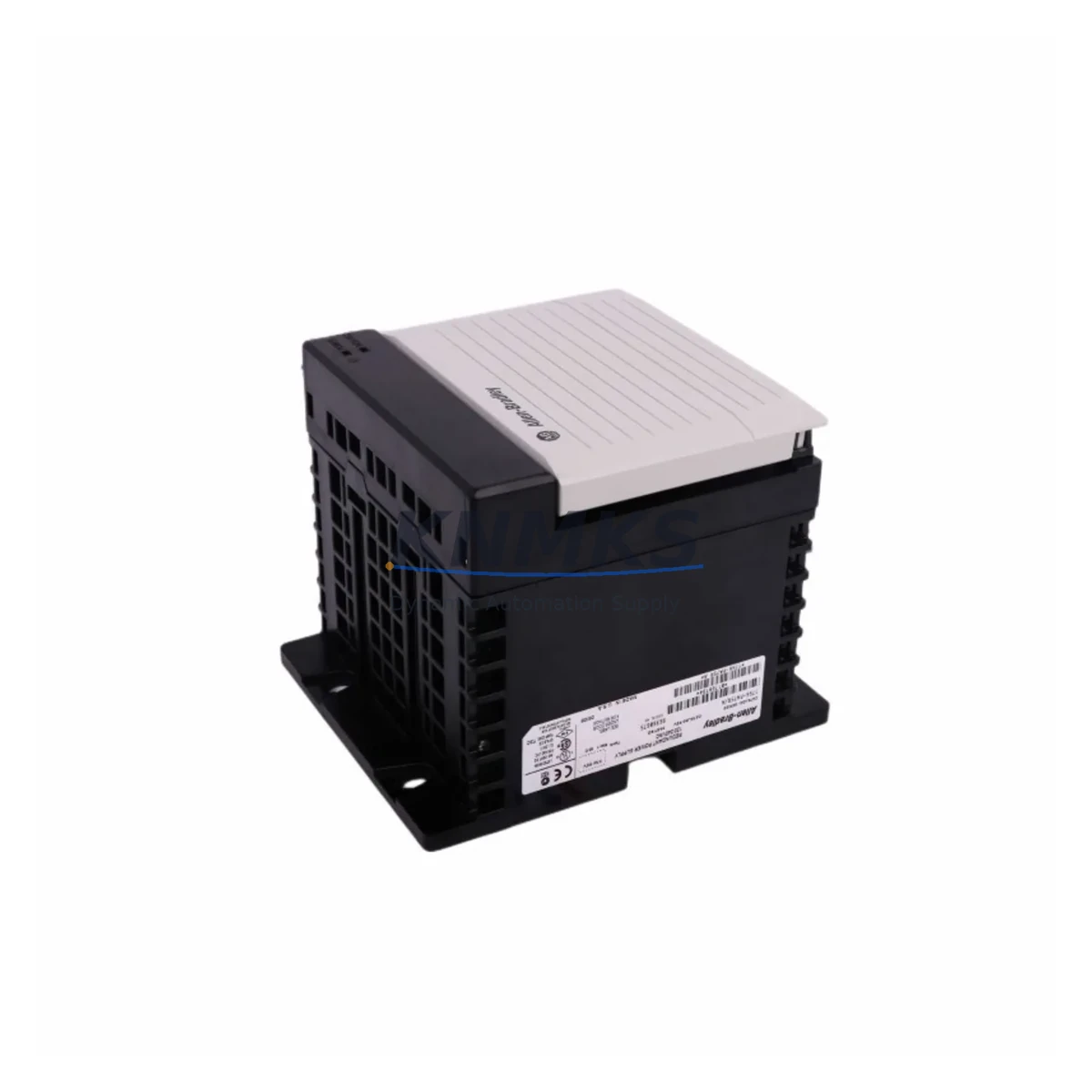

Allen-Bradley 1756-PA75R Fail-Safe Redundant Power Supply

Overview

Allen-Bradley 1756-PA75R Fail-Safe Redundant Power Supply: Fault-Protected Reliability for Critical Industrial Control

The Allen-Bradley 1756-PA75R is a safety-enhanced, redundant AC power supply engineered for the ControlLogix 1756 platform — one of the most widely deployed programmable automation controller (PAC) architectures in heavy industry. Designed to eliminate single-point power failure in mission-critical control cabinets, the 1756-PA75R delivers continuous, uninterrupted DC bus power to the 1756 chassis even when one supply source is degraded or lost. In environments where an unplanned shutdown carries significant safety, environmental, or financial consequences, this module is a foundational component of any robust fault-tolerant control strategy.

Industrial facilities operating continuous processes — including petrochemical refineries, power generation plants, mineral processing operations, water treatment infrastructure, metallurgical furnaces, port crane systems, and marine vessel automation — cannot afford control interruptions caused by power anomalies. The 1756-PA75R addresses this directly by supporting hot-standby redundant power configurations within the ControlLogix chassis, ensuring that voltage sags, transient surges, input phase loss, or supply module aging do not propagate into control loop disruption, spurious output activation, or communication dropout on the backplane.

Beyond redundancy, the 1756-PA75R incorporates internal surge suppression and EMI filtering circuitry that protects the 1756 chassis backplane from high-frequency noise commonly generated by variable frequency drives (VFDs), large motor starters, arc welding equipment, and high-power switching loads sharing the same electrical distribution panel. In dusty, humid, high-vibration, or thermally stressed enclosures — conditions typical of mining headframes, offshore platforms, cement plants, and steel rolling mills — this supply maintains stable DC output within specification, preventing the signal drift and logic faults that degrade control reliability over time.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A ControlLogix-based control cabinet protecting a critical interlock or safety instrumented function (SIF) requires more than a single reliable power supply — it demands a coordinated protection architecture across every layer of the control system. The 1756-PA75R anchors the power layer, but its effectiveness is multiplied when paired with complementary modules within the same chassis and panel.

At the controller level, the Allen-Bradley 1756-L73 ControlLogix CPU operates in lockstep with the redundant power bus provided by the 1756-PA75R, ensuring that no power transient causes a controller fault or program scan interruption. For applications requiring full controller redundancy, the 1756-RM2 redundancy module synchronizes primary and secondary controller chassis, with both chassis drawing from independently sourced 1756-PA75R supplies — creating a fully fault-tolerant control node.

On the I/O side, 1756-IB16 digital input modules and 1756-OB16E electronically fused output modules rely on stable backplane power to maintain accurate signal acquisition and output switching. A power anomaly that causes backplane voltage droop — prevented by the 1756-PA75R’s tight output regulation — can result in false input reads or output de-energization, both of which carry serious safety implications in interlock circuits.

For communication integrity, the 1756-EN2T EtherNet/IP communication module requires consistent backplane power to sustain real-time I/O messaging and HMI connectivity. Power instability that causes the EN2T to reset mid-scan can trigger connection timeouts in distributed I/O racks, leading to controller-initiated safe-state transitions. The 1756-PA75R’s redundant architecture prevents this failure mode entirely.

At the panel level, upstream surge protection devices (SPDs) and DIN-rail mounted UPS modules complement the 1756-PA75R by conditioning incoming AC before it reaches the supply input terminals — a layered defense strategy recommended for installations near high-power switching equipment or in regions with unstable utility power quality.

Critical Industrial Safety Applications

Petrochemical and Refinery Process Control: In continuous distillation, reactor control, and emergency shutdown (ESD) systems, the 1756-PA75R supports uninterrupted power to ControlLogix safety controllers managing burner management systems (BMS) and high-integrity pressure protection systems (HIPPS). A power supply failure in these environments can trigger uncontrolled process excursions; redundant power eliminates this initiating cause.

Power Generation and Substation Automation: Turbine governor control, excitation systems, and protection relay coordination panels in thermal and hydroelectric plants deploy ControlLogix platforms with redundant power supplies to meet grid reliability standards. The 1756-PA75R’s wide AC input range accommodates the voltage variations common in plant auxiliary power systems.

Mining and Mineral Processing: Conveyor interlock systems, crusher control panels, and flotation cell automation in underground and surface mining operations operate in high-dust, high-vibration environments. The 1756-PA75R’s robust mechanical design and EMI immunity ensure control continuity even when heavy equipment cycling creates significant electrical noise on shared distribution circuits.

Water and Wastewater Treatment: SCADA-integrated pump station control, chemical dosing automation, and UV disinfection system management rely on ControlLogix platforms with fail-safe power to maintain regulatory compliance and public safety. Redundant power supplies prevent the control outages that can lead to permit violations or environmental incidents.

Metallurgy and Steel Production: Electric arc furnace (EAF) control, rolling mill automation, and ladle metallurgy station controllers operate in extreme thermal and electromagnetic environments. The 1756-PA75R’s surge suppression and thermal tolerance make it the preferred power supply choice for these demanding applications.

Port and Marine Automation: Ship-to-shore crane control systems, automated stacking crane (ASC) panels, and vessel propulsion management systems require control power continuity across variable load cycles and marine-grade environmental conditions. The 1756-PA75R’s redundant architecture supports the high-availability requirements of port logistics and maritime safety systems.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 1756-PA75R?
The support terms confirmed by quotation cover all manufacturing defects, functional failures, and component-level integrity issues identified under normal operating conditions. If the unit fails to meet its rated output regulation, redundancy switching performance, or thermal specifications within the confirmed support period, we provide replacement or repair at no additional cost. Support requests are processed with priority turnaround to minimize your site downtime.

Q2: What pre-shipment testing is performed on each 1756-PA75R unit?
Every 1756-PA75R undergoes a full functional load test prior to dispatch. This includes output voltage regulation verification under rated load, redundancy failover switching validation, input surge immunity check, and thermal stability confirmation. A test record is available upon request for quality documentation and incoming inspection purposes.

Q3: Is the 1756-PA75R compatible with all ControlLogix 1756 chassis configurations?
Yes. The 1756-PA75R is compatible with all standard ControlLogix 1756 chassis sizes (4-slot through 17-slot) and supports parallel redundant power configurations when paired with a second 1756-PA75R or compatible 1756-series power supply. It is not compatible with CompactLogix or GuardLogix chassis — please confirm your chassis catalog number before ordering if you are replacing an existing supply.

Q4: Can long-term supply and replacement support be guaranteed for this model?
Yes. We maintain dedicated inventory of the 1756-PA75R to support both planned maintenance schedules and emergency replacement requirements. As ControlLogix platforms remain in active service across global industrial facilities, we prioritize sustained stock availability for this model. For facilities managing multi-year maintenance contracts or critical spare parts programs, we recommend contacting our sales team to discuss reserved inventory arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1756-PA75R
ControlLogix Series

Product Family

Power Supplies

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Power range

DIN rail and switching power supplies

Common needs

Voltage, current and mounting style

Project support

Control cabinet and panel-builder inquiries

Inquiry Support

• 24VDC and cabinet power selection support
• Stable power support for PLC and HMI systems
• Batch inquiry support for panel builders

What to Send Us

• Brand and exact model number: Allen-Bradley 1756-PA75R
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
