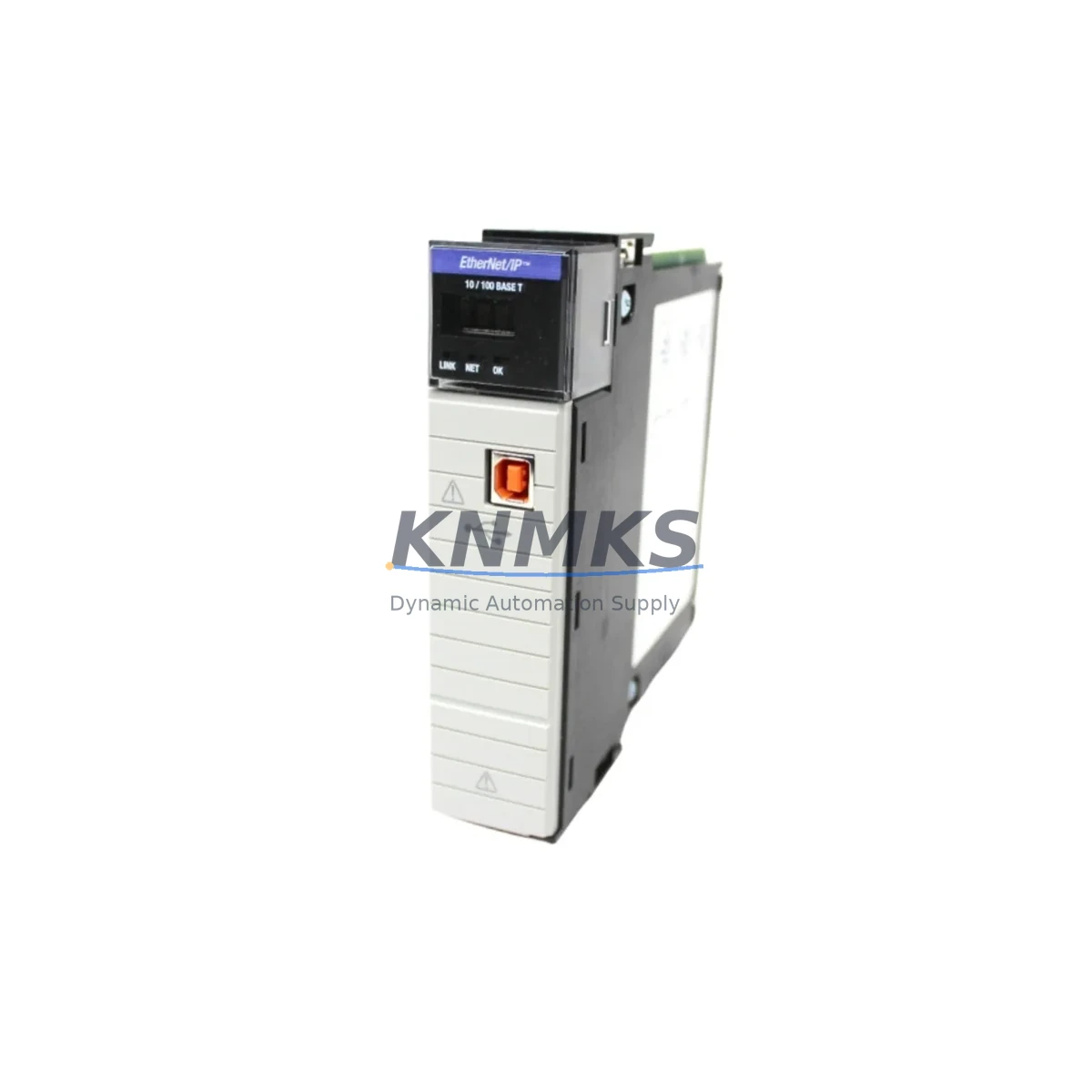

Allen-Bradley 1756-EN2T/C Maintenance-Proven Spare Part for Factory Uptime

Overview

Allen-Bradley 1756-EN2T/C Maintenance-Proven Spare Part for Factory Uptime

The Allen-Bradley 1756-EN2T/C is a dual-port EtherNet/IP communication bridge module designed for the ControlLogix platform. As a critical network interface within the 1756 chassis, this module enables high-speed, deterministic communication between the ControlLogix backplane and plant-floor Ethernet networks. For maintenance engineers managing aging automation infrastructure in petrochemical plants, power generation facilities, water treatment stations, and discrete manufacturing lines, maintaining a validated stock of the 1756-EN2T/C is a non-negotiable element of any serious spare parts strategy.

This original Allen-Bradley 1756-EN2T/C spare is sourced, inspected, and pre-shipment tested to confirm firmware integrity, port functionality, and backplane communication health before dispatch. Each unit ships with a support terms confirmed by quotation, providing procurement engineers with the confidence needed to justify long-cycle inventory investment. Whether you are managing a planned annual shutdown, responding to an unplanned network fault, or building a multi-site spare parts buffer, the 1756-EN2T/C represents a high-priority line item in any ControlLogix-based control cabinet inventory.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the 1756-EN2T/C in a live ControlLogix system, a disciplined maintenance workflow extends well beyond the module itself. Maintenance engineers should treat the replacement as an opportunity to audit the surrounding control cabinet and network infrastructure to prevent secondary failures from masking the root cause or triggering new faults post-restart.

Begin by verifying the integrity of the 1756-PA75 or 1756-PB75 power supply feeding the chassis. A degraded power supply is a common contributor to intermittent communication faults that are incorrectly attributed to the EtherNet/IP module. Simultaneously, inspect the 1756-A7 or 1756-A13 chassis backplane for physical damage, corrosion on the backplane connector, or signs of thermal stress — all of which can cause erratic module behavior even after a successful swap.

On the network side, confirm that the Stratix 5700 or Stratix 8000 managed Ethernet switch port connected to the 1756-EN2T/C is operating at the correct speed and duplex settings. Mismatched duplex configurations are a leading cause of CIP connection instability in ControlLogix networks. If the plant uses a 1756-ENBT or 1756-EN2TR in adjacent chassis for ring topology redundancy, verify that the DLR (Device Level Ring) supervisor role is correctly assigned after the module replacement to avoid network partitioning.

For I/O integrity, cross-check the 1756-IB16 digital input modules and 1756-OB16E digital output modules in the same chassis to confirm that their produced/consumed tags are re-established correctly after the EtherNet/IP bridge is restored. In systems where the 1756-EN2T/C serves as the primary path for remote I/O over EtherNet/IP, also verify that 1734 POINT I/O adapters on the field network have re-established their CIP connections and are reporting correct status. Finally, if the control system includes a PanelView Plus 7 HMI communicating via EtherNet/IP, confirm that the HMI connection is re-established and that all tag subscriptions are active before returning the system to production.

Site Replacement Workflow

Replacing the 1756-EN2T/C on-site requires a structured approach to minimize downtime and avoid configuration drift. Before removing the existing module, document the current IP address, subnet mask, gateway, and chassis slot assignment using RSLinx Classic or Studio 5000 Logix Designer. Export the current I/O configuration tree and note all active CIP connections, including their RPI (Requested Packet Interval) settings, to serve as a post-replacement verification checklist.

Power down the chassis slot using the keyswitch on the 1756-L7x or L8x controller (if hot-swap is not supported in your firmware revision) before extracting the module. Insert the replacement 1756-EN2T/C into the same slot, power up, and use the module’s built-in web server or RSLinx to assign the correct IP configuration. Confirm that the module’s Series C firmware revision matches or is compatible with the existing project file to avoid unexpected behavior from firmware mismatches.

After restoration, perform a full CIP connection count verification, confirm that all remote I/O devices have re-established communication, and validate HMI tag subscriptions before releasing the system to operations. Document the replacement in the site maintenance log, including the serial number of the replaced module and the new unit, to support future support requests and lifecycle tracking. This workflow typically achieves full system restoration within 30–60 minutes for a prepared maintenance team, significantly reducing unplanned downtime exposure.

Spare Parts Support FAQ

Q1: Is the 1756-EN2T/C compatible with both 1756-L7x and 1756-L8x ControlLogix controllers?
Yes. The 1756-EN2T/C is compatible with the full range of ControlLogix 1756-L6x, L7x, and L8x controllers. Firmware compatibility should be confirmed against the existing project file revision, but the module hardware is chassis-agnostic within the 1756 platform.

Q2: What pre-shipment testing is performed on each 1756-EN2T/C unit?
Each unit undergoes functional verification of both EtherNet/IP ports, backplane communication integrity, firmware revision confirmation, and LED status validation prior to dispatch. Units that do not pass all test criteria are not shipped. A support terms confirmed by quotation is included with every unit.

Q3: How should procurement engineers plan long-term inventory for the 1756-EN2T/C given Rockwell’s product lifecycle status?
The 1756-EN2T/C has been superseded by the 1756-EN2T Series D and later revisions in some configurations. Procurement engineers managing aging ControlLogix systems should consider stocking 1–2 units per chassis as a minimum buffer, with a 12–24 month forward-buy strategy for sites where the module is on the critical path for production continuity. Long-term supply availability is confirmed at time of order.

Q4: Can the 1756-EN2T/C be used as a direct replacement for the 1756-ENBT in existing installations?
In most cases, yes — the 1756-EN2T/C provides a functional superset of the 1756-ENBT with dual-port capability and improved CIP connection capacity. Configuration changes to IP addressing and connection parameters will be required, and the replacement should be validated in a maintenance window rather than under live production conditions.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1756-EN2T/C
ControlLogix Series

Product Family

Communication Modules

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Network range

Ethernet, fieldbus and gateway modules

Common needs

Protocol, port and controller family

Project support

Machine networking and data integration

Inquiry Support

• Industrial Ethernet and fieldbus module inquiry
• Protocol compatibility review
• Integration project inquiry support

What to Send Us

• Brand and exact model number: Allen-Bradley 1756-EN2T/C
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
