Allen-Bradley 1753-IF8XOF4 Maintenance-Proven Spare Part for Factory Uptime

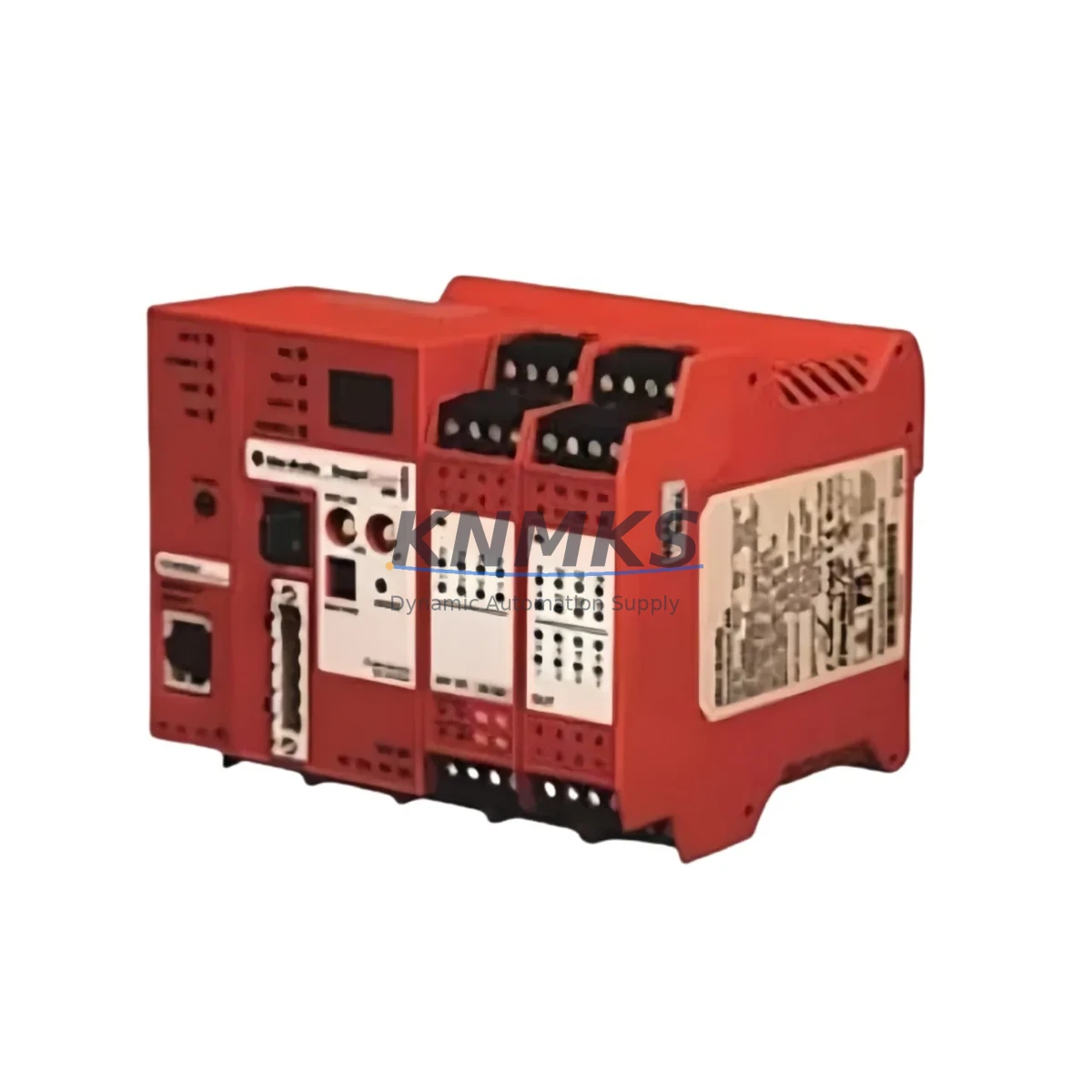

The Allen-Bradley 1753-IF8XOF4 is a safety-rated analog I/O module designed for the GuardPLC 1753 platform — a Rockwell Automation safety controller widely deployed in process safety, machine guarding, and critical infrastructure applications. With 8 analog inputs and 4 analog outputs in a single SIL 2 certified module, the 1753-IF8XOF4 handles real-time signal acquisition and control output for safety instrumented systems (SIS) where unplanned downtime carries significant operational and safety risk.

For maintenance engineers managing aging GuardPLC installations, securing a verified spare of the 1753-IF8XOF4 is a non-negotiable element of any uptime strategy. Module failures in safety I/O layers can trigger full safety function shutdowns, forcing production halts that may last hours or days if replacement stock is not pre-positioned. KNMKS supplies the 1753-IF8XOF4 as a tested, original spare with a support terms confirmed by quotation, ready for immediate dispatch to support emergency replacement and planned maintenance cycles alike.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When the 1753-IF8XOF4 is flagged during a routine control cabinet inspection or fails during a safety function test, the replacement scope should extend beyond the module itself. Maintenance engineers should treat this event as a trigger for a broader cabinet health review to prevent cascading failures and ensure the safety instrumented system returns to full certified operation.

Begin with the 24 VDC power supply feeding the GuardPLC chassis — verify output voltage stability and ripple under load, as degraded power quality is a common root cause of analog I/O drift and module faults. If the installation uses a 1753-L55 or 1753-L57 GuardPLC controller in the same chassis, confirm firmware version compatibility with the replacement module before installation. Backplane integrity should also be checked: inspect the GuardPLC 1753 expansion chassis connectors for oxidation or mechanical damage that could cause intermittent communication faults after module swap.

On the field wiring side, inspect all terminal blocks and field wiring harnesses connected to the 1753-IF8XOF4 I/O channels. Corroded terminals or loose connections on 4–20 mA loops are a frequent source of nuisance trips that are misdiagnosed as module failures. If the system uses signal isolators or loop-powered transmitters on the analog input channels, verify isolator output ranges match the module’s configured input type. For output channels driving control valves or actuators, confirm that the field device load impedance is within the module’s rated output drive capability.

Safety relay modules and safety output devices downstream of the GuardPLC analog outputs should be tested for correct response during the maintenance window. Additionally, review the RSLogix Guard PLUS! or Studio 5000 Logix Designer safety project to confirm that the I/O configuration, safety task period, and channel assignments are correctly restored after module replacement. Any changes to the safety program require a full functional safety validation test before returning the system to service.

For sites running extended maintenance intervals, pre-positioning a second 1753-IF8XOF4 alongside a spare 1753-OB8 digital output module and a 1753-IB16 digital input module provides comprehensive coverage for the most failure-prone I/O layers in the GuardPLC cabinet. This three-module spare kit approach is widely adopted in petrochemical, pharmaceutical, and automotive safety applications where GuardPLC systems are still in active service.

Site Replacement Workflow

Replacing the 1753-IF8XOF4 on a live GuardPLC system requires adherence to the site’s Management of Change (MOC) procedure and the safety system’s bypass and override protocol. The following workflow is intended as a general maintenance reference and should be adapted to site-specific safety requirements.

Step 1 — Initiate Safety Bypass: Coordinate with the control room to place the affected safety function in bypass mode per the site’s SIS bypass procedure. Document the bypass start time and notify all relevant personnel.

Step 2 — De-energize and Isolate: Remove power from the GuardPLC chassis or isolate the specific module slot per the site’s lockout/tagout (LOTO) procedure. Confirm zero energy state before proceeding.

Step 3 — Document Field Wiring: Photograph or record all field wiring connections on the 1753-IF8XOF4 terminal blocks before disconnection. Label each wire to its corresponding channel number to prevent mis-wiring during reinstallation.

Step 4 — Module Swap: Remove the faulty 1753-IF8XOF4 from the chassis slot. Insert the replacement module and secure the locking tab. Reconnect all field wiring per the documented channel assignments.

Step 5 — Power-Up and Configuration Restore: Re-energize the chassis. Using RSLogix Guard PLUS! or Studio 5000, download the safety project to the controller and verify that the 1753-IF8XOF4 is recognized with no fault codes. Confirm all analog channel configurations match the original project settings.

Step 6 — Functional Test: Perform a full channel-by-channel functional test, injecting known signals on each input and verifying correct output response. Test all safety functions associated with the replaced module before removing the bypass.

Step 7 — Return to Service: Remove the safety bypass, update the maintenance log, and file the MOC documentation. Retain the removed module for failure analysis or return-to-vendor evaluation.

This structured approach minimizes downtime, maintains safety system integrity, and ensures full traceability for regulatory and audit purposes — critical requirements in SIL 2 certified installations.

Spare Parts Support FAQ

Q1: Is the 1753-IF8XOF4 supplied by KNMKS an original Allen-Bradley module?
Yes. KNMKS supplies only original Allen-Bradley 1753-IF8XOF4 modules sourced from authorized distribution channels and verified industrial surplus. Each unit undergoes functional testing before shipment. A support terms confirmed by quotation is included from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q2: How do I confirm compatibility between the replacement 1753-IF8XOF4 and my existing GuardPLC system?
The 1753-IF8XOF4 is compatible with all GuardPLC 1753 series controllers and expansion chassis. Compatibility is determined by chassis slot type and firmware version of the GuardPLC controller. Provide your controller catalog number and firmware revision when placing your order, and our technical team will confirm compatibility before shipment.

Q3: Can KNMKS support long-term supply of the 1753-IF8XOF4 for multi-year maintenance contracts?
Yes. KNMKS maintains regional stock of high-demand GuardPLC spare parts including the 1753-IF8XOF4 to support blanket purchase orders and annual maintenance contracts. Long-term supply agreements with fixed pricing are available for facilities managing multiple GuardPLC installations or operating under extended asset life programs.

Q4: What is included with each 1753-IF8XOF4 shipment?
Each shipment includes the 1753-IF8XOF4 module, a functional test report, and a support terms confirmed by quotation certificate. Export documentation, country of origin certificates, and material safety data are available upon request for customs clearance and regulatory compliance purposes.
