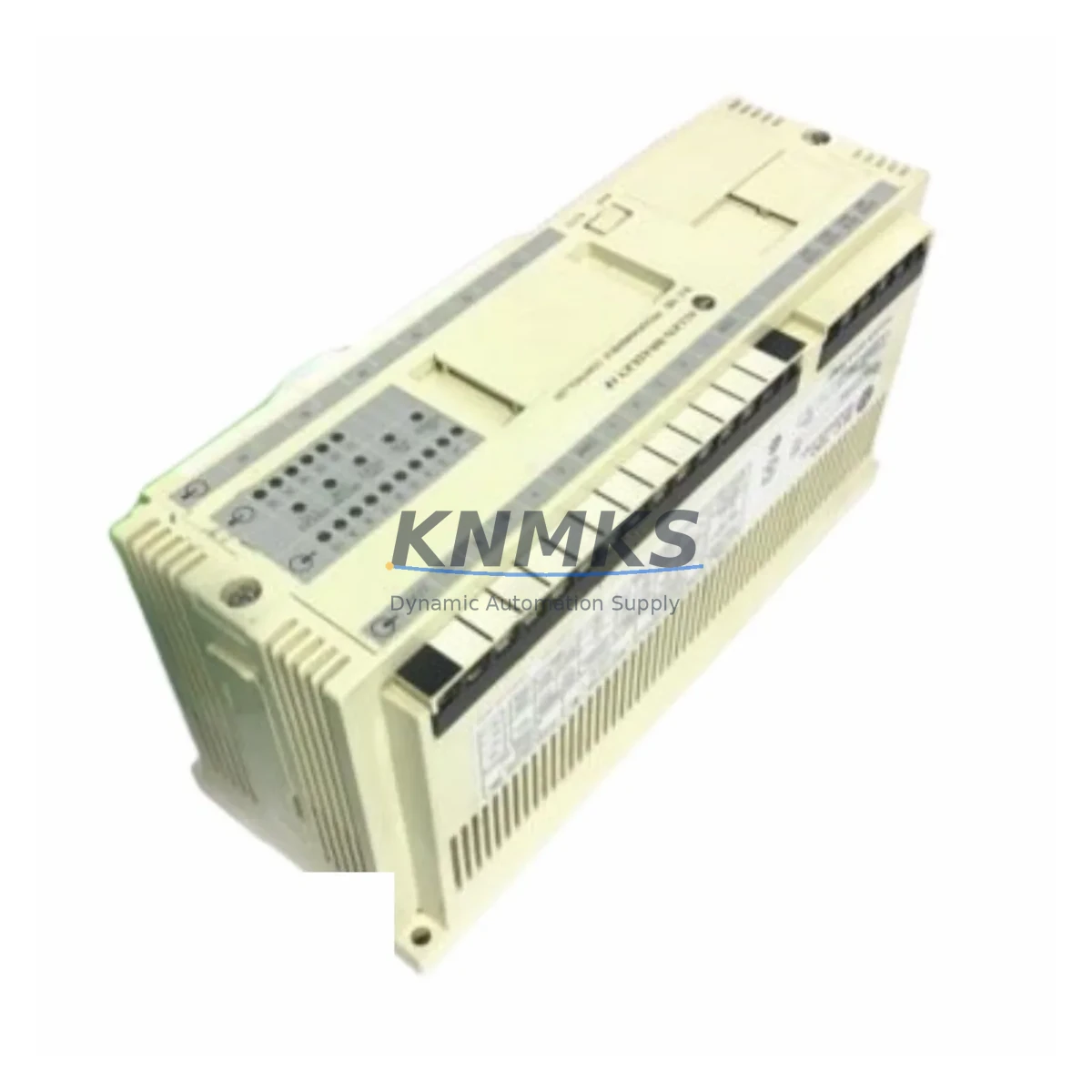

Allen-Bradley 1745-LP102 Migration-Ready Processor for Legacy SLC 100 Control Systems

The Allen-Bradley 1745-LP102 is a compact, fixed-I/O processor module designed for the SLC 100 programmable controller platform — one of Rockwell Automation’s earliest and most widely deployed small PLC families. As SLC 100 systems approach end-of-service milestones and original spare parts become increasingly scarce, the 1745-LP102 remains a critical component for facilities that must maintain production continuity without committing to a full control system overhaul. This unit is stocked, tested, and shipped with a support terms confirmed by quotation, making it a reliable choice for both emergency replacement and planned retrofit projects.

Whether you are managing a legacy bottling line, a conveyor control cabinet, a pump station, or a discrete manufacturing cell still running on SLC 100 hardware, the 1745-LP102 provides a direct, drop-in processor replacement that preserves your existing ladder logic, I/O wiring, and field device configuration. No reprogramming of the base program structure is required when swapping a like-for-like processor, which significantly reduces downtime risk during unplanned failures.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 1745-LP102 into an aging control system requires a structured pre-installation review. Before removing the failed or end-of-life processor, engineers should document the current module address assignments across the SLC 100 rack, capture a full program backup using RSLogix 500 or the legacy APS programming software, and verify that the 1747-PIC or 1747-UIC programming cable is available on-site for the initial connection.

Power supply capacity is a frequent oversight in retrofit projects. The existing 1745-series power supply module must be confirmed to deliver adequate current for the processor and all installed I/O modules. If the power supply is also aged or showing signs of instability, it is advisable to replace it concurrently to avoid a secondary failure shortly after the processor swap.

For facilities running DH-485 networks, the 1745-LP102 integrates directly into the existing communication segment. Node address conflicts must be resolved before powering up the new processor. If the control cabinet also includes a 1747-SDN DeviceNet Scanner or a 1747-KE DH-485 to RS-232C interface module, these devices should be verified for compatibility with the replacement processor’s firmware revision.

I/O wiring typically does not require modification in a like-for-like processor replacement. However, if the retrofit is being used as an opportunity to expand I/O capacity, additional 1745-series discrete or analog I/O modules can be added to the rack, provided the power supply budget allows. Signal isolators may be required if new field devices operate at different voltage or current ranges than the original design.

HMI screens connected via DH-485 — including legacy PanelView terminals — will resume normal communication once the replacement processor is online and the node address is correctly assigned. If the facility is also planning an HMI upgrade as part of the broader modernization effort, this processor swap is an appropriate time to validate the communication link between the new HMI and the SLC 100 platform before committing to a full HMI replacement.

For systems where the SLC 100 communicates upstream to a supervisory SCADA or DCS layer, the communication link should be tested end-to-end after the processor replacement to confirm that data tags, register mappings, and polling intervals are functioning as expected. This is particularly important in process industries where the SLC 100 may be reporting to a larger control architecture.

Downtime Control During System Migration

Minimizing production downtime during a processor replacement begins with preparation, not execution. The most effective approach is to complete all pre-installation steps — program backup, module address documentation, power supply verification, and cable availability — before the maintenance window begins. A well-prepared team can complete a 1745-LP102 swap in under 30 minutes for a straightforward like-for-like replacement.

Program logic integrity is the highest-priority concern during any processor swap. The replacement processor should be loaded with the verified, backed-up program before installation where possible, using a bench programming station connected via the 1747-UIC cable. This eliminates the risk of loading an incorrect or outdated program version under time pressure on the production floor.

If the original processor failed before a current backup could be taken, recovery options depend on whether a previous backup exists in the facility’s document control system or on a programming laptop. KNMKS recommends that all facilities running legacy SLC 100 systems maintain an up-to-date program archive as part of their spare parts and maintenance documentation protocol.

After installation, the commissioning sequence should follow a structured checklist: power-on verification, communication link confirmation, I/O force testing for critical outputs, HMI screen validation, and a supervised production run before returning the system to full autonomous operation. This sequence protects both the equipment and the production process during the transition period.

For facilities managing multiple SLC 100 units across a plant, staggered replacement scheduling — combined with on-site spare processor inventory — is the most effective strategy for long-term downtime risk management. Holding one or two 1745-LP102 units as cold spares eliminates the lead time risk associated with sourcing discontinued components during an unplanned failure event.

Retrofit Support FAQ

Q: Is the 1745-LP102 a direct drop-in replacement for other SLC 100 processor variants?
A: The 1745-LP102 is designed for the SLC 100 platform. Compatibility with other SLC 100 processor variants depends on I/O point count, memory capacity, and firmware revision. Confirm the original processor’s catalog number before ordering to ensure a like-for-like match. Our technical team can assist with cross-reference verification prior to shipment.

Q: What programming cable and software are required to load or verify the program on the 1745-LP102?
A: The 1745-LP102 is programmed via the DH-485 port using a 1747-PIC or 1747-UIC interface cable connected to a PC running RSLogix 500 or the legacy Allen-Bradley APS software. Ensure the correct driver is installed in RSLinx Classic before attempting to go online with the processor.

Q: How is the unit tested before shipment?
A: Each 1745-LP102 unit undergoes functional verification prior to shipment, including power-on testing and communication port validation. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures. Detailed test records are available upon request for critical infrastructure applications.

Q: What is the typical lead time and stock availability?
A: The 1745-LP102 is maintained availability confirmed by RFQ for immediate shipment. Standard lead time is 3–7 business days depending on destination. For urgent replacement requirements, expedited shipping options are available. Contact our sales team to confirm current inventory levels before placing a time-sensitive order.
