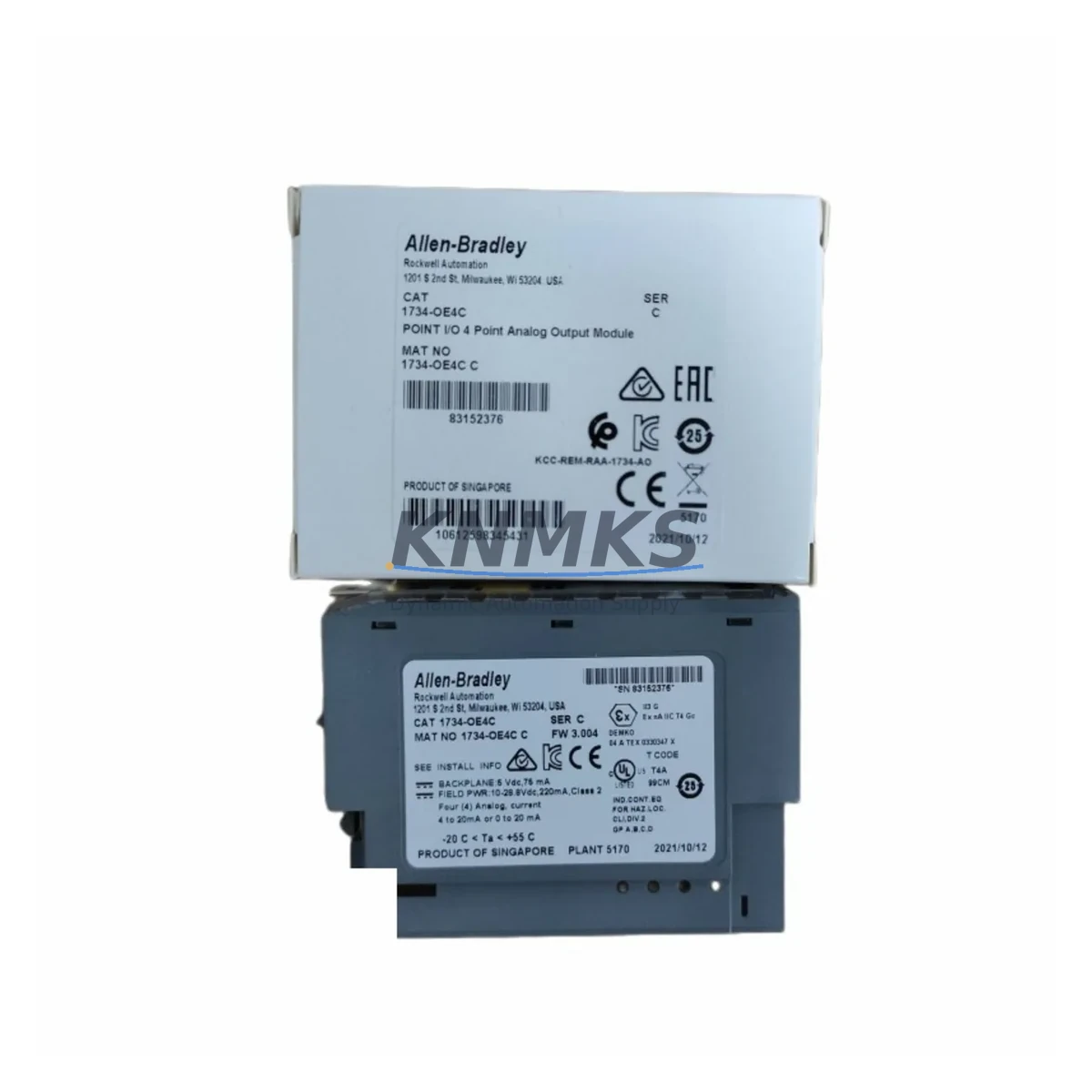

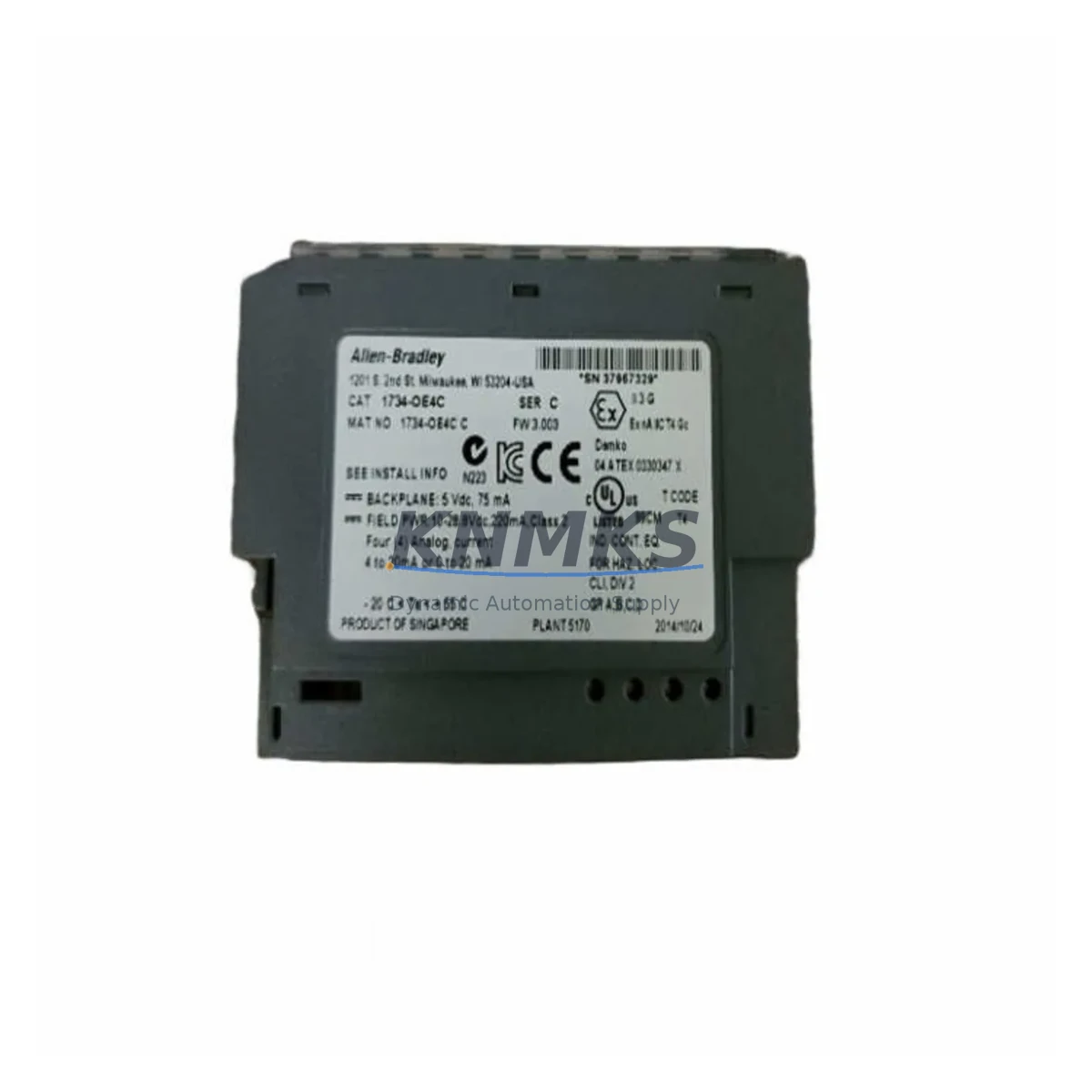

Allen-Bradley 1734-OE4C Maintenance-Proven Spare Part for Factory Uptime

The Allen-Bradley 1734-OE4C is a 4-channel analog current output module designed for the Rockwell Automation POINT I/O 1734 series platform. As a field-proven component in continuous process control, discrete manufacturing, and hybrid automation environments, the 1734-OE4C delivers reliable 4–20 mA output signals to actuators, control valves, variable frequency drives, and positioners. For maintenance engineers managing aging control cabinets or executing planned shutdowns, stocking a verified replacement 1734-OE4C is a fundamental step in reducing mean time to repair (MTTR) and protecting production continuity.

At KNMKS, every 1734-OE4C unit is sourced from authorized supply chains, inspected against factory specifications, and tested prior to shipment. We support industrial buyers with long-term supply commitments, flexible order quantities, and a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1734-OE4C analog output module fails or is flagged during a scheduled inspection, the fault rarely exists in isolation. Experienced maintenance engineers know that a single module fault can mask upstream power issues, wiring degradation, or communication faults that will surface again if not addressed during the same maintenance window.

Before returning the control cabinet to service after replacing a 1734-OE4C, verify the condition of the 1734-AENT EtherNet/IP adapter — the communication backbone for the entire POINT I/O rack. A degraded adapter can cause intermittent output faults that mimic module failure. Similarly, inspect the 1734-EP24DC power distribution module, which supplies field-side power to output modules; a marginal power supply will cause erratic 4–20 mA output even with a new 1734-OE4C installed.

Check the 1734-TB or 1734-TBS terminal base for the replacement module — corroded or loose terminal contacts are a common root cause of analog signal drift in high-humidity or high-vibration environments. For installations where signal integrity is critical, consider adding a signal isolator or loop-powered isolator between the 1734-OE4C output and the field device to eliminate ground loops and protect the module from field-side transients.

In multi-drop 4–20 mA loops driving control valves or VFDs, also inspect the field wiring continuity and loop resistance. Excessive loop resistance — often caused by corroded junction boxes or undersized cable — will prevent the 1734-OE4C from reaching full-scale output. If the cabinet includes a 1734-IE4C analog input module on the same rack, cross-check its calibration data; input and output modules on the same POINT I/O rack are often calibrated together during commissioning and should be verified together during maintenance.

For facilities running extended maintenance cycles, it is advisable to stock at least one spare 1734-OE4C alongside a spare 1734-AENT adapter and a set of terminal bases. This three-component kit covers the most common failure modes in a POINT I/O analog output rack and enables same-shift restoration without waiting for emergency procurement.

Site Replacement Workflow

Step 1 — Isolate and document: Before removing the 1734-OE4C, record the current channel configuration, output scaling, and fault state from the Logix controller tag database or RSLogix 5000 / Studio 5000 project file. Take a photo of the wiring at the terminal base.

Step 2 — Power down field side only: The POINT I/O platform supports hot-swap at the module level when the adapter remains powered. Confirm your site safety procedure before proceeding. Remove the module from the terminal base by pressing the release tab.

Step 3 — Inspect the terminal base: Before inserting the replacement 1734-OE4C, inspect the terminal base contacts for corrosion, bent pins, or debris. Replace the terminal base (1734-TB3 or equivalent) if any damage is found — installing a new module into a damaged base will cause the same fault to recur.

Step 4 — Insert and verify: Seat the new 1734-OE4C firmly into the terminal base. Power up and observe the module status LED. A solid green LED indicates normal operation. Use the controller’s I/O tree or online diagnostics to confirm all four channels are reporting correctly.

Step 5 — Functional test: Command each channel to a known output value (e.g., 4 mA, 12 mA, 20 mA) and verify the corresponding field device response. Document the test results in the maintenance log.

This workflow applies equally to planned annual overhauls and emergency unplanned replacements. The 1734-OE4C is a direct drop-in replacement for earlier POINT I/O analog output revisions, requiring no firmware changes or re-commissioning of the adapter when the controller project file is unchanged.

Spare Parts Support FAQ

Q1: Is the 1734-OE4C available for long-term supply beyond a single order?
Yes. KNMKS maintains ongoing inventory of the 1734-OE4C and can support blanket purchase orders, scheduled releases, and annual maintenance contracts. Contact admin@knmks.com to discuss volume pricing and supply agreements.

Q2: How is the 1734-OE4C tested before shipment?
Each unit undergoes functional verification including power-on self-test, channel output verification across the 4–20 mA range, and visual inspection for physical damage. Units that do not pass all checks are not shipped. A test report is available upon request for critical applications.

Q3: Can the 1734-OE4C replace older revisions of the same module?
Yes. The 1734-OE4C is backward compatible with earlier hardware revisions within the POINT I/O 1734 platform. No changes to the controller program or adapter configuration are required when replacing an older revision with a current-production unit, provided the firmware version of the adapter is at or above the minimum required level documented in the Rockwell Automation product compatibility matrix.

Q4: What does the support terms confirmed by quotation cover?
The KNMKS support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage, reverse polarity, or physical impact. Support requests are processed within 5 business days of receiving the returned unit, with replacement or documented resolution support options available.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1734-OE4C

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 1734-OE4C
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
