Allen-Bradley 1734-IE4C Maintenance-Proven Spare Part for Factory Uptime

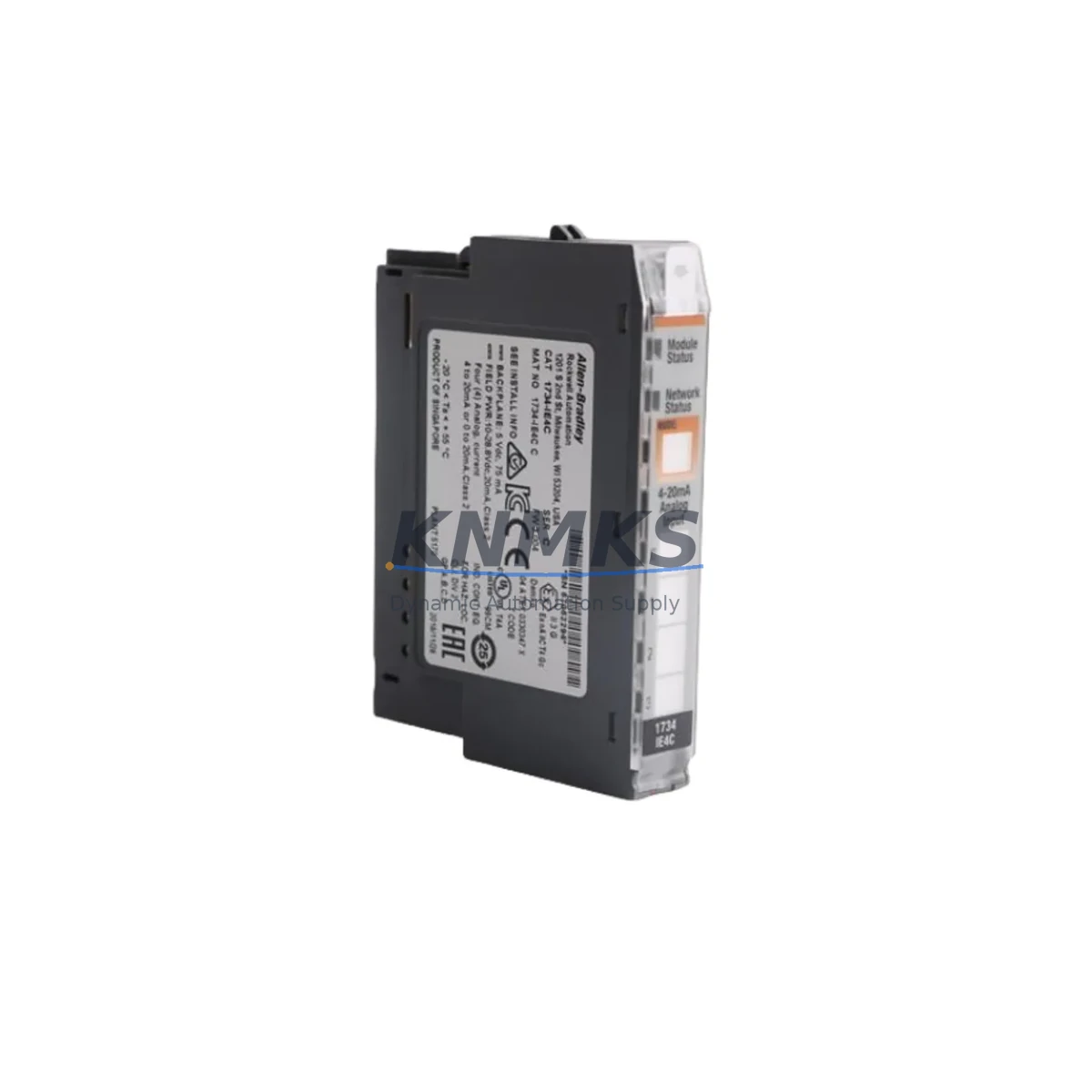

The Allen-Bradley 1734-IE4C is a 4-channel analog current input module designed for the POINT I/O platform — one of Rockwell Automation’s most widely deployed distributed I/O architectures in process and discrete manufacturing environments. Whether you are managing a petrochemical control loop, a water treatment SCADA system, or a power generation facility, the 1734-IE4C plays a critical role in delivering accurate 4–20 mA signal acquisition from field transmitters to the ControlLogix or CompactLogix controller backbone.

Maintaining a validated spare of the 1734-IE4C in your cabinet inventory is a proven strategy for reducing unplanned downtime. When a channel fails during production, the ability to swap a pre-tested, original module within minutes — rather than waiting days for emergency procurement — directly protects your OEE targets and SLA commitments. This unit is sourced as an original Allen-Bradley component, pre-shipment tested, and backed by a support terms confirmed by quotation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1734-IE4C analog input channel degrades or fails, the fault rarely exists in isolation. A thorough site inspection should accompany any module replacement to prevent repeat failures and ensure the restored loop performs to specification.

Begin by verifying the 1734-AENT EtherNet/IP adapter or the 1734-ACNR ControlNet adapter that hosts the 1734-IE4C. Adapter firmware mismatches or corrupted configuration files are a common root cause of apparent module faults. Confirm the adapter’s LED status and re-download the I/O configuration from Studio 5000 if necessary.

Inspect the 1734-TB or 1734-TBS terminal base on which the 1734-IE4C is seated. Worn or corroded base contacts cause intermittent channel errors that are frequently misdiagnosed as module failures. Replace the terminal base if contact resistance is elevated.

Check the 24 VDC field power supply feeding the transmitter loop. A sagging supply voltage — often caused by an aging 1606-XLP power supply or equivalent — will cause the 4–20 mA signal to drift below the module’s valid input range, triggering false under-range faults. Measure supply voltage under load before condemning the 1734-IE4C.

Examine the field wiring and terminal blocks for loose connections, moisture ingress, or shield grounding issues. In high-EMI environments such as motor control centers or variable frequency drive (VFD) panels, unshielded or improperly grounded signal cables introduce noise that corrupts analog readings. Re-terminate and re-shield as required.

If the process loop includes a signal isolator or loop-powered barrier — common in hazardous area installations — verify that the isolator’s output impedance is compatible with the 1734-IE4C’s input impedance. A mismatched isolator can clip the signal at the high end of the range, causing persistent over-range alarms even after module replacement.

Finally, review the 1734-OB8 or 1734-OB8E digital output modules in the same POINT I/O bank. In multi-module racks, a shorted output module can pull down the backplane 5 VDC rail, causing erratic behavior across all modules including the 1734-IE4C. Isolate and test each module individually if backplane voltage is suspect.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Export the current I/O configuration from Studio 5000 Logix Designer and save a backup. Note the module’s slot number, IP address of the adapter, and any custom scaling or filter settings applied to the 1734-IE4C channels.

Step 2 — Safe Isolation: Place the controller in Program mode. Confirm that all four analog input channels are in a safe state (e.g., held at last value or defaulted to zero) per your process safety plan. De-energize the field power to the transmitter loops before disconnecting wiring.

Step 3 — Module Removal: Press the release tab on the 1734-IE4C and slide it off the terminal base. The terminal base and field wiring remain in place — this is a key advantage of the POINT I/O architecture, as it eliminates the need to re-terminate field cables during module swap.

Step 4 — Replacement Installation: Slide the new 1734-IE4C onto the existing terminal base until it clicks into place. Re-energize field power. The adapter will automatically recognize the replacement module if the catalog number matches the original configuration.

Step 5 — Configuration Restore: Return the controller to Run mode. Verify that all four channels are reading within expected engineering unit ranges. Compare live values against the historian or DCS trend to confirm signal integrity. Document the replacement in your CMMS with the new module’s serial number and the support terms confirmed by quotation start date.

This plug-and-play replacement workflow minimizes loop downtime to under 15 minutes for a trained technician, making the 1734-IE4C one of the most maintainable analog input solutions in the POINT I/O family.

Spare Parts Support FAQ

Q1: Is this 1734-IE4C an original Allen-Bradley module or a third-party compatible?
This is an original Allen-Bradley 1734-IE4C module sourced from authorized supply channels. It is not a clone, compatible substitute, or rebranded equivalent. Each unit undergoes pre-shipment functional testing to verify channel accuracy, backplane communication, and power consumption before dispatch.

Q2: How long is the support terms, and what does it cover?
All 1734-IE4C units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, functional failures under normal operating conditions, and channel accuracy deviations beyond published specifications. It does not cover damage caused by incorrect installation, overvoltage, or environmental conditions outside the rated operating range.

Q3: Can this module replace an older 1734-IE4C that was part of a legacy ControlNet or DeviceNet POINT I/O system?
Yes. The 1734-IE4C is compatible with all POINT I/O adapter generations, including the 1734-ACNR (ControlNet), 1734-ADN (DeviceNet), and 1734-AENT (EtherNet/IP). The module catalog number and firmware are backward compatible, so no configuration changes are required in RSLogix 5000 or Studio 5000 when replacing a like-for-like unit in an existing rack.

Q4: Do you support long-term supply agreements for multi-site maintenance programs?
Yes. KNMKS supports blanket purchase orders and scheduled delivery agreements for maintenance teams managing multiple facilities or planning annual shutdown inventories. Contact our team to discuss volume pricing, lead time commitments, and dedicated stock reservation for critical spare parts including the 1734-IE4C and associated POINT I/O components.
