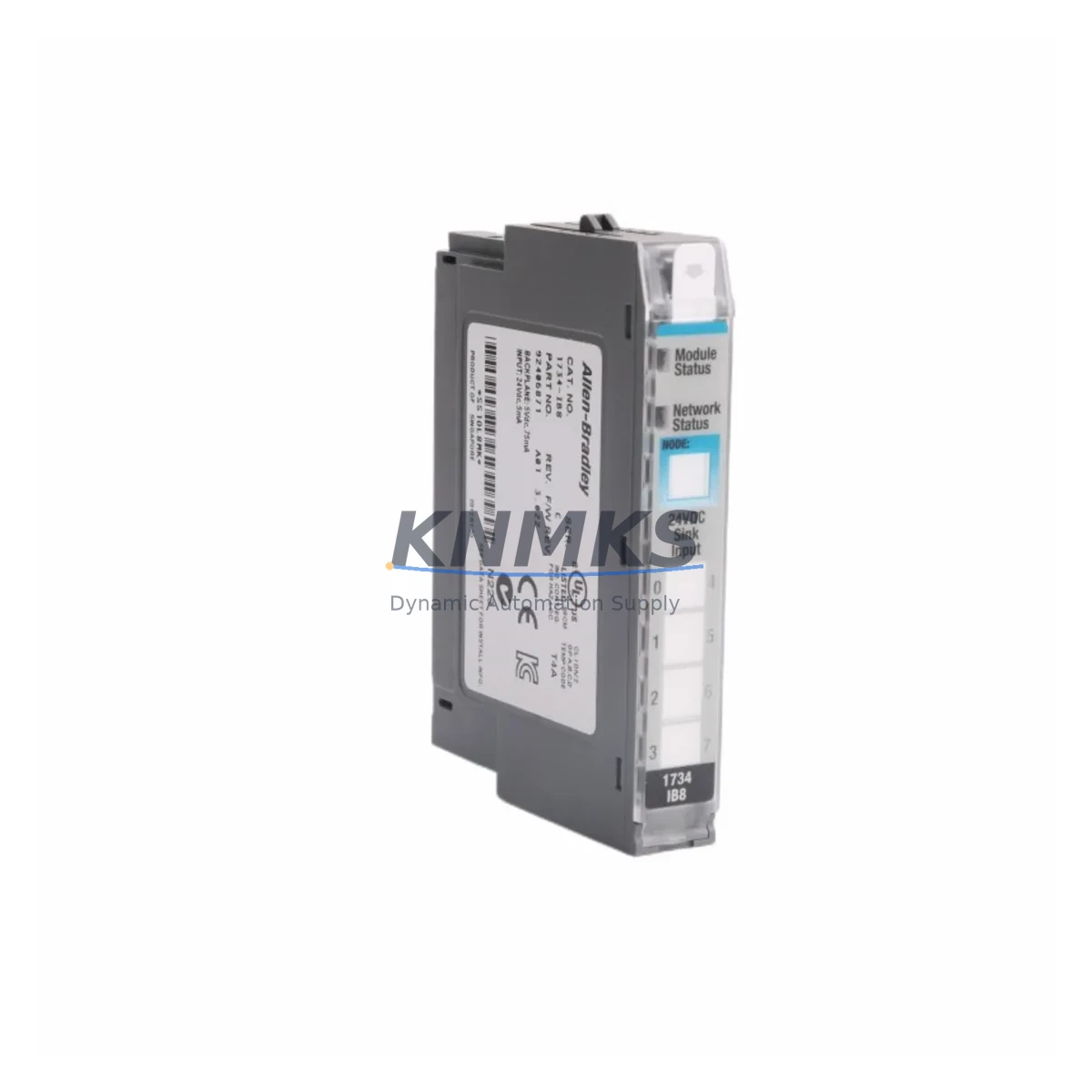

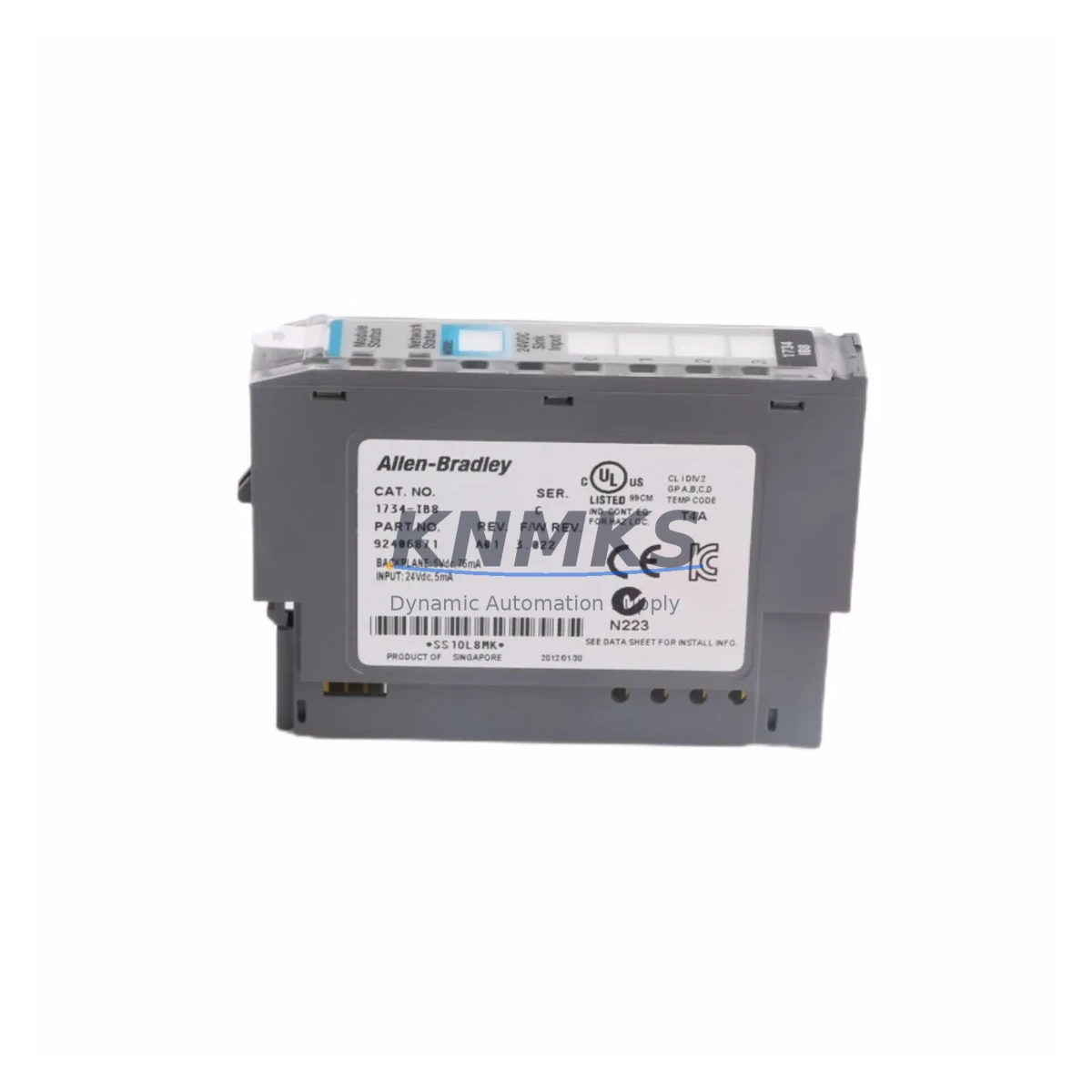

Allen-Bradley 1734-IB8 Fail-Safe Digital Input Module

Overview

Allen-Bradley 1734-IB8 Fail-Safe Digital Input Module: Fault-Tolerant Reliability for Critical Industrial Control

The Allen-Bradley 1734-IB8 is an 8-point, 24V DC digital input module from the Rockwell Automation POINT I/O platform, engineered for fail-safe performance in demanding industrial environments. Designed to integrate seamlessly into safety-critical control architectures, the 1734-IB8 delivers consistent, high-integrity signal acquisition across continuous production lines, hazardous process areas, and high-density control cabinets where unplanned downtime carries severe operational and safety consequences.

In industries where control interruption is not an option — petrochemical processing, electric power generation, mining extraction, water treatment, metallurgical smelting, port logistics, and continuous discrete manufacturing — the 1734-IB8 provides the signal fidelity and environmental resilience that safety engineers and maintenance teams depend on. Its compact POINT I/O form factor allows dense cabinet integration without sacrificing diagnostic transparency or field-replacement speed.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 1734-IB8 is most effective when deployed as part of a coordinated cabinet-level protection strategy. In high-density POINT I/O racks, it operates alongside the 1734-AENTR dual-port EtherNet/IP adapter, which provides Device Level Ring (DLR) topology support for network-level redundancy — ensuring that a single cable fault does not interrupt field signal reporting. For applications requiring safety-rated interlock loops, the 1734-IB8 is commonly paired with the 1734-IB8S safety input module, which handles SIL 2 / PLd-rated emergency stop and gate monitoring circuits within the same POINT I/O base.

Power integrity is equally critical. The 1734-EP24DC POINT I/O power supply module provides isolated 24V DC bus segmentation within the rack, preventing voltage sag or transient spikes on high-current output channels from corrupting the clean signal reference required by the 1734-IB8’s input circuitry. In cabinets exposed to heavy motor drive switching or variable frequency drive (VFD) harmonics, supplementing the rack with a 1734-TOPS or equivalent surge protection terminal block further reduces the risk of input signal drift caused by conducted EMI.

For distributed I/O architectures spanning large plant floors, the 1734-IB8 integrates with 1756-EN2TR ControlLogix EtherNet/IP bridge modules, enabling centralized diagnostics and fault logging across multiple remote I/O drops. Cabinet thermal management — often overlooked in dense automation builds — is addressed by pairing the rack with 1734-TOPS thermal monitoring accessories or external cabinet cooling units, keeping module junction temperatures within the 0–55°C operating envelope even in summer peak-load conditions.

Critical Industrial Safety Applications

Petrochemical & Refinery: In continuous process plants, the 1734-IB8 monitors field pushbuttons, pressure switch contacts, and valve position feedback in safety instrumented systems (SIS). Its fast response time and surge-hardened inputs ensure that critical interlock signals — such as high-pressure shutdown or emergency depressurization commands — are captured without delay or false triggering from ground loops common in large-scale process facilities.

Electric Power Generation & Substation Control: In power plant auxiliary control systems and substation automation panels, the 1734-IB8 acquires breaker status, relay contact states, and protection relay trip signals. Its group isolation and EMI compliance per IEC 61000-4 make it suitable for environments with high magnetic field intensity from bus bars and power transformers.

Mining & Mineral Processing: Underground and surface mining operations subject control hardware to extreme vibration, dust ingress, and humidity. The 1734-IB8’s IEC 60068-2-6 vibration rating and 5–95% RH tolerance allow reliable operation in conveyor control panels, crusher interlock circuits, and ventilation safety systems where module failure could trigger mandatory production halts.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on the 1734-IB8 for pump run/fault feedback, level switch monitoring, and chlorination interlock inputs. Its compact footprint suits the space-constrained panels common in pump stations, while its diagnostic transparency via EtherNet/IP enables remote fault identification without site visits.

Metallurgy & Steel Production: In electric arc furnace (EAF) and rolling mill control systems, the 1734-IB8 handles high-cycle digital input tasks — monitoring cooling water flow switches, hydraulic pressure contacts, and roll gap position sensors — in environments with intense electromagnetic interference from high-current bus systems and induction heating equipment.

Port & Marine Logistics: Crane PLC systems and ship-to-shore equipment require modules that withstand salt-laden air, vibration from heavy lifts, and wide ambient temperature swings. The 1734-IB8’s industrial-grade construction and broad operating temperature range support reliable operation in outdoor-rated control enclosures used in port automation and vessel control systems.

Safety and Quality FAQ

Q1: What support terms coverage does the 1734-IB8 carry when purchased from KNMKS?
Every Allen-Bradley 1734-IB8 unit supplied by KNMKS is backed by a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support requests are processed with priority turnaround to minimize your site downtime exposure.

Q2: What pre-shipment testing is performed on each unit?
All 1734-IB8 modules undergo outgoing quality inspection prior to dispatch, including visual inspection, input channel continuity verification, and backplane connector integrity checks. Units sourced from authorized distribution channels are verified against Rockwell Automation’s genuine product authentication standards before listing.

Q3: Is the 1734-IB8 compatible with my existing ControlLogix or CompactLogix system?
Yes. The 1734-IB8 is fully compatible with any Allen-Bradley controller that supports EtherNet/IP-connected POINT I/O, including ControlLogix 1756, CompactLogix 1769, and GuardLogix platforms when used with an appropriate 1734-series adapter such as the 1734-AENT or 1734-AENTR. Configuration is performed via Studio 5000 Logix Designer with standard Add-On Profiles (AOPs).

Q4: Can KNMKS support long-term supply and emergency replacement needs?
KNMKS maintains standing inventory of the 1734-IB8 and related POINT I/O modules to support both planned MRO procurement and emergency field replacement scenarios. For critical production sites requiring guaranteed availability, contact our sales team to discuss consignment stock arrangements or priority allocation agreements.
