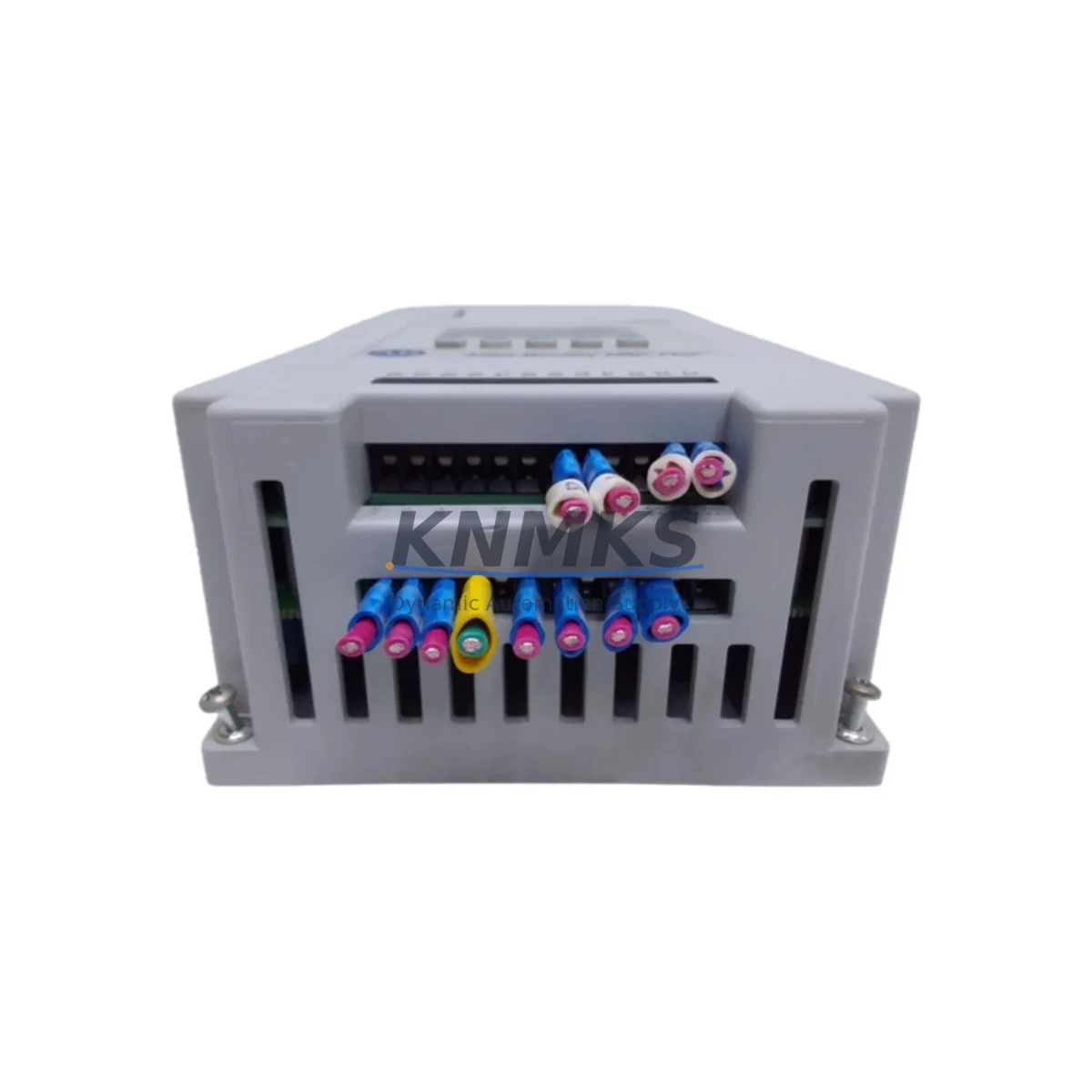

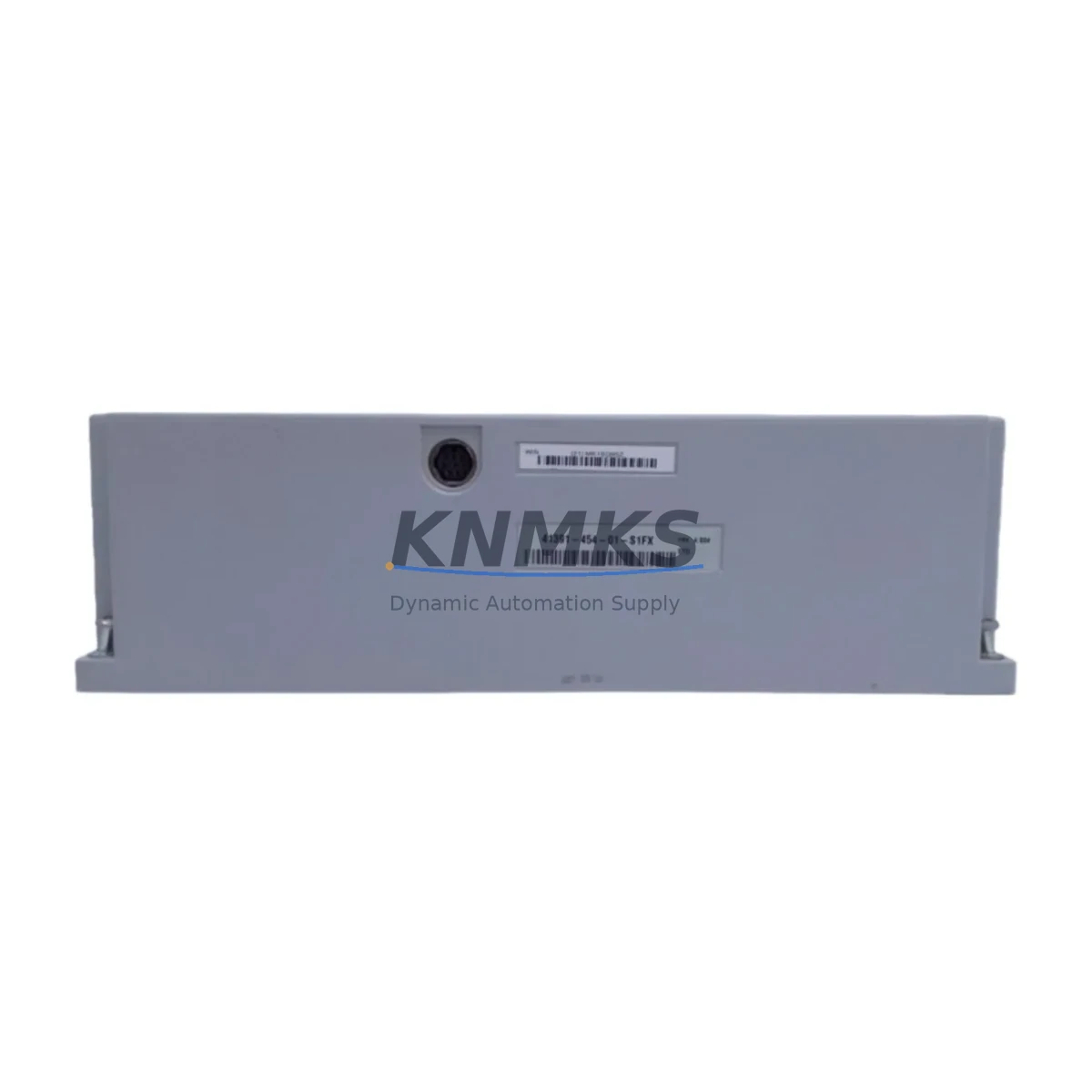

Allen-Bradley 150-FS1FX Fail-Safe SMC Flex Motor Control Module

Overview

Allen-Bradley 150-FS1FX Fail-Safe SMC Flex Motor Control Module: Fault Protection and Critical Industrial Field Reliability

The Allen-Bradley 150-FS1FX is an internal safety control module designed for the SMC Flex soft starter platform — one of Rockwell Automation’s most trusted motor management solutions in continuous production environments. Engineered to deliver fail-safe motor starting and stopping sequences, the 150-FS1FX addresses the most demanding requirements of industrial control cabinets where unplanned downtime, signal drift, and control loop interruption carry serious operational and safety consequences.

In heavy-duty applications such as petrochemical pump stations, power plant auxiliary systems, mining conveyor drives, water treatment blower controls, and metallurgical process lines, the integrity of the motor soft starter control module is non-negotiable. The 150-FS1FX provides the internal logic and safety interface that governs motor ramp-up, current limiting, and controlled deceleration — all critical to preventing mechanical shock, electrical surge, and thermal overload events that can cascade into broader system failures.

Designed for installation within the SMC Flex chassis, this module integrates directly with the soft starter’s control architecture, ensuring deterministic response to start/stop commands even under high electromagnetic interference (EMI) conditions common in variable-frequency drive (VFD) environments, large transformer bays, and high-current switchgear rooms. Its robust signal isolation and internal diagnostics reduce the risk of nuisance trips and false fault indications — two of the most disruptive failure modes in critical interlock circuits.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable motor control cabinet in a critical industrial facility is only as strong as its weakest component. The 150-FS1FX is typically deployed alongside a coordinated set of protection and control devices that together form a layered defense against control interruption and equipment damage.

In a typical SMC Flex-based motor control center (MCC), the 150-FS1FX works in conjunction with the Allen-Bradley 150-C85NBD SMC Flex soft starter main unit, which handles the power-side current management and thermal protection. Upstream of the starter, a properly rated Allen-Bradley 140M motor protection circuit breaker provides short-circuit and overload protection, ensuring that fault currents are interrupted before they can damage the soft starter or the 150-FS1FX control module itself.

For cabinets operating in environments with significant power quality issues — including voltage sags, harmonic distortion, and transient surges common in petrochemical plants and port crane systems — a dedicated surge protective device (SPD) installed on the control power supply rail is essential. This prevents surge energy from propagating into the SMC Flex control bus and corrupting the 150-FS1FX’s internal logic. Similarly, an Allen-Bradley 1606-XLP power supply or equivalent DIN-rail 24VDC supply with built-in overvoltage protection ensures stable control voltage to the module under fluctuating grid conditions.

Communication integrity is equally critical. In facilities using DeviceNet or EtherNet/IP for motor control integration with a ControlLogix or CompactLogix PLC, the 150-FS1FX’s status and fault data are transmitted upstream to the controller. A properly configured Allen-Bradley 1756-EN2T EtherNet/IP communication module in the PLC rack ensures low-latency, deterministic data exchange — reducing the risk of communication timeouts that could trigger unintended motor stops in continuous process lines. For legacy installations using DeviceNet, the 1788-EN2DN linking device bridges the network without requiring full architecture replacement.

In high-dust or high-humidity environments such as cement plants, mining headframes, or coastal port facilities, cabinet sealing and internal climate control become part of the protection strategy. Pairing the 150-FS1FX installation with a properly rated cabinet heater/thermostat combination and IP54 or higher enclosure rating prevents condensation-related insulation breakdown and corrosion on the module’s connector pins — a common root cause of intermittent control faults in tropical or coastal industrial sites.

Critical Industrial Safety Applications

The Allen-Bradley 150-FS1FX is deployed across a wide range of safety-critical and continuous-process industrial applications where motor control reliability directly impacts production continuity, personnel safety, and regulatory compliance.

In petrochemical and refinery facilities, the 150-FS1FX is used in pump and compressor motor starters within safety instrumented systems (SIS). Its fail-safe sequencing capability supports emergency shutdown (ESD) interlock logic, ensuring that motors de-energize in a controlled manner during process upsets rather than tripping abruptly — which can cause water hammer, pressure spikes, or seal damage in high-pressure fluid systems.

In electric power generation and transmission plants, the module controls auxiliary motors for cooling fans, lube oil pumps, and feedwater systems. These loads must start and stop reliably under all grid conditions, including post-fault voltage recovery scenarios where inrush current management is critical to preventing transformer saturation and protection relay misoperation.

In underground and open-pit mining operations, conveyor belt drives, slurry pump motors, and ventilation fan starters equipped with the SMC Flex and 150-FS1FX benefit from the module’s ability to handle repeated start/stop cycles without thermal accumulation — a key reliability factor in environments where maintenance access is limited and unplanned downtime carries significant safety and production cost implications.

In municipal water and wastewater treatment plants, the 150-FS1FX supports soft-start control of high-inertia centrifugal pumps and blowers, reducing mechanical stress on couplings and impellers during startup. This extends equipment service life and reduces the frequency of unplanned maintenance interventions in facilities that operate 24/7 with minimal staffing.

In metallurgical and steel processing plants, the module is used in rolling mill auxiliary drives, fume extraction fans, and cooling water pump starters — all applications where control reliability under high ambient temperature, vibration, and electromagnetic noise is essential to maintaining production schedules and meeting safety standards.

In port and maritime applications, including container crane drives and ship-to-shore conveyor systems, the 150-FS1FX provides the control stability needed for high-cycle-rate motor operations in salt-air environments where corrosion and humidity are persistent threats to electronic control components.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 150-FS1FX?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified control and safety functions within the confirmed support period, we provide replacement or documented resolution support. Support requests are processed with priority to minimize your site downtime.

Q2: How is the 150-FS1FX tested before shipment?
Every 150-FS1FX unit undergoes functional verification testing prior to dispatch. This includes control bus communication checks, input/output signal integrity verification, and visual inspection for connector pin condition and PCB integrity. Units that do not pass all test criteria are not shipped.

Q3: Is the 150-FS1FX compatible with all SMC Flex soft starter models?
The 150-FS1FX is designed as an internal plug-in module for the Allen-Bradley SMC Flex soft starter family. Compatibility should be verified against your specific SMC Flex catalog number and firmware revision. Our technical team can assist with compatibility confirmation before purchase to ensure correct application.

Q4: Can long-term supply and replacement support be arranged for critical site installations?
Yes. For facilities requiring ongoing spare parts support — including petrochemical plants, power stations, and continuous manufacturing lines — we offer long-term supply agreements with reserved stock allocation. This ensures that replacement 150-FS1FX modules are available on short lead times when needed, reducing the risk of extended downtime due to parts unavailability.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

150-FS1FX

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 150-FS1FX
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
