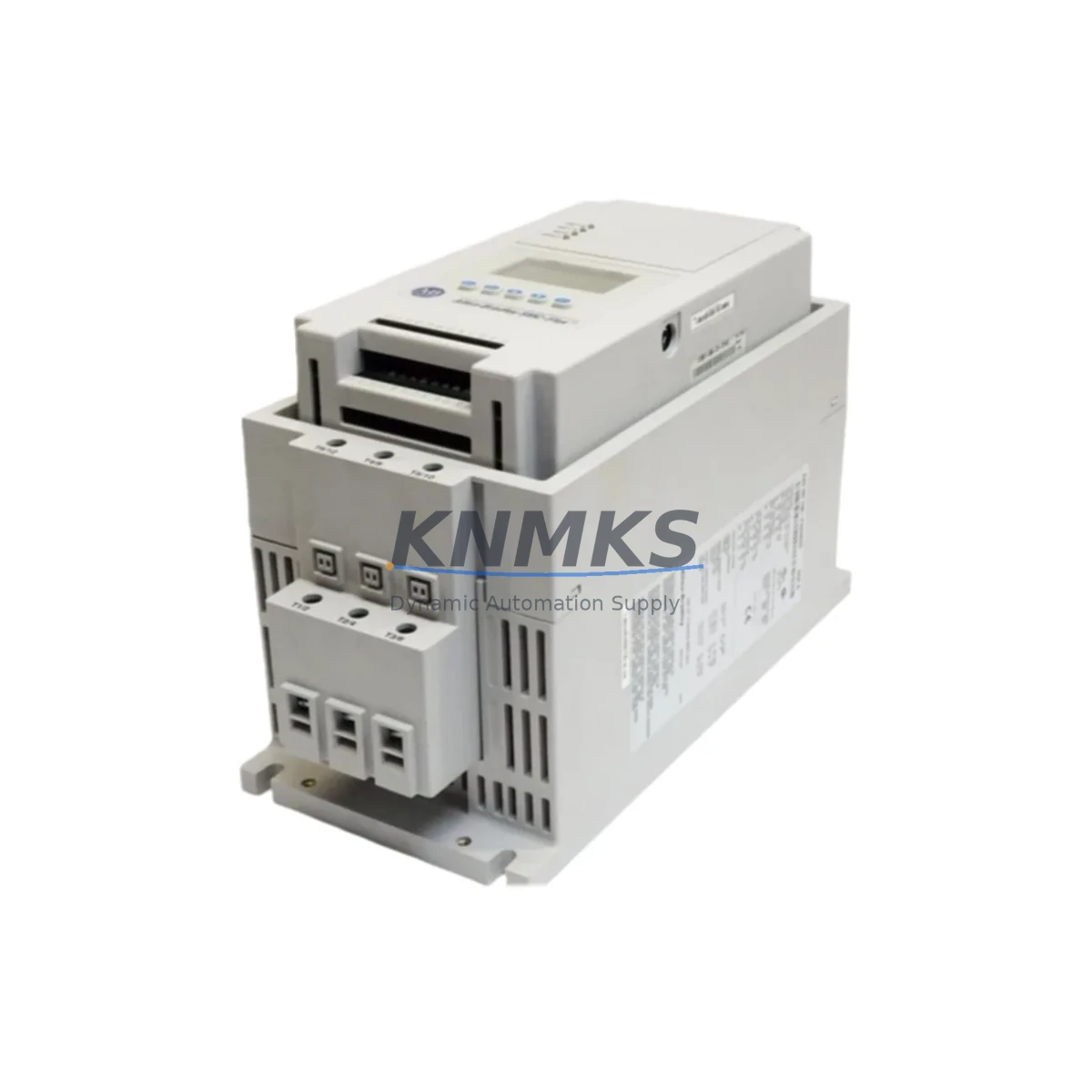

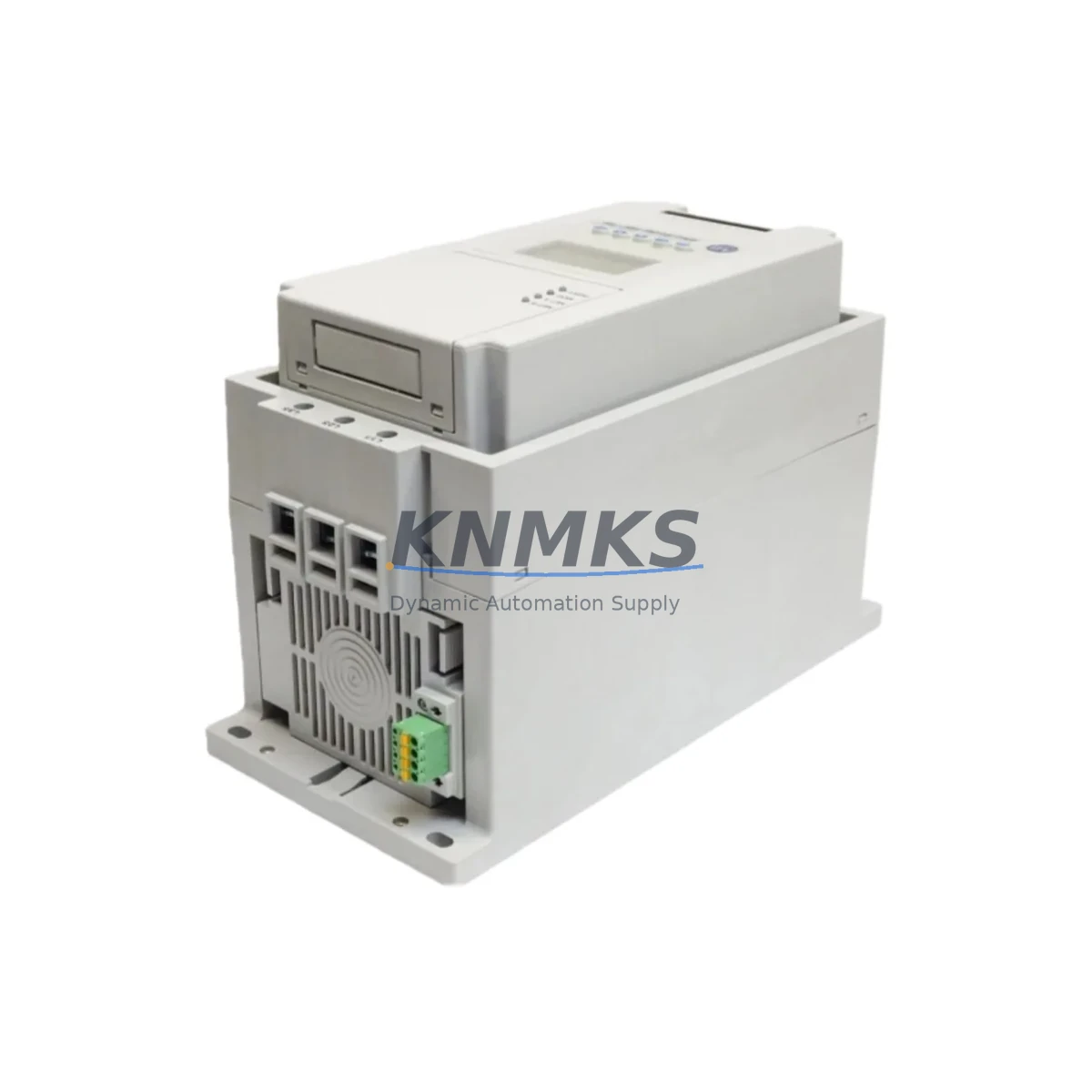

Allen-Bradley 150-F43NBDD Fail-Safe Motor Controller

Overview

Allen-Bradley 150-F43NBDD Fail-Safe Motor Controller: Fault Protection for Critical Industrial Reliability

The Allen-Bradley 150-F43NBDD is a high-performance SMC Flex Smart Motor Controller engineered for fail-safe operation in demanding industrial environments. Rated at 43A and 480V AC, this unit delivers precise soft-start and soft-stop control while integrating robust fault-isolation architecture that protects both the motor and the upstream control circuit. In continuous production facilities where unplanned downtime carries severe operational and safety consequences, the 150-F43NBDD provides the control reliability that engineers and maintenance teams depend on.

Designed to meet the rigorous demands of petrochemical plants, power generation stations, mining operations, water treatment facilities, metallurgical processing lines, port logistics systems, and continuous manufacturing environments, the 150-F43NBDD addresses the full spectrum of field-level hazards — from high electromagnetic interference and voltage surges to dust ingress, condensation, high ambient temperature, and mechanical vibration. Its built-in current limiting and phase-loss detection capabilities prevent motor damage during abnormal supply conditions, while the integrated bypass contactor option ensures that the motor can continue running even if the electronic control section requires service, eliminating forced process shutdowns.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered motor control center (MCC) or critical control cabinet, the 150-F43NBDD does not operate in isolation — it functions as the central soft-start node within a coordinated protection architecture. Upstream, a properly rated Allen-Bradley 140M Motor Protection Circuit Breaker provides short-circuit and overload protection before current reaches the SMC Flex module, ensuring that a downstream fault does not propagate into the bus. Alongside the 150-F43NBDD, a 100-C contactor from the Allen-Bradley 100-C series is commonly deployed as the main isolation contactor, enabling safe de-energization of the motor circuit during maintenance without disturbing the rest of the panel.

For power quality and surge protection at the cabinet level, a Rockwell Automation 1606-XLP series power supply is frequently used to stabilize the 24V DC control rail, preventing control logic errors caused by voltage dips or transient spikes on the AC supply. In DeviceNet-based architectures, the 150-F43NBDD communicates with a 1769-SDN DeviceNet Scanner module installed in a CompactLogix or ControlLogix rack, allowing the PLC to monitor motor current, fault status, and operating mode in real time — a critical capability for predictive maintenance and safety interlock verification.

Where the installation environment involves high dust concentration, moisture, or corrosive atmospheres, the control cabinet housing the 150-F43NBDD is typically paired with a 1492-SP series supplementary protector for branch circuit protection and a properly rated cabinet thermostat or fan unit to manage internal temperature. This layered approach — combining the SMC Flex’s internal fault detection with external circuit protection, stable power supply, and real-time PLC monitoring — creates a fail-safe motor control strategy that minimizes the risk of unplanned stops, nuisance trips, and equipment damage in the most demanding field conditions.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the 150-F43NBDD is deployed to control pumps, compressors, and agitators in hazardous process areas where motor startup surges must be strictly limited to prevent mechanical stress on couplings and seals. Its current-limiting soft-start mode reduces inrush current to a controlled ramp, protecting both the motor and the process piping from hydraulic shock.

In power generation and substation auxiliary systems, the SMC Flex 150-F43NBDD controls cooling fans, lube oil pumps, and exciter motors where continuous availability is non-negotiable. The integrated bypass contactor ensures that once the motor reaches full speed, the thyristor section is bypassed, eliminating heat generation and extending the service life of the electronic components in high-ambient-temperature environments.

In mining and mineral processing, where conveyor drives, crushers, and slurry pumps operate under heavy load and frequent start-stop cycles, the 150-F43NBDD’s overload and stall protection prevents motor burnout during blocked-rotor conditions. Its phase-imbalance detection is particularly valuable in remote mining sites where supply voltage quality is often poor.

In water and wastewater treatment, the 150-F43NBDD controls submersible pumps, blowers, and centrifuges in environments with high humidity and potential condensation. Its fault-isolation architecture ensures that a single motor fault does not cascade into a broader process disruption, supporting the continuous operation requirements of municipal water infrastructure.

In port and ship-loading systems, where crane drives and conveyor motors must start reliably under full load, the soft-start capability of the 150-F43NBDD reduces mechanical shock on gearboxes and structural frames, extending equipment service intervals and reducing unscheduled maintenance downtime.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the Allen-Bradley 150-F43NBDD?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions from the date of shipment. This includes thyristor failure, control board faults, and communication module defects. Support requests are supported with replacement unit dispatch or full repair service, with technical documentation provided upon request.

Q2: What pre-shipment testing is performed on the 150-F43NBDD before delivery?
Every unit undergoes functional verification testing prior to shipment, including power-on self-test, control input/output verification, communication port check, and visual inspection for physical integrity. Units sourced from verified supply channels are cross-referenced against Allen-Bradley factory serial number records where applicable to confirm authenticity and traceability.

Q3: Is the 150-F43NBDD compatible with existing Allen-Bradley PLC and SCADA systems?
Yes. The 150-F43NBDD with DeviceNet interface integrates directly with ControlLogix, CompactLogix, and MicroLogix PLC platforms via standard DeviceNet scanner modules. It is fully compatible with Rockwell Automation’s Studio 5000 and RSLogix 5000 programming environments, and EDS files are available for seamless device configuration within the DeviceNet network.

Q4: Can long-term supply and replacement support be arranged for the 150-F43NBDD?
Yes. We maintain standing inventory of the 150-F43NBDD and related SMC Flex series components to support long-term maintenance contracts, planned shutdowns, and emergency replacement requirements. Supply commitments for 12–36 month periods can be arranged for critical infrastructure operators, with agreed lead times and priority dispatch for emergency orders.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

150-F43NBDD

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 150-F43NBDD
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
