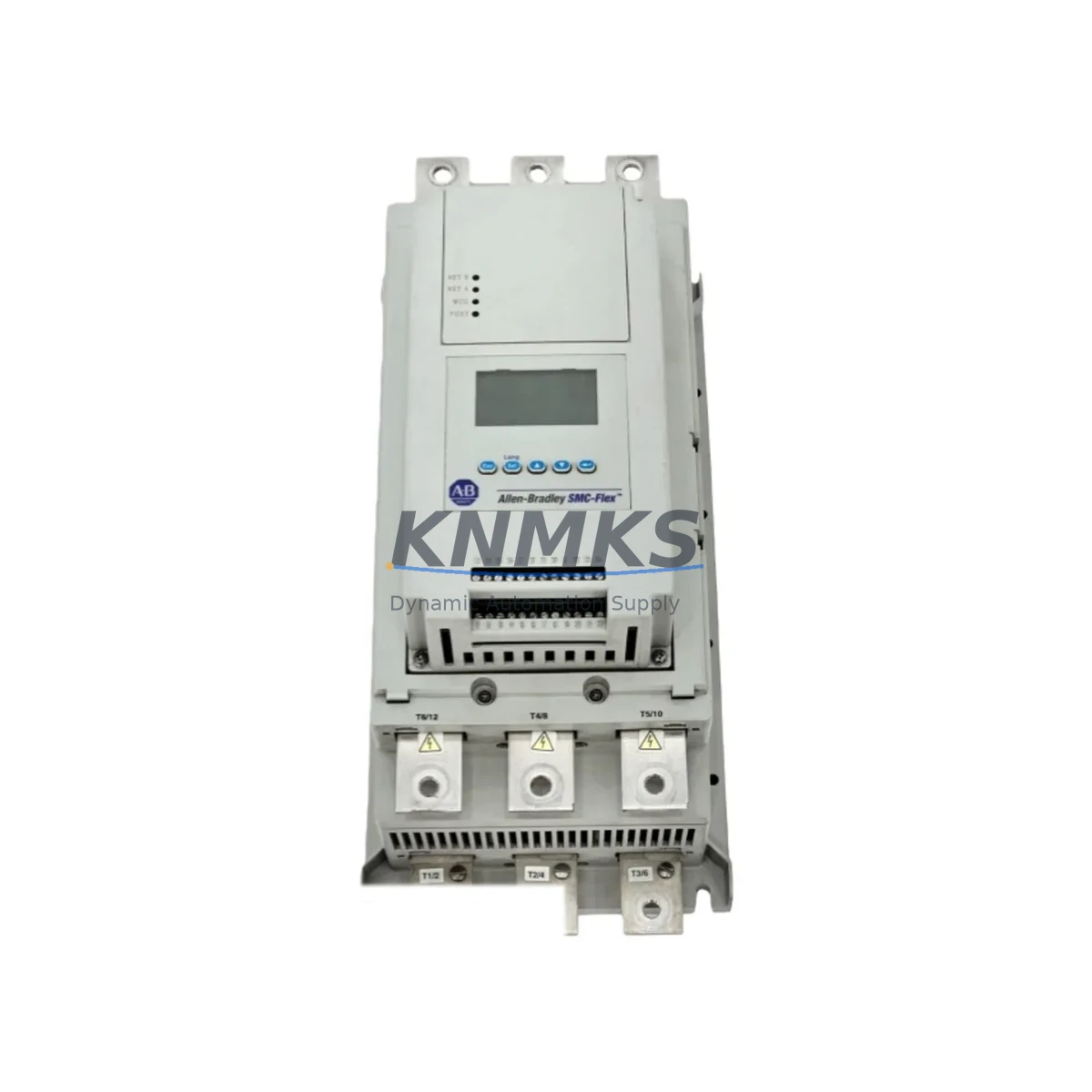

Allen-Bradley 150-F108NBD SMC-Flex Maintenance-Proven Spare Part for Factory Uptime

The Allen-Bradley 150-F108NBD is a 108A, 600V AC solid-state motor controller from the SMC-Flex series, equipped with DeviceNet communication for seamless integration into Rockwell Automation control architectures. As a maintenance-proven spare part, the 150-F108NBD is engineered to support rapid motor restart, minimize unplanned downtime, and sustain continuous production in energy, manufacturing, petrochemical, and infrastructure environments. KNMKS supplies this unit as an original spare with full functional testing, traceable documentation, and a support terms confirmed by quotation — ready for immediate deployment or controlled inventory storage.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement of the 150-F108NBD in a motor control center or standalone drive panel, maintenance engineers should treat the event as a full soft-starter circuit audit. The SMC-Flex 108A frame interfaces with multiple upstream and downstream components whose condition directly affects post-replacement reliability.

Begin with the DeviceNet communication trunk: verify the drop cable, termination resistors, and node address configuration before powering the replacement unit. A misconfigured DeviceNet node is one of the most common causes of post-replacement faults in Rockwell Automation systems. If the panel uses a 1756-DNB or 1769-SDN DeviceNet scanner module, confirm the EDS file and I/O mapping remain consistent with the new unit’s firmware revision.

Inspect the bypass contactor — typically a Bulletin 100 or 104 series Allen-Bradley contactor — for contact wear, coil resistance, and auxiliary contact continuity. A worn bypass contactor can cause nuisance trips or fail to transfer load after the soft-start ramp completes. Simultaneously, check the motor branch circuit protection: verify that the upstream fuses (Class J or Class CC, sized to 150-F108NBD specifications) and the motor circuit protector (MCP) are within rated interrupting capacity and show no signs of thermal stress.

For panels with 1492 terminal blocks or 1492-IFM interface modules, inspect wiring terminations at the control voltage input (100–240V AC) and the motor thermistor/PTC input if thermal protection is enabled. Loose terminations at these points are a leading cause of intermittent fault codes on SMC-Flex controllers. If the system uses signal isolators on the analog speed reference or current feedback loop, verify isolation barrier integrity and output calibration before returning the motor to service.

Finally, review the PanelView or PanelView Plus HMI fault history log for recurring overload, phase loss, or communication fault codes that may indicate a systemic issue beyond the soft starter itself. Addressing these upstream conditions before commissioning the 150-F108NBD replacement ensures the spare part delivers its full service life and prevents repeat failures.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: De-energize the motor branch circuit at the MCC bucket. Apply LOTO per site procedure. Verify absence of voltage at the 150-F108NBD line and load terminals using a calibrated meter.

Step 2 — Documentation: Photograph existing wiring, DeviceNet drop cable routing, and parameter label (if present). Record the current DeviceNet node address, baud rate, and any custom parameter settings from the controller display or RSNetWorx for DeviceNet backup file.

Step 3 — Removal: Disconnect line (L1/L2/L3), load (T1/T2/T3), control voltage, DeviceNet drop cable, and thermistor wiring. Remove the unit from the panel using the standard SMC-Flex mounting hardware.

Step 4 — Installation of 150-F108NBD Spare: Mount the replacement unit. Reconnect all wiring per the original documentation. Restore the DeviceNet node address and baud rate. Re-enter custom parameters (ramp time, current limit, kick start, etc.) from the backup file or site record.

Step 5 — Pre-Energization Check: Verify control voltage polarity, DeviceNet termination, and bypass contactor wiring. Confirm fuse ratings match the motor FLA and SMC-Flex specifications.

Step 6 — Commissioning: Energize the branch circuit. Perform a no-load start to verify DeviceNet communication status (green LED). Execute a loaded start and monitor current ramp profile on the HMI or RSLogix 5000 online diagnostics. Confirm motor reaches full speed without fault.

This workflow supports a target replacement time of under 4 hours for a trained maintenance team, minimizing production line downtime and ensuring system compatibility is maintained without PLC program changes.

Spare Parts Support FAQ

Q1: Is the 150-F108NBD a direct drop-in replacement for my existing SMC-Flex unit?
Yes. The 150-F108NBD is a standard SMC-Flex 108A frame with DeviceNet communication. It is dimensionally and electrically compatible with all SMC-Flex 108A installations. No PLC program changes are required provided the DeviceNet node address and parameters are restored from backup. KNMKS recommends verifying firmware revision compatibility if your system uses advanced SMC-Flex features such as soft braking or pump control.

Q2: What testing is performed before shipment?
Every 150-F108NBD unit supplied by KNMKS undergoes functional power-on testing, insulation resistance verification, and DeviceNet communication check. A test report is included with each shipment. Units are packed in anti-static, shock-protected packaging suitable for international freight.

Q3: Can KNMKS support long-term or blanket purchase orders for this part?
Yes. KNMKS offers long-term supply agreements and consignment stock arrangements for critical spare parts including the 150-F108NBD. This is particularly valuable for facilities managing aging SMC-Flex installations where OEM availability may be limited. Contact our team to discuss lead time commitments, minimum order quantities, and pricing for annual or multi-year supply contracts.

Q4: What is covered under the support terms confirmed by quotation?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside rated specifications. KNMKS provides replacement or repair at no charge for warranted failures, with priority processing to minimize customer downtime.
