Allen-Bradley 1492-IFM20F-F120A-2 Spare Part for Uptime

Overview

Allen-Bradley 1492-IFM20F-F120A-2 Maintenance-Proven Spare Part for Factory Uptime

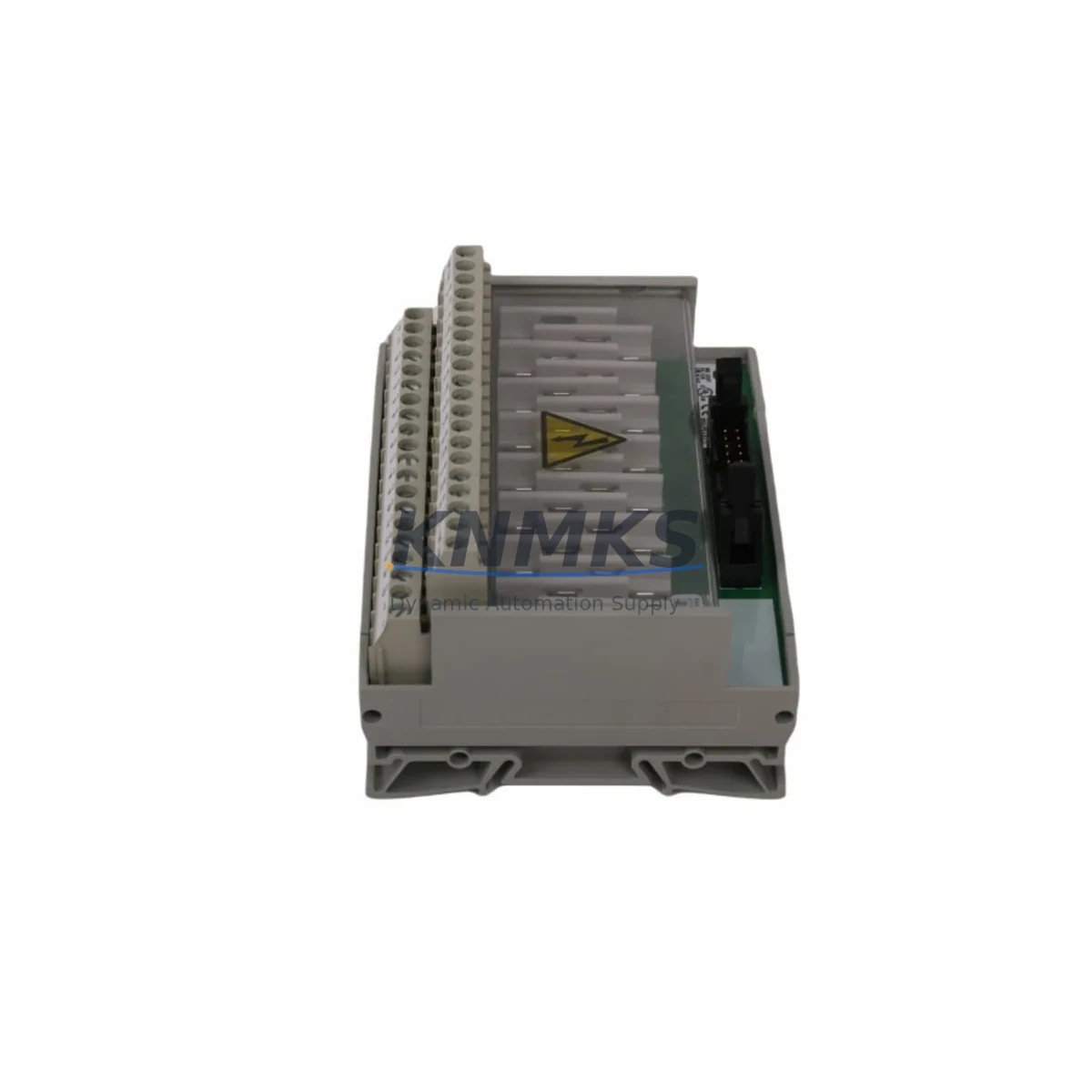

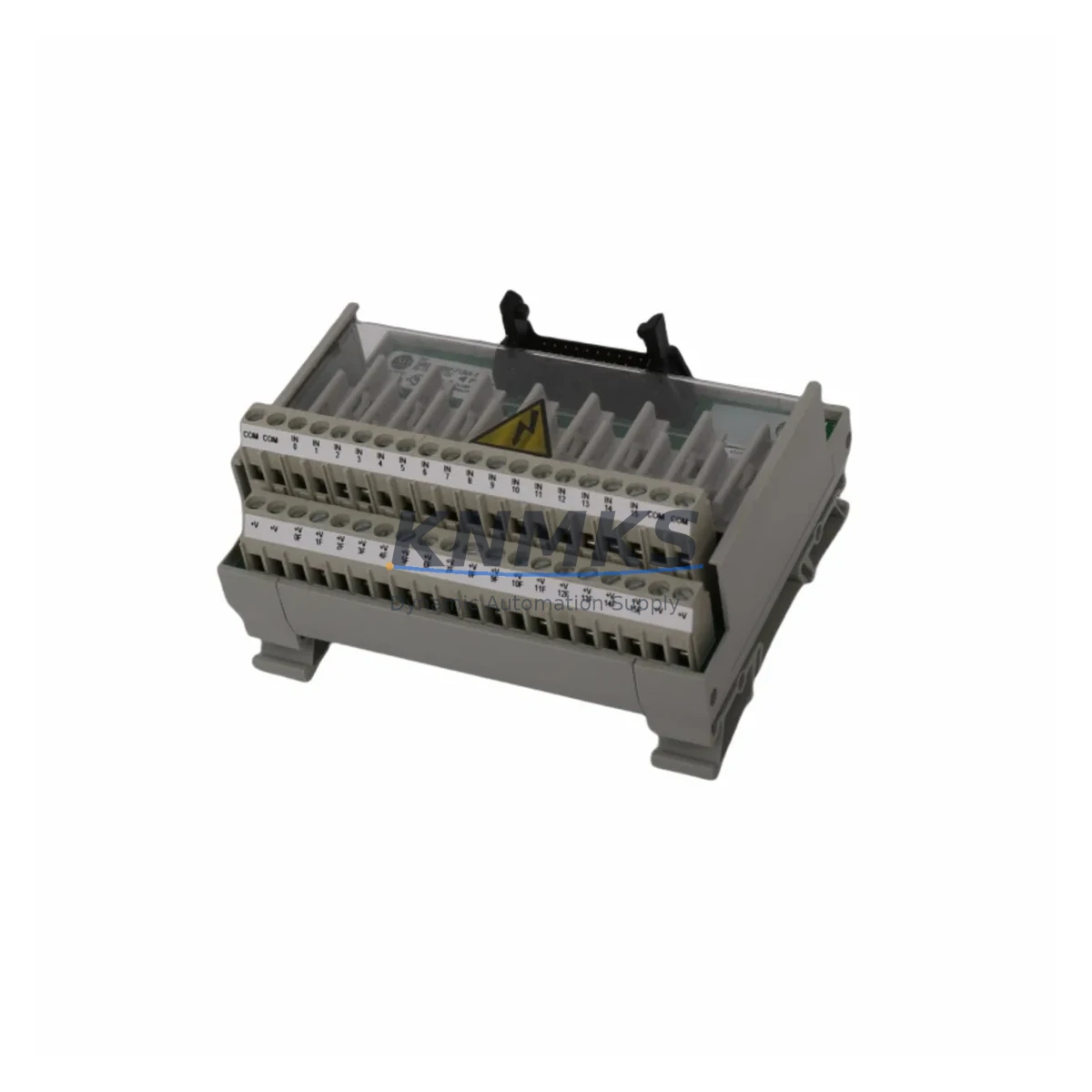

The Allen-Bradley 1492-IFM20F-F120A-2 is a 20-circuit fusible interface module (IFM Series) designed for direct integration with Allen-Bradley 1746 SLC 500 and compatible I/O wiring systems. As a critical wiring interface between field devices and PLC I/O modules, this component plays a central role in maintaining signal integrity, protecting I/O channels from overcurrent events, and enabling fast, organized field wiring in industrial control cabinets. Sourced as an original spare, the 1492-IFM20F-F120A-2 is tested before shipment and backed by a support terms confirmed by quotation, making it a reliable choice for maintenance engineers managing aging SLC 500 systems or building proactive spare parts inventories.

For maintenance and procurement engineers responsible for factory uptime, having a verified replacement unit of the 1492-IFM20F-F120A-2 on the shelf is a straightforward risk mitigation strategy. Fusible interface modules are high-wear components in environments with frequent field device changes, voltage transients, or aging wiring infrastructure. A blown fuse or degraded module can take an entire I/O group offline, halting production until the fault is isolated and the module replaced. Stocking this spare eliminates that delay.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the 1492-IFM20F-F120A-2 during scheduled maintenance or emergency fault response, a thorough review of the surrounding electrical circuit is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should begin by verifying the condition of the 1492-CABLE series wiring harness that connects the IFM module to the 1746 I/O rack — damaged or aged cables are a common root cause of intermittent signal faults that are often misattributed to the module itself.

Next, inspect the Allen-Bradley 1746-P4 or 1746-P2 power supply module supplying the SLC 500 rack. Voltage sags or ripple on the 24VDC or 120VAC bus can stress interface modules and accelerate fuse degradation. If the power supply is original to an aging system, it should be included in the annual replacement schedule alongside the IFM module.

For systems with mixed discrete and analog I/O, check the 1746-IB16 or 1746-OB16 I/O modules seated in the same rack. A shorted field device that caused the IFM fuse to blow may have also introduced transient stress to adjacent I/O channels. Verify channel-by-channel continuity before returning the system to service.

In control cabinets where the SLC 500 communicates over DeviceNet or DH-485, inspect the communication module — typically a 1747-SDN Scanner or 1747-AIC Link Coupler — for any fault indicators. A field wiring fault at the IFM level can sometimes propagate upstream and trigger communication timeouts that appear as PLC faults rather than field wiring issues.

Procurement engineers building annual spare parts kits for SLC 500 panels should also consider stocking the 1492-XIMF miniature fuse cartridges compatible with the IFM20F series, as well as a spare 1747-L543 or 1747-L553 SLC 5/04 or 5/05 processor module for systems where the controller itself is approaching end-of-life. Pairing the 1492-IFM20F-F120A-2 with these components in a single annual procurement order reduces lead time risk and simplifies cabinet-level maintenance documentation.

For facilities running multiple SLC 500 cabinets, a standardized inspection checklist that includes the IFM module, power supply, I/O modules, wiring harness, and communication links will reduce mean time to repair (MTTR) and support a predictive maintenance posture rather than a reactive one.

Site Replacement Workflow

Replacing the 1492-IFM20F-F120A-2 on-site is a straightforward procedure when the correct spare is available and the replacement workflow is followed systematically. Begin by isolating the affected I/O group at the SLC 500 rack — place the processor in Program mode and de-energize the field wiring circuit before disconnecting the IFM module. Document the existing wiring layout or photograph the terminal connections before removal to ensure accurate re-termination.

Disconnect the 1492-CABLE wiring harness from the module, then remove the IFM from its DIN rail or panel mount position. Install the replacement 1492-IFM20F-F120A-2, reconnect the wiring harness, and verify that all field device connections are secure and correctly positioned. Before returning the processor to Run mode, use a multimeter to confirm continuity across each of the 20 circuits and verify that no fuses are blown in the replacement unit.

Once the module is installed and wiring is confirmed, restore power to the field circuit and return the SLC 500 processor to Run mode. Monitor the I/O status indicators on the 1746 rack for the first several minutes of operation to confirm that all channels are reporting correctly. If any channel faults persist, isolate the field device on that circuit before concluding that the replacement module is defective.

For facilities transitioning away from legacy SLC 500 infrastructure, the 1492-IFM20F-F120A-2 is also compatible with certain ControlLogix and CompactLogix wiring migration scenarios where the 1492-IFM wiring system is retained as part of a phased modernization. This compatibility extends the useful life of existing field wiring infrastructure and reduces the cost of full cabinet rewiring during system upgrades.

Spare Parts Support FAQ

Q1: Is the 1492-IFM20F-F120A-2 compatible with both SLC 500 and ControlLogix I/O systems?
The 1492-IFM20F-F120A-2 is primarily designed for use with Allen-Bradley 1746 SLC 500 I/O modules via the 1492-CABLE wiring system. In certain migration and hybrid panel configurations, it may also be used with ControlLogix I/O where the 1492-IFM wiring infrastructure is retained. Compatibility should be verified against the specific I/O module catalog number and wiring harness before installation.

Q2: How is the unit tested before shipment, and what does the support terms confirmed by quotation cover?
Each 1492-IFM20F-F120A-2 unit undergoes functional and continuity testing across all 20 circuits prior to shipment. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, field wiring faults, or operation outside rated voltage and temperature specifications.

Q3: What is the recommended spare parts stocking strategy for facilities with multiple SLC 500 panels?
For facilities operating three or more SLC 500 control panels, maintaining a minimum of one 1492-IFM20F-F120A-2 per panel type in the on-site spare parts inventory is recommended. Annual procurement cycles aligned with scheduled shutdowns reduce emergency sourcing lead times. Pairing the IFM module with compatible fuse cartridges and a wiring harness in a pre-kitted maintenance package further reduces MTTR during unplanned outages.

Q4: Can this module be used as a direct replacement for older or discontinued IFM variants?
The 1492-IFM20F-F120A-2 is designed as a direct replacement for earlier 20-circuit fusible IFM modules in the same series. Physical dimensions, terminal layout, and wiring harness compatibility are maintained across the IFM20F product family. For cross-reference verification with specific legacy part numbers, consult the Allen-Bradley 1492 Interface Module Selection Guide or contact our technical support team before ordering.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1492-IFM20F-F120A-2

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 1492-IFM20F-F120A-2
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
