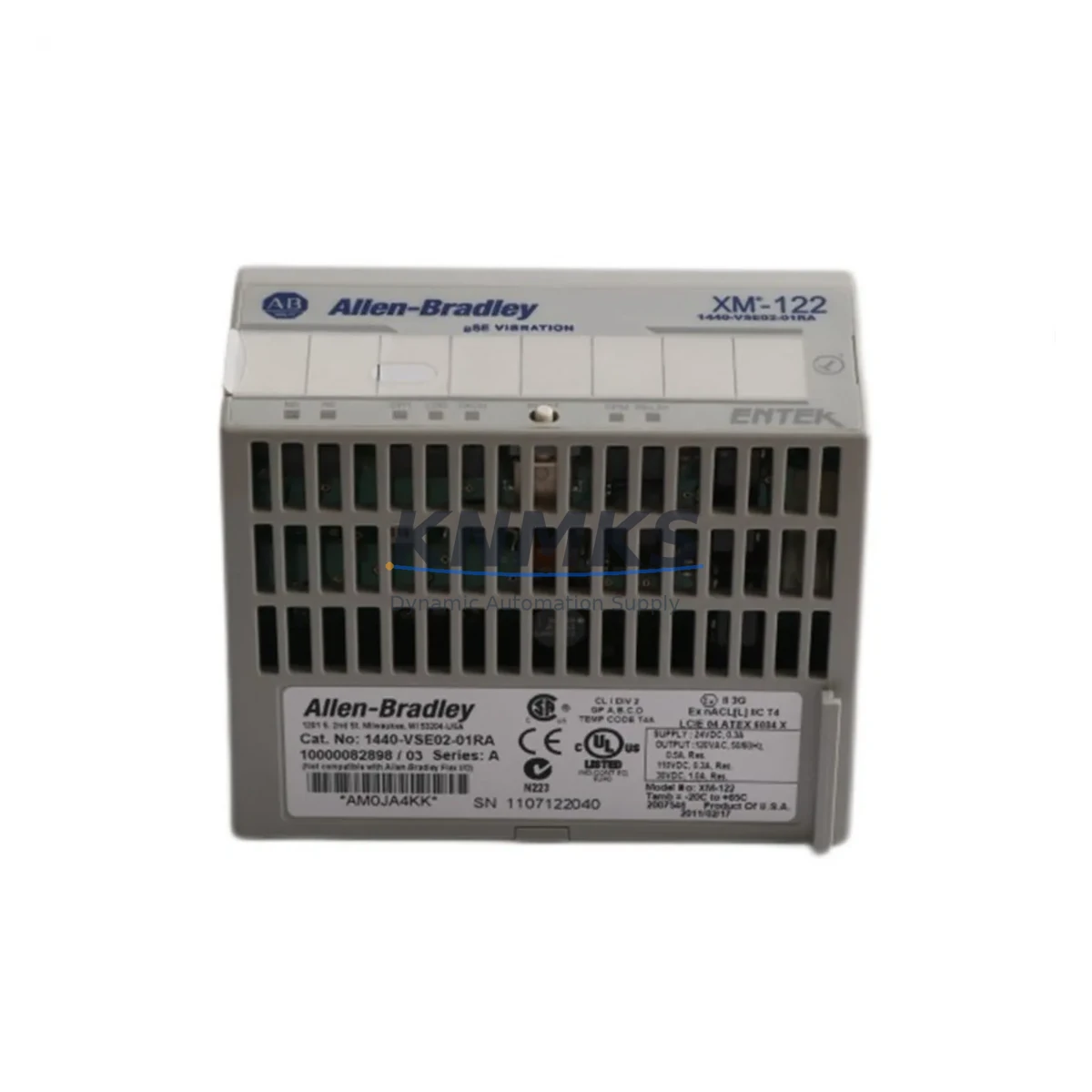

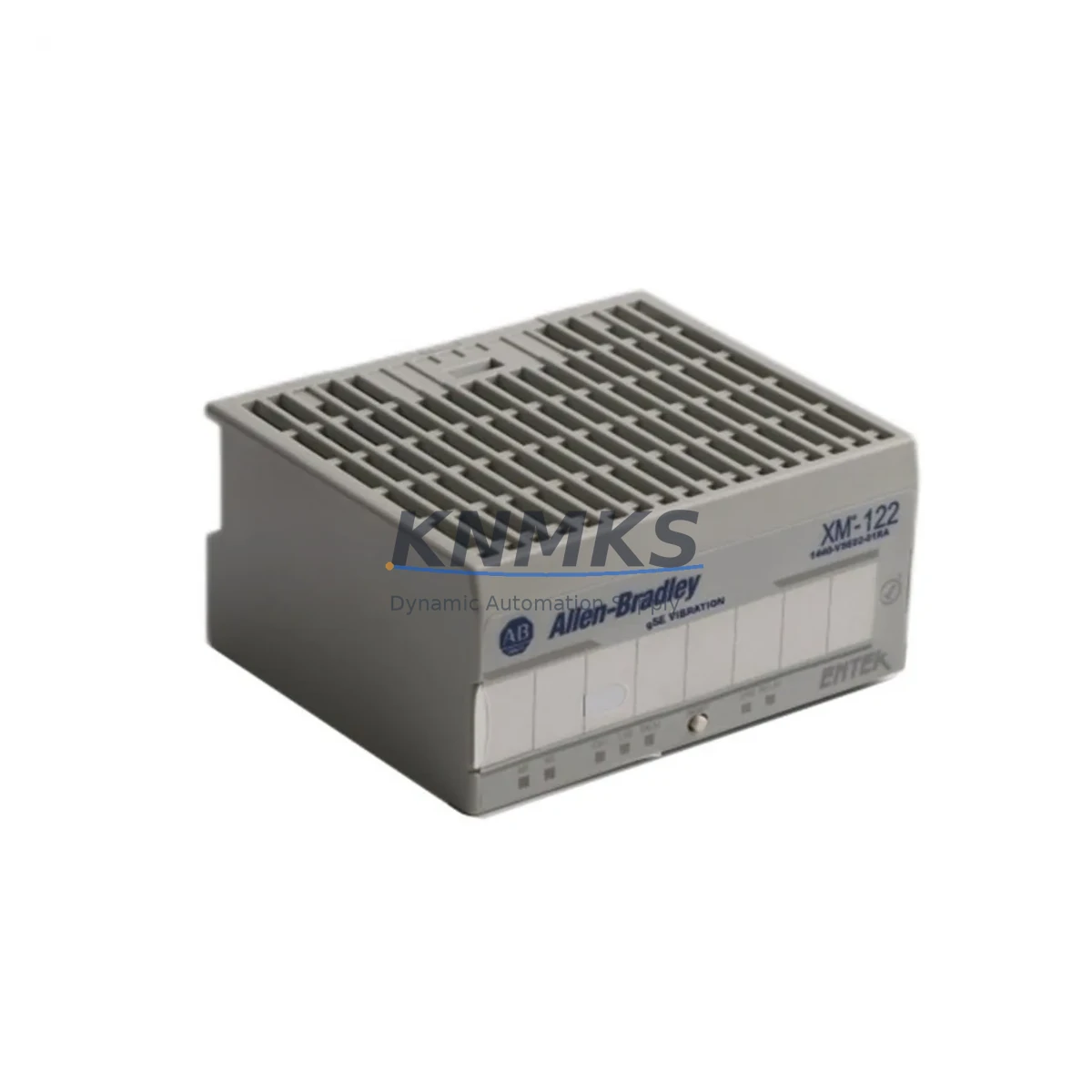

Allen-Bradley 1440-VSE02-01RA Fail-Safe Vibration Monitor

Overview

Allen-Bradley 1440-VSE02-01RA Fail-Safe Vibration Monitor: Fault Protection for Critical Industrial Control Reliability

The Allen-Bradley 1440-VSE02-01RA is a dual-channel vibration sensing module from the Rockwell Automation Dynamix 1440 series, engineered for continuous, fail-safe machine condition monitoring in the most demanding industrial environments. Designed to detect abnormal vibration, bearing wear, imbalance, and mechanical looseness before they escalate into unplanned shutdowns, this module delivers the real-time protection that critical production lines, rotating equipment, and high-value assets require.

In industries where a single control interruption can trigger cascading failures — from petrochemical reactors and power generation turbines to mining conveyors and port crane drives — the 1440-VSE02-01RA provides the early-warning intelligence that keeps operations running safely. Its dual-channel architecture enables simultaneous monitoring of two measurement points, reducing blind spots in rotating machinery protection and supporting redundant safety interlock configurations.

Built to withstand high electromagnetic interference (EMI), voltage surges, and the thermal cycling common in heavy-duty control cabinets, the 1440-VSE02-01RA maintains signal integrity even when co-located with variable frequency drives (VFDs), high-current contactors, and power switching equipment. Signal drift — a chronic risk in analog vibration systems — is actively suppressed through the module’s precision signal conditioning circuitry, ensuring that alarm thresholds remain accurate over extended service intervals.

For facilities operating in dusty, humid, or high-temperature environments such as cement plants, steel mills, water treatment stations, and offshore platforms, the module’s robust housing and sealed connector design provide reliable protection against ingress and corrosion. Vibration and shock resistance ratings ensure the unit remains operational even in environments subject to structural vibration from heavy machinery or transportation.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 1440-VSE02-01RA is most effective when deployed as part of a coordinated control cabinet protection strategy. In a typical critical drive protection cabinet, the module works alongside the Allen-Bradley 1440-TPS02-01RB tachometer and process input module to correlate vibration data with shaft speed, enabling speed-normalized alarm logic that eliminates nuisance trips during startup and coast-down phases.

Power supply stability is foundational to reliable vibration monitoring. Pairing the 1440-VSE02-01RA with a Rockwell Automation 1606-XLP power supply ensures clean, regulated DC power free from the ripple and transient spikes that can corrupt analog sensor readings. For cabinets exposed to utility-side voltage fluctuations or lightning-induced surges, an upstream Allen-Bradley 1783-series surge protection device provides an additional layer of defense for the entire monitoring system.

In safety-critical interlock loops — such as those protecting compressors, pumps, and turbines in petrochemical or power generation facilities — the vibration trip output from the 1440-VSE02-01RA is typically wired into a Rockwell Automation GuardLogix safety PLC or a dedicated Allen-Bradley MSR127RP safety relay module, enabling certified SIL-rated shutdown responses when vibration thresholds are exceeded. This architecture ensures that a detected mechanical fault triggers a controlled, safe machine stop rather than a catastrophic failure.

For communication-intensive installations where vibration data must be transmitted to a supervisory SCADA or DCS layer, the Dynamix 1440 system — including the 1440-VSE02-01RA — integrates with Allen-Bradley 1756-EN2T EtherNet/IP communication modules in the ControlLogix backplane, enabling real-time data streaming to historian and condition monitoring platforms without additional signal converters or protocol gateways.

Critical Industrial Safety Applications

Petrochemical & Refining: Continuous monitoring of centrifugal pumps, compressors, and agitators in hazardous-area process trains. The 1440-VSE02-01RA provides the early fault detection needed to prevent seal failures and bearing collapses that could trigger process upsets or safety system activations in SIL 2/3 environments.

Power Generation: Turbine and generator bearing protection in coal-fired, gas, and hydroelectric plants. Vibration exceedance alarms feed directly into turbine protection systems, enabling controlled load shedding before mechanical damage occurs.

Mining & Mineral Processing: Conveyor drive, crusher, and ball mill motor protection in high-dust, high-vibration environments. The module’s EMI immunity is critical in sites where large variable-speed drives and blasting activities create severe electrical noise.

Water & Wastewater Treatment: Pump station and blower monitoring for unattended remote installations. Predictive maintenance alerts reduce emergency callouts and extend mean time between failures (MTBF) for critical pumping infrastructure.

Metallurgy & Steel: Rolling mill drive and continuous caster protection. High-temperature and high-vibration operating conditions demand the robust signal conditioning and thermal tolerance that the Dynamix 1440 platform provides.

Port & Marine: Crane hoist motor and shipboard propulsion auxiliary monitoring. The module’s resistance to shock and humidity makes it suitable for marine-grade control panels and outdoor port equipment enclosures.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 1440-VSE02-01RA?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform to its published specifications within the confirmed support period, we provide replacement or repair at no additional cost. Support requests are processed promptly to minimize your downtime.

Q2: How is the module tested before shipment?
Every 1440-VSE02-01RA unit undergoes full functional verification prior to dispatch. This includes power-on testing, channel signal integrity checks, and communication bus validation to confirm the module meets Allen-Bradley Dynamix 1440 performance standards before it leaves our facility.

Q3: Is the 1440-VSE02-01RA compatible with existing Dynamix 1440 and ControlLogix systems?
Yes. The 1440-VSE02-01RA is a native Dynamix 1440 series module and is fully compatible with existing Dynamix 1440 chassis, backplane configurations, and Rockwell Automation ControlLogix / CompactLogix controller architectures. No additional adapters or firmware modifications are required for standard integration.

Q4: Can long-term supply and replacement support be guaranteed?
We maintain dedicated inventory of the 1440-VSE02-01RA and key Dynamix 1440 series components to support ongoing MRO (maintenance, repair, and operations) requirements. For facilities with critical sparing strategies, we can discuss reserved stock arrangements and lead-time commitments to ensure replacement units are available when needed.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1440-VSE02-01RA

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 1440-VSE02-01RA
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
