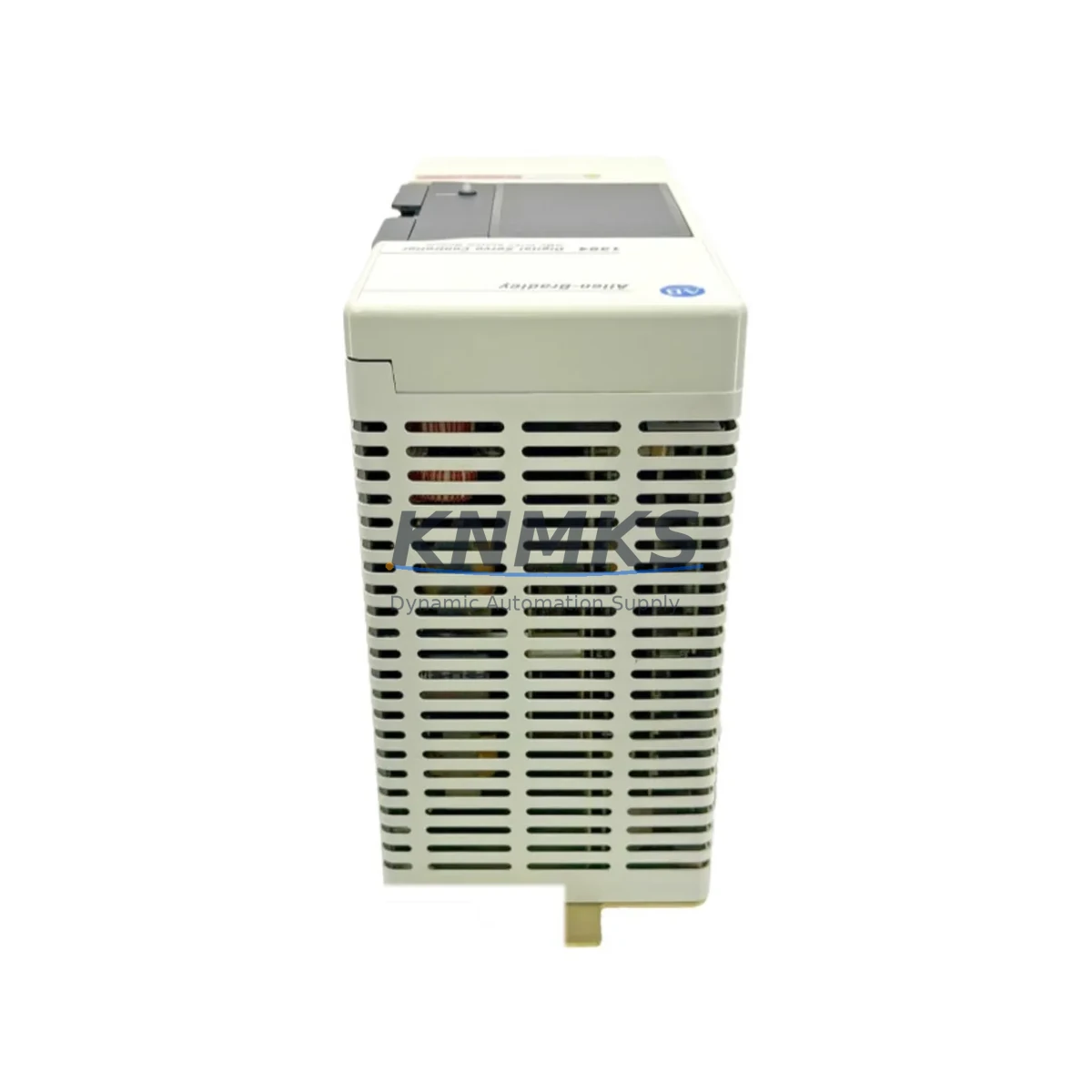

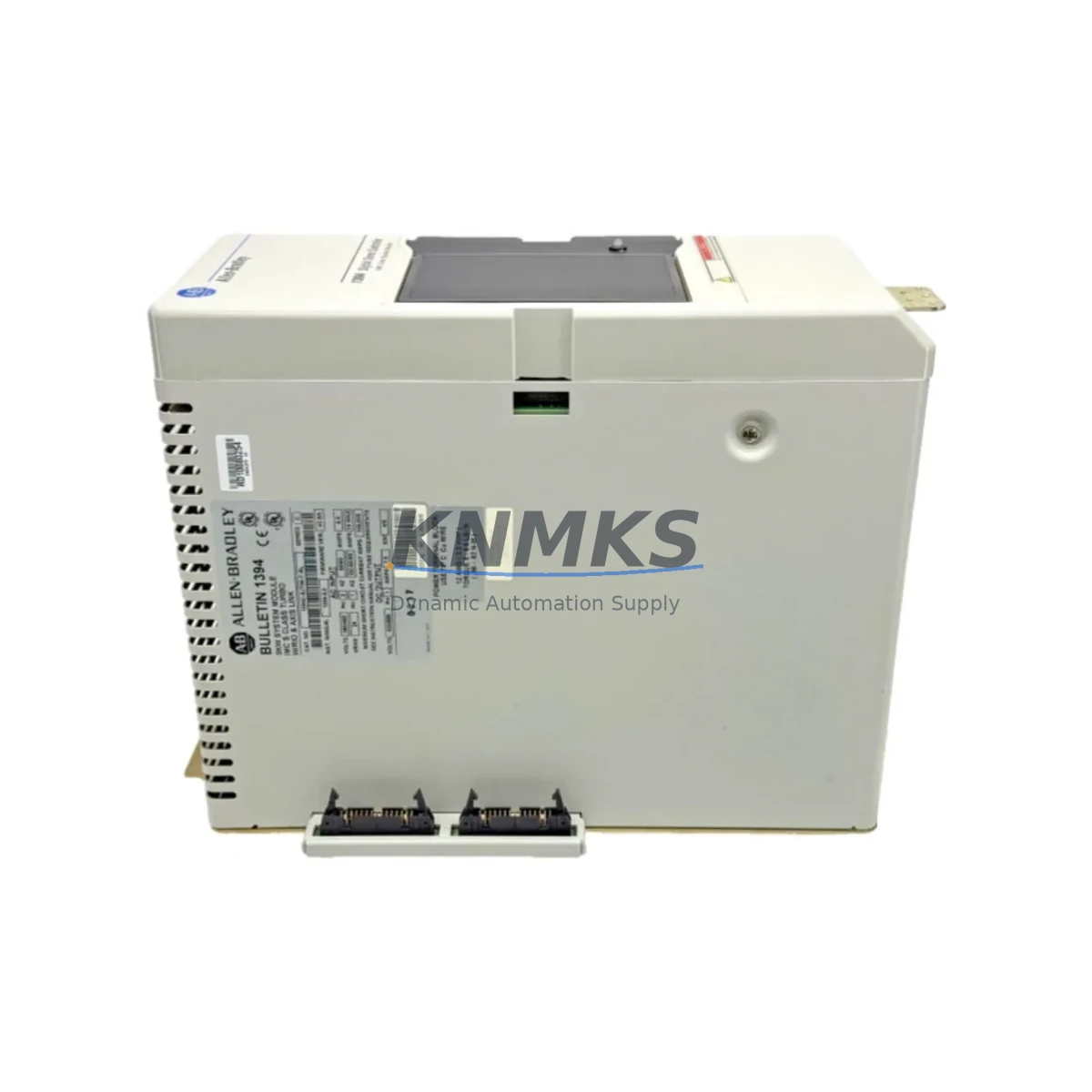

Allen-Bradley 1394C-SJT05-T-RL Fail-Safe Servo Controller

Overview

Allen-Bradley 1394C-SJT05-T-RL Fail-Safe Servo Controller: Fault Protection and Critical Industrial Field Reliability

The Allen-Bradley 1394C-SJT05-T-RL is a 5kW, 4-Axis RIO (Remote I/O) Servo Controller engineered for continuous production environments where control interruption is not an option. As part of Rockwell Automation’s 1394 Series multi-axis motion control platform, this unit delivers deterministic servo loop performance, robust fault isolation, and fail-safe shutdown capability across demanding industrial applications including petrochemical processing, power generation, mining, metallurgy, and continuous manufacturing lines.

In high-stakes control cabinets where electromagnetic interference, power fluctuations, and thermal stress are constant threats, the 1394C-SJT05-T-RL provides a hardened motion control backbone. Its integrated RIO communication architecture ensures real-time synchronization with Allen-Bradley PLC platforms — including the PLC-5 and SLC 500 series — eliminating signal drift and communication anomalies that can trigger unplanned shutdowns or dangerous mis-operations. The controller’s internal diagnostics continuously monitor axis status, drive health, and bus voltage, enabling predictive fault response before a process-critical failure occurs.

For facilities operating under IEC 61508 or SIL-rated safety requirements, the 1394C-SJT05-T-RL supports integration into safety-rated motion circuits. When paired with Allen-Bradley 1492 Series safety relays or Guardmaster safety modules, the servo system can execute controlled stop sequences (STO/SS1) that protect both personnel and machinery during emergency conditions. This makes it a preferred choice for interlock-critical applications such as press brakes, winding machines, and automated guided vehicle (AGV) drive systems.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable servo control cabinet is only as strong as its weakest component. The 1394C-SJT05-T-RL is designed to operate as the motion control core within a fully protected cabinet architecture. In high-load or high-cycle applications, it is commonly deployed alongside the Allen-Bradley 1394-SR5.0 servo power module, which conditions the DC bus and provides regulated power delivery to all four axes — preventing voltage sag during rapid acceleration or regenerative braking events.

For cabinet-level power quality, the Allen-Bradley 1321-3R Series line reactors are frequently installed upstream of the 1394C-SJT05-T-RL to attenuate harmonic distortion and protect the drive input from utility-side transients. In environments with heavy switching loads or variable frequency drives sharing the same bus, this combination significantly reduces the risk of nuisance trips and premature component wear.

Communication integrity is maintained through the Allen-Bradley 1770-KF2 RIO communication adapter, which bridges the servo controller’s RIO network to the host PLC backplane. In facilities where network redundancy is required, a secondary RIO scanner module ensures that a single cable fault does not interrupt the motion sequence. For safety interlock circuits, the Allen-Bradley 440R-N23132 Guardmaster safety relay provides hardwired STO (Safe Torque Off) capability, ensuring that the servo axes de-energize safely upon E-stop activation without relying solely on software commands.

Thermal management within the cabinet is addressed by pairing the 1394C-SJT05-T-RL with Rittal SK Series cabinet cooling units or equivalent forced-air systems, maintaining ambient temperatures within the controller’s rated operating range even in high-ambient industrial environments. Additionally, Allen-Bradley 1492-SP Series supplementary protectors are recommended on individual axis output circuits to provide branch-circuit protection and simplify fault isolation during maintenance.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments, the 1394C-SJT05-T-RL controls multi-axis positioning of valve actuators, compressor drives, and conveyor indexing systems. Its deterministic RIO communication ensures that motion commands are executed within defined scan cycle windows, preventing process upsets caused by control latency. The controller’s overvoltage and overcurrent protection circuits prevent cascade failures in the event of a motor winding fault or cable insulation breakdown.

Power Generation & Utilities: Turbine auxiliary systems, cooling tower fan drives, and fuel handling conveyors rely on precise, fault-tolerant servo control. The 1394C-SJT05-T-RL’s integrated diagnostics allow maintenance teams to identify developing faults — such as encoder signal degradation or bus ripple — before they escalate to unplanned outages. Its compatibility with existing PLC-5 infrastructure makes it a drop-in replacement in legacy power plant control systems without requiring full platform migration.

Mining & Mineral Processing: In underground and surface mining operations, servo controllers face extreme dust ingress, vibration, and wide temperature swings. The 1394C-SJT05-T-RL’s robust construction and EMI immunity make it suitable for controlling ore conveyor positioning, crusher feed systems, and hoist drive coordination. Its fail-safe shutdown capability ensures that all axes reach a controlled stop state in the event of a safety system activation, protecting both equipment and personnel.

Water & Wastewater Treatment: Pump station automation, sluice gate positioning, and chemical dosing systems benefit from the 1394C-SJT05-T-RL’s precise multi-axis coordination. In facilities where motor drives and servo systems share common power infrastructure, the controller’s built-in surge immunity prevents false trips caused by switching transients from large pump motors starting across the line.

Metallurgy & Steel Mills: Rolling mill drives, coiler positioning systems, and ladle transfer cars operate under extreme mechanical loads and high electromagnetic interference. The 1394C-SJT05-T-RL’s 5kW capacity and 4-axis coordination capability make it well-suited for synchronized multi-axis tension control and position registration in strip processing lines. Its thermal protection circuits prevent drive damage during extended high-load cycles.

Port & Marine Applications: Container crane spreader positioning, ship loader conveyors, and mooring winch control systems require servo controllers that can operate reliably in salt-air, high-humidity environments. The 1394C-SJT05-T-RL’s panel-mount design allows installation in sealed, climate-controlled cabinets that protect the electronics from corrosive atmospheric conditions while maintaining full motion control performance.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 1394C-SJT05-T-RL?
The support terms confirmed by quotation cover full functional performance of the servo controller under normal industrial operating conditions. Every unit undergoes pre-shipment functional testing — including axis communication verification, fault response validation, and power-on diagnostics — before dispatch. If a verified functional defect is identified within the confirmed support period, we provide repair or replacement support. Support terms coverage begins from the date of shipment.

Q2: How is the 1394C-SJT05-T-RL tested before shipment?
Each unit is powered on and subjected to a multi-point inspection covering DC bus integrity, RIO communication handshake, axis enable/disable response, and fault relay output verification. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is the 1394C-SJT05-T-RL compatible with my existing PLC-5 or SLC 500 system?
Yes. The 1394C-SJT05-T-RL communicates natively via Allen-Bradley Remote I/O (RIO) protocol, which is the standard communication interface for PLC-5 and SLC 500 platforms. No additional communication adapters are required for direct integration. For ControlLogix or CompactLogix platforms, a 1747-SN RIO scanner or equivalent adapter module is required to bridge the RIO network.

Q4: Can long-term supply and replacement support be arranged for this model?
Yes. We maintain standing inventory of the 1394C-SJT05-T-RL and related 1394 Series components to support long-term maintenance contracts and planned replacement programs. For facilities with critical uptime requirements, we recommend establishing a consignment or reserved-stock arrangement to ensure immediate availability during scheduled overhauls or emergency replacements. Contact our technical sales team to discuss supply commitment options tailored to your maintenance cycle.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1394C-SJT05-T-RL

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 1394C-SJT05-T-RL
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
