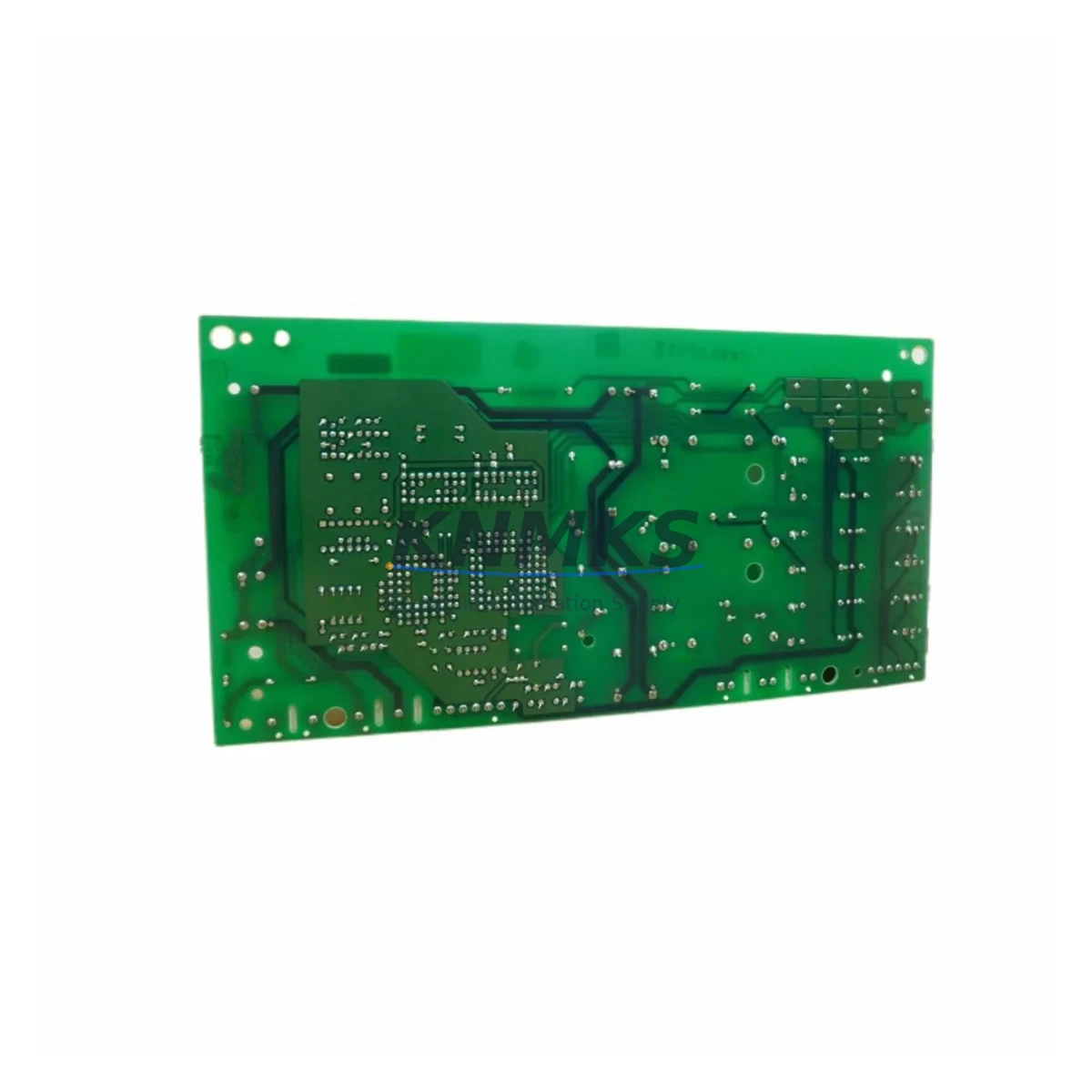

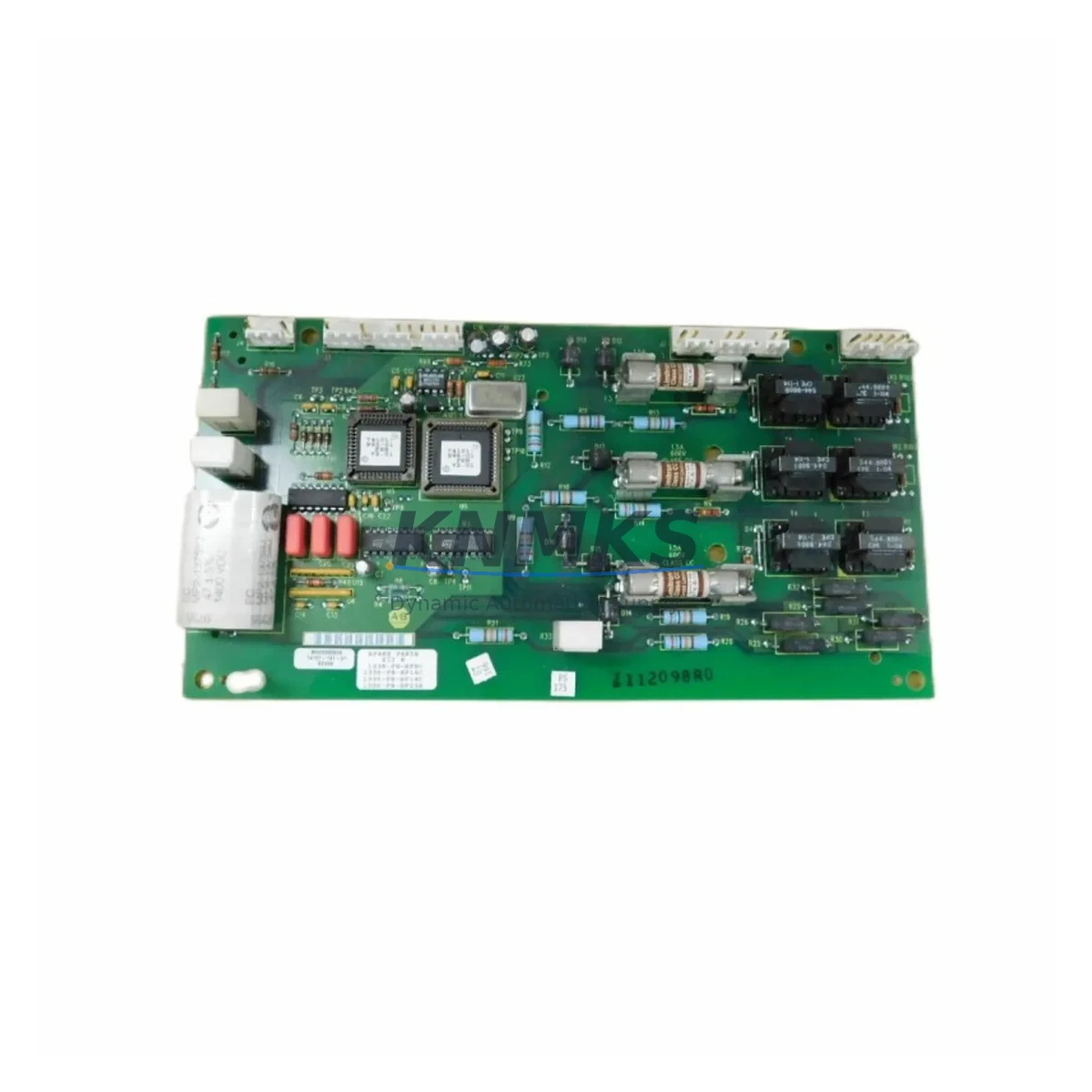

Allen-Bradley 1336-PB-SP8C Migration-Ready Power Board

Overview

Allen-Bradley 1336-PB-SP8C Migration-Ready Power Board: Legacy Drive Retrofit & Control System Upgrade

The Allen-Bradley 1336-PB-SP8C is a migration-ready power board engineered for direct replacement within the 1336 PLUS and 1336 PLUS II AC drive families — one of Rockwell Automation’s most widely deployed variable frequency drive platforms across manufacturing, water treatment, HVAC, and process control industries. As the 1336 series approaches end-of-life and spare parts become increasingly scarce, the 1336-PB-SP8C remains a critical component for facilities committed to extending the operational life of their existing drive infrastructure without committing to a full system overhaul.

This power board governs the core DC bus regulation, gate drive signal distribution, and fault protection logic within the 1336 PLUS II chassis. When a drive trips on a recurring overcurrent, DC bus overvoltage, or power section fault that cannot be resolved through parameter reset or external wiring inspection, the power board is typically the first internal component targeted for replacement. The 1336-PB-SP8C is a direct drop-in replacement for the original factory-installed board, maintaining full compatibility with the existing backplane connector layout, mounting standoff positions, and ribbon cable interfaces — eliminating the need for chassis modification or custom wiring adapters.

For retrofit planners, the 1336-PB-SP8C is also cross-referenced against related power board variants including the 1336-PB-SP14C, 1336-PB-SP19C, and 1336-PB-SP23A, which serve higher horsepower ratings within the same drive family. When upgrading a multi-drive control cabinet, it is common to encounter a mix of these variants across different motor circuits. Confirming the correct power board suffix against the drive nameplate horsepower and input voltage rating is essential before installation — a mismatch in power rating can result in immediate fault or long-term thermal stress on the replacement board.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 1336-PB-SP8C within an active production environment requires a structured pre-replacement audit of the surrounding control architecture. In most legacy installations, the 1336 PLUS II drive operates as part of a broader control cabinet that includes a 1336-MOD-HC2 communication adapter for DH+ or Remote I/O connectivity, a 1336-GM1 or 1336-GM6 operator interface module mounted on the drive door, and a 1321-3R line reactor on the input side for harmonic mitigation and transient protection.

Before removing the failed power board, technicians should document all parameter settings stored in the drive’s EEPROM using a 1336-QOUT-SP1 or compatible programming cable connected to the front port. Parameter loss during board swap is a common cause of extended downtime — particularly in applications where the drive controls a critical pump, compressor, or conveyor with custom acceleration ramps, PID setpoints, and fault response configurations. If the drive is no longer powering up, parameters should be retrieved from the site’s last commissioning backup or reconstructed from the original startup documentation.

For cabinets that also house a 1746-series SLC 500 controller or a 1785-series PLC-5 rack providing supervisory control over the drive via Remote I/O, the retrofit window should be coordinated with the PLC program owner to ensure that the drive’s node address and I/O mapping remain unchanged after the board replacement. Any unintended change to the drive’s communication configuration can cause the PLC to fault on an I/O module error, triggering a broader process shutdown beyond the drive itself.

In facilities where the 1336 PLUS II is being replaced as part of a broader migration to the PowerFlex 700 or PowerFlex 40 platform, the 1336-PB-SP8C serves as a bridge component — keeping the legacy drive operational during the phased cutover while new drives are configured, tested, and integrated into the control system. This approach avoids the risk of a simultaneous multi-drive cutover and allows engineering teams to validate the new drive parameters against actual process conditions before decommissioning the 1336 units.

Downtime Control During System Migration

Minimizing unplanned downtime during a 1336-PB-SP8C replacement requires pre-staging the replacement board at the facility before the maintenance window opens. Upon receipt, the board should be inspected for shipping damage, verified against the drive nameplate data, and stored in an ESD-safe environment. A pre-replacement checklist should confirm that the DC bus has fully discharged — typically requiring a minimum 5-minute wait after power removal, verified with a calibrated multimeter across the bus capacitors — before any internal components are handled.

During the swap, the original board’s ribbon cable routing, connector orientation, and standoff torque specifications should be replicated exactly. After installation, the drive should be powered up with the motor disconnected for an initial no-load test. The technician should verify that the drive reaches ready state without faulting, that the DC bus voltage reads within specification, and that the gate drive signals are present on the output terminals before reconnecting the motor leads.

For facilities operating continuous processes where even a brief shutdown carries significant production cost, a pre-tested spare board held in local inventory is the most effective downtime control strategy. The 1336-PB-SP8C is available from stock with a lead time of 1–3 business days, allowing facilities to maintain a single spare unit without committing to long-term inventory carrying costs. All units are function-tested prior to shipment and covered by a support terms confirmed by quotation against manufacturing defects and premature failure.

Retrofit Support FAQ

Q: Is the 1336-PB-SP8C a direct replacement for the original factory-installed power board in my 1336 PLUS II drive?
A: Yes. The 1336-PB-SP8C is a direct drop-in replacement compatible with the 1336 PLUS and 1336 PLUS II chassis. No chassis modification, custom wiring, or firmware update is required. Confirm the drive nameplate horsepower matches the SP8C rating before installation.

Q: Will I lose my drive parameters when I replace the power board?
A: Parameter memory in the 1336 PLUS II is stored in the drive’s main control board, not the power board. In most cases, parameters are retained through a power board swap. However, it is strongly recommended to back up all parameters before beginning any internal replacement procedure.

Q: Can this board be used in a drive that communicates via DeviceNet or DH+?
A: Yes. The power board replacement does not affect the drive’s communication adapter configuration. Existing 1336-MOD-HC2 or DeviceNet adapter modules remain in place and retain their node address and network settings through the power board swap.

Q: What does the support terms confirmed by quotation cover?
A: All 1336-PB-SP8C units are function-tested prior to shipment and covered by a support terms confirmed by quotation against manufacturing defects and premature component failure under normal operating conditions. Support terms support is handled directly — contact our team for RMA processing if a support terms claim is required.
