Allen-Bradley 1336-PB-SP2B Maintenance-Proven Spare Part

Overview

Allen-Bradley 1336-PB-SP2B Maintenance-Proven Spare Part for Factory Uptime

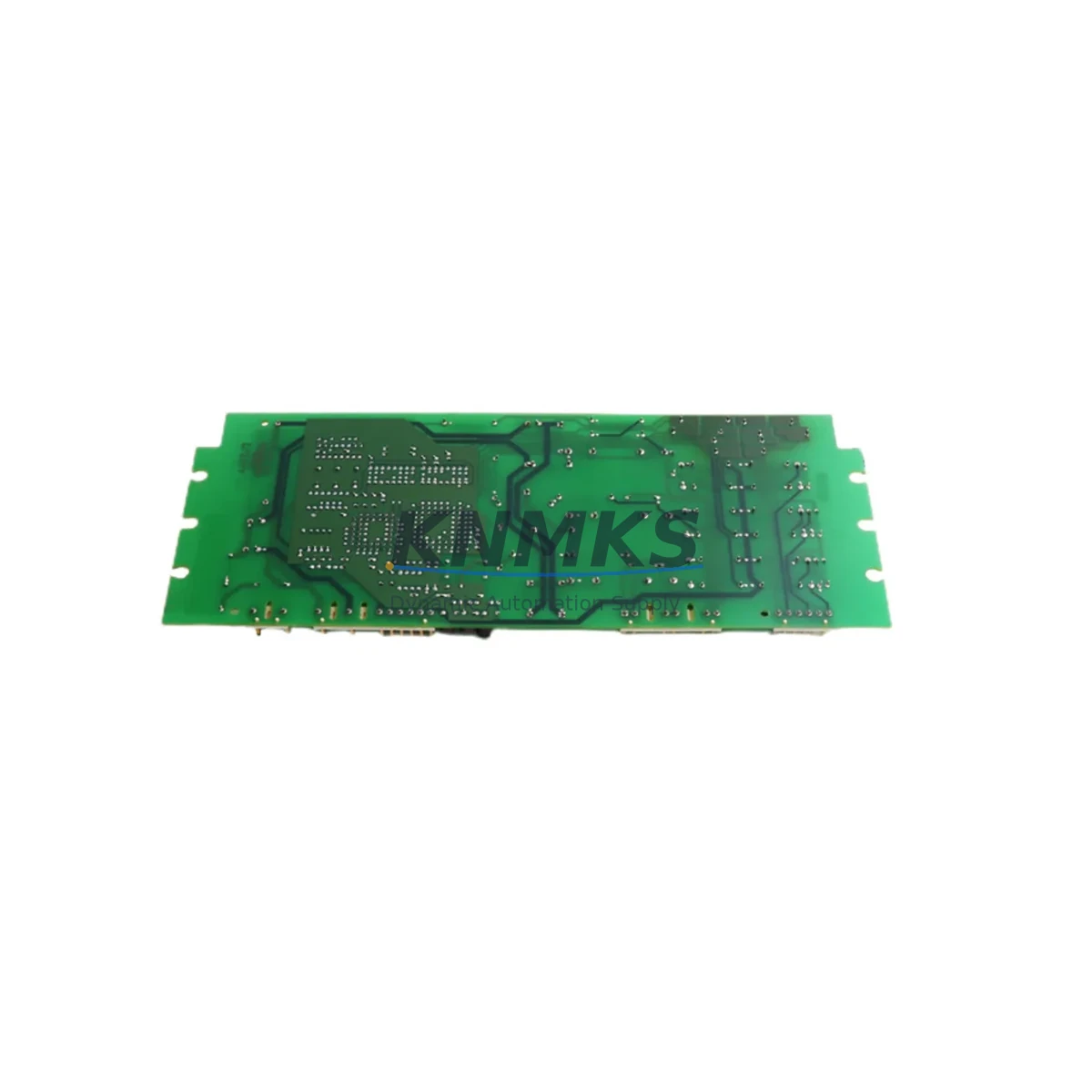

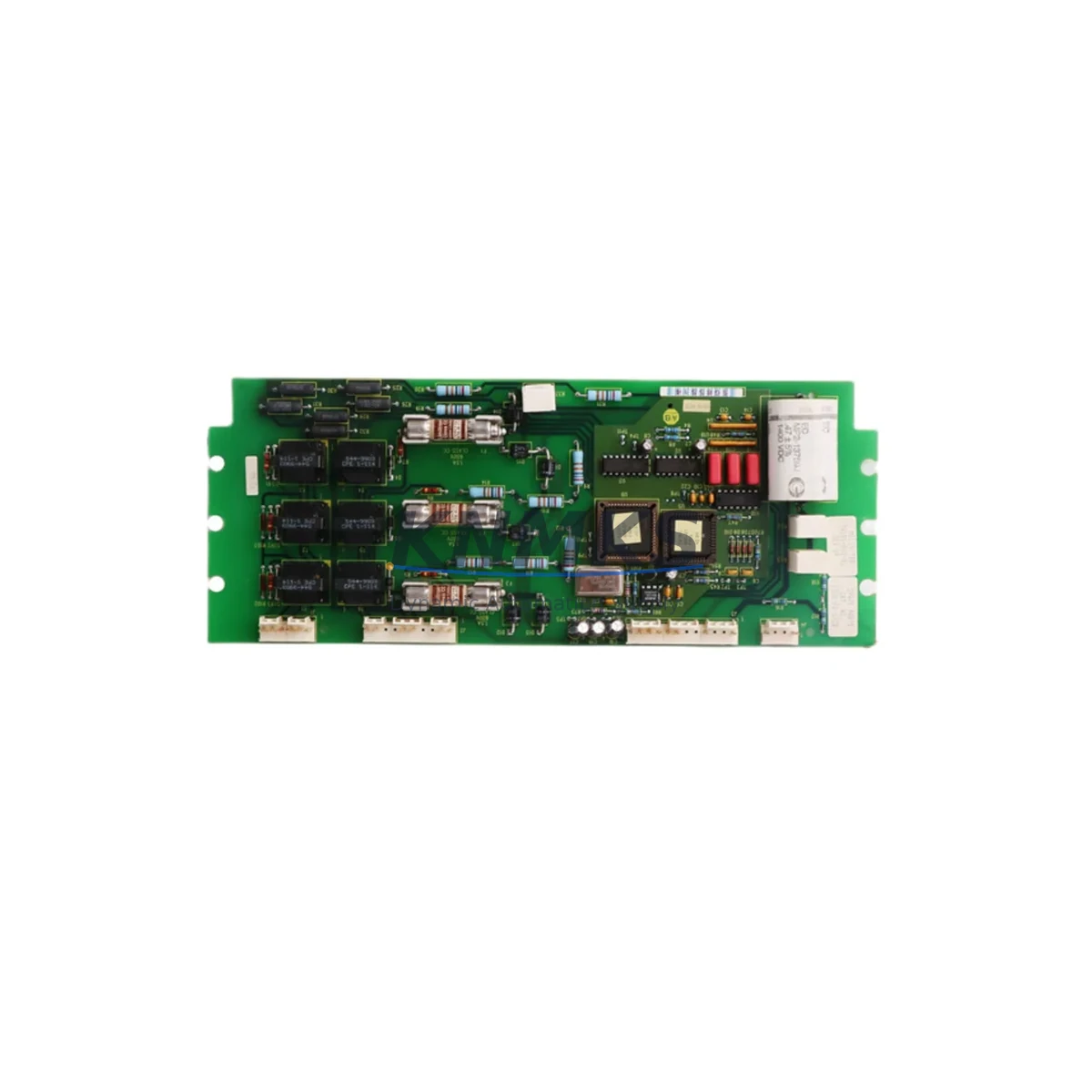

The Allen-Bradley 1336-PB-SP2B (74101-502-51) is the original precharge PC board designed for the 1336 PLUS II series AC variable frequency drives. As a critical protection component within the drive’s DC bus precharge circuit, this board governs the controlled ramp-up of bus voltage at startup — preventing inrush current damage to the drive’s power bridge, capacitor bank, and connected motor loads. For maintenance engineers managing aging 1336 PLUS II installations across manufacturing, water treatment, HVAC, and process automation environments, keeping a verified spare of the 1336-PB-SP2B on the shelf is a non-negotiable element of any serious uptime strategy.

KNMKS supplies this board as a genuine, factory-sourced spare part — not a remanufactured substitute. Each unit undergoes functional testing prior to dispatch, and is backed by a support terms confirmed by quotation covering defects in materials and workmanship. Our inventory is maintained to support both emergency same-day dispatch and long-term blanket purchase agreements for facilities managing multiple 1336 PLUS II drive frames.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The 1336-PB-SP2B does not operate in isolation. Within the 1336 PLUS II drive chassis, the precharge board interfaces directly with the main power board, the gate driver board, and the DC bus capacitor assembly. When a precharge fault is diagnosed — typically surfacing as a F002 or F005 fault code — experienced maintenance engineers know that the precharge board itself may not be the sole cause. A thorough site investigation should also include inspection of the 1336-BRF-SP1 bus fuse assembly and the 1336-MOD-SP1 main control board, both of which interact with the precharge circuit during startup sequencing.

For facilities running 1336 PLUS II drives in multi-drive control panels, it is equally important to verify the integrity of the 24VDC control power supply feeding the drive’s logic board — a sagging or noisy control supply can cause intermittent precharge faults that mimic board failure. Similarly, the 1336-GM-SP1 gate driver module should be inspected for signs of thermal stress if the drive has experienced repeated precharge trips, as repeated failed precharge cycles can stress the IGBT gate circuitry.

In systems where the 1336 PLUS II communicates over DeviceNet or Remote I/O, maintenance teams should also confirm that the 1336-GM-SP2 communication adapter and associated 1336-L11 or 1336-L13 option boards are seated correctly after any board swap — vibration during operation can loosen option board connectors and generate spurious faults post-repair. For annual shutdown inspections, pairing the precharge board replacement with a full inspection of the drive’s DC bus capacitors and fan assembly is strongly recommended to maximize the value of each planned outage window.

Site Replacement Workflow

Step 1 — Fault Confirmation: Retrieve the drive’s fault queue via the 1336 PLUS II HIM (Human Interface Module) or via RSLogix 5000 / DriveExplorer. Confirm that the fault is precharge-related (F002 Precharge Failure or equivalent) and not a symptom of upstream supply issues.

Step 2 — Safe Isolation: Isolate the drive from mains supply and allow a minimum of 5 minutes for DC bus capacitors to discharge. Verify bus voltage with a calibrated meter before opening the drive enclosure. Do not rely on the drive’s internal discharge resistor alone.

Step 3 — Board Removal: Document the existing board orientation and connector positions with photographs before disconnecting. The 1336-PB-SP2B is secured by standard M4 standoffs. Remove carefully to avoid stressing adjacent ribbon cables connected to the main power board.

Step 4 — Compatibility Verification: Confirm that the replacement 1336-PB-SP2B (74101-502-51) matches the revision level of the installed drive firmware where applicable. Cross-reference the drive’s nameplate series letter against Rockwell Automation’s spare parts compatibility matrix if the drive is a late-series 1336 PLUS II variant.

Step 5 — Installation and Test: Install the replacement board, reconnect all harnesses, and perform a no-load power-up test before reconnecting the motor load. Monitor the drive’s startup sequence for correct precharge completion and confirm that no fault codes are generated during the first three start cycles.

Step 6 — Documentation: Update the site’s maintenance log with the replacement date, part number, and serial number of the installed spare. Schedule the next precharge board inspection for 12 months or 8,000 operating hours, whichever comes first.

Spare Parts Support FAQ

Q1: Is the 1336-PB-SP2B compatible with all 1336 PLUS II drive frame sizes?
The 1336-PB-SP2B (74101-502-51) is designed for specific frame sizes within the 1336 PLUS II family. Compatibility depends on the drive’s horsepower rating and series revision. Please provide your drive’s full nameplate data — including catalog number, series letter, and firmware version — when placing your order so our technical team can confirm fitment before dispatch.

Q2: How does KNMKS verify the functional condition of spare boards before shipment?
Each 1336-PB-SP2B unit in our inventory is subjected to a pre-shipment functional test using drive-compatible test fixtures. We verify precharge circuit continuity, component integrity, and board-level power rail performance. Units that do not pass testing are quarantined and not offered for sale. All shipped units are covered by our support terms confirmed by quotation from the date of delivery.

Q3: Can this board be used to replace a failed precharge board in a drive that has been out of service for several years?
Yes. The 1336-PB-SP2B is a direct replacement for the original factory board and does not require firmware updates or parameter reconfiguration in most cases. However, if the drive has been stored without power for an extended period, we recommend a DC bus capacitor reformation procedure before returning the drive to full-load service, as capacitor degradation is common in long-idle drives regardless of the board condition.

Q4: Does KNMKS support long-term supply agreements for facilities managing multiple 1336 PLUS II drives?
Yes. We offer blanket purchase agreements and reserved inventory programs for industrial facilities, OEM integrators, and MRO distributors requiring guaranteed access to 1336 PLUS II spare parts over a 12–36 month horizon. Contact our sales team at admin@knmks.com to discuss volume pricing, lead time commitments, and consignment stocking options.
