Allen-Bradley 1336-MCB-SP1 Maintenance-Proven Spare Part

Overview

Allen-Bradley 1336-MCB-SP1 Maintenance-Proven Spare Part for Factory Uptime

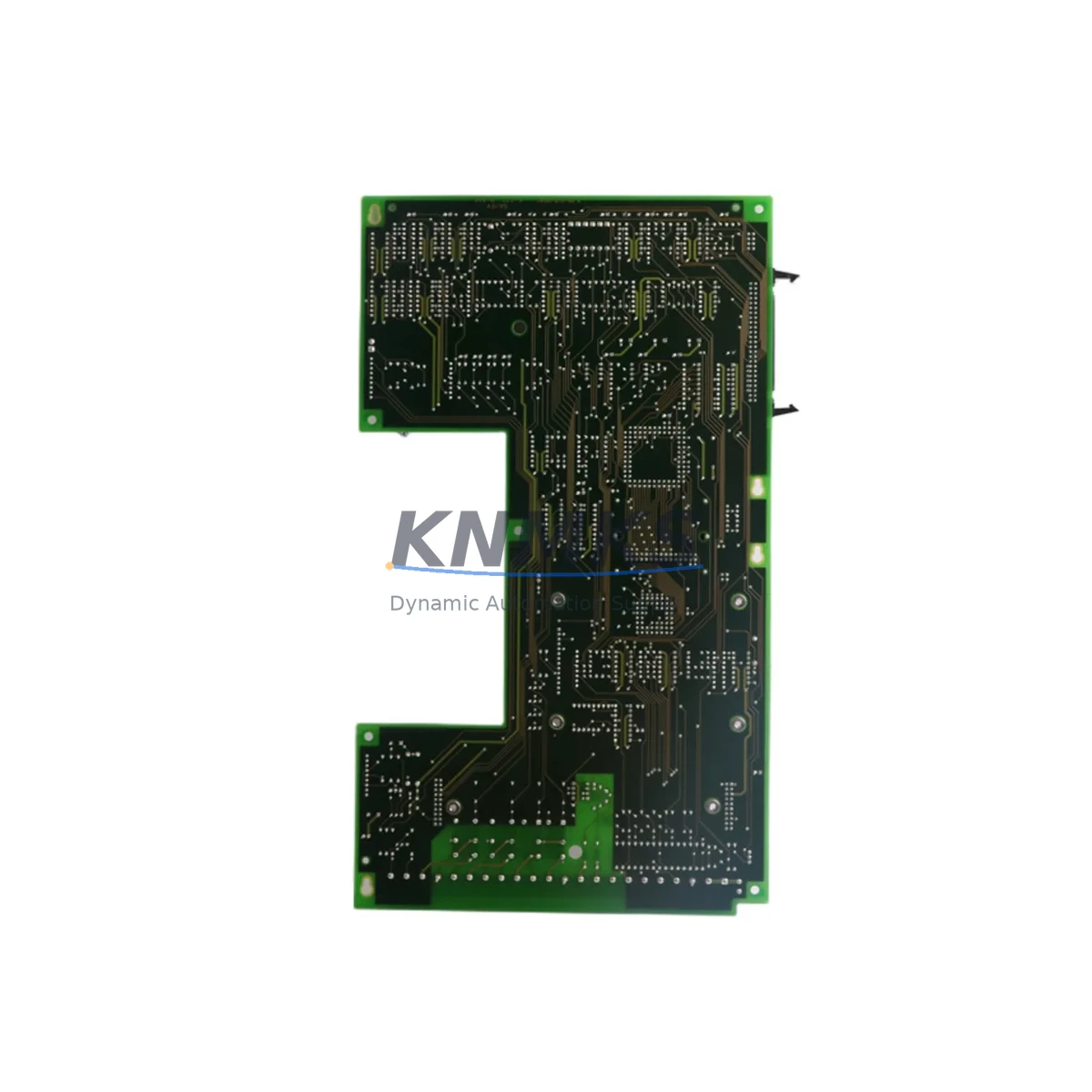

The Allen-Bradley 1336-MCB-SP1 (74100-071-51) is the original main control board designed for the 1336 PLUS series AC variable frequency drives. As a critical spare in industrial maintenance programs, this board governs core drive functions including speed regulation, fault diagnostics, and I/O signal processing. Keeping a verified spare on the shelf is the single most effective measure a maintenance team can take to minimize unplanned downtime on 1336 PLUS-equipped production lines.

For maintenance engineers managing aging drive infrastructure, the 1336-MCB-SP1 represents a direct, plug-compatible replacement that eliminates the need for drive-level reconfiguration. For procurement engineers, sourcing an original Allen-Bradley board — rather than a counterfeit or refurbished substitute — ensures traceability, support terms coverage, and long-term system reliability. Every unit shipped from KNMKS is individually tested prior to dispatch and backed by a support terms confirmed by quotation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1336 PLUS drive trips on a control board fault — typically surfacing as fault codes F2, F12, or persistent communication errors — the 1336-MCB-SP1 is the primary replacement target. However, experienced maintenance engineers know that a control board failure rarely occurs in isolation. A thorough site inspection should accompany any MCB swap.

Begin by verifying the 1336-BP power supply board, which feeds regulated DC voltage to the MCB. A degraded power supply can stress the control board and cause premature failure of a newly installed spare. Simultaneously, inspect the 1336-MOD-L2E or 1336-MOD-L3E communications adapter if the drive is integrated into a DeviceNet or DH-485 network — communication faults can be misdiagnosed as MCB failures.

Check the 1336-GM1 or 1336-GM2 gate driver board for signs of IGBT stress or thermal discoloration, as gate driver anomalies can back-feed noise into the control board logic. Inspect all terminal block wiring and I/O signal cables for loose connections, insulation breakdown, or ground loops — these are common root causes of intermittent MCB faults in high-vibration environments.

For drives in dusty or humid environments, examine the 1336-FAN cooling assembly and internal airflow paths. Overtemperature conditions accelerate component aging on the MCB. If the drive cabinet includes a 1492-series terminal block or relay output module, verify contact integrity and fuse condition on all output circuits. Finally, where the 1336 PLUS interfaces with an upstream PanelView HMI or SLC 500 / MicroLogix controller, confirm that the communication parameters and I/O mapping remain intact after the board replacement to avoid a secondary fault on system restart.

Stocking the 1336-MCB-SP1 as part of a structured spare parts inventory — alongside the power supply board and communications adapter — reduces mean time to repair (MTTR) from days to hours and protects production schedules against single-point-of-failure drive outages.

Site Replacement Workflow

1. Isolate and de-energize. Follow LOTO procedures. Confirm zero voltage on the DC bus before opening the drive enclosure.

2. Document existing configuration. Record all drive parameters using DriveExplorer or DriveExecutive software before removing the faulty board. The 1336-MCB-SP1 does not retain user parameters — they must be re-entered or downloaded after installation.

3. Remove the faulty MCB. Disconnect all ribbon cables, I/O connectors, and the communications adapter. Note cable routing for reassembly. Remove the board mounting screws and extract the board carefully.

4. Install the replacement 1336-MCB-SP1. Seat the board firmly, reconnect all cables in the documented sequence, and reinstall the communications adapter if applicable.

5. Restore parameters and test. Power up the drive, download the saved parameter file, and run a no-load test before reconnecting the motor. Verify fault history is clear and all I/O signals respond correctly.

6. Return to service. Document the replacement in the maintenance log with the new board serial number and support terms start date. Update the spare parts inventory to trigger reorder of a replacement spare.

This workflow is compatible with all 1336 PLUS frame sizes and eliminates the need for drive-level replacement, preserving existing wiring, conduit, and cabinet layout — a significant cost saving on legacy installations.

Spare Parts Support FAQ

Q1: Is the 1336-MCB-SP1 still available as a new original part?
A: The 1336 PLUS series has reached end-of-life status with Rockwell Automation, but original new and tested-serviceable 1336-MCB-SP1 boards remain available through specialist industrial spare parts suppliers. KNMKS maintains stock of original boards and can advise on long-term supply continuity for fleet maintenance programs.

Q2: How do I confirm compatibility before ordering?
A: Compatibility is confirmed by the drive series (1336 PLUS) and the board reference number (74100-071-51). If your drive nameplate shows a different 1336 variant (e.g., 1336 PLUS II or 1336 IMPACT), please contact our technical team at admin@knmks.com with the full drive catalog number before ordering.

Q3: What does the support terms confirmed by quotation cover?
A: The support terms covers functional failure under normal operating conditions from the date of shipment. Each board is tested prior to dispatch. In the event of a support terms claim, KNMKS provides a replacement board or documented resolution support. The support terms does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Q4: Can KNMKS support long-term supply for multi-site maintenance programs?
A: Yes. KNMKS specializes in long-term spare parts supply for legacy industrial automation systems. We can reserve stock, provide scheduled delivery, and issue certificates of conformance for quality-controlled procurement programs. Contact admin@knmks.com or call +86 18359268345 to discuss a supply agreement.
