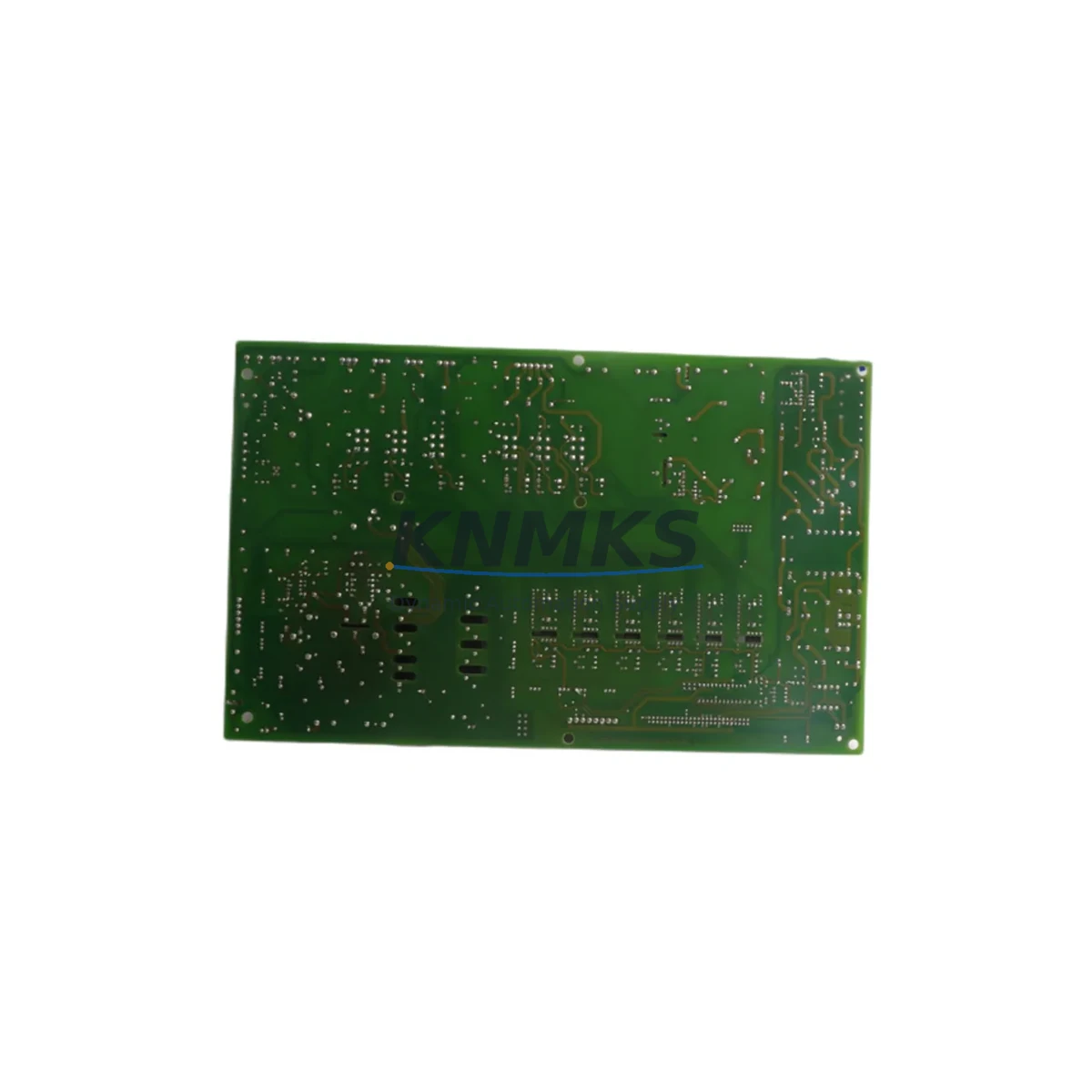

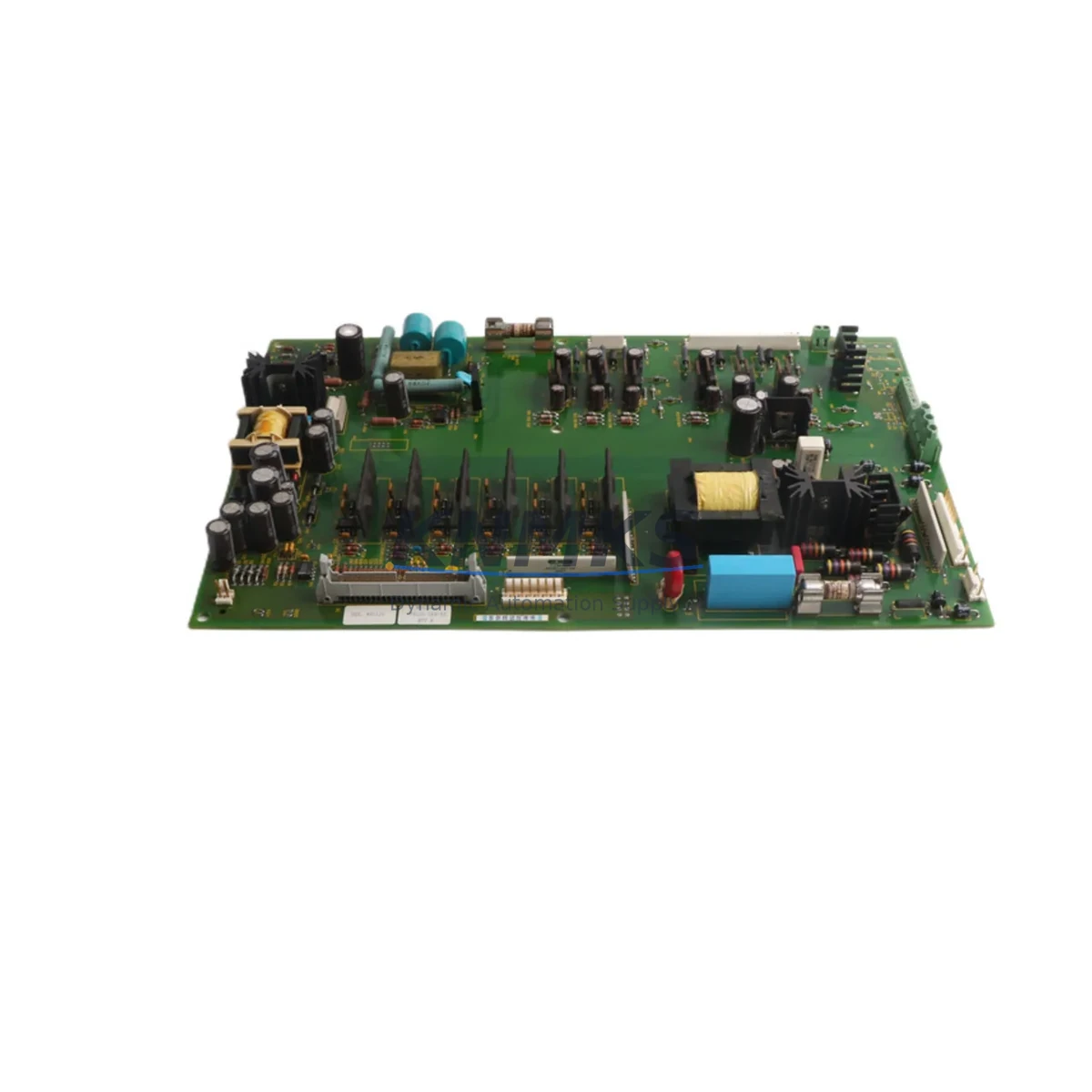

Allen-Bradley 1336-BDB-SP29D Fail-Safe AC Drive Board

Overview

Allen-Bradley 1336-BDB-SP29D Fail-Safe AC Drive Board: Fault-Protected Industrial Control Reliability

The Allen-Bradley 1336-BDB-SP29D (full part number: 1336-BDB-SP29D 74101-169-53) is a ruggedized AC drive control board engineered for the 1336 PLUS series variable frequency drive (VFD) platform. Designed to sustain continuous, uninterrupted motor control in the most demanding industrial environments, this board delivers fail-safe performance where control interruption is not an option. Whether deployed in high-EMI switchgear rooms, dusty mineral processing facilities, humid coastal installations, or high-vibration heavy machinery cabinets, the 1336-BDB-SP29D maintains signal integrity and drive stability under conditions that would compromise lesser components.

In critical production lines — petrochemical pump stations, power plant auxiliary drives, mine hoist systems, water treatment blower controls, and port crane hoisting circuits — a failed drive board can cascade into unplanned downtime, process safety incidents, and costly emergency maintenance. The 1336-BDB-SP29D is purpose-built to eliminate that risk. Its onboard gate drive circuitry, feedback signal conditioning, and fault detection logic work in concert to suppress nuisance trips caused by voltage transients, ground faults, and EMI-induced signal drift. The result is a drive that stays online when the process demands it most.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable drive board is only as effective as the protection ecosystem surrounding it. In a well-engineered 1336 PLUS control cabinet, the 1336-BDB-SP29D operates alongside complementary components that collectively eliminate the most common failure vectors in industrial motor control. Upstream, a properly rated Allen-Bradley 1336-MOD-C2 power interface module conditions incoming three-phase supply, attenuating voltage sags and harmonic distortion before they reach the drive’s DC bus. Surge protection devices — such as those in the Allen-Bradley 1492-SPM series — clamp transient overvoltages at the cabinet entry point, preventing surge energy from propagating to sensitive gate drive circuitry on the 1336-BDB-SP29D.

On the communications side, the Allen-Bradley 1336-GM-1 Remote I/O adapter maintains deterministic PLC-to-drive communication even in high-noise environments, ensuring that speed references and run/stop commands from a ControlLogix or SLC 500 controller are received without corruption. For installations where the drive feeds critical safety interlocks, pairing the 1336-BDB-SP29D with a Allen-Bradley 440R GuardMaster safety relay in the motor contactor circuit provides a certified hardwired safety layer independent of the drive’s own fault logic. Additionally, cabinet thermal management — achieved through properly sized 1336-FAN replacement cooling assemblies — prevents the board’s power semiconductors from operating above their rated junction temperatures, directly extending mean time between failures in high-ambient installations.

This layered protection strategy — surge clamping, clean power conditioning, deterministic communications, hardwired safety interlocks, and active thermal management — transforms the 1336-BDB-SP29D from a single component into the centerpiece of a fault-tolerant drive system capable of sustaining continuous operation across multi-year production campaigns.

Critical Industrial Safety Applications

Petrochemical & Refinery: In hydrocarbon processing plants, the 1336-BDB-SP29D controls cooling water pumps, compressor auxiliaries, and boiler feed drives where an unplanned stop triggers emergency shutdown procedures. Its fault-tolerant gate drive logic prevents spurious trips caused by ground leakage currents common in wet process areas.

Power Generation: Auxiliary drive systems in thermal and hydroelectric power stations — including induced draft fans, circulating water pumps, and coal conveyor drives — rely on the 1336 PLUS platform for speed-regulated, energy-efficient operation. The 1336-BDB-SP29D’s robust overcurrent protection prevents drive damage during motor starting transients in high-inertia load applications.

Mining & Mineral Processing: Underground conveyor drives, crusher motor controls, and ventilation fan systems in mining operations demand components that withstand coal dust, silica particulate, and mechanical vibration. The 1336-BDB-SP29D’s conformal-coated board construction resists contamination-induced tracking faults that cause premature failures in unprotected boards.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operate blower drives, pump stations, and mixer controls continuously. The 1336-BDB-SP29D supports 24/7 operation with its thermal fault detection preventing overtemperature damage during peak summer loading when ambient cabinet temperatures rise.

Metallurgy & Steel: Rolling mill auxiliary drives, furnace atmosphere fan controls, and ladle transfer car drives in steel plants subject drive components to intense electromagnetic interference from arc furnaces and induction heaters. The 1336-BDB-SP29D’s EMI-hardened signal paths maintain control stability in these high-interference environments.

Port & Marine: Container crane hoist drives, ship-to-shore conveyor controls, and vessel auxiliary systems require drive boards that perform reliably in salt-laden, high-humidity coastal environments. The 1336-BDB-SP29D’s corrosion-resistant construction supports long-term reliability in marine-adjacent installations.

Safety and Quality FAQ

Q: What does the support terms confirmed by quotation cover?
A: The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the 1336-BDB-SP29D fails to perform its specified drive control functions within the confirmed support period, KNMKS will provide a replacement or repair at no additional cost. Support requests are supported by our technical team at admin@knmks.com.

Q: What pre-shipment testing is performed on the 1336-BDB-SP29D?
A: Every unit undergoes full functional verification prior to shipment, including gate drive signal output testing, fault detection circuit validation, and power supply rail checks. This ensures that the board arrives ready for installation without requiring additional bench testing on your end.

Q: Is this board a direct drop-in replacement for the original Allen-Bradley 1336-BDB-SP29D?
A: Yes. This board is a direct OEM-equivalent replacement for the Allen-Bradley 1336 PLUS series drive. It matches the original connector layout, mounting footprint, and firmware interface, allowing installation without drive reconfiguration in most applications. For specific firmware revision compatibility questions, contact our technical team before ordering.

Q: Can long-term supply be guaranteed for ongoing maintenance programs?
A: KNMKS maintains dedicated inventory of 1336 PLUS series spare boards to support planned maintenance programs, emergency replacements, and multi-unit site contracts. We provide lead-time commitments and can arrange consignment stock arrangements for high-volume customers managing large installed bases of 1336 PLUS drives.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1336-BDB-SP29D 74101-169-53

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 1336-BDB-SP29D 74101-169-53
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
